Product name - Square Thermostatic Shower Set
Please note: Image is for illustrative purposes only and may differ
slightly to the actual product.
• Single-person assembly
• We always recommend using professional
tradespeople to install your product
Congratulations on your purchase
And welcome to our growing gang of savvy shoppers
We're on a mission to bring you extraordinary bathroom products, for less. From
modern to traditional style ceramics, plus the gorgeous fixtures, fittings and
furniture to match. So, you can fall in love with your space every single day.
As one of the UK's largest independent bathroom stores, we've received countless
awards; including the National Business Awards UK, the Digital Entrepreneur
Awards and being placed on The Sunday Times Fast Track 100.
We hope your new product exceeds your highest expectations. However, if you
experience any problems, please:
•
call our friendly UK call centre on 03303903062 (9am-7pm Monday to Friday,
or 10am-4pm Saturday and Sunday), or
•
send us a message via customerservices@buyitdirect.co.uk
Important information
•
Please read these instructions thoroughly and retain for future reference
Water pressures must be balanced.Alwaysensure to flush the system prior to
installation.
Maximum Static Pressure:10 Bar
Flow Pressure, Hot & Cold:1-5 Bar
Hot Supply Temperature:55-65°C
Cold Supply Temperature:5-25°C

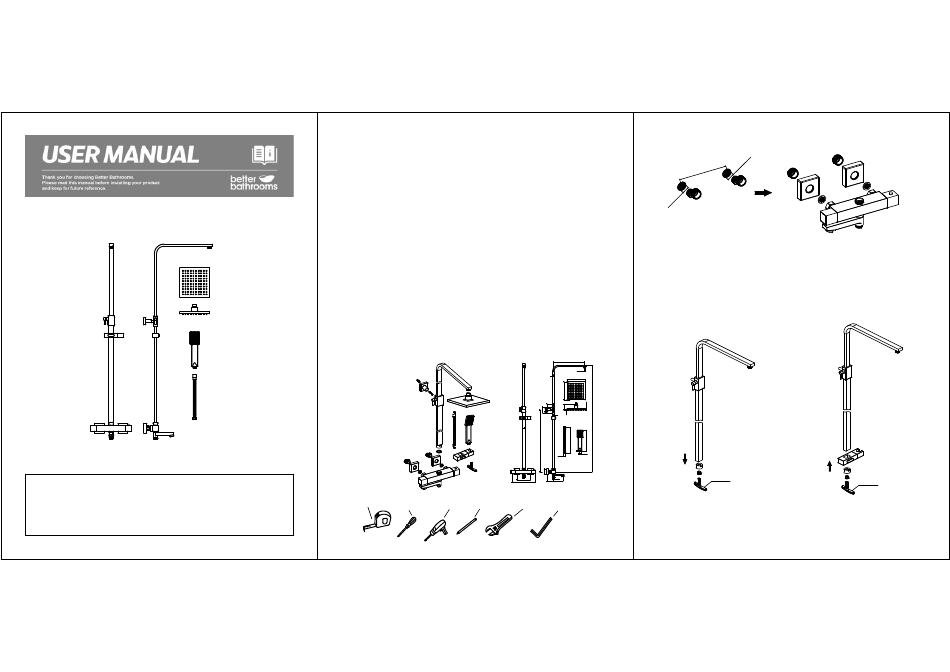

Parts/ Diagrams
Tools required
•
Protective cloth
Tape
V1_25.06.2024
1
３４５
２６
Ｇ１／２＂
１４
１９０
Ｇ１／２＂
７３－９３
４０
１８
Ｇ１／２＂
３０
Ｇ１／２＂
Ｇ１／２＂
Ｇ１／２＂
１５０
７５
１２０
２６３
Screw Driver
Pen
Adjustable Spanner
Electric Drill
Allen Key
Installation
1
2
The valve should be installed in accordance with the water bye-laws. For further
details refer to the latest copy of Water Bye-laws guide or your local water
authority.
1.Fit off-set connectors to the water inlets in the wall,then screw the concealing
covers onto the off-set connectors until they come into contact with the wall .Seal
with an appropriate sealant.
2.Fix the connector of shower valve to the off-set connectors with spanner.
Please use a cotton sheet inside of spanner in case of any scratches. Make sure
hot inlet on the left and cold inlet on right ,otherwise it will affect the performance.
ALLEN KEY
3.Screw off the connector using Allen key.
4.Put the adjustable holder onto the rail silder.
ALLEN KEY(10mm)
Screw on the connector back to the rail silder.
ALLEN KEY(10mm)
2
ALLEN KEY
3
