INSTALLATION MANUAL
Non-Illuminated Bathroom Mirror and Furniture
Thank you for choosing a Better Bathrooms Product
Please read this user manual before installing and using this product
Keep it safe for future reference.
Visit our page www.betterbathrooms.com/for our entire range of Mirrors
and Furniture
20200317
Advertisement
Table of Contents
Related Manuals for Better Bathrooms 24975
Summary of Contents for Better Bathrooms 24975

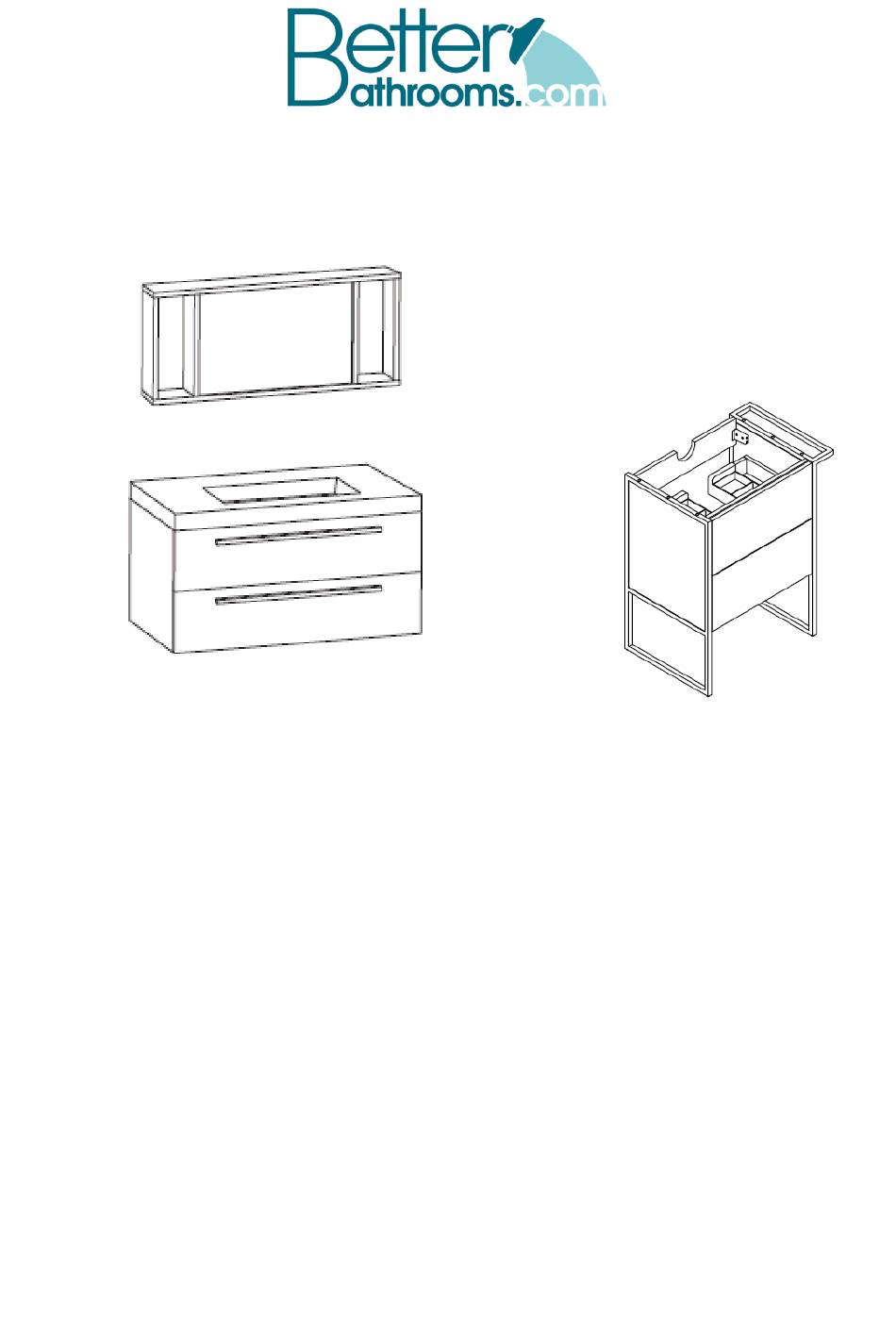

- Page 1 INSTALLATION MANUAL Non-Illuminated Bathroom Mirror and Furniture Thank you for choosing a Better Bathrooms Product Please read this user manual before installing and using this product Keep it safe for future reference. Visit our page www.betterbathrooms.com/for our entire range of Mirrors...
-
Page 2: Installation Tools
INSTALLATION TOOLS Spirit Level 20200317... -
Page 3: Parts List
Des cri ption Des cri ption Des cri ption Des cri ption Des cri ption Des cri ption Des cri ption 24975 Round door Round Shel l Door Shel l Ha ndl e 24976 Wa l l Screw Wa l l Pl ug... -
Page 4: Mirror Installation
INSTALLATION – Check the product for damage prior to installation Before any drilling is carried out, please check for pipes and wires within the wall which could be damaged. MIRROR INSTALLATION Fitted to the rear of the unit are x 2 fixing brackets, measure the distance between the two brackets and mark this distance on the wall, ensuring this horizontally aligned, using a spirit level. - Page 5 MIRROR INSTALLATION After the position of the brackets is marked, drill the holes in the wall, using an 8mm drill bit (not supplied), to a depth of approx 40mm. Insert the wall plugs and tap flush with the wall surface. 20200317...
- Page 6 MIRROR INSTALLATION Hold the bracket up to the wall over the drilled holes and secure using the screws provided. Ensure the brackets on the rear of the unit are fully tightened. Lift the product on the wall mounted brackets to engage both sections of the brackets. Once installed a bead of silicone can be applied around the edges of the unit if required.
-
Page 7: Cabinet Installation
CABINET INSTALLATION Fitted to the rear of the unit are x 2 fixing brackets, measure the distance between the two brackets and mark this distance on the wall, ensuring this horizontally aligned, using a spirit level. We recommend a height for the brackets of 27.5” (698mm) from the floor, but this is customer choice. - Page 8 CABINET INSTALLATION After the position of the brackets is marked, drill the holes in the wall, using an 8mm drill bit (not supplied), to a depth of approx 40mm. Insert the wall plugs and tap flush with the wall surface and secure the wall brackets into place.
- Page 9 CABINET INSTALLATION Check the brackets fitted to the unit are fully tightened. Lift the unit onto wall fitted brackets. If any adjustment forward or backward / up or down is required this is possible via the fitted adjusters on the inside of the unit. 20200317...
- Page 10 CABINET INSTALLATION After any adjustment of the unit has been made the basin can be fitted to the unit, by applying a bead of silicone between the unit and basin to provide a seal and fixing for the basin to the unit. Also run a bead of silicone along the back edge of the base where it meets the wall.
-
Page 11: Door Handle Installation
DOOR HANDLE INSTALLATION The doors which are to be fitted with handles, either the round or shell type are provided with pilot holes which should be drilled to allow fitting of the handle screw through the door and into the handle. Drill the holes, then place the screw through the unit from inside the door, connect this to the handle and tighten 20200317... - Page 12 FRAMED FURNITURE ASSEMBLY Place the frame onto the unit and screw the frame to the unit through the holes in the frame, ensuring this is aligned with the unit edge. Ensure this is fully secured before use 20200317...
- Page 13 WC UNIT INSTALLATION Drill into the wall through the rear plinth of the WC unit. Fit the wall plug Place the screw through the washers and secure to the wall. Fit brass screw cap to brass washer 20200317...
-
Page 14: Cleaning And Maintenance
WC UNIT INSTALLATION CLEANING AND MAINTENANCE Wipe the product clean and dry regularly, especially when the product is subject to steam or splashes. Do not use harsh chemicals or materials on the product, as this will damage the product and invalidate your guarantee. To clean and maintain the product, wipe using a clean damp cloth and wipe dry with a soft cloth.
