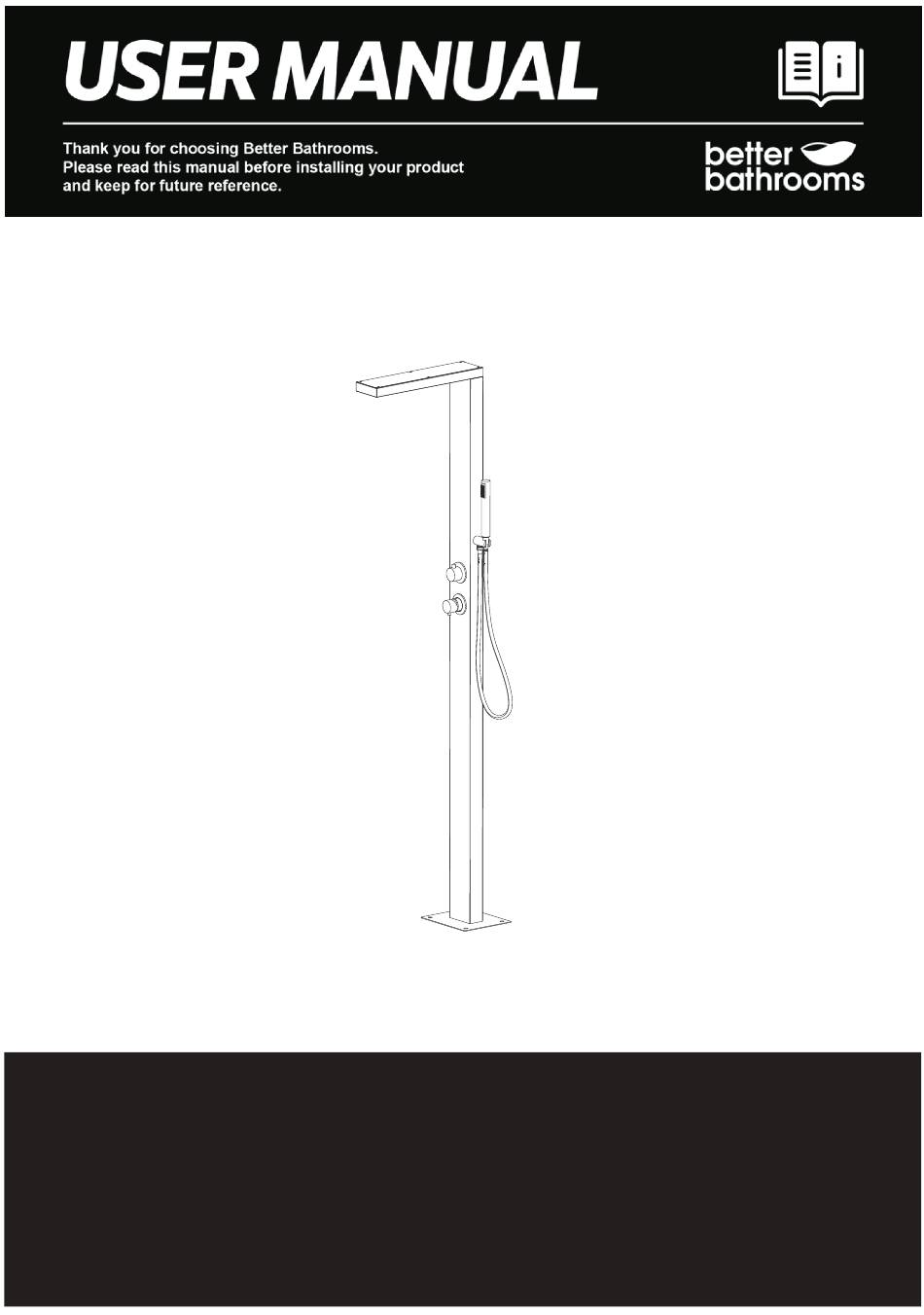

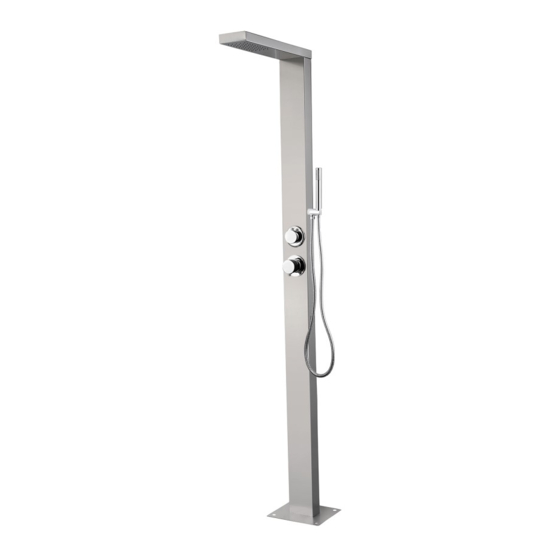

Outdoor shower Tower Brushed Steel
BeBa_28530
Please note: Image is for illustrative purposes only and may differ slightly to the
actual product
·Multi person assembly
·Tools required
·We always recommend using professional
·tradespeople to install your product
Congratulations on your purchase
V1_08.04.22
Advertisement
Related Manuals for Better Bathrooms BeBa 28530
Summary of Contents for Better Bathrooms BeBa 28530
- Page 1 Outdoor shower Tower Brushed Steel BeBa_28530 Please note: Image is for illustrative purposes only and may differ slightly to the actual product ·Multi person assembly ·Tools required ·We always recommend using professional ·tradespeople to install your product V1_08.04.22 Congratulations on your purchase...
- Page 2 Congratulations on your purchase And welcome to our growing gang of savvy shoppers We're on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day .
-
Page 3: Table Of Contents
Contents Parts / Diagrams--------------------------------------------------4 · Tools required ----------------------------------------------------5 · Installation --------------------------------------------------------5 · Using--------------------------------------------------------------10 · Troubleshooting ------------------------------------------------10 · Cleaning ----------------------------------------------------------11 ·... -
Page 4: Parts / Diagrams
Parts / Diagrams 1. Screws of overhead shower x 6 2. Overhead shower top cover 3. Overhead shower 4. Main body 5. Diverter plate 6. Nut 7. Diverter handle 8. Mixer plate 9. Mixer handle 10. Handshower 11. Handshower holder 12. -
Page 5: Tools Required
Tools required Spanner Silicone Drill and drill bit Spirit Level Pencil Tape Measure Hammer Screwdriver Socket Installation Use the screwdriver to unscrew the screws at the back of shower tower body and take out the back cover. - Page 6 Use the screwdriver to unscrew the screws at the back of shower tower body and take out the back cover 1 and back cover 2. Use the screwdriver to unscrew the screws on overhead shower and take out the top cover. Fix the overhead shower onto shower tower body and tighten with the screws at one end by screwdriver.
- Page 7 Put the base on the ground and use the pencil to mark the position. Use the drill to drill the hole on the ground. Insert the plugs into the hole with hammer. Put the shower tower onto the base. Tighten the nuts by socket. 14mm ∅...
- Page 8 Connect the water-in hoses to the water supply and tighten with spanner. Insert the handshower holder into the hole on the body. Put the white gasket at inner side of the holder , fix the nut to the holder onto the body. Use the spanner to tighten.
- Page 9 Fit the seal into the nut end of the shower hose and connect the nut to the outlet on the hand shower holder and tighten, if using a spanner, place a cloth around the nut to prevent damage. Place the second seal into the cone end of the shower hose and connect this to the hand shower and tighten.
-
Page 10: Using
Using To control the temperature, turn the temperature control handle until the desired temperature is reached. To avoid freezing in winter, it's suggested to keep the shower tower in door. For the least, unscrew the water supply pipe and turn on the mixer, let the water inside the pipe flow out. -
Page 11: Cleaning
Cleaning To maintain the surface of your product, wipe with a clean damp cloth and wipe dry , do not use any abrasive cleaning agents or materials . It is recommended to wipe and dry on a regular basis.
