Ameriwood HOME 5987296COMS Instruction Booklet

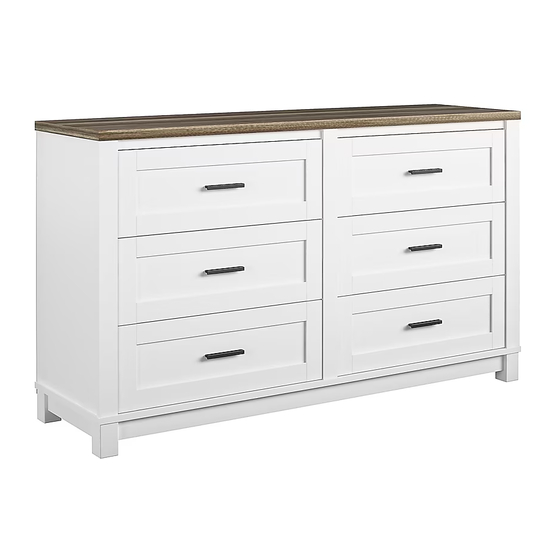

6 drawer dresser
Hide thumbs

Advertisement

Quick Links

Download this manual
5987296COMS
6 Drawer Dresser
Date of Purchase ___ / ___ / ___
Lot Number:
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Visit: www.ameriwoodhome.com
WARNING
WARNING
Easy
Assembly Difficulty Meter
5987296COMS
Tough

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5987296COMS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ameriwood HOME 5987296COMS

Summary of Contents for Ameriwood HOME 5987296COMS

  • Page 1 5987296COMS 6 Drawer Dresser 5987296COMS Date of Purchase ___ / ___ / ___ Lot Number: Do Not Return This Product! Contact our customer service team for help first. Call: 1-800-489-3351 (toll free) Visit: www.ameriwoodhome.com Easy Tough Assembly Difficulty Meter WARNING...
  • Page 2 Contact Us! Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 2 ESTIMATED ASSEMBLY TIME: 1.5 HOURS ameriwoodhome.com...
  • Page 3 Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.
  • Page 4 Board Identification Not Actual Size 5987296 5987296 5987296 010NHH 021NHH 031NHH TOP PANEL LEFT SIDE PANEL RIGHT SIDE PANEL 5987296 5987296 5987296 041NHH 050NHH 061NHH BOTTOM PANEL TOP MOLDING LEFT DRAWER SIDE 5987296 5987296 5987296 071NHH 080NHH 090NHH RIGHT DRAWER SIDE DRAWER FRONT DRAWER BACK ameriwoodhome.com...
  • Page 5 Board Identification Not Actual Size 5987296 5987296 5987296 100NHH 111NHH 120NHH DRAWER BOTTOM SIDE RAIL 5987296 5987296 5987296 130NHH 140NHH 151NHH FRONT RAIL DRAWER SUPPORT BACK PANEL 5987296 5987296 5987296 5987296 160NHH 181NHH 191NHH 170NHH BACK RAIL CENTER LEG CENTER RAIL PARTITION ameriwoodhome.com...
  • Page 6 Board Identification Not Actual Size ameriwoodhome.com...
  • Page 7 Hardware Bag Reference Number: 25987296S 0NHH Part List 25987296S For any replacement hardware, order part # 0NHH Not Actual Size Ø6X32 mm Ø15X10 mm Ø8X25 mm × 54 × 54 × 36 CAM BOLT CAM LOCK WOOD DOWEL TNHH0001 TNHH0002 TNHH0005 Ø3.5X14 mm M4X40 mm...
  • Page 8 Part List 25987296S For any replacement hardware, order part # 0NHH Not Actual Size × 1 ANTI TIPPING KIT TNHH0014 ameriwoodhome.com...
  • Page 9 STEP 1 Ø6X32 mm × 52 × 1 1.1 Attach (1) to (A), (H), (L), (Q) & (I) as illustrated. Do NOT over tighten. 1.2 Attach L-bracket (10) to (A) with short screw as illustrated. Do NOT fully tighten the short screw in (10) at this step.
  • Page 10 STEP 2 Ø6X32 mm Ø8X25 mm × 2 × 24 2.1 Attach (3) to (M), (P), (K), (N) & (R) as illustrated 2.2 Attach (1) to (M) & (P) as illustrated. Do NOT over tighten. N x6 R x2 K x2 ameriwoodhome.com...
  • Page 11 STEP 3 Ø8X25 mm × 12 3.1 Attach (3) to (B), (C) & (S) as illustrated ameriwoodhome.com...
  • Page 12 STEP 4 Ø15X10 mm × 12 Proper orientation of CAM LOCK 4.1 Attach (Q) to (R) with (2) as illustrated. 4.2 Attach (R) to (P) & (M) with (2) as illustrated. 4.3 Attach (L) to (K), (M) & (P) with (2) as illustrated. ameriwoodhome.com...
  • Page 13 STEP 5 M4X40 mm × 5 5.1 Attach sample from Step 4 to (D) with (6) as illustrated. ameriwoodhome.com...
  • Page 14 STEP 6 Ø3.5X14 mm × 8 × 4 6.1 Attach (8) to (D), (P) & (M) with (5) as illustrated. ameriwoodhome.com...
  • Page 15 STEP 7 M4X40 mm × 6 7.1 Attach (E) to (A) with (6) as illustrated. ameriwoodhome.com...
  • Page 16 STEP 8 M4X40 mm × 6 8.1 Attach sample from Step 6 to (B), (C) & (S) with (6) as illustrated. ameriwoodhome.com...
  • Page 17 STEP 9 Ø15X10 mm × 6 Proper orientation of CAM LOCK 9.1 Attach sample from step 7 to (B), (S) & (C) with (2) as illustrated. ameriwoodhome.com...
  • Page 18 STEP 10 × 25 10.1 Attach (O) to sample from Step 9 with (4) straight into the raw edges as illustrated. CAUTION: • Befor installation, ensure that the unit is square. • Distance from corner to corner must be equal as shown. ameriwoodhome.com...
  • Page 19 STEP 11 Ø15X10 mm × 30 Proper orientation of CAM LOCK 11.1 Attach (F), (G) & (N) to (H) with (2) as illustrated. 11.2 Slip (J) into to the groove of (F), (G) & (H) as illustrated. ameriwoodhome.com...
  • Page 20 STEP 12 Ø15X10 mm × 6 Proper orientation of CAM LOCK M4X40 mm M4X16 mm × 24 × 12 × 6 12.1 Attach (I) to (G), (F) with (6) as illustrated. 12.2 Attach (I) to (N) with (2) as illustrated. 12.3 Attach (9) to (H) with (7) as illustrated.
  • Page 21 STEP 13 × 1 IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT. hole WARNING Children have died from furniture stud tip over. To reduce the risk of furniture tip over: * ALWAYS install the anti-tip device provided.
  • Page 22 STEP 14 14.1 Make sure the interlock link is pushed all the way down before inserting the drawer. 14.2 Then insert drawers as illustrated. Cautions: At each side, the interlock system will allow only one drawer to open at a time. For safety reason, make sure the interlock function is satisfied after inserted all drawers.
  • Page 23 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 75 lbs./ 10 lbs./ 34 kg 4.5 kg Each drawers 10 lbs./ 4.5 kg Each drawers Warning: Risk of injury to persons - do not place a television on this furniture.
  • Page 24 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com...
