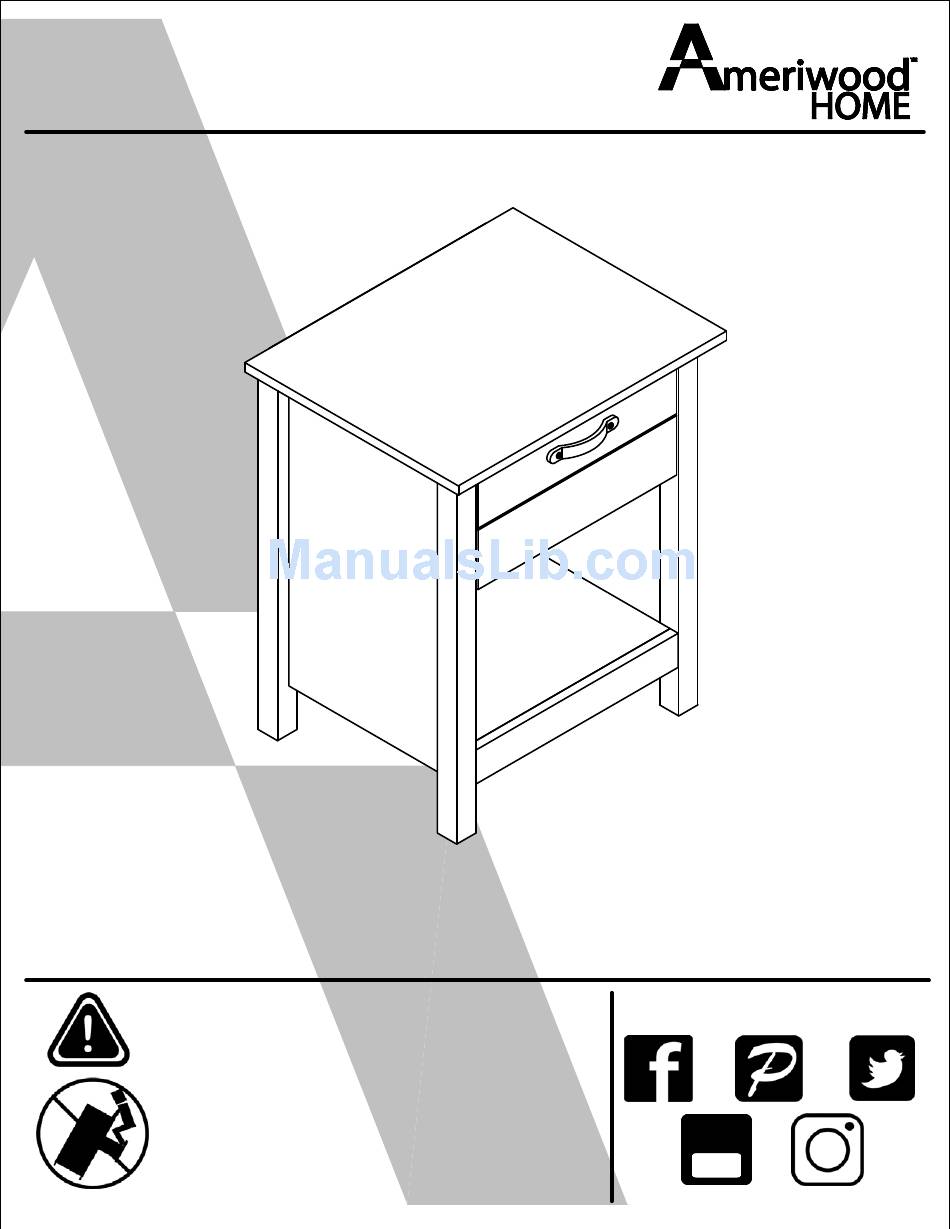

River Layne Nightstand
Keep this Assembly Manual for future reference
WARNING
Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall
- Do Not allow children to climb on unit
- Put heavy items on lower shelves or drawers
- Two people required for assembly
B345894325COM00
ameriwoodhome.com
Follow Ameriwood Home
You
Tube
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ameriwood HOME 5894325COM
Summary of Contents for Ameriwood HOME 5894325COM
- Page 1 B345894325COM00 ameriwoodhome.com Keep this Assembly Manual for future reference WARNING Follow Ameriwood Home Unit can tip over causing severe injury or death. - Anchor unit to stud in wall - Do Not allow children to climb on unit - Put heavy items on lower shelves or drawers...
- Page 2 Warning Do NOT return this product! Contact our friendly customer service team first for help. Call us! Assembly Tips 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com Helpful Hints - Open your item in the area you plan to keep it for less heavy lifting - Identify, sort and count the parts before attempting assembly - Compression dowels are tapped in with a hammer - Slides are labeled with a R (right) and L (left) for proper placement...
- Page 3 5894325COM River Layne Nightstand Board Identification Not actual size Side Panel Left Front Left Profile Side Panel Right Front Right Profile Back Right Profile Back Left Profile T5894325010 T5894325020 T5894325040 T5894325050 T5894325060 T5894325030 Drawer Side Left Top Panel Bottom Panel...
- Page 4 5894325COM River Layne Nightstand Part List Actual Size Ø8x30mm 4 x9 3 x2 1 x20 2 x18 Wood Dowel Cam (9/12) Minifix Bolt Cam (13/15) TPB0004 TPB0003 TPB0001 TPB0002 Ø6x9mm Ø3.5x15mm Ø6x30mm Ø4.7x38mm 6 x4 7 x8 8 x4 5 x6...
- Page 5 5894325COM River Layne Nightstand Part List Not Actual Size (350mm) (350mm) (2mm) 11 x1set 12 x1set 13 x2 Drawer Slide (350mm) Drawer Slide (350mm) Metal L-Bracket TPB0011 TPB0012 TPB0013 16 x1 23 x1 15 x1 Glue Handle Allen Key TPB0016...
- Page 6 5894325COM River Layne Nightstand Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, Phillips Head...
- Page 7 5894325COM River Layne Nightstand Step 1 Ø8x30 4 x9 TPB0004 Glue Pegamento Colle * Raw edges are shaded ameriwoodhome.com Tube...
- Page 8 5894325COM River Layne Nightstand Step 2 Ø6x30 5 x6 TPB0005 Glue Pegamento Colle * Raw edges are shaded ameriwoodhome.com Tube...
- Page 9 5894325COM River Layne Nightstand Step 3 1 x20 TPB0001 Do not over tighten No lo presione tanto ne pas serrer excesslvement * Raw edges are shaded ameriwoodhome.com Tube...
- Page 10 5894325COM River Layne Nightstand Step 4 17 x1 TPB0017 Do not fully tighten screw. * Raw edges are shaded ameriwoodhome.com Tube...
- Page 11 5894325COM River Layne Nightstand Step 5 2 x8 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 12 5894325COM River Layne Nightstand Step 6 6 x4 TPB0006 TPB0011 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 13 5894325COM River Layne Nightstand Step 7 2 x2 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 14 5894325COM River Layne Nightstand Step 8 7 x4 13 x2 TPB0007 TPB0013 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 15 5894325COM River Layne Nightstand Step 9 2 x2 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 16 5894325COM River Layne Nightstand Step 10 2 x2 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 17 5894325COM River Layne Nightstand Step 11 2 x4 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 18 5894325COM River Layne Nightstand Step 12 10 x20 TPB0010 Before attaching the back panel make sure that it is square to the unit. Antes de atar el panel trasero asegúrese de que se encaja blen con la unldad. Avant de fixer le panneau arrière, assurez-vous que l’unité...
- Page 19 5894325COM River Layne Nightstand Step 13 8 x4 TPB0008 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 20 5894325COM River Layne Nightstand Step 14 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 21 5894325COM River Layne Nightstand Step 15 3 x2 TPB0003 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 22 5894325COM River Layne Nightstand Step 16 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 23 5894325COM River Layne Nightstand Step 17 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 24 5894325COM River Layne Nightstand Step 18 For Masonry, Concrete, or other wall materials: x1set Consult your local hardware store TPB0017 for appropriate anchors to securely attach the safety bracket. IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER.
- Page 25 5894325COM River Layne Nightstand Paso Para mampostería, hormigón u otros x1set materiales de la pared: Consulte a su ferretería local para los TPB0017 anclajes apropiados para fijar firmemente el soporte de seguridad. IMPORTANTE: ESTA UNIDAD DEBE SER ASEGURADA CON LA PARED PARA PREVENIR VOLQUEO. SIGA ESTAS INSTRUCCIONES PARA INSTALAR EL SOPORTE DE SEGURIDAD ANTIVOLQUEO SUMINISTRADO CON ESTE PRODUCTO.
- Page 26 5894325COM River Layne Nightstand Étape Pour la maçonnerie, béton ou d'autres matériaux de mur: x1set Consultez votre magasin local de TPB0017 matériel pour les ancrages appropriés pour fixer le support de sécurité. IMPORTANT: CET APPAREIL DOIT ÊTRE FIXÉ AU MUR POUR AIDER À PRÉVENIR LE BASCULEMENT.
- Page 27 5894325COM River Layne Nightstand MAXIMUM LOADS This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 40 lbs Max. 15 lbs Max. 15 lbs 17 kg 23.8”...
- Page 28 5894325COM River Layne Nightstand CARGA MAXIMA Esta unidad ha sido diseñada para soportar la carga máxima anotada. El exceder estos límites puede causar inestabilidad, colapsarse y/o causar serias lesiones. 40 lbs Max. 15 lbs Max. 15 lbs 17 kg 23.8”...
- Page 29 5894325COM River Layne Nightstand CHARGES MAXIMALES Ce meuble a été conçu pour supporter les charges maximales indiquées. En excédant ces limites de charge, le meuble pourrait devenir instable, s’effondrer, et/ou causer des blessures graves. 40 lbs Max. 15 lbs Max. 15 lbs 17 kg 23.8”...
- Page 30 5894325COM River Layne Nightstand Certificate of Conformity 1. This certificate applies to the Dorel Home Furnishings, Inc. product identified by this instruction manual. 2. This certificate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303).
- Page 31 5894325COM River Layne Nightstand Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit littleseedskids.com...
- Page 32 5978325COM Crescent Point Nightstand Registre su producto para recibir lo siguiente: * Detalles de nuevas tendencias - Vistazo a lo nuevo * Encuestas - alec su voz entre su comunidad Registre * Códigos de ofertas y descuentos exclusivos * Fácil y rápido servicio de partes de remplace Para registrar su producto, visite littleseedskids.com Clasificasión de 5 estrellas Visite el sitio web de su tienda local, califique su comprado...
- Page 33 5894325COM River Layne Nightstand Enregistrez votre produit pour recevoir les éléments suivantes: * Détails sur les nouvelles tendances - un aperçu sur les nouveautés Enregistrez * Sondages - avoir une voix au sein de notre communauté * Offres exclusives et codes promo * Service de pièces de rechange rapide et facile...
