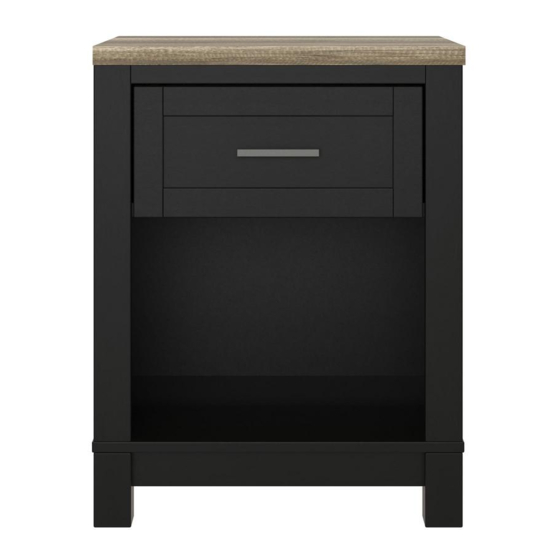

BBBBBBBBBB
BCCCCC CCCCCCCCCC
Date of Purchase: ____/____/_____
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARCICG
–Unit can tip over causing severe injury or death.
–Anchor unit to stud in wall (if instructed to)
–Do not allow children climb on unit
–Put heavy items on lower shelves or drawers
BBBBBBBBBBBBB
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
Tough
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ameriwood HOME Carver 5989196COM
Summary of Contents for Ameriwood HOME Carver 5989196COM
- Page 1 Easy Tough Assembly Difficulty Meter WARCICG Follow Ameriwood Home –Unit can tip over causing severe injury or death. –Anchor unit to stud in wall (if instructed to) –Do not allow children climb on unit –Put heavy items on lower shelves or drawers...
- Page 2 BoCCCcC UC! Do NOT return this product! Contact our friendly customer service team first for help Call us! Assembly Tips 1-800-489-3351 Monday-Friday 9am - 5pm CST Visit ameriwoodhome.com HClpful HCCCC PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 1 HOUR - Open your item in the area you plan to keep it for less heavy lifting - Identify, sort and count the parts before attempting assembly - Compression dowels are tapped in with a hammer...
- Page 3 BCfoCC You SCCCC Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.
- Page 4 BoCCC ICCCt f cCt oC Not actual size T5989196010 T5989196020 T5989196030 TOP PANEL LEFT SIDE PANEL RIGHT SIDE PANEL T5989196060 T5989196040 T5989196050 LEFT DRAWER SIDE BOTTOM PANEL TOP MOLDING T5989196070 T5989196080 T5989196090 FRONT DRAWER RIGHT DRAWER SIDE BACK DRAWER ameriwoodhome.com...
- Page 5 BoCCC ICCCt f cCt oC Not actual size T5989196100 T5989196110 T5989196120 DRAWER BOTTOM SIDE RAIL T5989196130 T5989196140 T5989196150 FRONT & BACK RAIL BACK PANEL FRONT MOLDING ameriwoodhome.com...
-
Page 6: Actual Size
Hardware Bag Reference Number: 25989196COM0 PCCC LCCC Actual Size TUD0001 TUD0002 TUD0004 TUD0006 Cam Bolt Cam Lock DOWEL 8 X 25 NAIL 15-12 TUD0008 TUD0010 TUD0009 CBS 3.5 x 16 PH M4 X 18 CBS 4 x 38 ameriwoodhome.com... - Page 7 Hardware Bag Reference Number: 25989196COM0 PCCC LCCC Not Actual Size x1 SET TUD0016 TUD0012 TUD0014 DRAWER SLIDE 12” HANDLE STOPPER 35MM ameriwoodhome.com...
- Page 8 Step 1 TUD0001 Insert Cam Bolt and fully tighten it. * raw edges are shaded ameriwoodhome.com...
- Page 9 Step 2 TUD0009 Fix top molding to the top panel. * raw edges are shaded ameriwoodhome.com...
- Page 10 Step 3 TUD0001 Insert Cam Bolt and fully tighten it. * raw edges are shaded ameriwoodhome.com...
- Page 11 Step 4 Quick As s e mb l y TUD0004 TUD0002 Proper orientation of CAM LOCK Please ensure direction of Cam lock * raw edges are shaded ameriwoodhome.com...
- Page 12 Step 5 Fix legs to side rail by tighten the Cam Lock x2 SET * raw edges are shaded ameriwoodhome.com...
- Page 13 Step 6 Fix front rail & back rail by tighten the Cam Lock * raw edges are shaded ameriwoodhome.com...
- Page 14 Step 7 Fix side rail by tighten the Cam Lock * raw edges are shaded ameriwoodhome.com...
- Page 15 Step 8 TUD0009 Fix bottom panel by using screw. * raw edges are shaded ameriwoodhome.com...
- Page 16 Step 9 TUD0001 Insert Cam Bolt and fully tighten it. * raw edges are shaded ameriwoodhome.com...
- Page 17 Step 10 Quick As s e mb l y Proper orientation of CAM LOCK TUD0002 Preparation of left & right side panels * raw edges are shaded ameriwoodhome.com...
- Page 18 Step 11 Attach front molding to the left & right side panels * raw edges are shaded ameriwoodhome.com...
- Page 19 Step 12 TUD0008 TUD0014 TUD0004 Preparation of left side panel * raw edges are shaded ameriwoodhome.com...
- Page 20 Step 13 x1 (CL) TUD0008 TUD0016 Install drawer slide CL to left side panel Screw Position * raw edges are shaded ameriwoodhome.com...
- Page 21 Step 14 TUD0008 TUD0014 TUD0004 Preparation of right side panel * raw edges are shaded ameriwoodhome.com...
- Page 22 Step 15 x1 (CR) x1 (CR) TUD0016 TUD0016 TUD0008 Install drawer slide CR to right side panel Screw Positi on * raw edges are shaded ameriwoodhome.com...
- Page 23 Step 16 TUD0009 Attach to the bottom panel and secure it by fully tighten the screw. * raw edges are shaded ameriwoodhome.com...
- Page 24 Step 17 carefully standing up the unit. Attach top panel from top. * raw edges are shaded ameriwoodhome.com...
- Page 25 Step 18 IBPBRTACT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. TUD0006 Attached back panel as shown nailing straight into the raw edges. Ensure that the unit is square. Distance from corner to corner must be equal as shown. * raw edges are shaded ameriwoodhome.com...
- Page 26 Step 19 TUD0001 Preparation of drawer front. * raw edges are shaded ameriwoodhome.com...
- Page 27 Step 20 Quick As s e mb l y Proper orientation of CAM LOCK TUD0002 Preparation of left drawer side & right drawer side * raw edges are shaded ameriwoodhome.com...
- Page 28 Step 21 Attach drawer side to the drawer front * raw edges are shaded ameriwoodhome.com...
- Page 29 Step 22 Slip in drawer bottom inside the groove * raw edges are shaded ameriwoodhome.com...
- Page 30 Step 23 TUD0009 Attach drawer back and fully tighten it. * raw edges are shaded ameriwoodhome.com...
- Page 31 Step 24 TUD0012 TUD0010 Attach the handle and tighten it from inside * raw edges are shaded ameriwoodhome.com...
- Page 32 Step 25 x1 Set DR & DL TUD0016 TUD0008 Attach drawer slide DR & DL Screw Position Screw Position * raw edges are shaded ameriwoodhome.com...
- Page 33 Step 26 Attach the drawer * raw edges are shaded ameriwoodhome.com...
-
Page 34: Maximum Loads
Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 10 lbs. 30 lbs. 4.5 kg 13.6 kg 30 lbs. 13.6 kg WCCCCCC: RCCk of CCCCouC CCjuCy Co pCCCoC - Co CoC plCcC C CClCCCCCoC oC CCCC fuCCCCuCC. TCCC fuCCCCuCC CC CoC CppCoCCC foC uCC wCCC C CClCCCCCoC. - Page 35 We would like to extend a big “Thank You” to all Co CCCCmblC CCCC ouC cuCComCCC foC CCkCCC CCC of our customers for taking the time to assemble SCCCC pCoCucC, CCC Co CCCC uC youC CCluCblC this Ameriwood Home product, and to give us your fCCCbCck. valuable feedback ameriwoodhome.com...
- Page 36 Español BubCCCCC DClCCCCCC Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
- Page 37 Español Página 8 Inserte el perno de la leva y apriételo completamente. Página 9 Fije el moldeo superior al panel superior. Página 10 Inserte el perno de la leva y apriételo completamente. Página 11 Asegúrese de que la dirección del bloqueo de leva Página 12 Asegúrese de que la dirección del bloqueo de leva Página 13...
- Page 38 Español Página 24 Cuidadosamente de pie encima de la unidad. Fije el panel superior de la tapa Página 25 . IBPBRTACTE! EL PACEL TRASERB ES UCA PARTE ESTRUBTURAL DE ESTA UCIDAD Y DEBE ICSTALARSE BBRREBTABECTE. Sujeta el panel trasero como se muestra clavando directamente en los bordes sin procesar. Asegúrese de que la unidad es cuadrada.
- Page 39 Visite el sitio web de su distribuidor local, califique su producto comprado y déjenos algunos comentarios! Nos gustaría extender un gran “Gracias” a todos nuestros clientes por tomarse el tiempo para montar este producto Ameriwood Home, y para darnos sus valiosos comentarios Gracias! * raw edges are shaded ameriwoodhome.com...
- Page 40 Français cCpoC CCCCC Ce livret d’instructions contient d’importantes informations de sécurité. S’il vous plaît lire et conserver pour référence ultérieure. Ne pas retourner ce produit! Contactez notre équipe de service à la clientèle amical pour aider. Appel: 1-800-489-3351 (gratuit) Lundi - Vendredi 9am - 5pm CST Visite: www.ameriwoodhome.com BISE EC GARDE Ce mobilier peut basculer et causer des blessures graves et / ou la mort.
- Page 41 Français pCCC B Insérez la came du boulon et serrer complètement. pCCC B Fixez la partie supérieure au moulage de panneau supérieur. pCCC B0 Insérez la came du boulon et serrer complètement. pCCC BB Assurez-vous que la direction de la serrure à came pCCC B2 Assurez-vous que la direction de la serrure à...
- Page 42 Français PCCC 2B Soigneusement debout l’unité. Fixez le panneau supérieur en haut. PCCC 2B IBPBRTACT! LE PACCEAU ARRIÈRE EST UCE PARTIE DE STRUBTURE ET BET APPAREIL DBIT ÊTRE ICSTALLÉ BBRREBTEBECT. En tenant le panneau arrière comme indiqué clouer directement sur les bords bruts. Assurez-vous que l’unité...
- Page 43 Visitez le site Web de votre distributeur local, classez votre produit acheté et laisser des commentaires! Nous aimerions étendre un grand “Merci” à tous nos clients pour prendre le temps de rassembler ce produit Ameriwood Home et de nous faire part de vos précieux commentaires Merci! * raw edges are shaded ameriwoodhome.com...
