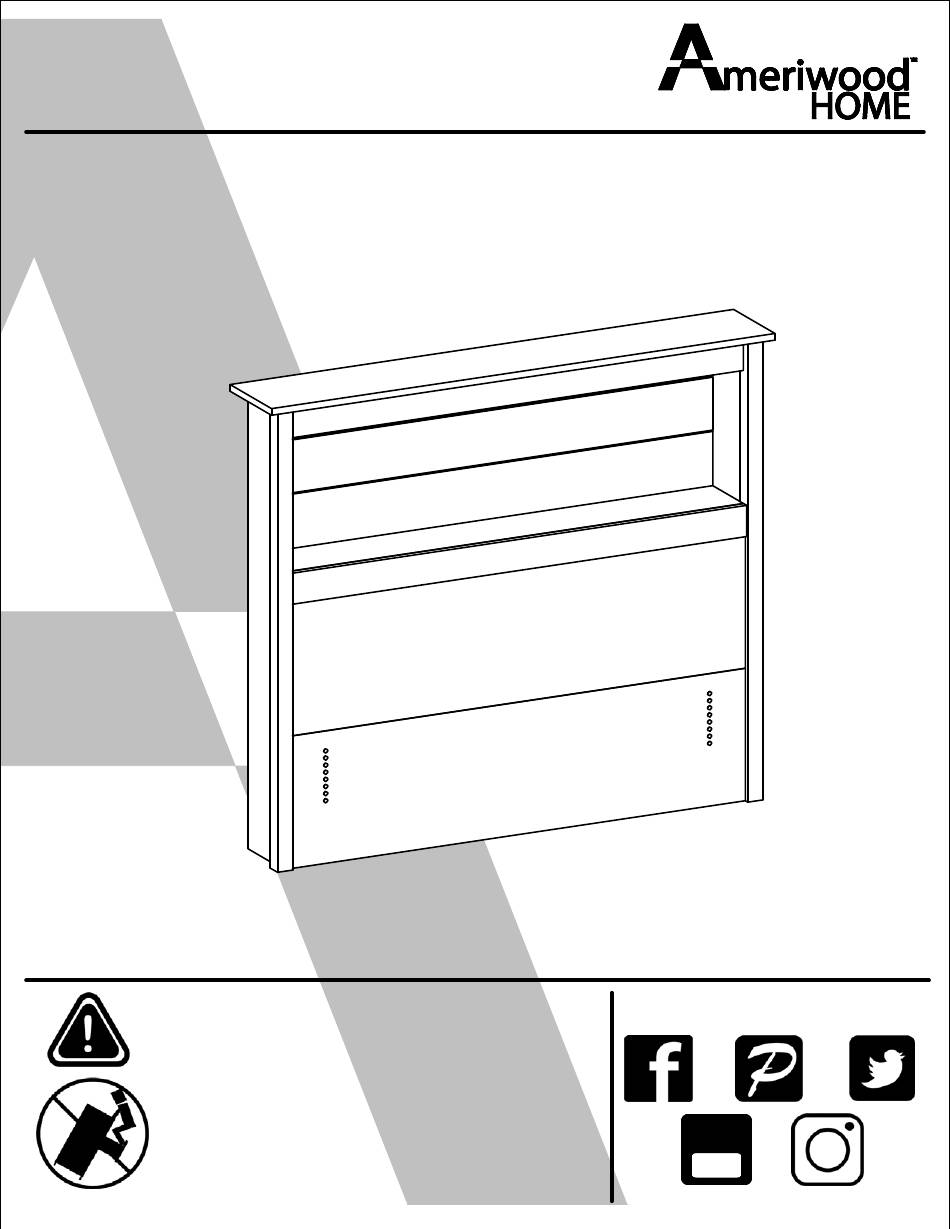

River Layne Twin Sized Headboard
Keep this Assembly Manual for future reference
WARNING
Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall
- Do Not allow children to climb on unit
- Put heavy items on lower shelves or drawers
- Two people required for assembly
B345983330COM00
ameriwoodhome.com
Follow Ameriwood Home
You
Tube
Advertisement
Related Manuals for Ameriwood HOME River Layne 5983330COM
Summary of Contents for Ameriwood HOME River Layne 5983330COM
- Page 1 B345983330COM00 ameriwoodhome.com Keep this Assembly Manual for future reference WARNING Follow Ameriwood Home Unit can tip over causing severe injury or death. - Anchor unit to stud in wall - Do Not allow children to climb on unit - Put heavy items on lower shelves or drawers...
-
Page 2: Helpful Hints
Warning Do NOT return this product! Contact our friendly customer service team first for help. Call us! Assembly Tips 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com Helpful Hints - Open your item in the area you plan to keep it for less heavy lifting - Identify, sort and count the parts before attempting assembly - Compression dowels are tapped in with a hammer - Slides are labeled with a R (right) and L (left) for proper placement... -
Page 3: Board Identification
5983330COM River Layne Twin Sized Headboard Board Identification Not actual size Left Front Profile Right Side Panel Right Front Profile Top Panel Left Side Panel T5983330010 T5983330020 T5983330030 T5983330040 T5983330050 Upper headboard Lower headboard Fixed Shelf T5983330060 T5983330070 T5983330080 Back Panel Top Panel Shelf Panel T5983330090... -
Page 4: Part List
5983330COM River Layne Twin Sized Headboard Part List Actual Size Ø8x30mm Ø3.5x15mm 4 x15 7 x8 1 x32 2 x32 Wood Dowel Csk Screw Cam Bolt Cam Lock (13/15) TPB0004 TPB0007 TPB0001 TPB0002 Ø6.3x40mm Ø6x25mm Ø9x12mm 18 x1 19 x4 20 x4 Unitar Screw JCBC Screw... -
Page 5: Before You Start
5983330COM River Layne Twin Sized Headboard Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, ... - Page 6 5983330COM River Layne Twin Sized Headboard Step 1 Ø8x30 4 x15 TPB0004 Glue Pegamento Colle * Raw edges are shaded ameriwoodhome.com Tube...
- Page 7 5983330COM River Layne Twin Sized Headboard Step 2 1 x32 TPB0001 Do not over tighten No lo presione tanto ne pas serrer excesslvement * Raw edges are shaded ameriwoodhome.com Tube...
- Page 8 5983330COM River Layne Twin Sized Headboard Step 3 2 x6 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 9 5983330COM River Layne Twin Sized Headboard Step 4 7 x8 13 x4 TPB0007 TPB0013 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 10 5983330COM River Layne Twin Sized Headboard Step 5 2 x6 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 11 5983330COM River Layne Twin Sized Headboard Step 6 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 12 5983330COM River Layne Twin Sized Headboard Step 7 2 x4 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 13 5983330COM River Layne Twin Sized Headboard Step 8 2 x2 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 14 5983330COM River Layne Twin Sized Headboard Step 9 2 x2 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 15 5983330COM River Layne Twin Sized Headboard Step 10 18 x1 15 x1 TPB0018 TPB0015 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 16 5983330COM River Layne Twin Sized Headboard Step 11 2 x6 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 17 5983330COM River Layne Twin Sized Headboard Step 12 2 x4 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
- Page 18 5983330COM River Layne Twin Sized Headboard Step 13 20 x4 19 x4 15 x1 TPB0020 TPB0019 TPB0015 Use this step if you are fastening the Headboard to platform Bed Frame (sold separately) Utilice este paso si la fijacion de la cabecera en una Estructura Metalica (se vende por separado) 11.6”...
- Page 19 5983330COM River Layne Twin Sized Headboard Step 13 20 x4 19 x4 15 x1 TPB0020 TPB0019 TPB0015 Use this step if you are fastening the Headboard to metal Bed Frame (sold separately) Utilice este paso si la fijacion de la cabecera en una Estructura Metalica (se vende por separado) 11.6”...
- Page 20 5983330COM River Layne Twin Sized Headboard Certificate of Conformity 1. This certificate applies to the Dorel Home Furnishings, Inc. product identified by this instruction manual. 2. This certificate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303).
- Page 21 5983330COM River Layne Twin Sized Headboard Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit littleseedskids.com Visit your local retailer's website, rate your purchased product and leave us some feedback!
- Page 22 5983330COM River Layne Twin Sized Headboard Registre su producto para recibir lo siguiente: * Detalles de nuevas tendencias - Vistazo a lo nuevo * Encuestas - alec su voz entre su comunidad Registre * Códigos de ofertas y descuentos exclusivos * Fácil y rápido servicio de partes de remplace Para registrar su producto, visite littleseedskids.com Clasificasión de 5 estrellas...
- Page 23 5983330COM River Layne Twin Sized Headboard Enregistrez votre produit pour recevoir les éléments suivantes: * Détails sur les nouvelles tendances - un aperçu sur les nouveautés Enregistrez * Sondages - avoir une voix au sein de notre communauté * Offres exclusives et codes promo * Service de pièces de rechange rapide et facile Pour enregistrer votre produit, visitez littleseedskids.com...
