5981325COM

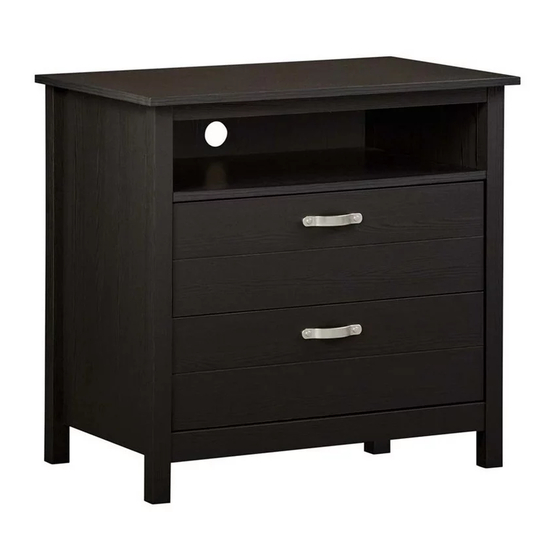

River Layne Media Dresser
Keep this Assembly Manual for future reference
WARNING
Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall
- Do Not allow children to climb on unit
- Put heavy items on lower shelves or drawers
- Two people required for assembly
B345981325COM00
ameriwoodhome.com
Follow Ameriwood Home
You
Tube

Advertisement

loading
Need help?

Need help?

Do you have a question about the River Layne 5981325COM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ameriwood HOME River Layne 5981325COM

Summary of Contents for Ameriwood HOME River Layne 5981325COM

  • Page 1 B345981325COM00 ameriwoodhome.com Keep this Assembly Manual for future reference WARNING Follow Ameriwood Home Unit can tip over causing severe injury or death. - Anchor unit to stud in wall - Do Not allow children to climb on unit - Put heavy items on lower shelves or drawers...

  • Page 2: Helpful Hints

    Warning Do NOT return this product! Contact our friendly customer service team first for help. Call us! Assembly Tips 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com Helpful Hints - Open your item in the area you plan to keep it for less heavy lifting - Identify, sort and count the parts before attempting assembly - Compression dowels are tapped in with a hammer - Slides are labeled with a R (right) and L (left) for proper placement...

  • Page 3: Board Identification

    5981325COM River Layne Media Dresser Board Identification Not actual size Left Front Profile Left Back Profile Right Side Panel Right Front Profile Left Side Panel T5981325020 T5981325030 T5981325040 T5981325050 T5981325010 Right Back Profile Top Panel Bottom Panel Fixed Shelf T5981325060 T5981325070 T5981325080 T5981325090...
  • Page 4 5981325COM River Layne Media Dresser Board Identification Not actual size Drawer Left Side (2) Drawer Right Side (2) Drawer Back (2) T5981325130 T5981325140 T5981325150 Drawer Bottom Support (4) Back Panel Drawer Bottom (2) T5981325160 T5981325170 T5981325180 ameriwoodhome.com Tube...

  • Page 5: Part List

    5981325COM River Layne Media Dresser Part List Actual Size Ø8x30mm 4 x14 3 x4 1 x26 2 x22 Wood Dowel Cam Lock (9/12) Cam Bolt Cam Lock (13/15) TPB0004 TPB0003 TPB0001 TPB0002 Ø6x9mm Ø3.5x15mm Ø6x30mm Ø4.7x38mm 6 x8 7 x16 8 x8 5 x20 Euro Screw...
  • Page 6 5981325COM River Layne Media Dresser Part List Not Actual Size (350mm) (350mm) (2mm) 11 x2set 12 x2set 13 x4 Drawer Slide (350mm) Drawer Slide (350mm) Metal L-Bracket TPB0011 TPB0012 TPB0013 17 x1set 15 x1 16 x1 L-Mounting Bracket Allen Key Glue TPB0015 TPB0016...

  • Page 7: Before You Start

    5981325COM River Layne Media Dresser Before You Start  Read through each step carefully and follow the proper order  Separate and count all your parts and hardware  Give yourself enough room for the assembly process  Have the following tools: Flat Head Screwdriver, Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, ...
  • Page 8 5981325COM River Layne Media Dresser Step 1 Ø8x30 Glue 4 x14 Pegamento Colle TPB0004 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 9 5981325COM River Layne Media Dresser Step 2 Ø6x30 5 x20 TPB0005 Glue Pegamento Colle * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 10 5981325COM River Layne Media Dresser Step 3 1 x26 TPB0001 Do not over tighten No lo presione tanto ne pas serrer excesslvement * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 11 5981325COM River Layne Media Dresser Step 4 17 x1 TPB0017 Do not fully tighten screw. * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 12 5981325COM River Layne Media Dresser Step 5 2 x8 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 13 5981325COM River Layne Media Dresser Step 6 6 x8 11 x2set TPB0006 TPB0011 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 14 5981325COM River Layne Media Dresser Step 7 2 x2 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 15 5981325COM River Layne Media Dresser Step 8 7 x8 13 x4 TPB0007 TPB0013 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 16 5981325COM River Layne Media Dresser Step 9 2 x2 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 17 5981325COM River Layne Media Dresser Step 10 2 x2 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 18 5981325COM River Layne Media Dresser Step 11 2 x4 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 19 5981325COM River Layne Media Dresser Step 12 2 x4 TPB0002 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 20 5981325COM River Layne Media Dresser Step 13 10 x26 TPB0010 Before attaching the back panel make sure that it is square to the unit. Antes de atar el panel trasero asegúrese de que se encaja blen con la unldad. Avant de fixer le panneau arrière, assurez-vous que l’unité...
  • Page 21 5981325COM River Layne Media Dresser Step 14 8 x8 TPB0008 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 22 5981325COM River Layne Media Dresser Step 15 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 23 5981325COM River Layne Media Dresser Step 16 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 24 5981325COM River Layne Media Dresser Step 17 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 25 5981325COM River Layne Media Dresser Step 18 24 x4 23 x2 TPB0024 TPB0023 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 26 5981325COM River Layne Media Dresser Step 19 12 x2sets 7 x8 TPB0012 TPB0007 * Raw edges are shaded ameriwoodhome.com Tube...
  • Page 27 5981325COM River Layne Media Dresser Step 20 For Masonry, Concrete, or other wall materials: x1set Consult your local hardware store TPB0017 for appropriate anchors to securely attach the safety bracket. IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT.
  • Page 28 5981325COM River Layne Media Dresser Paso Para mampostería, hormigón u otros x1set materiales de la pared: Consulte a su ferretería local para los TPB0017 anclajes apropiados para fijar firmemente el soporte de seguridad. IMPORTANTE: ESTA UNIDAD DEBE SER ASEGURADA CON LA PARED PARA PREVENIR VOLQUEO. SIGA ESTAS INSTRUCCIONES PARA INSTALAR EL SOPORTE DE SEGURIDAD ANTIVOLQUEO SUMINISTRADO CON ESTE agujero PRODUCTO.
  • Page 29 5981325COM River Layne Media Dresser Étape Pour la maçonnerie, béton ou d'autres matériaux de mur: x1set Consultez votre magasin local de TPB0017 matériel pour les ancrages appropriés pour fixer le support de sécurité. IMPORTANT: CET APPAREIL DOIT ÊTRE FIXÉ AU MUR POUR AIDER À PRÉVENIR LE BASCULEMENT. SUIVRE CES INSTRUCTIONS POUR INSTALLER LE SUPPORT DE SÉCURITÉ...
  • Page 30 5981325COM River Layne Media Dresser MAXIMUM LOADS This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 50 lbs 22.7 kg Max. 35 lbs Drawers Compartment Size: 29.6”...
  • Page 31 5981325COM River Layne Media Dresser CARGA MAXIMA Esta unidad ha sido diseñada para soportar la carga máxima anotada. El exceder estos límites puede causar inestabilidad, colapsarse y/o causar serias lesiones. 50 lbs 22.7 kg Max. 35 lbs 29.6” Tamaño del Compartimiento de Cajones: 5.03”...
  • Page 32 5981325COM River Layne Media Dresser CHARGES MAXIMALES Ce meuble a été conçu pour supporter les charges maximales indiquées. En excédant ces limites de charge, le meuble pourrait devenir instable, s’effondrer, et/ou causer des blessures graves. 50 lbs 22.7 kg Max. 35 lbs Compartiment des tiroirs: 29.6”...
  • Page 33 5981325COM River Layne Media Dresser Certificate of Conformity 1. This certificate applies to the Dorel Home Furnishings, Inc. product identified by this instruction manual. 2. This certificate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303).
  • Page 34 5981325COM River Layne Media Dresser Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit littleseedskids.com Visit your local retailer's website, rate your purchased product and leave us some feedback!
  • Page 35 5981325COM River Layne Media Dresser Registre su producto para recibir lo siguiente: * Detalles de nuevas tendencias - Vistazo a lo nuevo * Encuestas - alec su voz entre su comunidad Registre * Códigos de ofertas y descuentos exclusivos * Fácil y rápido servicio de partes de remplace Para registrar su producto, visite littleseedskids.com Clasificasión de 5 estrellas Visite el sitio web de su tienda local, califique su comprado...
  • Page 36 5981325COM River Layne Media Dresser Enregistrez votre produit pour recevoir les éléments suivantes: * Détails sur les nouvelles tendances - un aperçu sur les nouveautés Enregistrez * Sondages - avoir une voix au sein de notre communauté * Offres exclusives et codes promo * Service de pièces de rechange rapide et facile Pour enregistrer votre produit, visitez littleseedskids.com...
