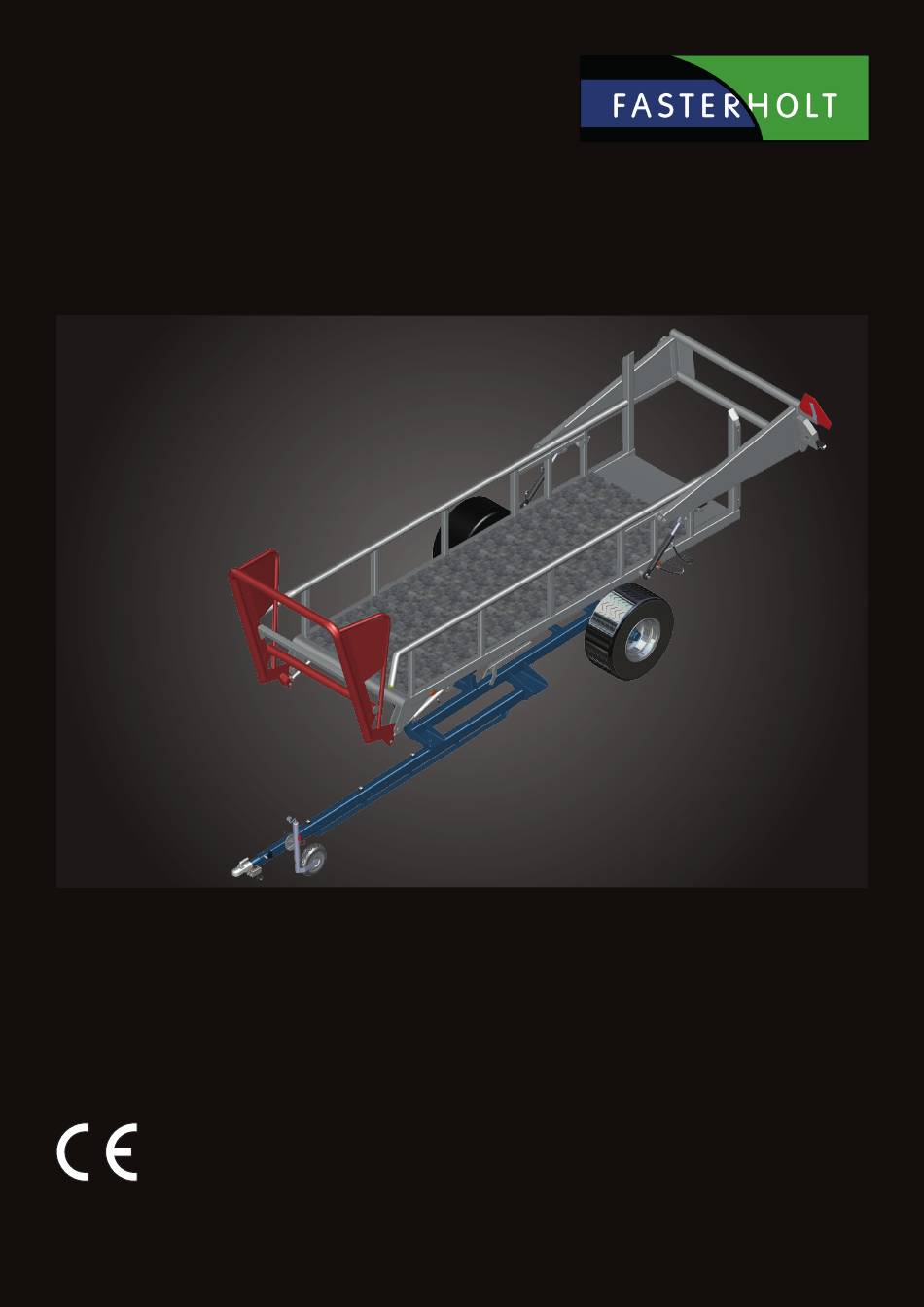

- Page 1 User Manual & (EN) 22-05-2024 Spare Parts Catalogue Round Bale Trailer RB-3 Fasterholt Maskinfabrik A/S Tel.: +45 97 18 80 66 Ejstrupvej 22 Telefax: +45 97 18 80 40 7330 Brande Email: mail@fasterholt.dk Denmark Web: www.fasterholt.dk...
- Page 2 Contents Declaration of Conformity General safety Intended use Safety instructions/warnings General safety rules Product labelling Symbols Operating instructions Securing the top frame Adjusting the Round Bale Trailer Using the Round Bale Trailer Baling small bales Operating functions Faults on the Round Bale Trailer Spare parts Chassis and top frame Loading bracket...
- Page 3 +45 97 18 80 40 Country: Denmark E‑Mail: mail@fasterholt.dk Web: www.fasterholt.dk Hereby is certified that the following product: Round Bale Trailer RB-3 Description, ID/mark, type: Serial No. if any: Notified body if any: EEC-type certificate if any: EN 908:1999+A1:2009. DS/EN/ISO 12100:2011. DS/EN/ISO 14120:2015.
- Page 4 – Do not modify the bed on the RB3 or work with a RB3 without a bed. Your new Fasterholt Round Bale Trailer is a high quality, Danish built machine, but even the best machines only deliver top results –...
- Page 5 Product labelling Symbols The following symbols are used in this product and the following documentation. WARNING Indicates a potentially hazardous situation. Failure to avoid the situation may result in death or serious injury. Danger Do not insert fingers into machine parts as this may cause serious injury. LUBRICATION Indicates lubrication is required as per the service description.
- Page 6 Operating instructions 1. Support wheel in vertical position 1. Securing the top frame with the safety bracket – Remember to tighten the wheel bolts. – DANGER! Avoid welding in the paint layer! Before welding, remove all paint from the welding area. 2.
- Page 7 2. Loading bracket tilted up For loading small bales, a pipe is installed on the loading bracket that allows you to lift small bales onto the bale trailer. The pipe can To unload the bales, switch over operation to tilt the top frame and be mounted in different positions on the loading bracket.
- Page 8 Spare parts...
- Page 9 Item No. Part No. Description Comments 2013510 Base plate 763793 M8 x 30 Int. hex Round head 050308 M8 Plain washer 2013433 Top frame 875006 Pom plate 031808030 M8 x 30 Int. hex 021020080 M20 x 80 Steel bolt 044020 M20 Lock nut 1008600 Hyd.
- Page 11 Item No. Part No. Description Comments 875052 Pipe for small bales for lifting bracket 875050 Lifting bracket 761286 Grease nipple 700030 Ext. Retaining ring Ø30 050230 Washer 875066 Shaft 021012100 M12 x 100 Steel bolt 022220060 M20 x 60 Set bolt 044020 M20 Lock nut 875005...
- Page 13 Item No. Part No. Description Comments 2013443 Rear gate 875822 Warning triangle plate right 875823 Warning triangle plate left 1008966 Warning triangle 022208020 M8 x 20 Set bolt 1415100060 Warning triangle holder 044008 M8 Lock nut 872210 Red triangle reflector 022205020 M5 x 20 Set bolt 895441...
- Page 15 Item No. Part No. Description Comments 875807 Connector for coil 550002 Cylinder 801711 Plastic plug 801710 Male coupling 050316 M16 Plain washer 1007538 Collar nipple 050312 M12 Plain washer 1007510 Ball valve 1007724 Nipple 556013 Hyd. hose 3/8 x 9800 mm 1007503 1007531 1008585...
- Page 17 Item No. Part No. Description Comments 895441 Rear light 875920 Cable set complete 2008288 Sling light 895315 Cable coupling Collector 895440 Side marker light 1008965 7-pin plug...
- Page 20 A/S FASTERHOLT MASKINFABRIK EJSTRUPVEJ 22, DK-7330 BRANDE DENMARK TEL.: +45 97 18 80 66 FAX: +45 97 18 80 40 EMAIL: MAIL@FASTERHOLT.DK WWW.FASTERHOLT.DK...
