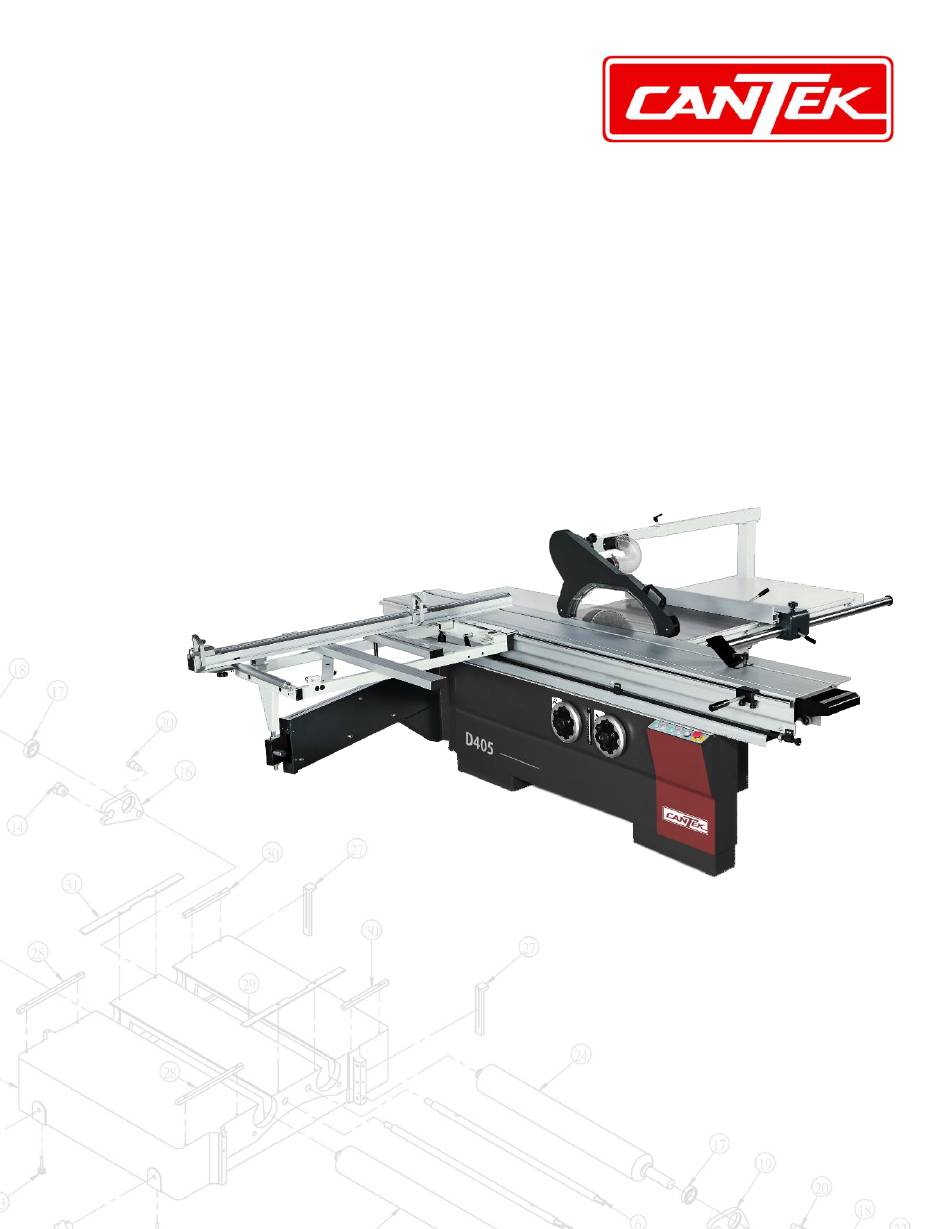

Cantek D405M Operations & Parts Manual

Sliding table saw
Hide thumbs

Advertisement

Quick Links

Download this manual
Operations & Parts
Manual
www.cantekamerica.com
D405M
Sliding Table Saw
Please ensure you have your serial number available when contacting us for parts or service.
Cantek America Inc. | 1.888.982.2683 | Parts: sales@cantekamerica.com | Service: service@cantekamerica.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the D405M and is the answer not in the manual?

Questions and answers

Related Manuals for Cantek D405M

Summary of Contents for Cantek D405M

  • Page 1 Operations & Parts Manual www.cantekamerica.com D405M Sliding Table Saw Please ensure you have your serial number available when contacting us for parts or service. Cantek America Inc. | 1.888.982.2683 | Parts: sales@cantekamerica.com | Service: service@cantekamerica.com...
  • Page 2 PANEL SAW A400M Table of Contents General Information ......................2 Safety Precautions ......................3 Machine Information ....................... 6 Components ......................6 Specification ......................7 Setup ..........................8 Unpacking ......................8 Check machine accessories ................... 9 Sliding table assembly ..................10 Crosscut frame assembly ..................
  • Page 3 PANEL SAW A400M 1. General Information For any problem regarding to this machine, please contact the local agent or service department. Also please provide the following information:  Machine model  Serial number  Purchase date  Total working hours Effect only adjustments and maintenance operations on machine as indicated in this manual.
  • Page 4 PANEL SAW A400M 2. Safety Precautions Read instruction manual before operating the machine for your safety. People who operate the machine must read and understand how to use the safety measures, and execute the regulation stated in this manual. Learn the application and limitations of the machine Ground all machines.
  • Page 5 PANEL SAW A400M Disposing of wasted material. Disposing waste material and waste lubricating oil shall obey the local regulation and be careful. Fire extinguisher Workshop of user shall be with the fire extinguisher or other devices according to the local safety regulations and be careful.
  • Page 6 PANEL SAW A400M During making wooden cases, it will emit harmful dust. User must install exhaust system for the extraction of harmful dust. Use correctly sharpened saw blades. Observe the maximum speed marked on the saw blade. User shall be to select the optimum speed for saw blade.
  • Page 7 PANEL SAW A400M 3. Machine Information 3.1 Components 1. Swing Arm 11. Left Extension Table 2. Main Blade Height Adjustment Handle 12. Hold Down 3. Main Blade Tilt Control Handle 13. Flip Stop 4. Control Panel 14. Crosscut Fence 5. Sliding Table 15.
  • Page 8 PANEL SAW A400M Specification Model 2600mm 3200mm Sliding table dimension 2,600 x 378mm 3,200 x 378mm Cast Iron table 896 x 548mm Extension table (rear) 952 x 896mm Extension table (front) 830 x 320mm Table size 1,726 x 1,500mm Round rail Φ50mm Main saw blade (max.) 355mm...
  • Page 9 PANEL SAW A400M 4. Setup Unpacking By offering the comprehensive information regarding to the operation and maintenance of the machine, it will be ensured that operators will use the machine properly. Our sales organization is always willing to provide solutions for every technical problem (reparation, spare part delivery), and to help your business with our professional knowledge.
  • Page 10 PANEL SAW A400M Check machine accessories Packing List: Main machine Assembly parts for sliding table Assembly parts for crosscut fence Assembly parts for rip fence Assembly parts for dust collection Assembly parts for flip stop Assembly parts for rear extension table Assembly parts for left extension table (optional) Assembly parts for edge shoe &...
  • Page 11 PANEL SAW A400M Sliding table assembly Stop point Fig. 1 & 2: Put sliding table and locate in right positions to stop point. Fig. 3: Install bolts through holes and fasten them to lock sliding table.
  • Page 12 PANEL SAW A400M Crosscut frame assembly Fig. 1 & 2: Slide T slot bolt into the groove and lock crosscut frame by handle. Fig. 3: Lock swing arm by hex nut.
  • Page 13 PANEL SAW A400M Support frame assembly Fig. 1 & 2: Fasten square nuts by knob on both ends. Fig. 3: Slide support frame through nuts and lock by knob.
  • Page 14 PANEL SAW A400M Crosscut fence assembly Fig. 1: Pull crosscut fence closed to sliding table. Fig. 2: Slide T slot bolts into the groove and locate them in right positions. Fig. 3 & 4: Lock rotate shaft by wrench, then lock with knob.
  • Page 15 PANEL SAW A400M Crosscut fence assembly#2 Fig. 5 & 6: Use T slot bolt through the square nut and lock with knob. Fig. 7 & 8: Locate knob on frame and use wrenches to lock nuts...
  • Page 16 PANEL SAW A400M Crosscut fence assembly#3 Fig.9: Put square nut inside the groove and locate on hole inside the channel. Flip stop assembly Fig. 1 & 2: Slide flip stop into channel groove. One on main fence, another on extension fence.
  • Page 17 PANEL SAW A400M Rear table assembly Fig. 1 & 2: Use three screws, lock washers and flat washers to put rear table on cast iron table. Place table on the correct position. Fig. 3 & 4: Use three set screws to align the level with cast iron table.
  • Page 18 PANEL SAW A400M Left table assembly Fig. 1 & 2: Use two screws, lock washers and flat washers to put left table on cast iron table. Place the table on the correct position. Fig. 3 & 4: Use two set screws to align the level with cast iron table.
  • Page 19 PANEL SAW A400M 4.10 Rip fence scale assembly Fig. 1: Use three screws, lock washers, flat washers and one nut to put ruler on cast iron table and rear table.
  • Page 20 PANEL SAW A400M 4.11 Rip fence assembly Fig. 1 & 2: Use four sets of screws, lock washers and flat washers to put rail on cast iron table and rear table. Fig. 3: Install stop ring on the left end of the rail and use set screw to lock-in. Fig.
  • Page 21 PANEL SAW A400M Rip fence assembly#2 Fig. 5: Make sure rip fence housing doesn’t hit rear table, but against handle when you rotate it. Fig. 6 & 7: Slide rip fence through plate and use handle to lock-in. Fig. 8: Fasten end stopper on the right end of round rail.
  • Page 22 PANEL SAW A400M 4.12 Saw blade assembly Fig. 1: Plug round bar through the hole and lock the main pulley. Fig. 2 & 3: Put on the main saw blade and lock it by nut and flange. Fig 4: Remove the round bar.
  • Page 23 PANEL SAW A400M 4.13 Riving knife assembly Fig. 1: Install the riving knife. Fig. 2: Make sure the gap between riving knife and main saw blade is 3mm at least. 4.14 Edge shoe assembly Fig. 1 & 2: Slide the edge shoe into the sliding table groove.
  • Page 24 PANEL SAW A400M 4.15 Hold down assembly Fig. 1 & 2 & 3: Slide the hold down into the sliding table groove.
  • Page 25 PANEL SAW A400M 4.16 Side handle assembly Fig. 1: Slide the handle into the groove on the side of sliding table groove. 4.17 Electrical installation Warning: The electrical installation should be carried out by qualified and trained person Fig. 1 & 2: The configuration should be from left to right. R, S, T and ground. Connect wires should follow below sticker, once all wires are hooked up then turn on main power switch.
  • Page 26 PANEL SAW A400M 4.18 Test run Once complete machine assembly, test run the machine to ensure wirings are properly connected to power and safety components are functioning correctly. If you find an unusual problem during the test run, STOP the machine immediately, disconnect it from power, and fix the problem BEFORE operating machine again.
  • Page 27 PANEL SAW A400M Facing Main Blade from Front Check safety feature. Attempt to start machine when you press EMG buttons. If machine does not start, it means safety feature works very well. That would keep you away from dangerous.
  • Page 28 PANEL SAW A400M 5. Operation 5.1. Overview The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the machine controls/components discussed later in this manual area easier to understand. Before operating the machine, make sure that the all the mechanical and electrical installation was properly installed.
  • Page 29 PANEL SAW A400M 5.2. Control panel Main blade ON button Main blade OFF button Scoring blade ON button Scoring blade OFF button Status Indicator Emergency Stop...
  • Page 30 PANEL SAW A400M 5.3. Main blade adjustment Blade tile handwheel & lock knob: Handwheel tilts main blade from 0˚ to 45˚ (turn clockwise to increase tile angle). The lock knob secures the handwheel to prevent it from moving during operation. Blade tile scaling: Displays the degree of blade tilt.
  • Page 31 PANEL SAW A400M 5.4. Crosscut fence adjustment Setup crosscut reference It is necessary to setup crosscut reference before cutting panels. Make sure 90˚ stop bolt is properly adjusted and lock by knob. Stop bolt Knob Setup a panel to cut off and measure W1 an W2 dimension. If W1 <...
  • Page 32 PANEL SAW A400M Make sure crosscut fence stay at zero for reference. If not, loose set screw on the back side and move the ruler back to zero point. Angle cutting Besides cutting square, crosscut fence can rotate any angle from 0 to 45 degree. Loose lock knobs and rotate fence to the desired angle to cut, make sure the fence end block is clear of the blade, so that it will not be cut during the operation, then use the fence lock knob to secure the fence in place.
  • Page 33 PANEL SAW A400M 5.5. Long / short fence plate replacement The rip fence can be installed in the vertical position for thicker workpieces, or in the horizontal position for thinner workpieces and tilt main blade for angle cut. Horizontal Vertical...
  • Page 34 PANEL SAW A400M 6. Maintenance 6.1. Overview Warning: Please disconnect power and air input before you do any action General cleaning  Please DO NOT attempt to remove wood chips while saw is turned on.  Clean all saw dust and remove lumps of wood periodically, even if you use a dust collector, there may be parts that remain in the machine.
  • Page 35 PANEL SAW A400M 6.2. Maintenance schedule Weekly Monthly Annual ● Clean off sawdust on machine ● Visual check on screws and nuts ● Visual check on damaged wires ● Visual check on damaged blades & riving knife ● Check electromagnetic brake ●...
  • Page 36 PANEL SAW A400M 6.3. Lubrication Note: DO NOT get any lubrication on the dive V-belts to prevent slippage and damage. All the bearings are internally lubricated and sealed at the factory. Simply leave them alone unless they need to be replaced. Trunnions It will be necessary to use the tilt and elevation handwheels to gain access to the full lengths of the trunnions sliding surfaces.
  • Page 37 PANEL SAW A400M Leadscrews Use mineral spirits and shop rages to clean away grime and debris from the full lengths of the tilt and elevation leadscrews. Then apply a thin coat of light machine oil to their full lengths with a shop rag.
  • Page 38 PANEL SAW A400M Troubleshooting Warning: Please disconnect power and air input before you do any action Review the troubleshooting procedures in this section if problem occurred on your machine. If you need spare parts or additional help with procedures, please gather serial number and manufacture date of your machine before sending requests.
  • Page 39 ASSEM 1.1...
  • Page 40 ASSEM 1.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208231 Plate SH100800 Hex Head Bolt M10*40 NH101700 208129 Machine frame SH121000 Hex Head Bolt M12*50 WS120000 Lock Washer 203410 Ring WS060000 Lock Washer SR069400 Cap Screw M6*16 ST049300 Tap Screw 170736 Hanger 207128...
  • Page 41 ASSEM 1.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE WS040000 Lock Washer SP049300 Pan Head Screw M4*12 SJ060400 Button Head Screw M6*20 201105 Power Box 201105A Power Box 994805 Terminal PB2504 4P 994805 Terminal PB2504 4P SP059200 Pan Head Screw M5*8 SJ059300 Button Head Screw...
  • Page 42 ASSEM 1.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 200993 Spring SP040400 Pan Head Screw/W M4x20 LM001076 Tilt Scale WF040808 Washer NF040700 Hex Nut SR069300 Cap Screw M6*12 WS060000 Lock Washer SR059400 Cap Screw M5*16 206337 Fix Plate 201785 Plate 200867 Electric.Panel...
  • Page 43 ASSEM 1.1.2...
  • Page 44 ASSEM 1.1.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208166 Plate GK/A400M2 208329 Plate GK/A400M3 SH101000 Hex Head Bolt M10*50 NH101700 208129 Machine frame SH121000 Hex Head Bolt M12*50 WS120000 Lock Washer 203410 Ring WS060000 Lock Washer SR069400 Cap Screw M6*16 ST049300 Tap Screw...
  • Page 45 ASSEM 1.1.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 994805 Terminal PB2504 4P 994805 Terminal PB2504 4P ST040204 Tap Screw M4*10 SP050400 Pan Head Screw M5*20 709421 Strain Relief PG20 207318 Strain Relief MGB40-25B 207080 Plate 207917 Plate WS060000 Lock Washer SR069300 Cap Screw...
  • Page 46 A405M ASSEM 1.1.6 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208323 Plate SH101000 Hex Head Bolt M10*50 NH101700...
  • Page 47 A405M ASSEM 1.1.6 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208129 Machine frame SH121000 Hex Head Bolt M12*50 WS120000 Lock Washer 203410 Ring WS060000 Lock Washer SR069400 Cap Screw M6*16 ST049300 Tap Screw 170736 Hanger 207128 Plate SP060200 Pan Head Screw(+)/W M6x10 SG050200 Hex Flange Screw...
  • Page 48 A405M ASSEM 1.1.6 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SP050400 Pan Head Screw M5*20 709421 Strain Relief PG20 207749 Strain Relief MGB50-39B 207748 Plate WS060000 Lock Washer SR069300 Cap Screw M6*12 206442 Hole Plugs HP-38 206345-32 Plate 207309-33 Plate SP060200 Pan Head Screw(+)/W...
  • Page 49 ASSEM 1.1.8...
  • Page 50 ASSEM 1.1.8 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208166 Plate GK/A405M2 208329 Plate GK/A405M3 SH100800 Hex Head Bolt M10*40 NH101700 208239 Machine frame SH121000 Hex Head Bolt M12*50 WS120000 Lock Washer 203410 Ring WS060000 Lock Washer SR069400 Cap Screw M6*16 ST049300 Tap Screw...
  • Page 51 ASSEM 1.1.8 ITEM PART NO PARTS NAME SIZE Q`TY NOTE WS040000 Lock Washer SP049300 Pan Head Screw M4*12 SJ060400 Button Head Screw M6*20 201105 Power Box 201105A Power Box 994805 Terminal PB2504 4P 994805 Terminal PB2504 4P SP059200 Pan Head Screw M5*8 SJ059300 Button Head Screw...
  • Page 52 A405M ASSEM 1.1.9...
  • Page 53 A405M ASSEM 1.1.9 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208326 Plate SH101000 Hex Head Bolt M10*50 NH101700 208129 Machine frame SH121000 Hex Head Bolt M12*50 WS120000 Lock Washer 203410 Ring WS060000 Lock Washer SR069400 Cap Screw M6*16 ST049300 Tap Screw 170736 Hanger...
  • Page 54 A405M ASSEM 1.1.9 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 201105 Power Box 201105A Power Box 994805 Terminal PB2504 4P 994805 Terminal PB2504 4P ST040204 Tap Screw M4*10 SP050400 Pan Head Screw M5*20 709421 Strain Relief PG20 207318 Strain Relief MGB40-25B 207080 Plate...
  • Page 55 A405M ASSEM 1.1.9 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 200993 Spring SF049400 Hex Head Bolt(+)/W M4x16 LM001076 Tilt Scale WF040810 Washer NL040700 Lock Nut SR069300 Cap Screw M6*12 WS060000 Lock Washer SR059400 Cap Screw M5*16 206337 Fix Plate 201785 Plate 200867...
  • Page 56 A405M ASSEM 1.1.9 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208275 Plate GK/A400A 208330 Plate GK/A400A3 SH101000 Hex Head Bolt M10*50...
  • Page 57 A405M ASSEM 1.1.9 ITEM PART NO PARTS NAME SIZE Q`TY NOTE NH101700 208129 Machine frame SH121000 Hex Head Bolt M12*50 WS120000 Lock Washer 203410 Ring WS060000 Lock Washer SR069400 Cap Screw M6*16 ST049300 Tap Screw 170736 Hanger 207128 Plate SP060200 Pan Head Screw(+)/W M6x10 SG050200...
  • Page 58 A405M ASSEM 1.1.9 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 207309-33 Plate SP060200 Pan Head Screw(+)/W M6*10 207723 Plate WF061310 Washer M6x13 NF061000 Hex Flange Nut 150527 2x300x7.5(M/M) 201150 Adjust Foot M16x100 SH161100 Hex Head Bolt M16x50 NH162400 Hex Nut SS080500 Set Screw M8*25...
  • Page 59 A400M ASSEM 1.1.13...
  • Page 60 A400M ASSEM 1.1.13 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208333 Plate SH100800 Hex Head Bolt M10*40 NH101700 208129 Machine frame SH121000 Hex Head Bolt M12*50 WS120000 Lock Washer 203410 Ring WS060000 Lock Washer SR069400 Cap Screw M6*16 ST049300 Tap Screw 170736 Hanger...
  • Page 61 A400M ASSEM 1.1.13 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 605408 Switch Box 998621 Strain Relief 203430 Lock 205259 Door WS040000 Lock Washer SP049300 Pan Head Screw M4*12 SJ060400 Button Head Screw M6*20 201105 Power Box 201105A Power Box 994805 Terminal PB2504 4P...
  • Page 62 A400M ASSEM 1.1.13 ITEM PART NO PARTS NAME SIZE Q`TY NOTE WF061310 Washer M6x13 207399 Steel Wire SR050200 Cap Screw M5x10 SS050200 Setscrew M5x10 200843 Indicator Block SR069300 Cap Screw M6x12 WS060000 Lock Washer 200842 Shaft WF061310 Washer M6x13 200993 Spring SP040400 Pan Head Screw/W...
  • Page 63 A400M ASSEM 1.1.17...
  • Page 64 A400M ASSEM 1.1.17 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208343 Plate SH100800 Hex Head Bolt M10*40 NH101700 208322 Machine frame WS060000 Lock Washer SR069400 Cap Screw M6*16 ST049300 Tap Screw 170736 Hanger 207128 Plate SJ069300 Button Head Screw M6*12 SR059300 Cap Screw...
  • Page 65 A400M ASSEM 1.1.17 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 205259 Door WS040000 Lock Washer SP049300 Pan Head Screw M4*12 SJ060400 Button Head Screw M6*20 201105 Power Box 201105A Power Box 994805 Terminal PB2504 4P 994805 Terminal PB2504 4P SP059200 Pan Head Screw M5*8...
  • Page 66 A400M ASSEM 1.1.17 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SS050200 Setscrew M5x10 200843 Indicator Block SR069300 Cap Screw M6x12 WS060000 Lock Washer 200842 Shaft WF061310 Washer M6x13 200993 Spring SP040400 Pan Head Screw/W M4x20 LM001076 Tilt Scale WF040808 Washer NF040700 Hex Nut...
  • Page 67 A400M ASSEM 1.1.18...
  • Page 68 A400M ASSEM 1.1.18 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208344 Plate SH100800 Hex Head Bolt M10*40 NH101700 208322 Machine frame WS060000 Lock Washer SR069400 Cap Screw M6*16 ST049300 Tap Screw 170736 Hanger 207128 Plate SJ069300 Button Head Screw M6*12 SR059300 Cap Screw...
  • Page 69 A400M ASSEM 1.1.18 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 205259 Door WS040000 Lock Washer SP049300 Pan Head Screw M4*12 SJ060400 Button Head Screw M6*20 201105 Power Box 201105A Power Box 994805 Terminal PB2504 4P 994805 Terminal PB2504 4P SP059200 Pan Head Screw M5*8...
  • Page 70 A400M ASSEM 1.1.18 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SS050200 Setscrew M5x10 200843 Indicator Block SR069300 Cap Screw M6x12 WS060000 Lock Washer 200842 Shaft WF061310 Washer M6x13 200993 Spring SP040400 Pan Head Screw/W M4x20 LM001076 Tilt Scale WF040808 Washer NF040700 Hex Nut...
  • Page 71 A405_1.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SS100400 Set Screw M10*20 NH101700 Hex Nut 207077 Left Ext. Plate STANDARD 207151 Left Ext. Plate OPTION R / S SR100500 Cap Screw M10*25 206643 Table 207078 Ext. Plate 207079 Ext. Plate R / S M10*ψ20 WF102030...
  • Page 72 ASSEM 2.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SJ050200 Button Head Screw M5*10 208169 Label 208165 Panel SI039100 Counter Sunk Screw M3*6 201736 207653 IC Board NH030600 Hex Nut 994855A Dust Cove R2 PRCF 994856 Switch Button-OFF R2 PNF-1B-R 994855 Switch Button-ON R2 PNF-1A-G...
  • Page 73 A400M ASSEM 2.4 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 206407 Panel SJ050200 Button Head Screw M5*10 994808 Emergency Stop Button YK.24V φ22 (W) 996002 Pilot Lamp Standard 996005 Pilot Lamp KE-22DS S/110~230V 205504 Pilot Lamp S/380V 994855 Switch Button-ON R2 PNF-1A-G Optoinal 994855...
  • Page 74 ASSEM 2.5 ITEM PART NO PARTS NAME SIZE Q`TY NOTE AB208327 Control Panel ASM 205240 Switch Button Cut Out 994855 Switch Button-ON R2 PNF-1A-G 994856 Switch Button-OFF R2 PNF-1B-R YK.24V φ22 (W) 996002 Pilot Lamp 205581 Label 208327 Plate WS060000 Lock Washer SR069400 Cap Screw...
  • Page 75 A405M A405_2.6 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 206407 Panel SF059200 Pan Head Screw(+)/W M5*0.8*8 994817 Emergency Stop Button R2PNR4-2B-R 201458 Hole Plugs HP-22 994855 Switch Button-ON R2 PNF-1A-G 994855A Dust Cove R2 PRCF 994856 Switch Button-OFF R2 PNF-1B-R...
  • Page 76 A405M A405_2.6 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 994855A Dust Cove R2 PRCF 994855 Switch Button-ON R2 PNF-1A-G 994856 Switch Button-OFF R2 PNF-1B-R 994819 Emergency Stop Button R2 PNR4-3B-R 207826 Label 208327 Plate WS060000 Lock Washer SR069400 Cap Screw M6*16 SR039300 Cap Screw...
  • Page 77 QCA405M0301...
  • Page 78 QCA405M0301 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 208069F1L Protection Cover 0020 AB136012-3 0030 SR059300 Hex. Socket Screw M5*12 0040 WS050000 Spring Washer M5*φ10 0050 WF051010 Flat Washer 0060 150527 Sponge 2*300*7.5(M/M) 0070 SF089300 Pan Head Screw(＋)/W M8*1*12 0080 206118 Exhaust Pipe 5 "...
  • Page 79 QCA405M030101 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 208069F1L Protection Cover 0020 AB136012-5 0030 SH059300 Hex. Head Screw M5*0.8*12 0040 WS050000 Spring Washer...
  • Page 80 QCA405M030101 ITEM PART NO PARTS NAME SIZE Q`TY NOTE M5*φ10 0050 WF051010 Flat Washer 0060 150527 Sponge 2*300*7.5(M/M) 0070 SF089300 Pan Head Screw(＋)/W M8*1*12 0080 206118 Exhaust Pipe 5 " 0090 207940 Door Latch M5*φ10 0100 WF051010 Flat Washer 0110 WS050000 Spring Washer 0120...
  • Page 81 QCD400E0302...
  • Page 82 QCD400E0302 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 SR100402 Hex. Socket Screw M10*1.5*20(L.H) M10*φ40*t3 0020 WF104030 Flat Washer 0030 205788 Motor Pulley 50HZ X2 / CE 0040 994220 Thrust Bearing 0050 210018A Main Motor Fixed Plate 0060 210008 Motor Plate Rotate Shaft Φ55*Φ31*t4 0070...
  • Page 83 ASSEM 3.3...
  • Page 84 ASSEM 3.3 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 999455 AB208186 Fix Block ASM NH121900 Hex Nut M12*1.75 M12*ψ40 WF124030 Washer SS050200 Setscrew M5x10 206461 Fix Block 208186 Fix Block SC120800 Carriage Screw M12x40 SI069400 Counter Sunk Screw M6*16 208141 M24*3.0P 210059...
  • Page 85 A400M ASSEM 4.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 100203 Lock Knob ψ10×ψ20 204263 Washer M10×ψ27(plastics) WF102730 Washer Standard M10×ψ40(cast iron) WF104030 Washer Optional 206434A hand wheel 8"(plastics) Standard 200866 hand wheel 8"(cast iron) Optional KS070720 7x7x20 AB207462 Hand Wheel Shaft Assembly 207462 Hand Wheel Shaft...
  • Page 86 ASSEM 5.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 100203 Lock Knob ψ10×ψ20 204263 Washer WF102730 Washer WF104030 Washer 206434A hand wheel 200866 hand wheel 201567 Washer KS070720 7x7x20 AB207999A Locate Plate ASM 210019 Shaft RS300010 Int. Retaining Ring IS30 SS069200 Set Screw...
  • Page 87 ASSEM 5.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 208125 Plate WS080000 Lock Washer SR080400 Cap Screw M8X20 208114 Chain RS35 M8xψ20 WF082030 Lock Washer WS080000 Lock Washer SR080600 Cap Screw M8X30 AB210086 Bracket ASM SR069400 Cap Screw M6×12 SH069400 Hex Head Bolt M6*16...
  • Page 88 A405M A405_5.1...
  • Page 89 A405M A405_5.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 100203 Lock Knob ψ10×ψ20 204263 Washer M10×ψ27 plastic WF102730 Washer M10×ψ40 cast iron WF104030 Washer 206434A hand wheel 8" plastic w/o handle 200866 hand wheel 8" cast iron (with handle) 201567 Washer KS070720...
  • Page 90 A405M A405_5.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 210024A Sprocket BB600303A Bearing 6003LLU 210023 Screw Threads 210094 Bushing 210086 Bracket NL061000 Lock Nut M6X1.0P SR061200 Cap Screw M6X60 NH081300 Hex Nut M8*1.25 210025 Block 210014 Cover 210056 Plate ST040200 Tap Screw M4X10...
  • Page 91 A405M A405_6.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SH120440 Hex Head Bolt M12×20 206320 Flange 206321 Shaft BB600304 Ball Bearing 6003LLB RS150000 Int. Retaining Ring ψ26*ψ34 t=0.3 ( 6202 ) WW263403 Wave Washer RR350000 Int. Retaining Ring 206497 Shaft WF061310 Washer...
  • Page 92 ASSEM 6.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SH089400 Hex Head Bolt M8*16 WS080000 Lock Washer...
  • Page 93 ASSEM 6.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE WF083030 Washer M8*ψ30 206590 Spring 208172 Shaft SS069300 Setscrew M6*12 205919 Ring SR080400 Cap Screw M8*20 WS080000 Lock Washer WF083030 Washer M8*ψ30 207033 Ring 207034 Ring SH069400 Hex Head Bolt M6*16 208120 Fix Plate...
  • Page 94 ASSEM 6.2.1...
  • Page 95 ASSEM 6.2.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SH089400 Hex Head Bolt M8*16 WS080000 Lock Washer M8*ψ30 WF083030 Washer 206590 Spring 208172 Shaft SS069300 Setscrew M6*12 205919 Ring SR089400 Cap Screw M8*16 WS080000 Lock Washer M8*ψ30 WF083030 Washer 207033 Ring 207034...
  • Page 96 ASSEM 6.3 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 206627 Pully 50Hz 206336 Pully 60Hz LF150020 Belt 18WX380L 50Hz/60Hz 208184 Shaft SJ080400 Button Head Screw M8*20 WS080000 Lock Washer 208185 Plate M14*ψ35 WF143530 Washer NL142200 Lock Nut MH206301 Scoring Motor 0.75P (M20P) Feature NH101700...
  • Page 97 A400M ASSEM 7.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 206647 Magnet 205505B Screw Threads NH203000 Hex Nut M20x2.5p 203470 Plug 40*120...
  • Page 98 A400M ASSEM 7.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SI051100 Counter Sunk Screw M5*55 206646A Magnetic Bracket 22MM 205208 Sliding Tube SH080400 Hex Head Screw M8*20 NH081300 Hex Nut SJ060200 Button Head Screw M6*10 207085 Cover M8*ψ18 WF081818 Washer SS080500 Setscrew...
  • Page 99 ASSEM 7.5 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 205208 Sliding Tube 203545 Hex Nut 205505 Screw Threads...
  • Page 100 ASSEM 7.5 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 203470 Plug 40*120 NH081300 Hex Nut SH080400 Hex Head Screw M8*20 BB620203A Ball Bearing 6202LLU 208405 Shaft AB203356 Ring Assembly BB620202 Ball Bearing 6202ZZ 203356 Ring 203357 Shaft RS150000 Retaining Ring AB203348 Roller Assembly 203349...
  • Page 101 ASSEM 7.5.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 205395 Sliding Tube 203545 Hex Nut 205505 Screw Threads 203470 Plug 40*120 NH081300 Hex Nut SH080400 Hex Head Screw M8*20...
  • Page 102 ASSEM 7.5.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 207948 Rotary Arm BB620203A Ball Bearing 6202LLU 208405 Shaft AB203356 Ring Assembly BB620202 Ball Bearing 6202ZZ 203356 Ring 203357 Shaft RS150000 Retaining Ring AB203348 Roller Assembly 203349 Shaft 203348 Roller BB620202 Ball Bearing 6202ZZ...
  • Page 103 A400M ASSEM 7.6.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 206647 Magnet 205505B Screw Threads NH203000 Hex Nut M20x2.5p 203470 Plug 40*120...
  • Page 104 A400M ASSEM 7.6.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SI051100 Counter Sunk Screw M5*55 206646 Magnetic Bracket 40MM 205395 Sliding Tube SH080400 Hex Head Screw M8*20 NH081300 Hex Nut SJ060200 Button Head Screw M6*10 207085 Cover M8*ψ18 WF081818 Washer SS080500 Setscrew...
  • Page 105 ASSEM 8.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 201103 T-Nut M8x1.25p 203230 Plug HP-16 203128 Handle 201456A T-Block 200815 Adjust Handle M12x1.75px57L...
  • Page 106 ASSEM 8.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 200954 Knob Screw M8x50 200954 Knob Screw M8x50 AB207996R Support Frame ASM 101 BB620102A Bearing 6201ZZ 102 017058 Bearing 103 203302 Roller 104 200910 Plug 80x40 105 207996 Support Frame 106 WF081818 Washer M8x18...
  • Page 107 QCD4010902...
  • Page 108 QCD4010902 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 AB207207 SS-A401(5)(M) 0020 AB207205A Ext. Fence Assembly 0040 200827 Knob Bolt M8x1.25px40L 0050 NA081300 Acorn Nut M8*1.25 0060 203790 Knob 0070 SJ080400 Pan Head Socket Screw M8*1.25*20 0080 203598 Rod End Screw M8x1.25p M8*φ18*t1.8 0090...
  • Page 109 QCD4010903 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 AB207207 SS-A401(5)(M) 0020 AB207205 Ext. Fence Assembly 0040 200827 Knob Bolt M8x1.25px40L 0050 SS069100 Set Screw M6*1*6 0060 SR060500 Hex. Socket Screw M6*1*25 0070 207221 Fixed Block 0080 207220 Locate Plate 0090 SS081300 Set Screw...
  • Page 110 ASSEM 10.2...
  • Page 111 ASSEM 10.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE AB205801 Rip Fence Housing Assembly SI069400 Counter Sunk Screw M6*16 206433 Fixed Plate 203193 Shafts NL081000 Lock Nut 200875 Locate Plate SH069400 Hex Head Bolt M6*16 203179 Eccentric Ring 205801 Seat 203213 Eccentric Shaft...
  • Page 112 ASSEM 10.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 205078 Rule X7，S 205078-1 Rule X7，S 206437 End Washer WS080000 Lock Washer SR089400 Cap Screw M8*16 SR080500 Cap Screw M8*25 S205939 NH203000 Hex Nut 205116A Screw M20*160 200884 Handle 206432 Handle M10*55 200884...
  • Page 113 A400M 11.1 20200309...
  • Page 114 A400M 11.1 ITEM PART NO PART NAME SIZE Q`TY NOTE 2375320M-1 Plate SJ069300 Screw M6*12 2375320M-2 Top Base (3200) 2375320M-3 Hole plug NH081300 Hex Nut WE080000 Washer M10*ψ20 WF102025 Washer SI080700 Counter Sunk Screw M8*35 2375320M-4 Ring BB620202 Ball Bearing 6202ZZ 2375320M-5 Eccentric shaft...
  • Page 115 A400M 11.2 ITEM PART NO PART NAME SIZE Q`TY NOTE 2375320M-22 Rack 3200mm SI109300 Counter Sunk Screw M10×12 2375320M-23 BB620202 Ball Bearing 6202ZZ 2375320M-24 Roller 2375320M-25 Shaft 2375320M-26 Roller SJ069300 Screw M6*12 SR069300 Cap Screw M6*12 2375320M-27 Knob 2375320M-28 Shaft 2375320M-29 Ring 2375320M-30...
  • Page 116 A400M 11.3 ITEM PART NO PART NAME SIZE Q`TY NOTE 2375320M-35 Bottom Base (3200) 2375320M-36 Front Cover ST040200 Tap Screw M4x10 2375320M-37 Fixed Block SR080500 Cap Screw M8*25 2375320M-38 Fixed Block SR080500 Cap Screw M8*25 SS060200 Setscrew M6*10 2375320M-39 Teeth Locate Plate 2375320M-40 Locate Block 2375320M-41...
  • Page 117 ASSEM 12.10...
  • Page 118 ASSEM 12.10 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SR060400 Cap Screw M6*20 WS060000 Lock Washer M6*ψ19 WF061920 Washer AB207981 Link ASM SH100700 Hex Head Bolt M10*35 WS100000 Lock Washer SR060900 Cap Screw M6*45 WS060000 Lock Washer SH100700 Hex Head Bolt M10*35 M10*ψ20 WF102020...
  • Page 119 ASSEM 12.10 ITEM PART NO PARTS NAME SIZE Q`TY NOTE NH081300 Hex Nut LM207031 Warning Label LM207032 Warning Label LM207033 Warning Label AB205355 Protection Hood ASM 207867 Guard SP040200 Pan Head Screw M4*10 205355 Protection Hood AB207868 Roller ASM SP040200 Pan Head Screw M4*10 205356...
  • Page 120 A400M ASSEM 12.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE AB205075 Hood Assembly 205075 Hood ST029404 Screw M3×16 ST029304 Screw M3×12 205076 Hood 203110 Screw M5×10 205124 Shaft NL101700 Lock Nut 205162 Cap Screw M10×25 200535 Hose Clamp 2-1/2" Optional φ60x3000 200536...
  • Page 121 ASSEM 12.6...
  • Page 122 ASSEM 12.6 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 207770 Fixed Bracket SR080500 Cap Screw M8x25 WS080000 Lock Washer WF081818 Washer M8x18 207774 Fixed Bracket NH203000 Hex Nut ψ22*ψ60*t8 203338 Washer 205116 Screw M20*130 NH121900 Hex Nut SH121400 Hex Head Bolt M12X70 201039 SR080400...
  • Page 123 ASSEM 12.6 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SR050200 Cap Screw M5X10 SR060400 Cap Screw M6*20 WS060000 Lock Washer M6×ψ16 WF061620 Washer 207776 Fixed Plate NH061000 Hex Nut AB208321 Case ASM 994852 Switch Button-ON R2PIF-1A-7WL(24V-LED) 994853 Switch Button-OFF R2PNF-1B-B 994852A Dust Cove...
  • Page 124 ASSEM 12.6 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SR050200 Cap Screw M5×10 204196 Plastic Corrugated Tubing NFE-08B 998808 Strain Relief N-MGQ32-34B 150527 2x300x7.5(M/M) ψ3.2×6 BR000041 Rivet 203917 Binder 994890A Cover AHX-669 203889 Corrugated Tubing Fitting N-PGN21-28B 203888 Plastic Corrugated Tubing NGN-23B 201458 Hole Plugs...
  • Page 125 ASSEM 12.6.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 207770 Fixed Bracket SR080500 Cap Screw M8x25 WS080000 Lock Washer WF081818 Washer M8x18...
  • Page 126 ASSEM 12.6.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 207774 Fixed Bracket NH203000 Hex Nut ψ22*ψ60*t8 203338 Washer 205116 Screw M20*130 NH121900 Hex Nut SH121400 Hex Head Bolt M12X70 201039 SR080400 Cap Screw M8x16 WS080000 Lock Washer WF081818 Washer M8x18 207773 Bolt...
  • Page 127 ASSEM 12.6.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE AB208321-1 Case ASM 994852 Switch Button-ON R2PIF-1A-7WL(24V-LED) 994853 Switch Button-OFF R2PNF-1B-B 994852A Dust Cove R2 PRCH 721399 Switch Button Cut Out 994890 Switch Button-ON AH164-TL5Y11E3 205411 Copper Pillar CU-A07 NL030600 Lock Nut 208342 Circuit Card...
  • Page 128 ASSEM 12.6.2...
  • Page 129 ASSEM 12.6.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 207770 Fixed Bracket SR080500 Cap Screw M8x25 WS080000 Lock Washer WF081818 Washer M8x18 207774 Fixed Bracket NH203000 Hex Nut ψ22*ψ60*t8 203338 Washer 205116 Screw M20*130 NH121900 Hex Nut SH121400 Hex Head Bolt M12X70 201039 SR080400...
  • Page 130 ASSEM 12.6.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SR100900 Cap Screw M10*45 205557 Handle MS-737-1-A-330 207757 Case M10×ψ25 WF102520 Washer NH101700 Hex Nut 205411 Copper Pillar CU-A07 203448 Circuit Card 205411 Copper Pillar CU-A07 203449 Circuit Card NL030600 Lock Nut 207758 Plate...
  • Page 131 ASSEM 12.6.3...
  • Page 132 ASSEM 12.6.3 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 207770 Fixed Bracket SR080500 Cap Screw M8x25 WS080000 Lock Washer WF081818 Washer M8x18 207774 Fixed Bracket NH203000 Hex Nut ψ22*ψ60*t8 203338 Washer 205116 Screw M20*130 NH121900 Hex Nut SH121400 Hex Head Bolt M12X70 201039 SR080400...
  • Page 133 ASSEM 12.6.3 ITEM PART NO PARTS NAME SIZE Q`TY NOTE M10×ψ25 WF102520 Washer NH101700 Hex Nut 207758 Plate WS050000 Lock Washer SR050200 Cap Screw M5×10 204197 NGN-28B-AA Plastic Corrugated Tubing 998808 Strain Relief N-MGQ32-34B 150527 2x300x7.5(M/M) SR060400 Cap Screw M6*20 WS060000 Lock Washer M6×ψ16...
  • Page 134 ASSEM 12.6.4...
  • Page 135 ASSEM 12.6.4 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 207770 Fixed Bracket RAL9023 SR080500 Cap Screw M8x25 WS080000 Lock Washer WF081818 Washer M8x18 207774 Fixed Bracket RAL9023 NH203000 Hex Nut ψ22*ψ60*t8 203338 Washer 205116 Screw M20*130 NH121900 Hex Nut SH121400 Hex Head Bolt M12X70...
  • Page 136 ASSEM 12.6.4 ITEM PART NO PARTS NAME SIZE Q`TY NOTE IC208002 Stop Cord IC208003 Control Panel Cord 208101 Plate RAL9023 WS050000 Lock Washer SR050200 Cap Screw M5×10 204197 Plastic Corrugated Tubing NGN-28B-AA 998808 Strain Relief N-MGQ32-34B 150527 2x300x7.5(M/M) SR060400 Cap Screw M6*20 WS060000 Lock Washer...
  • Page 137 D401_12.9 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SR060400 Cap Screw M6*20 WS060000 Lock Washer...
  • Page 138 D401_12.9 ITEM PART NO PARTS NAME SIZE Q`TY NOTE M6*ψ19 WF061920 Washer AB207981 Link ASM SH100700 Hex Head Bolt M10*35 WS100000 Lock Washer SR060900 Cap Screw M6*45 WS060000 Lock Washer SH100700 Hex Head Bolt M10*35 M10*ψ20 WF102020 Washer ψ10×ψ20 204263 Washer 207981 Link...
  • Page 139 D401_12.9 ITEM PART NO PARTS NAME SIZE Q`TY NOTE φ350~400 205032 Plate NH121900 Hex Nut SH121400 Hex Head Bolt M12X70 201039 SR060400 Cap Screw M6*20 WS060000 Lock Washer M6×ψ16 WF061620 Washer 207776 Fixed Plate NH061000 Hex Nut AB207866 Rear Cover ASM ST030500 Tap Screw M3.5x25...
  • Page 140 D401_12.9 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 207970 205358 Elbow Type Clamp WF081818 Washer M8x18 WS080000 Lock Washer NH081300 Hex Nut SR080600 Cap Screw M8x30 WF081818 Washer M8x18 WS080000 Lock Washer SR080500 Cap Screw M8x25 207971 Square Tube 207973 Plate SJ060200...
  • Page 141 D401_12.10...
  • Page 142 D401_12.10 ITEM PART NO PARTS NAME SIZE Q`TY NOTE SR060400 Cap Screw M6*20 WS060000 Lock Washer M6*ψ19 WF061920 Washer AB207981 Link ASM SH100700 Hex Head Bolt M10*35 WS100000 Lock Washer SR060900 Cap Screw M6*45 WS060000 Lock Washer SH100700 Hex Head Bolt M10*35 M10*ψ20 WF102020...
  • Page 143 D401_12.10 ITEM PART NO PARTS NAME SIZE Q`TY NOTE NH081300 Hex Nut LM207031 Warning Label LM207032 Warning Label LM207033 Warning Label AB205355 Protection Hood ASM 207867 Guard SP040200 Pan Head Screw M4*10 205355 Protection Hood AB207868 Roller ASM SP040200 Pan Head Screw M4*10 205356 Protection Hood...
  • Page 144 QCA405M1302 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 203017 Gear Wheel φ10*30 0020 PP103000 0030 210055 Encoder Fixed Plate 0040 206454 Shaft Of Bushing 0050 AB203154 M6xφ19 0060 WF061920 Flat Washer 0070 WS060000 Spring Washer 0080 SJ069400 Pan Head Socket Screw M6*1*16 M3*φ6 0090...
  • Page 145 A400M ASSEM 14.2+14.3 ASM14.2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 200939 Handle WF123030 Washer M12x30 φ13xφ25 992496 Plastic Washer 201849 T-Nut M12x1.75p ASM14.3 (AB201830) ITEM PART NO PARTS NAME SIZE Q`TY NOTE AB201830 Edge Shoe Plate Assembly 101 201830 Edge Shoe Plate φ5xφ16 102 PS051600...
  • Page 146 ASSEM 14.4.5 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 200526 Fence Plate 201632 Spring plungers with ball M4×9 AC198170AB1 Miter Gauge Assembly S, A AC204295A Miter Gauge Assembly S, A 198170A Miter Gauge Body NH050800 Hex Nut SR050500 Cap Screw M5×25 SP049300 Pan Head Bolt...
  • Page 147 AB136012-3+AB136012A AB136012-3 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 AB136012A 0050 IC200807 Stop Control Cord AB136012A ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 136012A Door Safety Switch AZD-1112(UL) 45P~63P 0020 709411 Strain Relief PG11 0030 SP040500 Pan Head Screw (＋) M4*0.7*25 0040...
  • Page 148 AB136012-5+AB206407A AB136012-5 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 AB136012A 0050 IC200810 Stop Control Cord 0.75x2Cx3.1Mx4Y AB206407A ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0020 206407 Operation Panel 0030 SJ050200 Pan Head Socket Screw M5*0.8*10 0040 994808 Emergency Button Switch R2PNR4-1B-R YK.24V φ22 (W)
  • Page 149 AB206407+AB206407-2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 AB206407A Operation Panel Asm. 0090 IC207028 Panel Control Cord 0.75x7Cx0.4Mx12Y2R 0100 IC207013 Stop Control Cord 2.5M 0110 IC200804 Switch Control Wire 0120 IC200805 Switch Control Wire AB206407-2 ITEM PART NO PARTS NAME SIZE Q`TY...
  • Page 150 AB207065-2 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 207143 Quick Release Handle 0020 100271 Ball Knob 0030 207070 Handle 0040 207067 0050 RS140000 Retaining Ring (S-type) 0060 207069 Spring 0070 207145 Lock Pin 0080 207065 Down Press Base 0090 207068 Down Press Shaft...
  • Page 151 AB207205...
  • Page 152 AB207205 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 207212 Extended Tube 0020 207213 Rip Fence Magnifier 0030 207216 Aluminum Rule 0040 205544 Fiber Rubber Strip 0050 207205-1 Fence Plate 0060 207884 Fixed Plate 0070 207205-2 Extend Fence 0080 SS069100 Set Screw M6*1*6...
  • Page 153 AB207205A...
  • Page 154 AB207205A ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0010 207212-1 Ext. Tube 0020 207213 Rip Fence Magnifier 0030 207216-1 Aluminum Ruler (Metric) 0040 205544 Fiber Rubber Strip 0050 207205-1 Fence Plate 0060 207884 Fixed Plate 0070 207205-2 Extend Fence 0080 SS069100 Set Screw...
  • Page 155 AB207207 ITEM PART NO PARTS NAME SIZE Q`TY NOTE 0020 207203 Stop Plate Shaft 0030 207207 Stop Plate φ15.5xφ22x0.5t 0040 207208 Copper Washer 0050 207263 Knob Bolt M8x1.25px42L M8*φ20*3mm 0060 WF082030 Flat Washer M8*φ18 0070 WF081820 Flat Washer 0080 207235 Nylon Acorn Nut 0090 207200...
