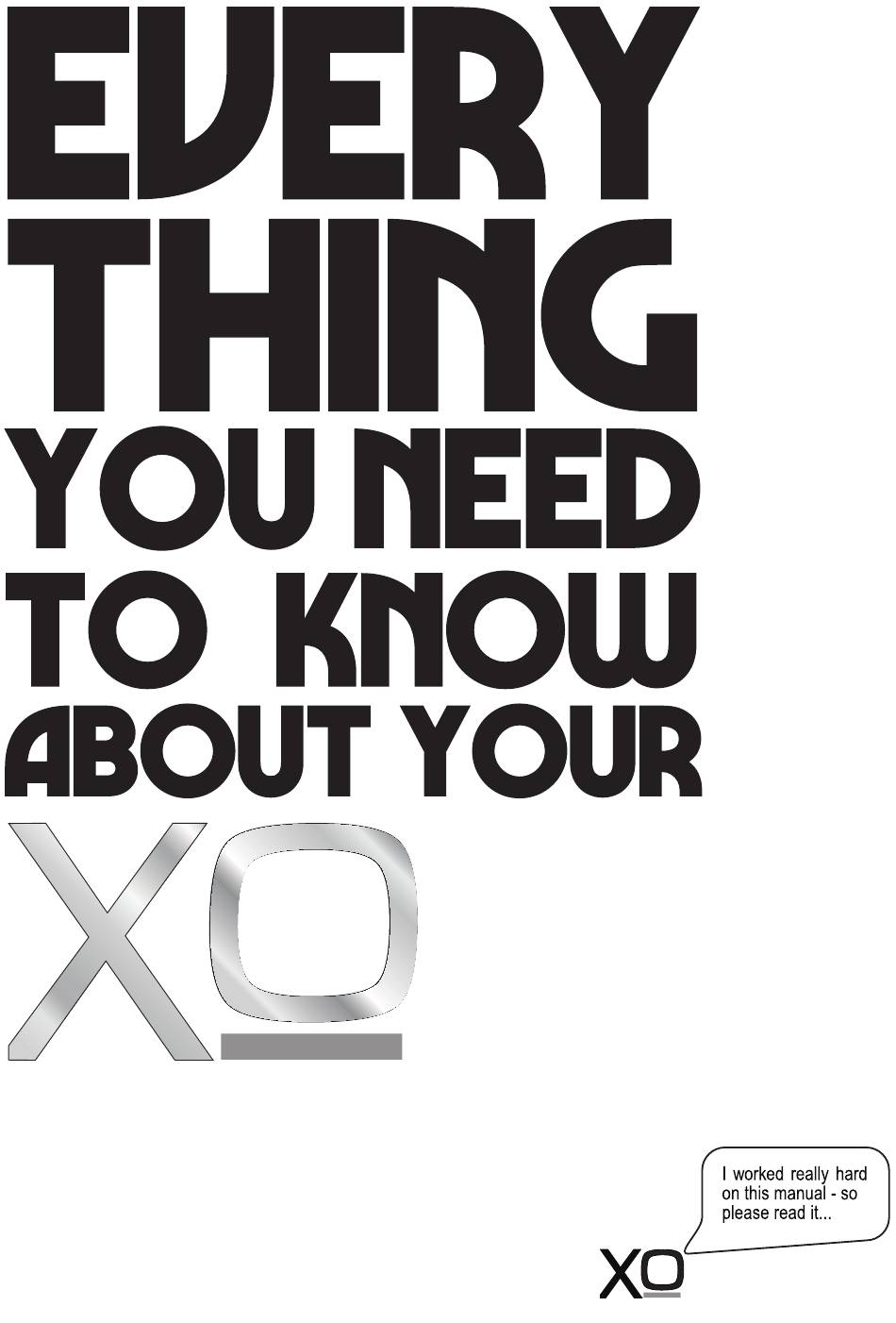

- Page 1 XOVD DESIGNER CANOPY MODELS XOVD136, XOVD148...
- Page 2 models covered in this manual MODELS COVERED IN THIS MANUAL ARE: XOVD136__, XOVD148__ XOIL Blower/Liner Sold Separately XOVD Designer Canopies are engineered to work with XOIL Combination Blower/Liners. USE OF AN XOIL BLOWER/LINER IS REQUIRED AND UNITS ARE SOLD SEPARATELY. XOVD136__ Use: XOIL3619SC (395 - 600 CFM model) - or - XOIL3619KSE (1000 CFM model) XOVD148__ Use:...
- Page 3 XO at: www.xoappliance.com/register-your-product/ REGISTRATION HELPS YOU BY - Ensuring warranty coverage should you need service Providing ownership verification for insurance purposes Let’ s XO notify you in the event of product changes or recalls. - 3 -...
- Page 4 where things are GETTING READY 5 - 11 Safety and Precautions Planning Ductwork Install Examples Dimensions THE INSTALL 12 - 17 Mounting Height Top or Rear Exhaust Cut Out Dimensions Installing Electrical Connections MAINTENANCE 18 - 19 Filters Cleaning Recirculation Light Replacement OPERATING 20 - 21...
- Page 5 safety first IMPORTANT SAFETY INSTRUCTIONS FOR RESIDENTIAL USE ONLY READ AND SAVE THESE INSTRUCTIONS PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING. IMPORTANT: Save these Instructions for the Local Electrical Inspectors use. INSTALLER: Please leave these Instructions with this unit for the owner. OWNER: Please retain these instructions for future reference.
- Page 6 greasy spillovers that may ignite. Heat oils slowly on low or medium settings. B. Always turn hood ON when cooking with high heat. C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
- Page 7 lished by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities. C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
- Page 8 a few simple rules to plan your ductwork THIS HOOD IS DESIGNED TO USE A 6” ROUND DUCT - IT MAY BE TRANSITIONED TO A 3-1/4” X 10” RECTANGULAR DUCT NEVER REDUCE DUCT SIZE. UNDERSIZED DUCTING SEVERELY RESTRICTS AIR FLOW AND HARMS PERFORMANCE. (Example: the area of a 6”...
- Page 9 estimating total equivalent feet in a duct CAUSING AIR TO CHANGE DIRECTION CAUSES TURBULENCE AND RESTRICTS FLOW IN A SYSTEM. IF USING FLEXIBLE METAL DUCT - INCREASE ALL MULTIPLIERS BY 50% (12 BECOMES 18 - ETC.) THIS EASY TO USE WORKSHEET IS FOR 600 CFM OR LESS. UNDER “QTY USED”...
- Page 10 typical installation examples WALL EXHAUST ROOF EXHAUST FRONT EXHAUST CEILING EXHAUST RECIRCULATION EXHAUST MUST BE RETURNED TO THE SPACE - 10 -...
- Page 11 Front of hood Side of hood “A” 12” “B” 23” MODEL XOVD136 __ 26” 36” XOVD148 __ 38” 48” Top of hood 5 9/16” 6” 7 3/8” - 11 -...
- Page 12 highs and lows RECOMMENDED MOUNTING HEIGHT ABOVE GAS AND ELECTRIC COOKTOPS 27” to 32” All range hoods have a recommended range of installation height over the cooking surface. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard;...
- Page 13 switching top and rear venting TO CONVERT THE UNIT FROM TOP EXHAUST TO REAR EXHAUST FOLLOW THESE SIMPLE STEPS: 1. Unplug the quick disconnect coupling that supplies power to the motor. 2. Remove the eighteen (18) screws that fasten the blower assembly and filler plate to the hood. 180°...
- Page 14 switching top and rear venting 4. If the hood is a 1-motor hood, depending on your requirements, you can use the hole at the bottom F or at the top rear E of the hood. if the hood is a 2-motor hood, use the hole at the top rear E or the hole at the top D.
- Page 15 installation - Check that the screws to be used for mounting the hood are suitable for the type of wall on which it is to be mounted. - Position the wooden bracket on the wall according to the measurements in the figure below and fasten it with the appropriate screws.
- Page 16 installation If the domestic mains supply is provided at the rear of the appliance, it is possible to break 1 of the 6 holes, which are provided for the power cable, with a screwdriver. To proceed with the installation, remove screws Y and remove panel A. - 16 -...
- Page 17 - Place the appliance on the wall by hooking it onto the previously inserted screws “A”. - Secure the hood permanently with the safety screws “C”. Fully tighten the screws “A”. MODEL XOVD136 __ 19 11/16” XOVD148 __ 31 11/16”...
- Page 18 installation - Before installing the wall shell, remove the hood inside it.. - Place the hood in front of the wooden bracket B, screw A and C as shown in the figure and fix it permanently. - For the various installations use screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard, etc.).
- Page 19 installation BEFORE FITTING THE HOOD INTO THE CABINET: 1. Remove the four (4) screws holding the side bra- cket (B) in place. Remove the brackets and set aside. 2. Remove the two (2) screws holding the bracket (H) in place and tilt down. - 19 -...
- Page 20 installation continued Before inserting the hood into the opening, make the electrical connection via cable W and insert the air outlet hose Q supplied. Then we can proceed with the installation of the hood. FASTEN THE HOOD IN PLACE Using four (4) screws along the inside front edge and four (4) screws in the back corners as shown - 20 -...
- Page 21 electrical connection 1. Route the power cord to the junction box inside the hood. 2. Using listed conduit fittings and connectors, connect the power supply to the box and each line to the appropriate wire following this color convention: BLACK = HOT LEG WHITE = NEUTRAL GREEN/YELLOW = GROUND Polarity must be observed.
- Page 22 Regular cleaning and maintenance is the key to long life and peak performance of any equipment. ANTI-GREASE BAFFLE FILTERS: Your XO hood is equipped with stainless steel pro-style baffle filters designed to capture grease from cooking. The baffles are easily removed for cleaning either by soaking in a warm, mild dish detergent solution, rinsing thoroughly and drying - or - by washing in your dishwasher.
- Page 23 maintenance continued FOR UNITS USED IN RECIRCULATION MODE ONLY: This refers to hoods which are not ducted outside but rely instead on carbon filter elements to help purify the air before it is exhausted back into the room. The carbon element filters gradually lose efficiency and cannot be cleaned or regenerated. These must be replaced at least 4 times a year, more frequently if needed based on the amount of use and style of cooking.
- Page 24 Your XO range hood is controlled by these electronic push buttons which illuminate when activated. BUTTON : Controls the LED lights. There are three illumination levels. Press the button Once for HIGH; Twice for MEDIUM; Three times for LOW; Four times for OFF.
- Page 25 make up air conversion Code Compliance Control Some local codes limit the maximum exhaust airflow of range hoods to 400 CFM before a Make Up Air System is required. The XOIL3019SC - XOIL3619SC - XOIL4219SC models are supplied with 600 CFM capacity.
- Page 26 access parts & accessories RECIRCULATION KITS FILTERS REPLACEMENT LIGHTS REMOTE CONTROLS DUCT COVERS REPLACEMENT SWITCHES BLOWER MOTORS FAN WHEELS ALL OF THESE PARTS AND MORE ARE AVAILABLE, SIMPLY VISIT WWW.XOAPPLIANCE.COM and click on PARTS STORE OR CALL US AT 973-403-8900 - 26 -...
- Page 27 XO and upon proper installation and start-up in accordance with the instruction packet supplied with each XO unit. XO’s obligation under this warranty is limited to a period of two (2) years from the date of original purchase.
- Page 28 3011000172100...
