Summary of Contents for Xo XOE30

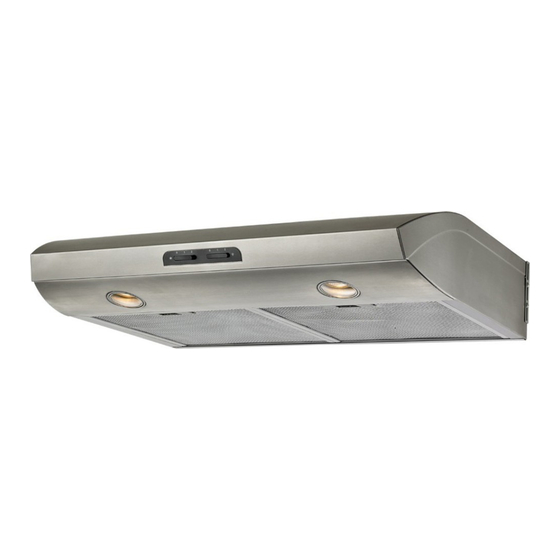

- Page 1 XOE30 XOE36 READ AND SAVE THE INSTRUCTIONS FOR RESIDENTIAL COOKING ONLY Register your product online at: www.xoventilation.com NEED HELP? Call our ventilation experts at 800-966-8300...
- Page 2 - 6" Round Vertical Duct Parameters of Ducting Outlets - 3 1/4" x 10" Rectangle Vertical Duct Options - 3 1/4 x 10" Rectangle Horizontal Duct Ampere 2.08 Amps Mounting height 26” to 32” from cooking surface XO How Beautiful Kitchens Breath...
- Page 3 WARNING TO RUDUCE THE RICK OF FIRE, ELECTRIC SHOCK OR INJURE TO PERSONS, PLEASE OBSERVE THE FOLLOWINGS: length) 1. Installation work and electric wiring (including switch location) must be done by the qualified person(s) in accordance with local applicable codes and standards, including fire- rated construction.
- Page 4 best capture of cooking impurities. WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: 6. This hood is not intended to be used as a shelf. 1. Never leave surface units unattended at high settings. Boilovers cause smoking 7.
- Page 5 2. Remove the bottom cover fixed in place with 3 screws. HOUSE WIRING 26"-32" 3. Remove the Accessory parts box from inside of the hood. ** Duct and roof cap/wall cap are not supplied. Warning: to avoid the risk of fire, use only the metal ductwork. NON-DUCTED VERSION 1.No need of plastic or metal duct.
- Page 6 2. Attach house power cable to hood using appropriate clamp. 3. Hold the hood in position under the cabinet. Tighten all 4 mounting screws completely to secure the hood to the cabinet. 5.Ducted installation only Tighten the Recirculation Plate and the outlet with screws. 4.For ducted installation, connect ductwork to hood and use duct tape to make joints secure and air-tight.
- Page 7 7.Install the Halogen lamp. * Grease filters are washable. Remove the grease filters from the hood. Wash the filters, taking care not to bend them. Allow them to be dry before refitting. When refitting the filters, make sure that the handle is visible from the outside. Reinstall the grease filters to the hood.
