Artsound U10 Manual

U10
8. TECHNICAL SPECIFICATIONS
system 2-weg Bluetooth speaker
range 200 m
2
woofer 10" paper cone
1,5" kapton voice coil
tweeter 1" compression driver
power amplifier RMS 150W
power amplifier peak 300W
sensitivity 92dB (+-3dB)
frequency range 40Hz - 20Khz
frequency range mic. 823Mhz - 832MHz
sources stereo Bluetooth (TWS)
input MIC, AUX, guitar, USB,
SD, BT
output AUX
wireless Bluetooth 5.0
battery 12V 7.000 mAh
power supply AC 100 - 240 V
weight 16kg
composition ABS plastic
colour black
dim. (hxwxd) 561 x 360 x 310 mm
accessoires 2 wireless microphones
remote control
optional tripod SS-59
This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive 2002/96/EC in order to
be recycled or dismantled to minimize its impact on the environment.For further information, please
contact your local or regional authorities.
I, House Of Music NV, hereby declare that the type of radio equipment ARTSOUND complies with Direc-
tive 2014/53/EU. The full text of the EU Declaration of Conformity can be found at the following internet
address: http://www.artsound.be/en/support/downloads
Disclaimer: All trademarks are the property of their respective owners. All specifications and information are
subject to change without further notice. Slight variations and differences might appear between printed photos
and actual product due to product enhancement.
House Of Music NV - Legen Heirweg 23D, B-9890 Gavere
House of Music nv, Legen Heirweg 23D, B-9890 Gavere
9. WARRANTY CONDITIONS
2 year warranty from date of purchase. The warranty
is limited to the repair of replacement of the defective
material insofar as this defect is a result of normal
use and the device has not been damaged. Artsound
is not responsible for any other costs that ensue as a
result of the defect (e.g. transport). For details, please
consult our general terms and conditions of sale.
U10
MANUAL
Dear Customer, congratulations on the purchase of this loudspeaker. Please read these instructions carefully
and keep them for further reference.
1. WARNINGS AND SAFETY
• To prevent fire or electric shocks, the device must
not be exposed to rain or humidity.
• For your own safety: to prevent electric shocks do
not remove the housing.
• Do not try to repair any malfunctioning parts of the
device yourself. Ask a professional expert to do this
for you.
2. CONTENTS OF THE BOX
• 1 x speaker
• 1 x remote control
• 1 x user manual
3. GENERAL DESCRIPTION

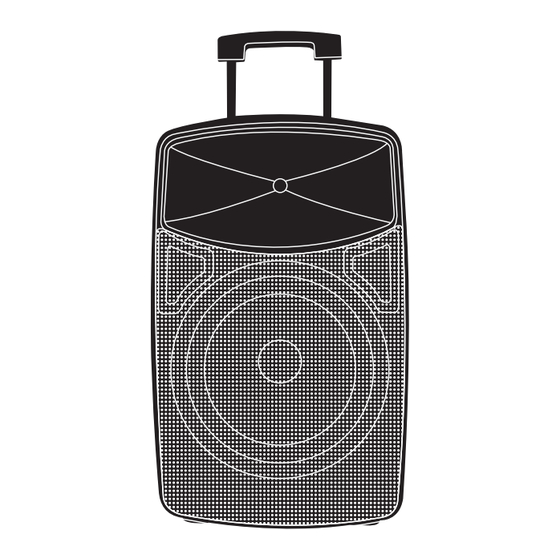

The ArtSound U10 is a portable battery powered trolley speaker for music playback, vocal presentations, guitar
playback and more. You can play music through Bluetooth, USB, SD card, and it's various inputs. It's high output
power makes it suitable for a large audience. It can run both on mains power and the internal rechargeable bat-
tery. The wheels and handle make it very easy to transport. The U10 can also be mounted on an optional tripod.
The U10 comes included with 2 wireless UHF microphones and a handy remote control. You can couple two U10
devices wirelessly through Bluetooth or by audio cable.
When plugged into the mains, the device remains
electrically charged even when switched off.
• Be careful with loud volume for prolonged periods
of time, this may cause hearing damage.
• 1 x power cable
• 2 x UHF wireless microphone
