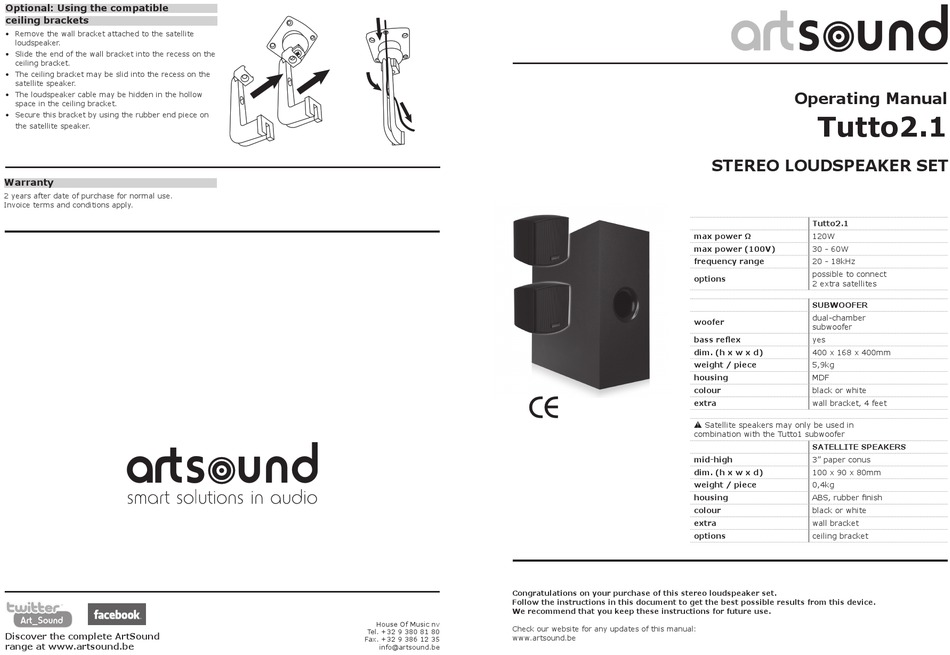

Artsound Tutto2.1 Operating Manual

Optional: Using the compatible
ceiling brackets
• Remove the wall bracket attached to the satellite
loudspeaker.
• Slide the end of the wall bracket into the recess on the
ceiling bracket.
• The ceiling bracket may be slid into the recess on the
satellite speaker.
• The loudspeaker cable may be hidden in the hollow
space in the ceiling bracket.
• Secure this bracket by using the rubber end piece on
the satellite speaker.
Warranty
2 years after date of purchase for normal use.
Invoice terms and conditions apply.
TM
Art_Sound
Discover the complete ArtSound
range at www.artsound.be
Congratulations on your purchase of this stereo loudspeaker set.
Follow the instructions in this document to get the best possible results from this device.
We recommend that you keep these instructions for future use.
House Of Music nv
Check our website for any updates of this manual:
Tel. +32 9 380 81 80
www.artsound.be
Fax. +32 9 386 12 35
info@artsound.be
Operating Manual

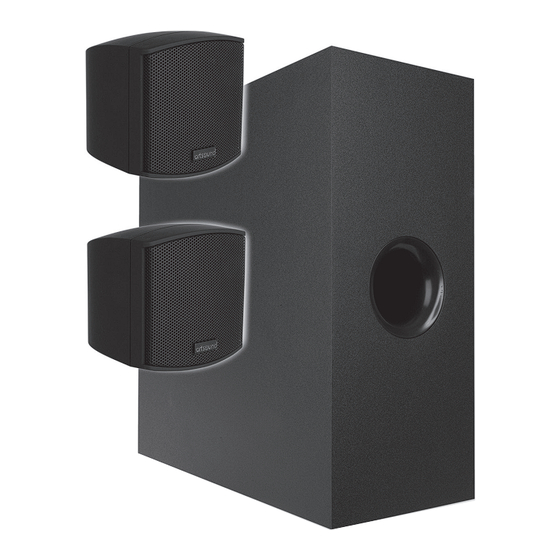

Tutto2.1
STEREO LOUDSPEAKER SET
Tutto2.1
max power Ω 120W
max power (100V) 30 - 60W
frequency range 20 - 18kHz
possible to connect
options
2 extra satellites
SUBWOOFER
dual-chamber
woofer
subwoofer
bass refl ex yes
dim. (h x w x d) 400 x 168 x 400mm
weight / piece 5,9kg
housing MDF
colour black or white
extra wall bracket, 4 feet
�
Satellite speakers may only be used in
combination with the Tutto1 subwoofer
SATELLITE SPEAKERS
mid-high 3" paper conus
dim. (h x w x d) 100 x 90 x 80mm
weight / piece 0,4kg
housing ABS, rubber fi nish
colour black or white
extra wall bracket
options ceiling bracket
