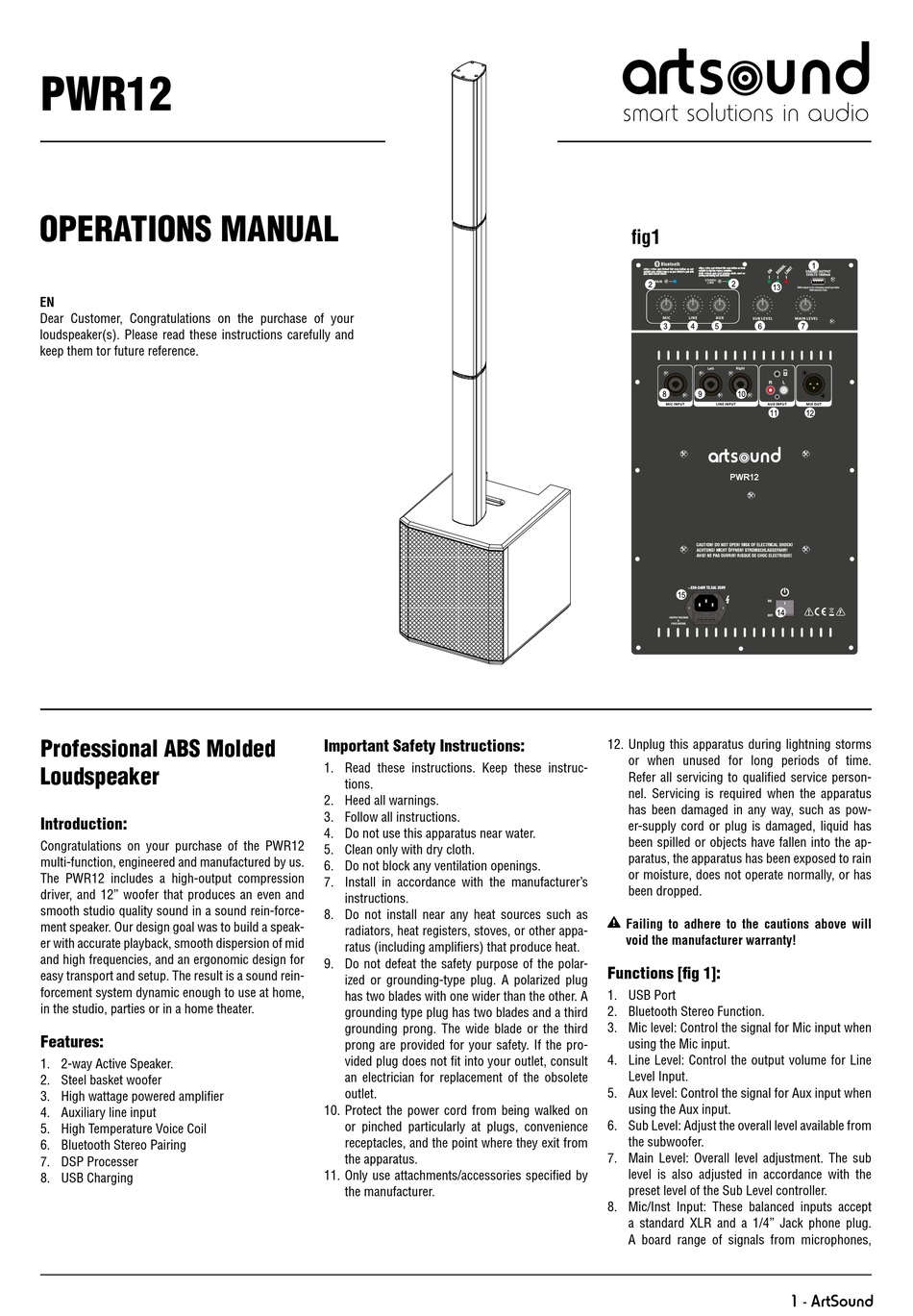

Artsound PWR12 Operation Manual

PWR12
OPERATIONS MANUAL
EN
Dear Customer, Congratulations on the purchase of your
loudspeaker(s). Please read these instructions carefully and
keep them tor future reference.
Professional ABS Molded
Loudspeaker
Introduction:

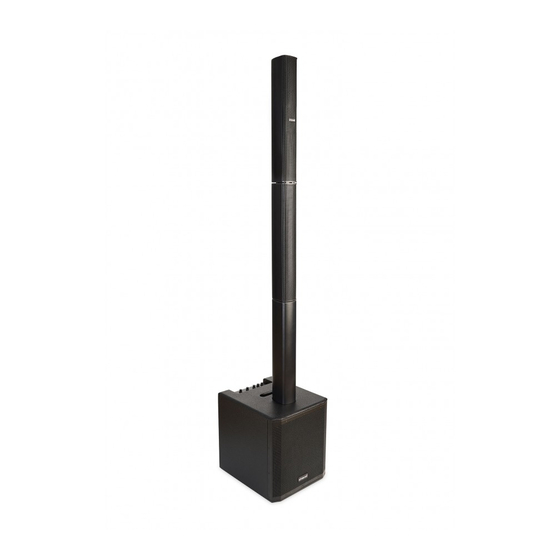

Congratulations on your purchase of the PWR12
multi-function, engineered and manufactured by us.
The PWR12 includes a high-output compression
driver, and 12" woofer that produces an even and
smooth studio quality sound in a sound rein-force-
ment speaker. Our design goal was to build a speak-
er with accurate playback, smooth dispersion of mid
and high frequencies, and an ergonomic design for
easy transport and setup. The result is a sound rein-
forcement system dynamic enough to use at home,
in the studio, parties or in a home theater.

Features:

1. 2-way Active Speaker.
2. Steel basket woofer
3. High wattage powered amplifier
4. Auxiliary line input
5. High Temperature Voice Coil
6. Bluetooth Stereo Pairing
7. DSP Processer
8. USB Charging

Important Safety Instructions:

1. Read these instructions. Keep these instruc-
tions.
2. Heed all warnings.
3. Follow all instructions.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings.
7. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other appa-
ratus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polar-
ized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the pro-
vided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
fig1
Step2: Press and release the LINK button on each
Step1: Press and release the PAIR button on one
speaker to link two PWR12 speakers.
speaker only. Select PWR12 on your device to pair with
Note: Please only start playing audio once all
your audio source device.
pairing and linking are successful.
PWR12
220-240V T2.5AL 250V
12. Unplug this apparatus during lightning storms
or when unused for long periods of time.
Refer all servicing to qualified service person-
nel. Servicing is required when the apparatus
has been damaged in any way, such as pow-
er-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the ap-
paratus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has
been dropped.
ׁ Failing to adhere to the cautions above will
void the manufacturer warranty!

Functions [fig 1]:

1. USB Port
2. Bluetooth Stereo Function.
3. Mic level: Control the signal for Mic input when
using the Mic input.
4. Line Level: Control the output volume for Line
Level Input.
5. Aux level: Control the signal for Aux input when
using the Aux input.
6. Sub Level: Adjust the overall level available from
the subwoofer.
7. Main Level: Overall level adjustment. The sub
level is also adjusted in accordance with the
preset level of the Sub Level controller.
8. Mic/Inst Input: These balanced inputs accept
a standard XLR and a 1/4" Jack phone plug.
A board range of signals from microphones,
