Congratulations with the purchase of your Artcore loudspeaker as part of the Artcore music system. A musical
ecosystem that allows you to either connect your Core loudspeakers by use of cables or wirelessly. This way you
effortlessly create a multi-room system, using the Artcore app to control it. This app offers alarm clock functions,
applications that match your (family) situation and streaming services like Tidal, V-tuner, Spotify-connect and
similar. In short, integration is central in Artcore: in terms of the loudspeakers, latest technologies and your
personal situation alike.If you have any questions about these products, the installation or control,
please contact your Artcore installer or dealer, or visit the website https://artsound.be/artcore
1
4
manual
2
3
5
6

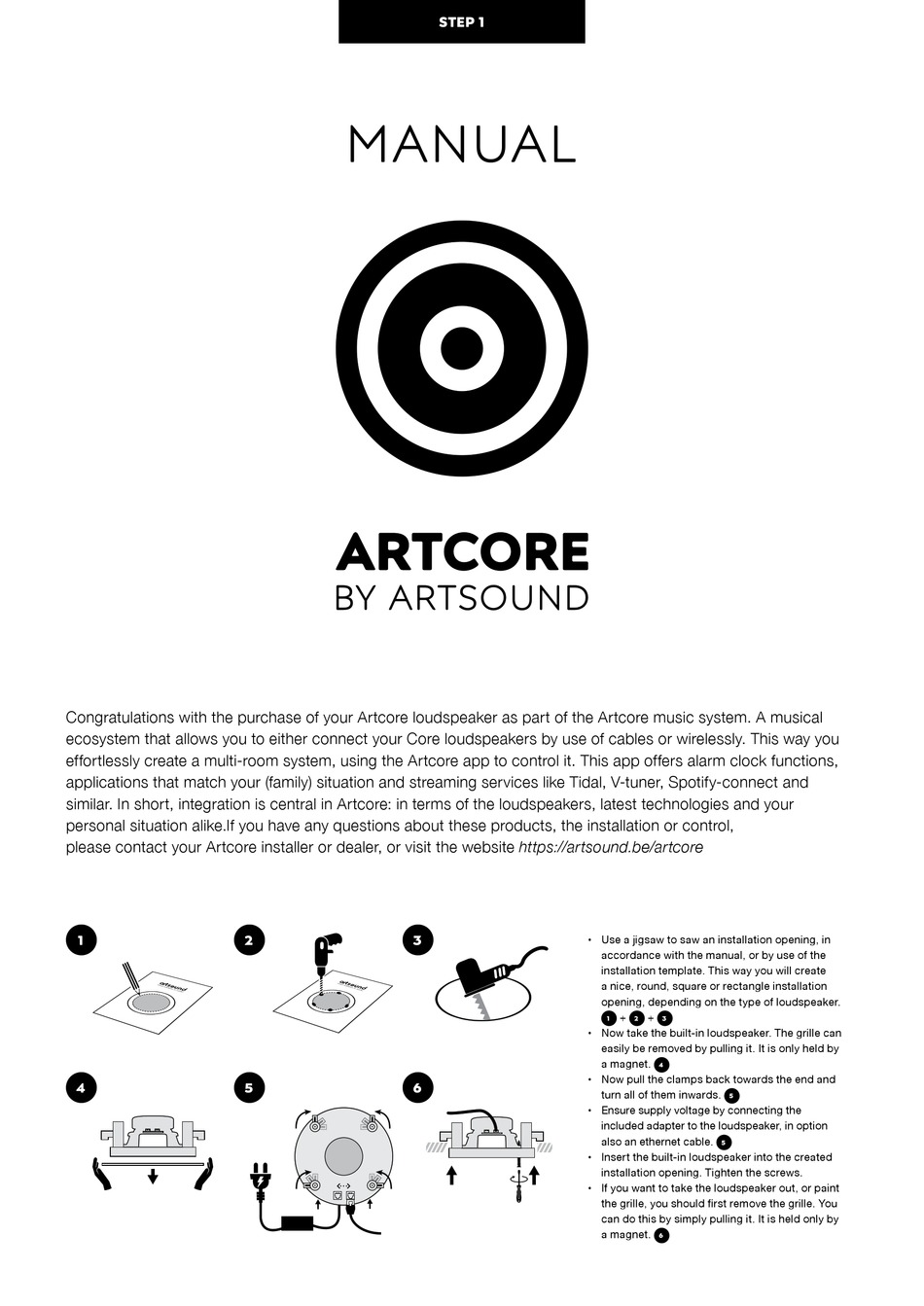

STEP 1
• Use a jigsaw to saw an installation opening, in
accordance with the manual, or by use of the
installation template. This way you will create
a nice, round, square or rectangle installation
opening, depending on the type of loudspeaker.
1
• Now take the built-in loudspeaker. The grille can
easily be removed by pulling it. It is only held by
a magnet.
• Now pull the clamps back towards the end and
turn all of them inwards.
• Ensure supply voltage by connecting the
included adapter to the loudspeaker, in option
also an ethernet cable.
• Insert the built-in loudspeaker into the created
installation opening. Tighten the screws.
• If you want to take the loudspeaker out, or paint
the grille, you should first remove the grille. You
can do this by simply pulling it. It is held only by
a magnet.
+
+
2
3
4
5
5
6
