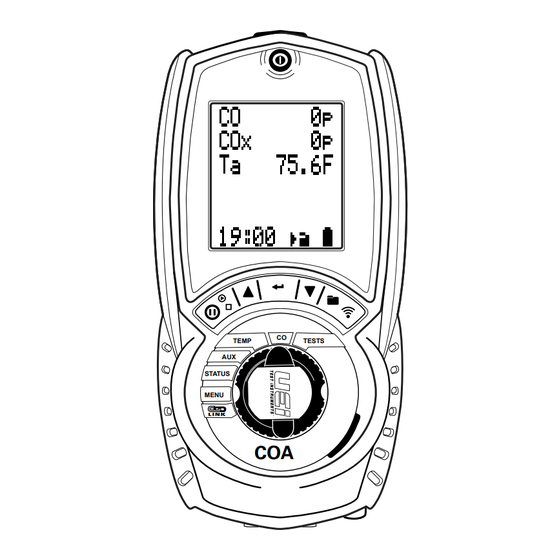

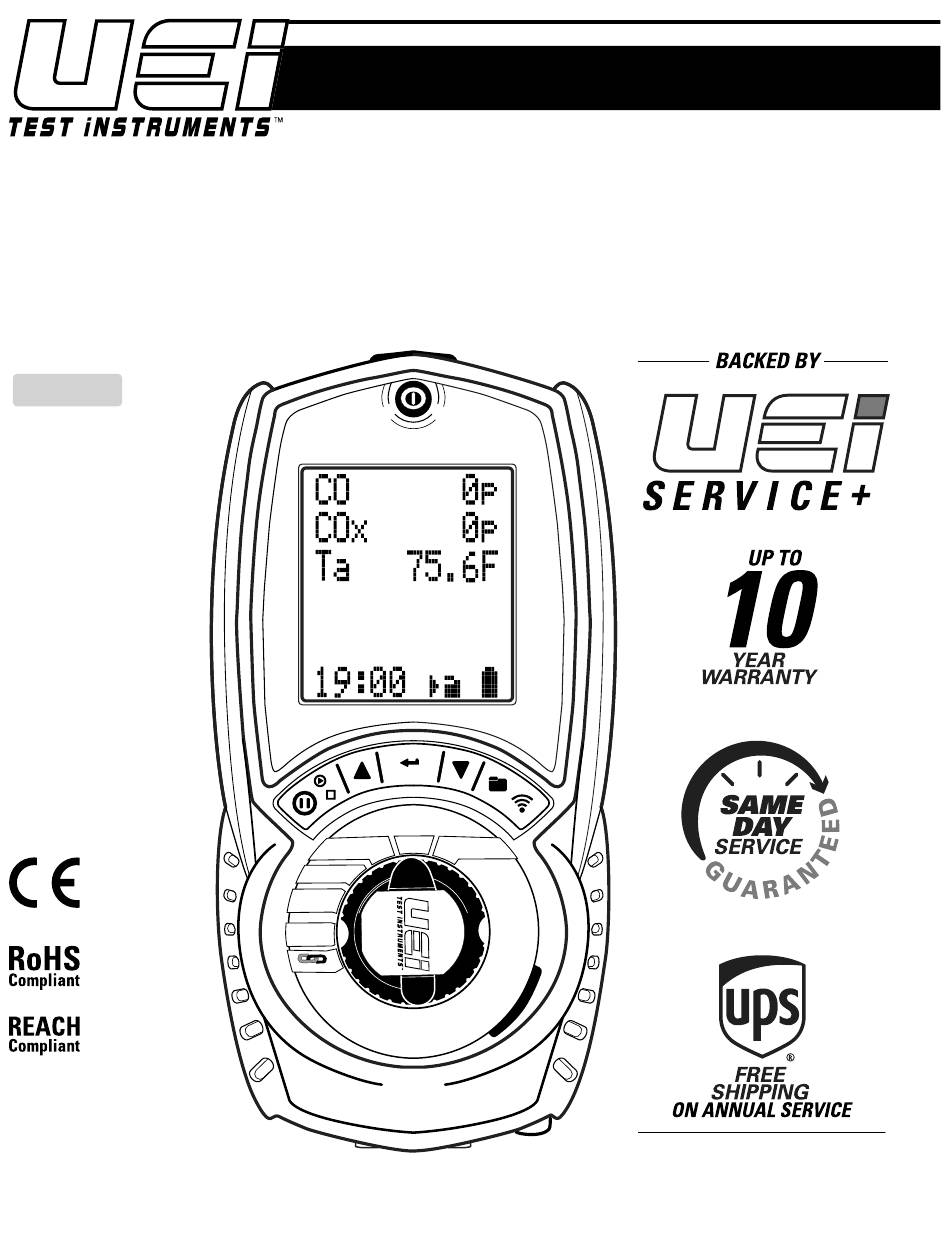

- Page 1 Carbon Monoxide Analyzer INSTRUCTION MANUAL ENGLISH TESTS TEMP STATUS MENU L I N K 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • Email: info@ueitest.com...
- Page 2 COA FEATURES & KEYPAD ........
- Page 3 COA OVERVIEW Your analyzer measures: • Carbon Monoxide (CO) • Differential Temperature Your analyzer performs: • Room CO & Sweep Tests Your analyzer is supplied with: Protective rubber sleeve with magnets for hands-free operation Flue gas sample probe with integral temperature sensor USB Battery charger &...
- Page 4 COA FEATURES & KEYPAD ANALYZER FRONT & BOTTOM TEMP TESTS STATUS MENU L I N K A. Infrared printer emitter & torch J. Ambient temperature socket T2 -Differential B. Power On / Off K. Gas temperature socket T1 C. 6 line display with backlight L.
- Page 5 COA FEATURES & KEYPAD (CONT.) ANALYZER BACK & PROBE Serial No. ® A. Magnets x 2 F. Gas sample probe temperature sensor cable B. Protective rubber sleeve G. Gas temperature probe sensor C. Gas sample exhaust DO NOT COVER H Gas sample probe D.
- Page 6 COA FEATURES & KEYPAD (CONT.) KEYPAD & ROTARY DIAL - FROM LEFT TO RIGHT KEYPAD TESTS TEMP SYMBOL FUNCTION PUMP Long press to turn pump on or off STATUS DATA HOLD - Short press to hold current data on screen - Short press again to return to readings...
- Page 7 FIRST TIME USE Fit and charge your analyzer batteries for 8 hours Power on & off your analyzer Set up your analyzer to your requirements before use FIT, REPLACE & CHARGE BATTERIES BATTERY TYPE Your analyzer uses rechargeable Nickel Material Hydride (NiMH) batteries .- Using other battery types may void your analyzer warranty .
- Page 8 POWER ON & QUICK START Your analyzer has 2 power on modes: • Automatic zero calibration countdown - When measuring a gas • Quick start - When measuring other parameters eg: temperature or pressure To measure a gas, rotate dial to any position measuring gas - Your analyzer automatically starts a zero calibration countdown when powered on . Power on analyzer by pressing button for 2 seconds .
- Page 9 SET UP YOUR ANALYZER - ROTATE DIAL TO MENU (CONT.) CHANGE ANALYZER SETTINGS OPTION YOUR CHOICE NOTE TIME SET ANALYZER TIME Press ENTER then & ENTER to set HH:MM:SS NOTE: Only possible if memory logs empty DATE SET ANALYZER DATE Press ENTER then &...
- Page 10 USE YOUR ANALYZER - ROTATE DIAL FROM MENU This section explains how to use your analyzer with the rotary dial & keypad . STATUS BAR OPTIONS Your analyzer status bar also offers options based on your current task . to view Always available - Display current analyzer status Always available - Displays current date Available in AUX position - See section 7.2 to change displayed readings...
- Page 11 USE YOUR ANALYZER - ROTATE DIAL FROM MENU (CONT.) AUX - YOUR ANALYZER PERSONAL HOME SCREEN Rotate dial to AUX to view or change your home screen, change fuel and power on or off your analyzer torch . You can change lines 1 to 5 of your analyzer AUX screen to display information you always want to see Line 1 Line 2 Line 3...
- Page 12 USE YOUR ANALYZER - ROTATE DIAL FROM MENU (CONT.) TEMP - MEASURE TEMPERATURE Temperature Rotate dial to TEMP and connect your Type K temperature probe thermocouple plug to analyzer gas temperature socket T1 - See section 2 where to connect . To measure differential temperature, connect another Type K temperature probe thermocouple plug to analyzer ambient temperature socket T2 .
- Page 13 USE YOUR ANALYZER - ROTATE DIAL FROM MENU (CONT.) TEST MENU Rotate dial to Tests to edit and specific tests . Appliance Sweep Test Appliance sweep tests are defined in UK standard BS7967 - You must be competent to perform these tests . This will perform a 2 minute sweep test, once the test is started it will automatically measure ambient CO and ambient CO2 (if fitted) .
- Page 14 USE YOUR ANALYZER - ROTATE DIAL FROM MENU (CONT.) TEST Room Test Types & ENTER to select test from these options: TEST TYPE DURATION LIMITS / ALARM LEVELS GENERAL 15 minute test with results LIMIT = 10ppm stored every minute ALARM - 30ppm SWEEP TEST 2 minute test with results...
- Page 15 USE YOUR ANALYZER - ROTATE DIAL FROM MENU (CONT.) TEST Testing A Room For CO & CO2 CO & CO2 Test 1 of 15 Test 30 = maximum 30 tests in series Test interval time Ambient CO2 measurement Ambient CO measurement CO limit in ppm You can stop a ROOM test any time by pressing ENTER .
- Page 16 SEND, PRINT, STORE & MANAGE TESTS This section explains how to manage your test results - in summary: Short press SEND to send a test to your optional KANE-IRP3 printer or KANE LIVE App . Long press SEND for 2 seconds to store a test, called log . SEND TO OPTIONAL KANE INFRARED PRINTER To print test result or logs use optional KANE infrared printer .
- Page 17 SEND, PRINT, STORE & MANAGE TESTS (CONT.) VIEW & MANAGE STORED LOGS To view your test, select VIEW from LOGS Menu: List of available LOGS Navigate and select using & ENTER Select Log Type View Combustion Logs View Auxiliary Logs View Temperature Logs Return to previous menu Select Log Stored...
- Page 18 SEND, PRINT, STORE & MANAGE TESTS (CONT.) SELECT LOG TYPE Print current selected log Navigate to next log Navigate to previous log Return to main menu SAMPLE TEST REPORTS Temperature DTHA2 Measure Sweep Test...
- Page 19 SAMPLE TEST REPORTS (CONT.) Room Co Migration Room Co General Room Co Room Co Type A Space Heater Type A Cooker Room Co Room Co Type B Boiler Room Co Type C Room Co Type A Water Heater Open Flue Sealed Appliance Sweep Test...
- Page 20 SAMPLE SIMULTANEOUS MULTI ROOM TEST REPORTS Multiroom reports are of individual reports for each room: Room 1 Room 2 Room 3 Room 4 KANE LINK - ADD, MANAGE OR REMOVE WIRELESS DEVICES Wirelessly connect optional KANE LINK devices to your KANE LINK analyzer - Once connected, they stay connected until you remove them .
- Page 21 KANE LINK - ADD, MANAGE OR REMOVE WIRELESS DEVICES (CONT.) KANE-DTHA2 ANEMOMETER To add, select DTHA2 using & ENTER . Enter serial number using & ENTER - Each serial number must be 10 digits long . If shorter enter 0’s to make up to 10 - e .g: in this example enter 2001228 as 0002001228 . Other KANE LINK devices can be paired - Contact KANE for more details COL PERSONAL &...
- Page 22 KANE LINK - CONNECT TO KANE LIVE KANE-DTHA2 ANEMOMETER You can transfer test results to KANE LIVE APP or change analyzer header, Downloaded or open KANE LIVE Rotate dial to KANE LINK then select APP using & ENTER . Tap CONNECT on KANE LIVE to find your analyzer - Select from device list then, if asked, tap PAIR to connect .
- Page 23 KANE LINK - CONNECT TO KANE LIVE APP (CONT.) KANE-DTHA2 ANEMOMETER To drain: 1 . Remove red plug 2 . Empty water 3 . Replace red plug You must replace the particle & water stop filters when wet or dirty or when your analyzer displays LOW FLOW . To replace: 1 .
- Page 24 KANE LINK - CONNECT TO KANE LIVE APP (CONT.) ANALYZER & PROBE LEAK TEST GENERAL SAFETY SAFETY WARNING GASES Your analyzer extracts combustion gases that are toxic in relativity low concentrations - They are exhausted from the bottom and rear of the analyzer . This must only be used in well-ventilated locations by trained and competent persons after considering all potential hazards .
- Page 25 GENERAL SAFETY (CONT) PROTECTION AGAINST ELECTRIC SHOCK (IN ACCORDANCE WITH 61010-1:2010): This analyzer is designed as Class III equipment and should only be connected to SELV ( Safety Extra Low Voltage) circuits . The battery charger is designated as: • Class II equipment •...
- Page 26 UK USA & France Natural Gas, Propane, Butane, LPG, Light Oil, Wood Pellets Battery Life >8 hours (continuous with pump on) Certification The KANE-COA is independently test and certified to EN50379, Parts 1-3 Operating Conditions Temperatures 0 - 45°C Humidity...
- Page 27 Same Day Service: All qualifying analyzers received for recertification through UEi Service+ are returned on the same business day .* Free Shipping: UEi Service+ offers free shipping both to and from our service center . When customers book their recertification, they receive a prepaid UPS Ground shipping label .
- Page 28 WARRANTY The COA is warranted to be free from defects in materials and workmanship for a period of 1 year from the date of purchase. If within the warranty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
