ABSCO SHEDS 30153BK Manual

Bike shed
Hide thumbs Also See for 30153BK:

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
NZ: 0800 466 444
For construction in non-cyclonic areas
Wind rating: "N2" as per AS4055-2021
("Medium M" to NZS3604-2011)
If you require a higher wind rating please contact us:
admin@absco.com.au or 1800 029 701
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
*Most models available
Absco Industries

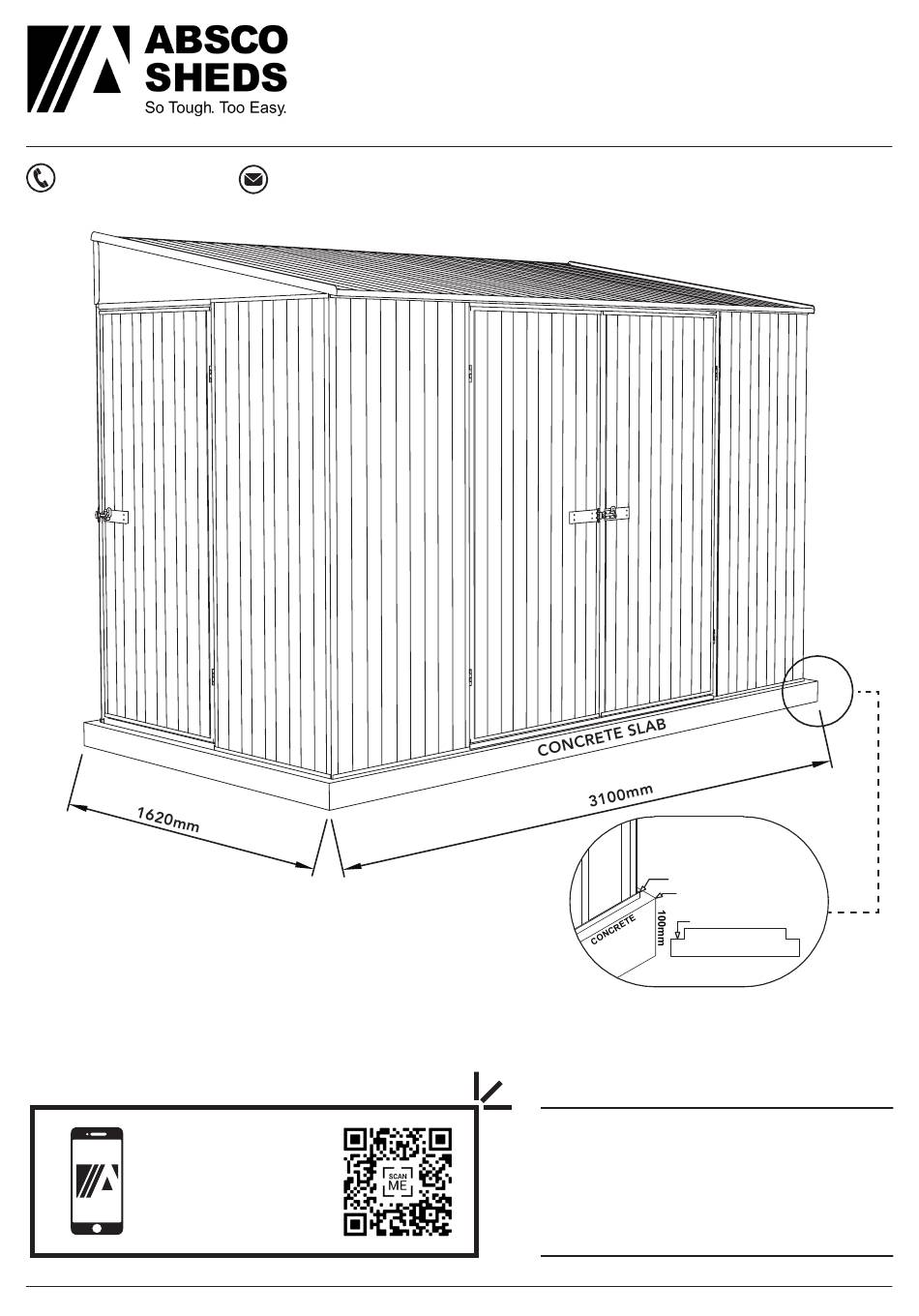

Assembly Instruction Manual
ABSCO BIKE SHED
MODEL: 30153BK
3.00mW x 1.52mD x 1.80mH, 2.08mH
admin@absco.com.au
www.abscosheds.com.au
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
ASSEMBLY INSTRUCTION MANUAL
Absco Industries
Premier Shed Model: 23151GK
When laying concrete slab, ensure there
is a rebated edge 25mm deep around
the perimeter. This will help water egress
from the base of the shed.
PLEASE LEAVE A REVIEW
SHED MODEL: 23151GK
Tell us about your experience!
Visit www.abscosheds.com.au/review
Model: 30153BK
09/01/2025
FRONT: 2.26m
SIDE:
1.52m
HEIGHT: 1.95m
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
21-11-2017
1.3
