We thank you for choosing an Australian made shed. For further assistance please
visit our detailed instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be number ONE, so please let us
know what you think of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
Absco Space Saver Shed
Assembly Instructions
Model: 30151SK
ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16

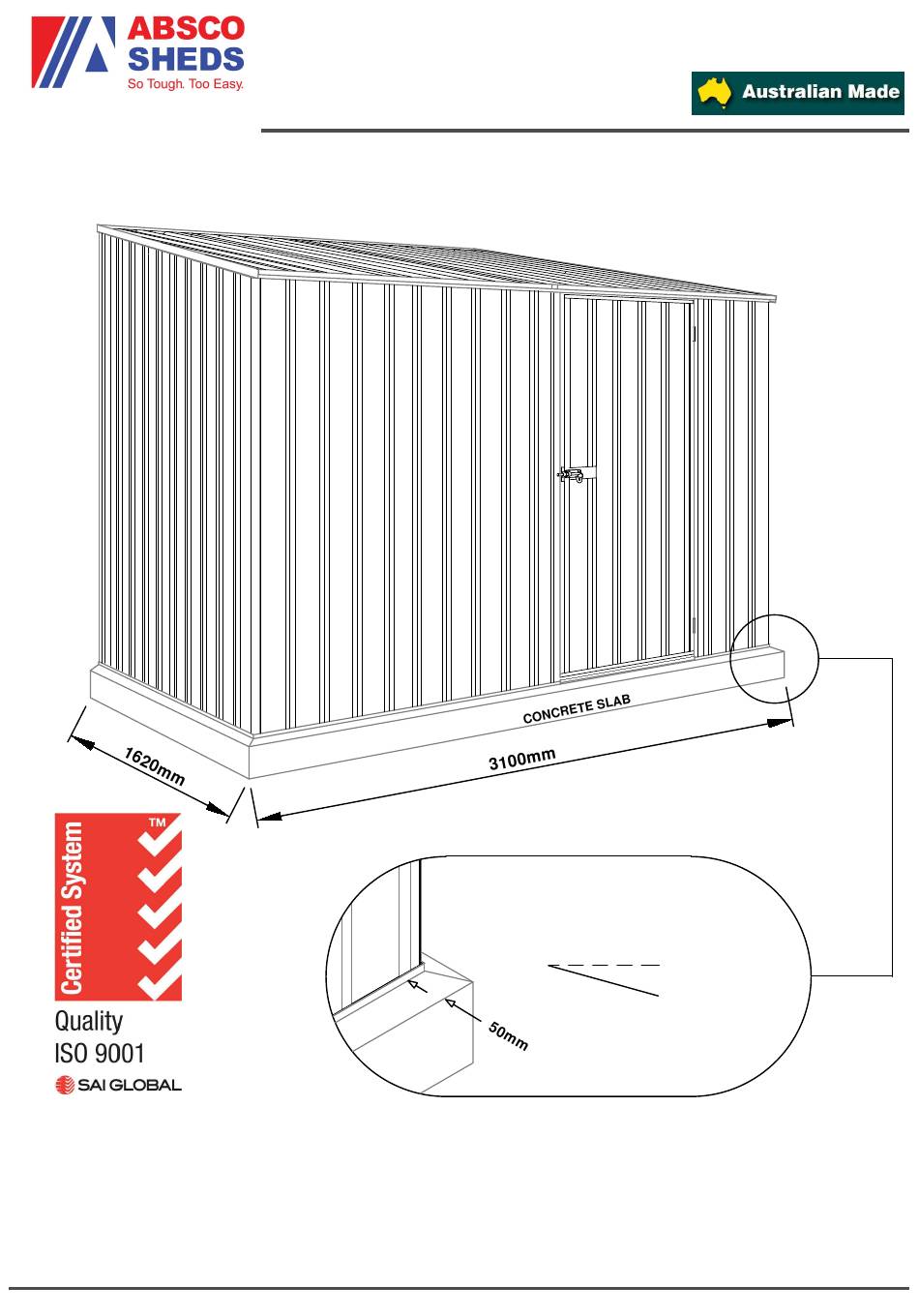

WHEN LAYING YOUR CONCRETE
SLAB, CHAMFER THE 50mm EDGES
DOWNWARDS BY 10mm.
50mm
THIS WILL ENSURE THAT
WATER RUN OFF IS KEPT
CLEAR FROM YOUR SHED
FRONT BASE
LENGTH: 3.0m
SIDE BASE
LENGTH: 1.52m
FRONT WALL
HEIGHT: 1.8m
REAR WALL
HEIGHT: 2.08m
10mm
PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ABSCO SHEDS 30151SK
Summary of Contents for ABSCO SHEDS 30151SK
- Page 1 Http://www.abscosheds.com.au/watch-videos At ABSCO Industries we are always looking to be number ONE, so please let us know what you think of our instructions. Feedback makes us better. feedback@absco.com.au ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 1...
-
Page 2: General Instructions
Do not erect your shed in windy conditions, ensure that the shed is securely anchored to a solid foundation immediately after construction is completed. · It is highly recommended to erect the shed with two or more people. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 2... -
Page 3: Component Description
2045mm X 773mm CHANNEL L = 1530mm STEEL SHEET 1610mm X 773mm CHANNEL L = 788mm STEEL SHEET CHANNEL 1725mm X 773mm L = 1513mm STEEL SHEET 1785 X 773mm ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 3... - Page 4 56BL 56BR CHANNEL CHANNEL L = 1496.5mm L = 1496.5mm 81AL 81AR CHANNEL CHANNEL L = 1496.5mm L = 1496.5mm 81BL 81BR CHANNEL CHANNEL L = 1496.5mm L = 1496.5mm ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 4...
- Page 5 SCREWS PADBOLT DOOR 4mm CSK SCREW & PADBOLT NUT SECURE HINGES HASP TO DOOR 3mm POP RIVETS SECURE ASSEMBLY HINGES TO DOOR INSTRUCTIONS (ALTERNATIVE FIXING METHOD) DOOR STRAP L: 165mm ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 5...
- Page 6 CSJ positioned equally inside of the joined channels. (on an angle). Push the CSJ into the channel until you here a 'click'. CHANNEL HIGH-SIDE LOW-SIDE 20mm (0.79") 15mm (0.59") CHANNEL ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 6...
- Page 7 2 X 81AL 1 x 81B 1 X 56AR 1 X 56AL 1 X 56BR 1 X 56BL 1 X 55BR 1 X 55BL 1 X 81BR 1 X 81BL ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 7...
- Page 10 Do not join components together at this location yet, as the screw may obstruct further assembly of other components ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 10...
-
Page 11: Door Panel Assembly
Absco Space Saver Shed Model: 30151SK 6. DOOR PANEL ASSEMBLY ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS 20mm FLANGE 15mm FLANGE ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 11... -
Page 12: Rear Panel Assembly
Absco Space Saver Shed Model: 30151SK REAR PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 12... - Page 13 Absco Space Saver Shed Model: 30151SK SIDE PANEL ASSEMBLY 1 x LEFT SIDE PANEL 1 x RIGHT SIDE PANEL 260R 261R 261L 260L ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 13...
- Page 14 Absco Space Saver Shed Model: 30151SK ROOF PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 14...
-
Page 15: Front Panel Assembly
Absco Space Saver Shed Model: 30151SK FRONT PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 15... - Page 16 NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment. position each hasp centrally over the padbolt shaft, and drill 3mm holes and secure with screws ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 16...
- Page 17 The top channel of each panel is pre-punched for attaching roof sheet. The base channels are not pre-punched. SIDE WALL PANEL CHANNELS FIT INTO THE NOTCHED FRONT AND REAR WALL PANEL CHANNELS ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 17...
- Page 18 - EACH ANCHOR CONSISTS OF ONE NUT, BOLT, DYNABOLT AND STEEL ANGLE SLAB - DRILL A 10mm HOLE INTO THE WALL SHEET - DRILL A 10mm HOLE INTO THE CONCRETE DYNABOLT ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30151SK 15/04/16 PAGE 18...
- Page 19 DEFECTS Congratulations on your purchase of an ABSCO SHED ABSCO SHEDS, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. We are pleased to advise we warrant that the steel coating will not rust, crack, flake peel or blister for 20 years from date of purchase, when installed within Australia.
- Page 20 ABSCO SHEDS and storage units are primarily used for storage of garden equipment such as lawnmowers, wheelbarrows, garden tools etc. Storage...
