Summary of Contents for Vivo DESK-V000VCE

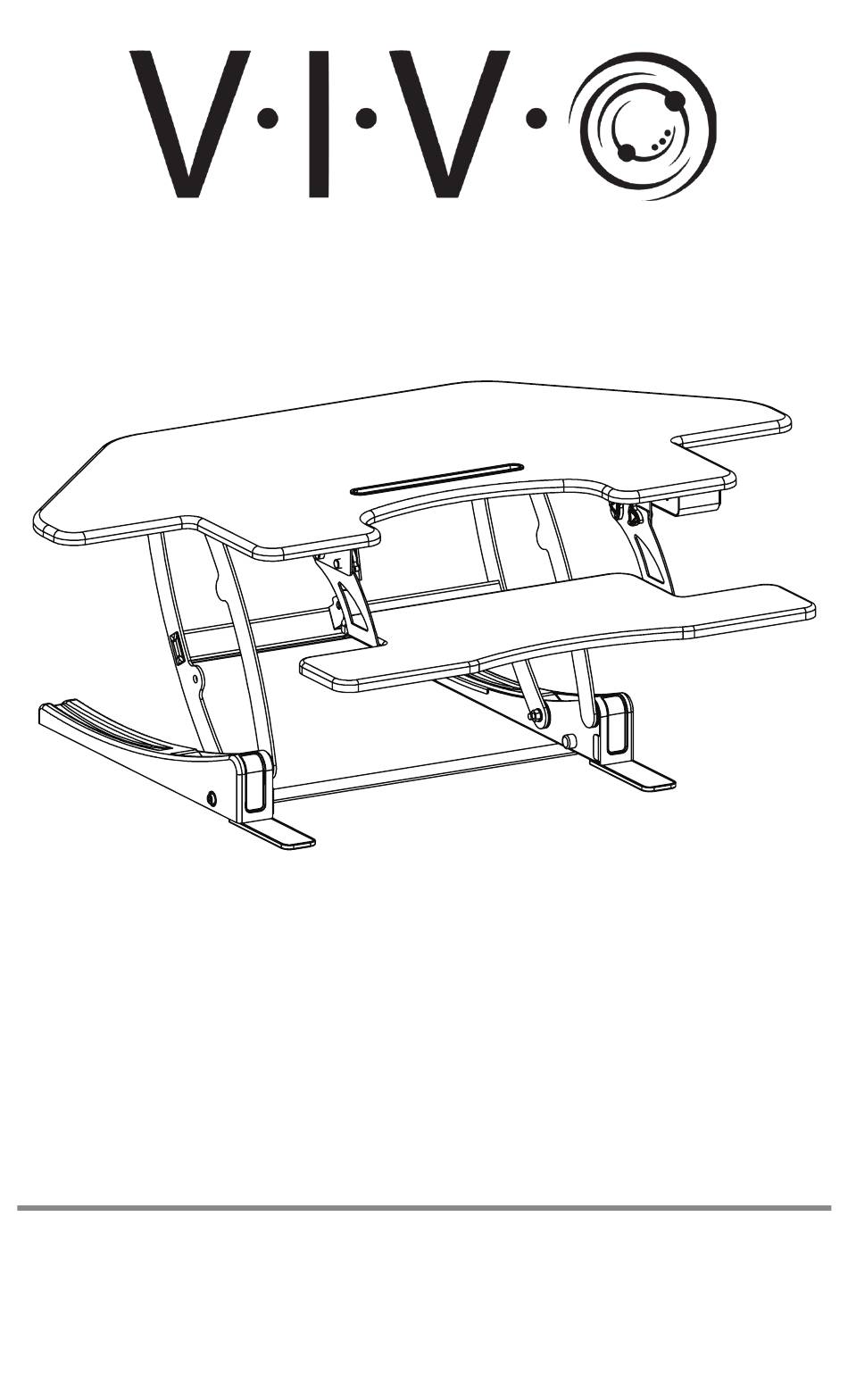

- Page 1 Electric Desk Riser DESK-V000VCE Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Package Contents
Extended Cable Clip Cable Tie Feet E (x1) F (x2) G (x1) Keyboard Tray Keyboard Power Cord Bracket Included Hardware S-A (x10) M5x10mm Screws Tools Needed Weight Limit: 33lbs (15kg) 33lbs (15kg) Phillips Screwdriver Assembly Video & Product Info www.vivo-us.com/products/desk-v000vce... -
Page 4: Assembly Steps
Assembly Steps STEP 1 Carefully remove the Desk Riser (A) from the packaging. TEAM LIFT Flip the Desk Riser (A) upside down onto a flat protective surface. Attach the Extended Feet (B) to the underside of Desk Riser using M5x10mm Screws (S-A) and a Phillips screwdriver. TEAM LIFT... - Page 5 STEP 2 Connect the Power Cord (G) to the Desk Riser (A) by inserting the metal prongs on the Desk Riser Cable (A1) into the Power Cord and closing the Latch. Raise the Desk Riser to its highest position by pressing and holding the switch in the forward position.
- Page 6 STEP 3 Attach the Keyboard Brackets (F) to the Keyboard Tray (E) using M5x10mm Screws (S-A) and a Phillips screwdriver. Note: The Keyboard Brackets should be extending towards the back of Keyboard Tray. STEP 4 Loosen the four pre-installed Knobs beneath the desktop. Hook the Keyboard Tray Assembly onto the Knobs and re-tighten the Knobs.
- Page 7 STEP 5 Place your devices onto the desk surface. Remove the adhesive backing from Cable Clips (C) apply where desired to organize cables.
- Page 8 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
