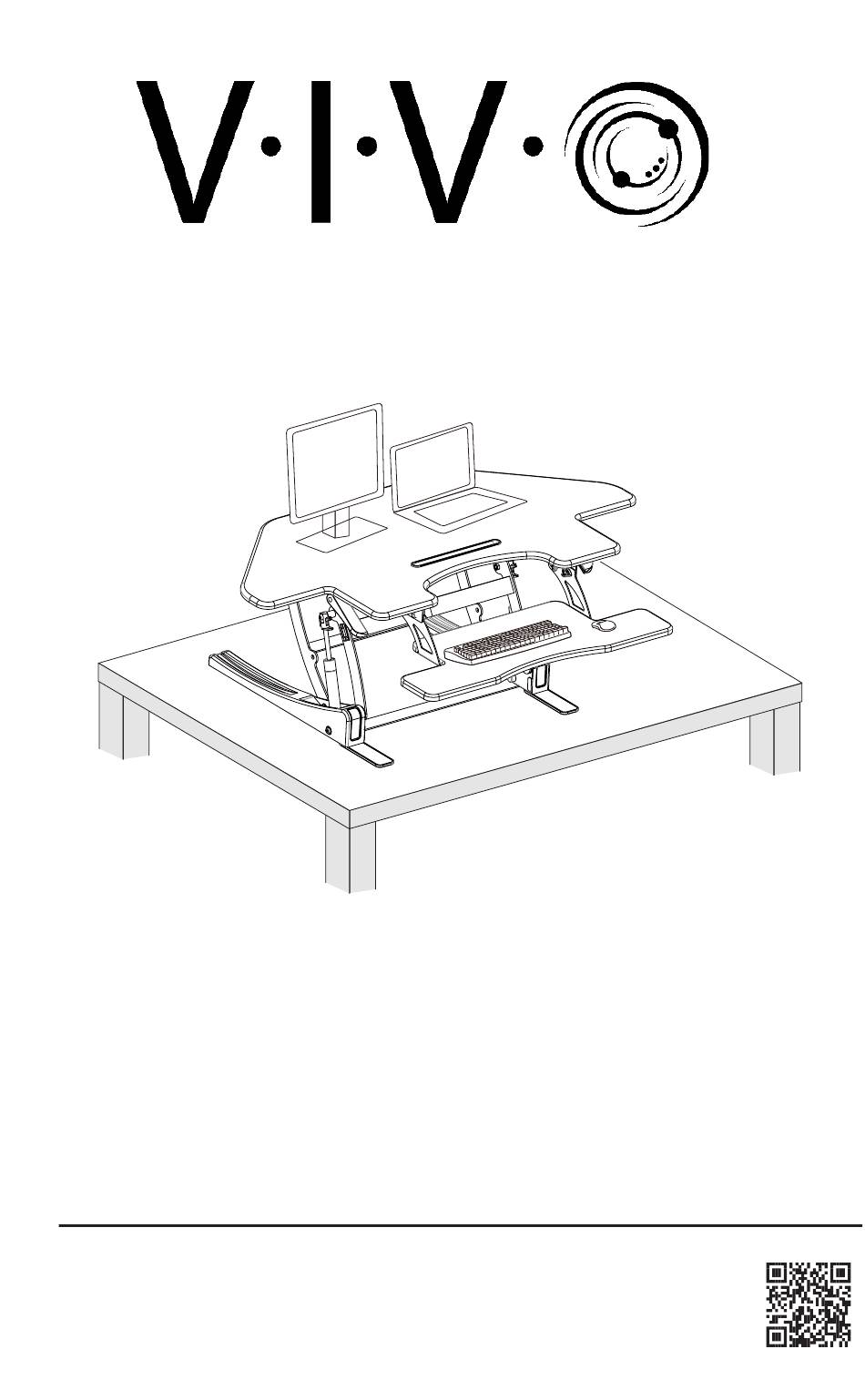

- Page 1 Corner Desk Riser SKU: DESK-V000VC/N/W Instruction Manual Assembly Video & Product Info https://vivo-us.com/products/desk-v000vc...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Assembly Steps
STEP 3 ASSEMBLY STEPS Press the handles on each side and lift Desktop (A). STEP 1 Carefully remove Desktop (A) from the packaging. WARNING: IMPACT HAZARD! MOVING PARTS CAN CRUST & CUT. STEP 4 Mount Brackets (C) to Keyboard Tray (D) using M5x10mm Screws (S-A). STEP 2 Flip Desktop (A) upside down, then attach the Extended Feet (B) to frame using M5x10mm Screws (S-A). - Page 4 ASSEMBLY COMPLETE STEP 5 Assembly is complete and your desk riser is now ready for use. Hang assembled keyboard tray onto pre-installed knobs, and tighten knobs to secure. NOTE: Make sure the keyboard brackets are curving towards the user, not towards the inside of the desk.
-
Page 5: Tension Adjustment
TENSION - CONT’D TENSION ADJUSTMENT Option A: If your desk riser lifts up or down too easily, or is too difficult, the gas spring cable can be adjusted Desk Is Difficult to Raise/Lower | Increase Tension to your desired tension. If the desk feels difficult to raise and lower, then you will need to increase the Gas Spring This adjustment is located in two places: Cable tension. - Page 6 TENSION - CONT’D Option B: Desk Raises/Lowers Too Easily | Decrease Tension If the desk is raising or lowering without the handle being pressed, then the tension needs to be loosened. Gently push the cable towards the Lever the Outer Nut (1) is firmly pressed against the middle divider.
- Page 7 LAST UPDATED: 10/16/2023 REV1.1 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
