Honeywell IMPACT Operating Instructions Manual

Honeywell IMPACT Operating Instructions Manual

Compact, portable gas monitor
Hide thumbs Also See for IMPACT:

Advertisement

Quick Links

Download this manual
MAN0597
ISSUE 08 - 02/04
2302M5030
IMPACT/IMPACT PRO
COMPACT, PORTABLE GAS MONITOR
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the IMPACT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Honeywell IMPACT

Summary of Contents for Honeywell IMPACT

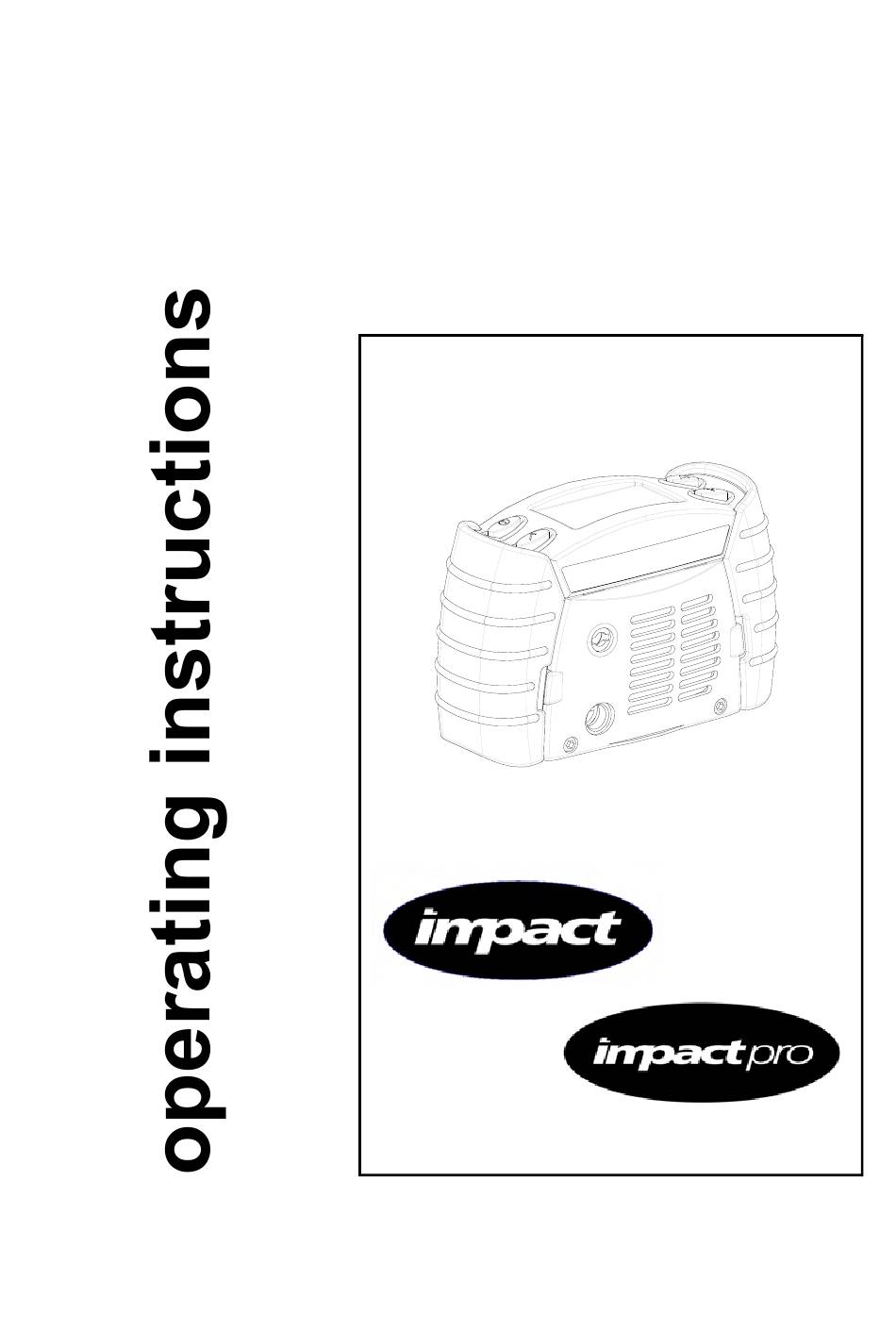

  • Page 1 MAN0597 ISSUE 08 - 02/04 2302M5030 IMPACT/IMPACT PRO COMPACT, PORTABLE GAS MONITOR...
  • Page 2 MAN0597 ISSUE 08 - 02/04 2302M5030 HELP US TO HELP YOU HELP US TO HELP YOU Every effort has been made to ensure the accuracy in the contents of our documents, however, Zellweger Analytics Limited can assume no responsibility for any errors or omissions in our documents or their consequences.
  • Page 3 MAN0597 ISSUE 08 - 02/04 2302M5030 HELP US TO HELP YOU Marketing Services, From Zellweger Analytics Limited, Hatch Pond House, Address : 4 Stinsford Road, Nuffield Estate, POOLE. Dorset. BH17 0RZ. United Kingdom. email Tel: +44 (0) 1202 676161 Fax: +44 (0) 1202 678011 email: literature@zelana.co.uk...
  • Page 4 MAN0597 ISSUE 08 - 02/04 2302M5030 GENERAL STATEMENT OF LIMITED WARRANTY GENERAL STATEMENT OF LIMITED WARRANTY COPYRIGHT This publication contains information partly derived from proprietary data of Zellweger Analytics. The main objective of this information is to assist in the operation and maintenance of the instrument described herein.
  • Page 5 Impact multigas detector 24 months from delivery Impact disposable OFCH cartridge 12 months from date of installation into Impact instrument provided installation takes place before the stated ‘INSTALL BY’ date on the cartridge packaging 3.
  • Page 6 MAN0597 ISSUE 08 - 02/04 2302M5030 GENERAL STATEMENT OF LIMITED WARRANTY 7. This warranty covers instrument and parts sold to the Buyer only by authorised distributors, dealers and representatives as appointed by Zellweger Analytics Limited. 8. This warranty does not cover consumable items or items likely to wear in normal operation including but not limited to dry-cell batteries, filters and fuses.
  • Page 7 The Impact must only be serviced by qualified personnel trained by Zellweger Analytics or by a Zellweger Analytics Appointed Distributor The Impact must not be used in an oxygen enriched atmosphere. Refer to Section 4. OPERATION for details of restrictions...
  • Page 8 Dispose of the spent cartridge and its packaging in accordance with local regulations. Do not dispose of in fire. CAUTIONS The IMPACT/IMPACT PRO must be serviced only by qualified personnel trained by Zellweger Analytics or by a Zellweger Analytics appointed agent.
  • Page 9 Note: The failure to observe and abide by the above Warnings and Cautions may render void the intrinsic safety approval of the IMPACT/IMPACT PRO, and may remove any right of claim against Zellweger Analytics relating to product liability or consequential damage to any third...
  • Page 10 Page Contents INTRODUCTION 1.1 Intended use 1.2 Product overview GETTING STARTED 2.1 How to turn Impact/Impact Pro on and off 2.2 Inserting the cartridge 2.3 Charge for first use 2.4 Dry-cell Battery insertion 2.5 Sampling INSTRUMENT START-UP 3.1 Instrument information 3.2 Selecting location / operator...
  • Page 11 MAN0597 ISSUE 08 - 02/04 2302M5030 CONTENTS Section Page 4.7 Menus 4.7.1 Flammable Gas Selection 4.7.2 Operator 4.7.3 Calibration 4.7.4 Instrument Details 4.7.5 Safelink 4.7.6 Language 4.8 Datalogging 4.8.1 Installing the PC Software 4.8.2 Event Datalogging 4.8.3 Gas Datalogging (optional) 4.8.4 Output Formats 4.9 Calibration 4.9.1 Contaminants...
  • Page 12 MAN0597 ISSUE 08 - 02/04 2302M5030 CONTENTS Section Page 6.16 Safelink Cable Assembly 6.17 Safelink Cable Restraint Clip 6.18 Hand Aspirator Kit 6.19 Sensing Probe 1m 6.20 Ball float ROUTINE MAINTENANCE 7.1 Cleaning 7.2 Filters 7.3 Battery charging / replacement 7.3.1 Rechargeable Battery Pack 7.3.2 Dry cell ROUTINE SERVICING...
  • Page 13 An explanation of the information on the equipment label is shown below. Manufacturers Trademark & Address Poole BH17 0RZ, UK Impact Unit Part No. 2302B1000XXX User Cautions CAUTION: Comms Connection only to other certified Impact detectors in hazardous area Read and understand instruction manual before...
  • Page 14 MAN0597 ISSUE 08 - 02/04 2302M5030 INSTRUMENT LABELS This instrument has been assessed by DMT for performance of Oxygen, Methane, Propane, Carbon Monoxide, Hydrogen Sulfide and Carbon Dioxide channels. The label marking indicates this: DMT 02 ATEX G 001 PFG Nr. 41300502 The instrument has been tested in accordance to the following European Standards.
  • Page 15 MAN0597 ISSUE 08 - 02/04 2302M5030 INSTRUMENT LABELS UL / CSA CERTIFICATION LABEL An explanation of the information on the UL / CSA certification label is shown below. UL / CSA Approval Product Name User Warning WARNING Only the combustible gas detection portion of this instrument has been assessed by CSA for performance.
  • Page 16 2302M5030 1. INTRODUCTION 1. INTRODUCTION The Impact / Impact Pro is a compact, portable gas monitor designed to be carried or worn without hindering the user. Its purpose is to monitor the atmosphere continuously for hazardous levels of up to four gases. These concentrations if gases are measures using Zellweger Analytics sensors.
  • Page 17 2302M5030 1. INTRODUCTION INTENDED USE The Impact/Impact Pro has been designed to alert the user to potentially hazardous atmospheres whilst carrying out his/her normal duties. Therefore, the instrument must be kept switched on and worn as close to the breathing area as...
  • Page 18 MAN0597 ISSUE 08 - 02/04 2302M5030 PRODUCT OVERVIEW 1. Buttons 2. Pump Aperture 3. Cartridge and Filter Cover 4. Audible Aperture 5. Grille Cover Screws 6. Certification Label 7. Battery Covers 8. Data Connector 9. Tool On the top of the unit are four buttons (1). Their functions are summarised below: (green) used as ‘OK’...
  • Page 19 MAN0597 ISSUE 08 - 02/04 2302M5030 1. INTRODUCTION There are currently two types of instrument available - Impact and Impact Pro. The main differences between the two instruments is that the Impact Pro supports a range of Serviceable Cartridges (see...
  • Page 20 2. GETTING STARTED 2. GETTING STARTED HOW TO TURN IMPACT/IMPACT PRO ON AND OFF The Impact has been designed for ease of use, and especially for one-handed operation - only a single button is needed to turn it on and off. •...
  • Page 21 MAN0597 ISSUE 08 - 02/04 2302M5030 2. GETTING STARTED INSERTING THE CARTRIDGE If the instrument is switched on then switch it off by pressing and holding the button. Note: if a cartridge is already fitted, check that the instrument clock is correct.
  • Page 22 2. GETTING STARTED Replace the front cover, and retighten the two screws (5). Wait at least 20 minutes. Then switch the Impact on by pressing the button and check no faults are reported by the instrument. If fault 4 occurs refit the cartridge.
  • Page 23 Ensure that the Impact is orientated such that the instrument lip will be inserted under the locking lip. Instrument lip Front Locking lip Front Insert the front of the Impact at an angle such that the instrument lip slides under the locking lip Rear Front Closeup detail...
  • Page 24 MAN0597 ISSUE 08 - 02/04 2302M5030 2. GETTING STARTED Push down on the rear of the Impact such that the rear locking catch engages. (Disengaged) Rearlocking catch (Engaged) To remove the Impact press down on the rear locking catch. All 4 alarm lights will flash indicating the Impact has started charging.
  • Page 25 MAN0597 ISSUE 08 - 02/04 2302M5030 2. GETTING STARTED DRY-CELL BATTERY INSERTION Undo the two battery compartments (7) using the tool (9) provided, on the bottom of each instrument. Release each dry-cell battery holder and remove the cells if fitted. Insert new cells, ensuring correct orientation by checking that the negative terminal is at the same end as indicated on the moulding.
  • Page 26 2302M5030 2. GETTING STARTED SAMPLING In normal operation the Impact is worn on the belt, with its harness, or held by hand. Once turned on the Impact monitors the atmosphere continuously, which reaches the sensors by diffusing through the vents of the grille cover or by being pulled through by the internal pump (if fitted).
  • Page 27 MAN0597 ISSUE 08 - 02/04 2302M5030 2. GETTING STARTED CAUTIONS Hand aspirated remote sampling only provides continuous gas readings while the bulb is being squeezed. Each time a reading is required, it is necessary to squeeze the bulb at a rate of one per second until the readings remain stable.
  • Page 28 MAN0597 ISSUE 08 - 02/04 2302M5030 3. INSTRUMENT START-UP 3. INSTRUMENT START-UP INSTRUMENT INFORMATION After turning the instrument on it will display the information in the following autosequence (depending on model): The first display identifies the model. Whilst this is shown the alarms are tested, If a vibrating alarm is fitted this is also activated.
  • Page 29 MAN0597 ISSUE 08 - 02/04 2302M5030 3. INSTRUMENT START-UP The instrument logs data on the Location operator’s exposure, any, Default Location measured toxic gases. It achieves this Operator Default Operator by requesting the operator to confirm - OK - Change his/her identity and the location where the instrument is being used.
  • Page 30 MAN0597 ISSUE 08 - 02/04 2302M5030 3. INSTRUMENT START-UP If the " button is pressed the instrument will zero the sensors Are you in automatically, and display whether the fresh air? procedure successful. - Yes, - No oxygen reading will be adjusted to 20.9%v/v –...
  • Page 31 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION 4. OPERATION Note: Wherever the manual says ‘select’, the procedure is to use the ! and # buttons to cycle through the list, and then press to select the required option. " MONITORING CONDITION 4.1.1 Display Screens...
  • Page 32 H2S ppm measured over an 8 hour reference period. It is used to monitor exposure to toxic gases in line with current regulations and/or legislation. Until the Impact been monitoring continuously for 8 hours these are projected values. Status Screen This screen shows the current time, date and battery status.
  • Page 33 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION 4.1.2 Other Displayed Symbols If the pump is operating correctly %V/V %LEL 2 .9 the pump symbol will rotate. pump flow becomes blocked the instrument will warn the user and stop the pump to prevent potential damage.
  • Page 34 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION This indicates that the sensor output of the indicated channel has drifted negative. In severe cases of sensor negative drift, a Warning 51 (Excessive Negative Drift) will be shown. Please see Appendix A –...
  • Page 35 ISSUE 08 - 02/04 2302M5030 4. OPERATION This display now also shows the battery capacity as follows. The Go / No Go Option is configured using the Impact Configuration Utility (ICU) PC software from the Configuration Screen. ATMOSPHERIC ALARM CONDITIONS...
  • Page 36 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION ALARM CONDITION There are two modes of alarm: latching and non-latching. However, the display will give the same alarm indication: An alarm symbol will appear in the %V/V %LEL relevant section of the display. The alarm symbol contains a number, indicating the increasing severity of the alarm, with increasing frequency...
  • Page 37 FAULT AND WARNING CONDITION In addition to the gas alarms, the Impact includes a number of auxiliary alarms to safeguard proper use of the instrument. At switch on the Impact performs an electronic self-test that assures the user of proper performance.
  • Page 38 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION 4.4.2 Fault condition If a fault condition is detected during FAULT start-up subsequently, Code - 0 instrument will display fault Please contact Zellweger Analytics message warning the user and giving Z A Service Number a contact number.
  • Page 39 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION feature (where fitted) be used on either instrument. It will be found that while the pump is running the Safelink option on the instrument menu system has been removed. Furthermore, if an attempt to start the pump is made (on either the attendant or entrant instrument) during Safelink operation an alarm condition is generated and Safelink Mode has to be exited.
  • Page 40 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION 4.5.2.1 Attendant Instrument instrument will display %V/V %LEL 2 .9 readings being monitored on the Entrant instrument. The symbol is used to indicate the Attendant’s instrument. When the symbol is static indicates that Safelink communications are occurring.
  • Page 41 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION 4.5.2.2 Entrant instrument The symbol is used to indicate the Entrant’s instrument. When the symbol is static it indicates that Safelink communications are occurring. When it is flashing the Safelink has become disconnected. Only the instantaneous values are shown, although all alarm conditions will operate as normal.
  • Page 42 Safelink mode must be terminated before attempting to use the instrument in a basestation (for charging or calibration) or the Enforcer. PUMP (IMPACT PRO ONLY) The pump allows gas to be drawn through tubing across the sensors. Fitting the Pump Adaptor will automatically switch the pump on.
  • Page 43 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION The following screen will be displayed briefly. Pump Test Please wait... Followed by… Pump Test Please block pump Press " to continue Use a suitable method to block the end of the sample tube and press the "...
  • Page 44 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION Ensure that there is nothing obstructing the flow into the sample pump and press the " button. The instrument will then perform the first part of the pump calibration. Pump Calibration Please wait... Pump Calibration Please block pump Press "...
  • Page 45 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION If the Pump Calibration fails (please see the diagnostic table at the end of this section) then use of the sample pump is inhibited. The Pump Adaptor must be removed from the instrument and the fault investigated.
  • Page 46 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION Symptom Possible Cause Remedy The instrument reports The pump was not Remove the Pump 'Pump Calibration Fail' blocked correctly Adaptor and refit to when required. restart the test. Ensure that the pump is blocked correctly when instructed to.
  • Page 47 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION 4.6.1 Removal of the Pump Adaptor To ease the removal of the Pump Adaptor, follow the steps below. Support the end of the Pump Adaptor close to the inlet port using the thumb of one hand. Press on the top of the clip using the thumb of the other hand until a click is heard.
  • Page 48 Flammable gas in %LEL. The above table and the cross-sensitivity feature offered in the Impact and Impact Pro are supplied for indicative purposes only. The following points should be noted when using the table or the software feature.
  • Page 49 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION the instrument is calibrated to Methane (including Enforcer calibrations), reading when other Flammable gases are selected will be subject to variation. For more accurate detection of non-Methane gases, the Flammable Channel of the instrument should be calibrated to Propane, Pentane or Butane (selectable from the Settings option in the Calibration Menu).
  • Page 50 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION 4.7.3 Calibration See Section 4.9 Calibration for full details. 4.7.4 Instrument Details Several screens are available detailing the instrument set-up, such as alarm levels. These can be viewed by pressing the ! and # buttons to cycle through them.
  • Page 51 Impact Boot 1.4+ 9/Aug/2001 4.7.5 Safelink For Impact Pro instruments the additional menu for Safelink is available. It is used to initiate communication via Safelink to another Impact Pro instrument. The Safelink option (where applicable) will not be available in the following situations.
  • Page 52 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION stored, printed and analysed. The data can be exported in a format suitable for use with major spreadsheet software packages. The datalog memory can be automatically cleared after a successful download – note that this will not change any of the alarm levels, instrument settings, or calibration gas settings or values of the instrument.
  • Page 53 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION 4.8.3 Gas Datalogging (optional) Set-up by the PC software for instruments fitted with this full datalogging option it enables the instrument to monitor areas for gas, sampling either at a regular interval (for instance, every 15 seconds) or when the readings change by a user- selected difference.
  • Page 54 The accuracy of the Impact instrument must be functionally checked with known concentration calibration gas before each day’s use. If any sensor fails recalibrate the Impact before using, or replace the cartridge. It is recommended that the instrument be calibrated at least every 6 months.
  • Page 55 Flammable sensors may be affected by exposure to Silicone substances; organic phosphorus containing compounds and halogenated organic compounds. Although the flammable sensors used in Impact and Impact Pro have a high resistance to Hydrogen Sulfide (H S) poisoning some loss in sensitivity should be expected.
  • Page 56 MAN0597 ISSUE 08 - 02/04 2302M5030 4.9.2 Flow Calibration – Instrument The following equipment is required: • cylinder of calibration gas (either certified individual gas per sensor or a certified multi-gas mixture) • flow adaptor: ensure that the tubing is fitted to the port marked 'IN' (except for Cl cartridges where the tubing should be fitted to the port marked 'OUT').
  • Page 57 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION When performing a flammable span gas concentration the instrument will assume the use of the gas selected. However, after calibration it will revert to the flammable gas that the instrument is set to measure. No intervention by the user is required.
  • Page 58 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION After pressing the " button the instrument will display the following whilst zeroing the sensor. Zero Please wait . . . Once the zero is complete the instrument will display whether the zero was successful. Zero Zero Fail...
  • Page 59 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION Ensure that the Span Calibration Setting matches that of the gas concentration being applied. If not, press the button to change the setting. The following table gives the current set allowable range of Span Gas Concentrations.
  • Page 60 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION 4.9.2.3 Calibration Gas Settings WARNING Verify that the concentration printed on the label of the calibration gas cylinder that will be used is the same as the concentration shown on the calibration gas settings screen.
  • Page 61 Utility (ICU) PC software, serial cable, Base Station and Power supply. These items can be purchased as part of the DataLogging kit (available separately). Place the Impact into the basestation and ensure that there is power connected. Switch the Impact on, and then follow the instructions on the computer.
  • Page 62 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION Information, such as gas cylinder serial numbers, can also be entered for traceability. Also, calibration reports can be printed. 4.9.4 Enforcer Calibration This designed oxygen, flammable, carbon monoxide and hydrogen sulfide, using a special-to- type gas cylinder.
  • Page 63 MAN0597 ISSUE 08 - 02/04 2302M5030 4. OPERATION delivery solenoid valve. After completion, the instrument will display whether calibration was successful. Enforcer Calibration Enforcer Calibration Fail Press to continue Press to continue Remove the instrument from the Enforcer. If the Enforcer calibration failed repeat the process.
  • Page 64 MAN0597 ISSUE 08 - 02/04 2302M5030 5. FAULT FINDING AND PROCEDURES 5. FAULT FINDING AND PROCEDURES There are two levels of fault within the instrument. The first level is a warning, from which the user may be able to recover, e.g. a low battery. The user must press the " button to confirm the warning has been seen.
  • Page 65 6. ACCESSORIES 6. ACCESSORIES WARNING DO NOT ATTEMPT TO CHARGE THE BATTERY PACK IN THE HAZARDOUS AREA. The following accessories are available for use with Impact/ Impact Pro. BASESTATION (Part Number: P2302B0800) This unit provides a smart charging facility for instruments powered by rechargeable NiMH batteries.
  • Page 66 MAN0597 ISSUE 08 - 02/04 2302M5030 6. ACCESSORIES The basestation accepts an input of 12Vdc to 32Vdc. Basestations may be daisy-chain linked. See Section 6.3 Basestation PSU Link Cable. BASESTATION PLINTH (Part Number: P2302B0804) The basestation can also be mounted desk-mounted or vertically, singly or stacked using the optional plinth.
  • Page 67 MAN0597 ISSUE 08 - 02/04 2302M5030 6. ACCESSORIES OFFLINE TRICKLE CHARGER Permits off-instrument charging of 2 or 4 instrument battery packs in 14 hours. It enables 24 hour availability of rechargeable instruments with purchase of additional battery packs. Battery packs must be charged in pairs.
  • Page 68 MAN0597 ISSUE 08 - 02/04 2302M5030 6. ACCESSORIES CAUTION These individual Power Supplies will only supply power to one Basestation or one Trickle Charger. ENFORCER (Part Number: 2302B0831) This test and calibration accessory is only for use with instruments fitted with any combination of oxygen, flammable, carbon monoxide and hydrogen...
  • Page 69 MAN0597 ISSUE 08 - 02/04 2302M5030 6. ACCESSORIES FLOW ADAPTOR (Part Number: P2302B0810) Allows aspirator to be fitted to the instrument. It is also used when calibrating using the instrument or the PC. It is coloured grey to differentiate it from the pump adaptor. See Section 6.12 Pump Adaptor Kit.
  • Page 70 MAN0597 ISSUE 08 - 02/04 2302M5030 6. ACCESSORIES 6.11 BODY HARNESS KIT (Part Number: P2302B0822) Simply clips onto the rear of the instrument. Allows the instrument to be worn on the chest within the breathing zone. Comes with a waist strap and neck strap.
  • Page 71 MAN0597 ISSUE 08 - 02/04 2302M5030 6. ACCESSORIES 6.14 EARPIECE (Part Number: 2302B0841) For noisy environments the earpiece plugs into the audible aperture (4), to allow any audible alarms or signals to be heard. The vibrating alarm if fitted will still operate. The instrument audible alarm produces a high sound level.
  • Page 72 MAN0597 ISSUE 08 - 02/04 2302M5030 6. ACCESSORIES 6.17 SAFELINK CABLE RESTRAINT CLIP (Part Number: P2302B0713) Clips the Safelink cable to a belt to provide a strain relief. 6.18 HAND ASPIRATOR KIT (Part Number: 2302B0813) Clips onto the flow hood to provide manual aspiration.
  • Page 73 MAN0597 ISSUE 08 - 02/04 2302M5030 6. ACCESSORIES 6.19 SENSING PROBE 1M (Part Number: 2302B0847) Used with the bulb operated hand aspirator or the internal pump if fitted, it allows sampling from above normal height areas or into areas of low accessibility.
  • Page 74 ISSUE 08 - 02/04 2302M5030 7. ROUTINE MAINTENANCE The Impact/Impact Pro is designed to operate almost maintenance free under most conditions, except for the need for regular calibration. However, it is recommended that on a regular basis the instrument is cleaned and the filters changed.
  • Page 75 (every 4 to 6 months) fully discharged before recharging. To do this, remove the Impact from the Base Station (if fitted) and switch the Impact on. Leave the Impact to run until it switches off.
  • Page 76 ISSUE 08 - 02/04 2302M5030 7. ROUTINE MAINTENANCE INFORMATION Should the batteries in the Impact instrument become excessively discharged (e.g. when unused for some time) there may be occasions when the alarm LEDs and sounder will operate when attempting to switch the instrument on before recharging.
  • Page 77 MAN0597 ISSUE 08 - 02/04 2302M5030 7. ROUTINE MAINTENANCE If the instrument is switched on when it is placed in the basestation the charging progress will be displayed on the instrument. If a dry-cell instrument is inadvertently placed in the basestation no damage will occur due to a built-in safety system.
  • Page 78 MAN0597 ISSUE 08 - 02/04 2302M5030 8. ROUTINE SERVICING 8. ROUTINE SERVICING Apart from the maintenance described in Section 7. ROUTINE MAINTENANCE the servicing requirements are limited to: • Calibration • Changing of the cartridge when required or indicated by the instrument •...
  • Page 79 MAN0597 ISSUE 08 - 02/04 2302M5030 8. ROUTINE SERVICING For all sensors except the oxygen, replacing the sensor requires the user to unplug the existing sensor and locate the new sensor in the same position. Please note that CO sensors are supplied on a PCB, which must be removed before fitting the sensor to the cartridge.
  • Page 80 Front Cover Grille using the Allen Key provided in the bottom of the Impact. Unscrew the fixing in the centre of the cartridge and lift the cartridge from the Impact. Place the Cl cartridge into the Impact and screw the cartridge fully home using the Allen Key.
  • Page 81 Failure to do so may result in a false calibration of the Cl channel. Do not apply Span Calibration gas to the Impact for greater than 5 minutes. Again failure to do so may result in a false calibration of the Cl channel.
  • Page 82 MAN0597 ISSUE 08 - 02/04 2302M5030 8. ROUTINE SERVICING Refer to the CAUTIONS given in section 1.1 of this manual for details on recommended daily checks on your gas detector. Applied Gas Effect on CO Effect on Effect on Effect on Cl Effect on NH Effect on SO Sensor...
  • Page 83 To install the cartridge, follow the instructions below. Note: Cartridge Installation or Replacement must never be carried out in a hazardous area. If a cartridge was previously fitted to the Impact into which the NH cartridge is to be installed, remove the Front Cover Grill using the Allen Key provided in the bottom of the Impact.
  • Page 84 If any sensor fails, recalibrate the Impact before using or alternatively replace the cartridge. Please refer to the Impact User Manual on general instructions on how to calibrate. Apply calibration span gas at a rate of 300ml/min for a period of 5 minutes before starting the span calibration on the sensor.
  • Page 85 MAN0597 ISSUE 08 - 02/04 2302M5030 8. ROUTINE SERVICING be used as a guide only. Note: Always use the target gas to perform sensor calibrations. (10) Your attention is drawn to the cross-sensitivity of the sensor in the presence of H S.
  • Page 86 Cartridge Note: Cartridge Installation or Replacement must never be carried out in a hazardous area. If a cartridge was previously fitted to the Impact Pro into which the SO cartridge is to be installed, remove the Front Cover Grill using the Allen Key provided in the bottom of the Impact Pro.
  • Page 87 If any sensor fails, recalibrate the Impact before using or alternatively replace the cartridge. Please refer to the Impact User Manual on general instructions on how to calibrate. Apply calibration span gas at a rate of 300ml/min for a period of 1 minute before starting the span calibration on the sensor.
  • Page 88 To install the cartridge, follow the instructions below. Note: Cartridge Installation or Replacement must never be carried out in a hazardous area. If a cartridge was previously fitted to the Impact into which the CO cartridge is to be installed, remove the Front Cover Grill using the Allen Key provided in the bottom of the Impact.
  • Page 89 CO sensor. Allow 20 minutes for the sensors to stabilise before use. Note that the Impact may be in alarm condition during this time. 20 min Using your CO...
  • Page 90 If any sensor fails, recalibrate the Impact before using or replace the cartridge. Please refer to the Impact User Manual on how to calibrate. The sensors fitted to Impact may give responses to gases other then the target gas. The table below gives typical sensor responses to various gases and should be used as a guide only.
  • Page 91 MAN0597 ISSUE 08 - 02/04 2302M5030 8. ROUTINE SERVICING Charging Procedure for Impact Pro fitted with CO Variant Cartridges If using Rechargeable Ni-MH Battery Packs, charging should always be carried out with the batteries removed from the instrument. This can be achieved by using the Zellweger Analytics Off-Line Charger.
  • Page 92 MAN0597 ISSUE 08 - 02/04 2302M5030 8. ROUTINE SERVICING Off-Line Charger and Spare Battery Part Numbers The following are the part numbers for the Off-Line Charger. Each variant is supplied complete with the relevant PSU for the destination country shown. •...
  • Page 93 Cartridge Note: Cartridge Installation or Replacement must never be carried out in a hazardous area. If a cartridge was previously fitted to the Impact Pro into which the NO cartridge is to be installed, remove the Front Cover Grill using the Allen Key provided in the bottom of the Impact Pro.
  • Page 94 If any sensor fails, recalibrate the Impact before using or alternatively replace the cartridge. Please refer to the Impact User Manual on general instructions on how to calibrate. Apply calibration span gas at a rate of 300ml/min for a period of 1 minute before starting the span calibration on the sensor.
  • Page 95 ISSUE 08 - 02/04 2302M5030 8. ROUTINE SERVICING The sensors fitted to Impact may give responses to gases other then the target gas. The table below gives typical sensor responses to various gases and should be used as a guide only. Note: Always use the target gas to perform sensor calibrations.
  • Page 96 MAN0597 ISSUE 08 - 02/04 2302M5030 9. SPARE PARTS 9. SPARE PARTS The following spare parts are available from Zellweger Analytics authorised Service Centres, in addition to the accessories listed in Section 6. ACCESSORIES. Dry Cell Battery Holder (2 off) 2302B0770 NiMH Rechargeable Battery Pack (2 off) 2302B0842 Front Cover Grille Assembly 2302B1315 Stainless Steel Filter Kit (10 off) P2302D0823...
  • Page 97 MAN0597 ISSUE 08 - 02/04 2302M5030 10. GLOSSARY 10. GLOSSARY BASEEFA British Approvals Service for Electrical Equipment in Flammable Atmospheres – UK Safety Certification Catalytic Sensor For detection of combustible gases. These are made of an electrically heated platinum wire coil, covered first with a ceramic base such as alumina and then with a final outer coating of palladium or rhidium catalyst dispersed...
  • Page 98 MAN0597 ISSUE 08 - 02/04 2302M5030 10. GLOSSARY Gas Detector or Monitor Refers to equipment designed to alert the user to potentially hazardous concentrations of gas in the monitored atmosphere. Hard Zero When a hard zero is performed using either the built-in calibration menu or the PC software then any adjustments will remain...
  • Page 99 MAN0597 ISSUE 08 - 02/04 2302M5030 10. GLOSSARY In the US, hazardous areas are classified in 2 divisions: Division 1: Equates to Zone 0 and Zone 1 Division 2: Equates to Zone 2 Intrinsically safe (approval by an appropriate authority to use the instrument in hazardous area).
  • Page 100 MAN0597 ISSUE 08 - 02/04 2302M5030 10. GLOSSARY sensors and sometimes also called a ‘bead’ or a ‘siegistor’. Poison resistant Capability of a catalytic sensor to reduce effect inhibiting substances or contaminants, such as silicones. Parts per billion concentrations in the atmosphere.
  • Page 101 MAN0597 ISSUE 08 - 02/04 2302M5030 11. APPENDIX A 11. APPENDIX A 11.1 WARNING CODES Number Message Action or Reason Replace batteries. Battery unchargeable. Replace the battery pack. Cartridge expired Fit new cartridge. Cartridge expires in nn Fit new cartridge. days Calibration due Calibration is due soon.
  • Page 102 MAN0597 ISSUE 08 - 02/04 2302M5030 11. APPENDIX A Number Message Action or Reason See manual Operating temperature specification exceeded. Operate instrument within its specification. Communications error Check connections to basestation. Time/date not set Set clock using PC software Event log nearly full. Clear 20% or less remaining.
  • Page 103 MAN0597 ISSUE 08 - 02/04 2302M5030 11. APPENDIX A Number Message Action or Reason Low O – flam inaccurate Insufficient oxygen for the flammable sensor to operate accurately. Recalibrate or fit new cartridge. Switch on/off to reset • Faulty sensor or poor cartridge contact •...
  • Page 104 Insert a valid cartridge. If one is fitted, remove and refit. Insert valid cartridge Memory error. Replace cartridge. Insert valid cartridge An Impact instrument does not support serviceable cartridges. Insert valid cartridge Sensor mix incorrect. Replace cartridge for the required type. This is only generated if the user declines to accept the cartridge's alarm settings.
  • Page 105 MAN0597 ISSUE 08 - 02/04 2302M5030 11. APPENDIX A Number Message Action or Reason Switch on/off to reset Caused by an unexpected switch off, e.g. poor or intermittent battery contacts. Switch off instrument and switch on again. See manual Operating temperature specification exceeded.
  • Page 106 MAN0597 ISSUE 08 - 02/04 2302M5030 12. APPENDIX B 12. APPENDIX B 12.1 WARRANTY Zellweger Analytics operates a standard warranty statement. 12.2 CERTIFICATION APPROVALS Europe CENELEC (ATEX) BAS 01 ATEX 1216 Ex 112G EEX ia d IIC T4 (-20°C to +55°C) North UL Ex ia Class 1 Div 1 Group ABCD T4 T America...
  • Page 107 PFG-No. 41300502/20.05.2003-14.11.2003 Special Conditions for Safe Use • The portable gas detector Impact / Impact Pro by Zellweger Analytics Ltd. is, based on the information and test results contained in the test reports PFG-No. 41300502P and PFG-No. 41300502P NI suitable for the measurement of...
  • Page 108 MAN0597 ISSUE 08 - 02/04 2302M5030 12. APPENDIX B up to 50 ppm H S, Carbon Dioxide up to 3 % CO Oxygen up to 25 % (based on the use for monitoring the atmosphere of oxygen deficiency and enrichment), if it's properties and design conform to the documents listed in the test reports PFG-No.
  • Page 109 MAN0597 ISSUE 08 - 02/04 2302M5030 12. APPENDIX B • The calibration needs to be checked, especially that of the H2S channel, if the instrument was subjected to excessive mechanical shock (e.g. dropping the instrument from normal operational height). • The confidence beep must be activated.
  • Page 110 Notes: 1. Only two units may be permitted to be connected. 2. Safelink cable assembly is connected to ‘Data Connector’ on base of impact portable and retained via 2 position screws into baseplate. 3. Cable is 2 connector with overall foil/braid shield.
  • Page 111 Weight 520g (18oz) including rechargeable battery packs and pump Dimensions 49mm x 84mm x 136mm (1.9" x 3.3" x 5.3") Sensors Range Repeatability Response Warm-up Impact Impact Time (T time (s) Flammable 0 to 100%lel ±3%lel See 12.3.3 " "...
  • Page 112 MAN0597 ISSUE 08 - 02/04 2302M5030 12. APPENDIX B EMC Approvals EN50270 Battery NiMH rechargeable, operating life (non-pumped) >10 hours, (pumped) >8 hours. Charge time = 7 hours Dry Cell disposable, operating life (non-pumped) >17 hours, (pumped) >15 hours. Internal Battery >5 years operating life.
  • Page 113 MAN0597 ISSUE 08 - 02/04 2302M5030 12. APPENDIX B 12.3.3 Specific Speed of Response Data (Rising Gas Levels) The following values are typical rising speed of response rise times, given in seconds during various gas-sampling modes of the instrument. Sampling Mode (see key) - typical T sampling time (seconds) Oxygen...
  • Page 114 MAN0597 ISSUE 08 - 02/04 2302M5030 12. APPENDIX B 12.3.4 Specific Recovery Time Data (Falling Gas Levels) The following values are typical recovery times, given in seconds during various gas-sampling modes instrument. Sampling Mode (see key) - typical T recovery time (seconds) Sampling Mode (see key) - typical T recovery...

This manual is also suitable for:

Impact pro
