- Page 1 HD-C8 ELECTRIC BIKE USER MANUAL...
- Page 2 USER MANUAL PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE RIDING Scan QR Code Or Enter URL for Online Installation Video https://www.youtube.com/watch?v=JXlIHz3I8FI...
- Page 3 1、 This manual was written to help you understand the proper use and maintenance of the Hidoes line of Electric electric bike. 2、 It is important to understand the functions and features of the new Hidoes before operating it as it will allow you to enjoy it from every ride.
- Page 4 CONTENT Product & Component Display ······································································· 1~2 Product Parameters ···················································································· 3 Products & Accessories ··············································································· 4 Product Installation ···················································································· 5~8 Power On & Unlock···················································································· 9 Safe Driving Warning ················································································· 10~11 Battery & Charging ··················································································· 12~14 Cleaning&Storage&Disposal at End-of-Life························································15~16 Error Code ····························································································· 17 Troubleshooting ·······················································································...

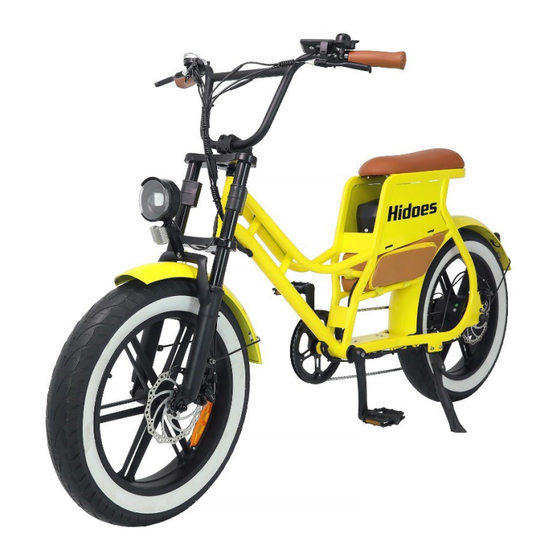

- Page 5 Product & Component Display 01.Headlight 07.Chain 13.Rear disc brake 02.Front fender 08.Kickstand 14.Rear fender 03.Brake disc 09.Transmission 15.Brake taillight 04.Front wheel 10.Rear wheel 16.Battery 05.Front disc brake 11.Brake disc 17.Seat 06.Pedal 12.Motor 18.Storage bag...
- Page 6 Product & Component Display 01.Left grip 04.Meter 07.Right grip 02.Brake 05.Transmission 03.Bell 06.Brake...
- Page 7 Product Parameters Model HD-C8 Tire Size 20 inch(20" x 4.0" Fat Tire) Battery 48V/17Ah Tyre Type Off-road Air tires Power Charging time 6~8 hours Display Screen Color Frame Material Iron Max Speed 25KM/H Net Weight 37KG Range 45-55KM Gross Weight...
- Page 8 Products & Accessories SERIAL NUMBER ITEM QUANTITY Charger Pump Toolkit Instructions Battery Key Bicycle lock...
- Page 9 Product Installation Remove the electric bike Remove the handlebar Insert the handlebar from the packaging box screws with tools Insert the handlebar cover and Take out the front wheel axle and Remove the front fork mount tighten the screws completely remove the spacers and screws at with the tool both ends.
- Page 10 When putting the front wheel Insert the axle into the front Put the front wheel into the in, make sure the brake disc is wheel front fork accurately placed in the gap of the disc brake Use tools to completely tighten Remove the headlight fixing Insert the gasket and nut the nuts on both sides.
- Page 11 Remove the fixing screws Insert the front fender Take out the headlight on both sides of the fender Put the headlight in and fix the Fix the left and right ends of the Insert the headlight cable in the front fender and headlight front fender with screws direction of the opposite arrow together with screws...
- Page 12 Fix the meter on the handlebar Install the left and right Remove the meter fixing screw near the bell pedals Insert the meter cable in Press the battery switch to the Press and hold the power the opposite direction of non-o position button to turn on the device.
- Page 13 Power On & Unlock The display is equipped with three buttons on the corresponding operating unit power on/off and manu button ,plus and light button , reduce and boost button Long press the power button to enter the password interface, the first 0 of the password flashes, press the power button once and the second 0 will flash;press the power button again and the third 0 will flash;when the fourth 0 flashes,press the power button one last time to unlock the meter.
- Page 14 Lower your risk of getting knee injuries by 32% with knee pod5. SAFETY FIRST If you are uncertain about any part of his manual, please bring your Hidoes and this manual to a local bike shop for professional inspection,assembly and instructions.
- Page 15 Do not lend your Hidoes to someone who is unfamiliar with operating the bike. If you do choose to lend your Hidoes to anyone, make sure that they read and understand the instructions in this manual.
- Page 16 Battery & Charging BATTERY Do not charge indoors. - Do not turn on and operate the electric bike while charging. - Keep the battery away from children, pets or direct heat. - Do not expose the battery to high temperature and pressure. - Please use the charger included with the electric bike for charging.
- Page 17 Battery & Charging First Charge It is important to fully charge the battery before your first use of the electric bike. Your electric bike’s battery comes with these built-in features: 1. Balanced charging protection: During charging, the battery automatically balances the voltage among the internal cells to protect each cell.
- Page 18 Battery Maintenance Do not store the battery in a location that exceeds the temperature range of 20℃-25℃/68F-77F. Do not pierce the battery. Refer to local laws and regulations on battery recycling and/or disposal. If maintained properly, a battery can continue to perform at optimal levels well even powering your bike for many miles.
- Page 19 Storage Here are some tips on how to store your Hidoes E-Bike. Before storing the bike, charge the battery fully to prevent over-discharge due to lack of use. Even if you have not been using your E-Bike for more than one month, you should discharge and charge the battery at east once a month.
- Page 20 The chemicals inside the battery are chemical pollutants. We recommend that all Hidoes products be disposed of as a whole or through an e-waste recycling center, program, or facility.
- Page 21 Error Code Error Code Fault Diagnostic Step Solution Check whether the brake is reset after Brake failure Brake failure release. Low voltage Low voltage The battery is too low, please charge. Check whether the connection between the If this does not work the motor needs Motor failure controller and the motor is loose.
- Page 22 Troubleshooting Malfunction Possible Cause Possible Solution 1.Under-charged battery. 1.Charge battery. Follow battery care procedures. 2.Battery no longer serviceable. 2.Have battery checked. Replace if faulty. Pedal assistance not working 3.Battery charger faulty. 3.Have charger checked. Replace if faulty. 4.Motor electrics or switches damaged / faulty. 4.Seek diagnosis and repair from authorised service centre.
- Page 23 Malfunction Possible Cause Possible Solution 1.Pedal bearings too tight. 1.Adjust. 2.Bottom bracket bearings too tight. 2.Adjust. Grinding noise when pedalling 3.Rear wheel not straight. 3.Align so chain is straight. 4.Chain too tight. 4.Adjust. 5.Derailleur dirty. 5.Clean and lubricate. 1.Pads worn. 1.Replace.
- Page 24 Malfunction Possible Cause Possible Solution Motor "clicks" / has reduced 1.Under-charged battery. 1.Charge battery. Follow battery care procedures. power and / or shuts off 2.Motor internal fault. 2.Replace. 1.Blown fuse. 1.Replace. No power when pedal assistance 2.Loose connectors / wiring damage. 2.Check connectors / wiring.
- Page 25 Maintenance Schedule Check Before *Check Clean / Adjust / Tighten / Component / Condition Every Ride Periodically Lubricate Replace as Required Tyre Pressure Tyre Wear / Damage Brake Adjustment Handlebar Tightness Controls and Display Seat Post Tightness Fasteners / Mounting Hardware Brake Pads / Shoes Brake Cable Wear Chain...
- Page 26 Derailleur Wheel Spoke Tension Wheel Trueness Wheel Bearings Bottom Bracket (Crank) Bearings * Every 5 to 10 rides depending on ride length and conditions.
- Page 27 We hope these videos will help you better understand and use our product. If you still have questions or concerns after watching the videos, please feel free to contact our customer service team, and we will be happy to assist you. Thank you again for your purchase and support! Wishing you a pleasant user experience! https://www.Hidoes.com https://www.youtube.com/@Hidoes https://www.facebook.com/HidoesBike/...
- Page 28 11. Defects or damages from improper storage, exposure to moisture or dampness, modifications, connections, repairs (except as carried out by Hidoes or its authorised centres), misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of Hidoes, including damage caused by dropping, blown fuses, liquid entering the interior of the product.
- Page 29 Serial number Model Invoice Number Battery serial number Name Distributor Contact Note Shenzhen Tianshengle Technology Co., Ltd. Address: Room505, 5th Floor, Liuwei Business Center, Yangmei Longjing Road, Longgang District, Shenzhen city, China WhatsApp: +8613612953725 Customer support: support@hidoes.com Official website: www.Hidoes.com...
- Page 30 HD-C8...
