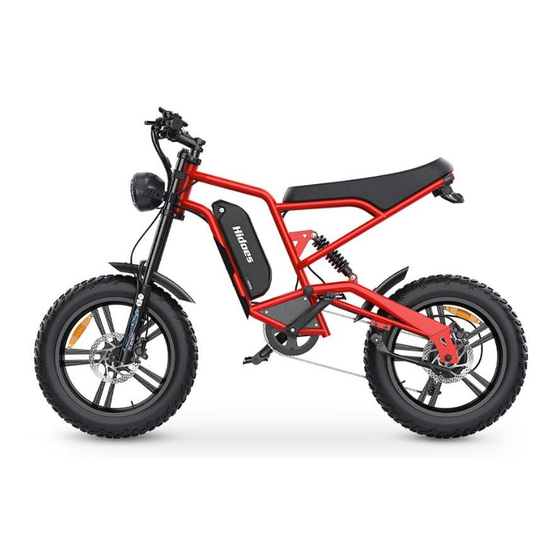

- Page 1 HD-B6 ELECTRIC BIKE USER MANUAL...
- Page 2 USER MANUAL PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE RIDING Scan QR Code Or Enter URL for Online Installation Video https://www.youtube.com/watch?v=c3p1pTozJxY...
- Page 3 1、 This manual was written to help you understand the proper use and maintenance of the Hidoes line of Electric electric bike. 2、 It is important to understand the functions and features of the new Hidoes before operating it as it will allow you to enjoy it from every ride.
-
Page 4: Table Of Contents
CONTENT Product & Component Display ······································································· 1~2 Product Parameters ···················································································· 3 Products & Accessories ··············································································· 4 Product Installation ···················································································· 5~10 Power On & Unlock···················································································· 11 Safe Driving Warning ················································································· 12~13 Battery & Charging ··················································································· 14~16 Cleaning&Storage&Disposal at End-of-Life························································17~18 Error Code ····························································································· 19 Troubleshooting ·······················································································... -
Page 5: Product & Component Display
Product & Component Display 01:Meter 08:Front fender 15:Charging port 02:Handle 09:Front fork 16:Rear shock absorber 03:Gear lever 10:Front wheel 17:Rear fender 04:Brake 11:Pedal 18:Rear wheel 05:Headlights 12:Saddle 19:Motor 06:ON/OFF switch 13:Tail lights 20:Rear Derailleur 07:Battery box 14:License plate frame 21:Rear derailleur guard... - Page 6 Product & Component Display 01:Brake lever 06:Power on button 11:Total mileage 02:Settings 07:Reduction control gear/assisted model 12:Transmission gear 03:Acceleration control gear 08:Battery level 13:Brake lever 04:Lamp Button 09:Gear 14:Throttle 05:bell 10:Speed 15: Handle...
-
Page 7: Product Parameters
Product Parameters Model HD-B6 Tire Size 20 inch(20" x 4.0" Fat Tire) Battery 48V/15.6Ah Tyre Type Off-road Air tires Power 1200 Charging time 6~8 hours Display Screen Color Frame Material iron&Aluminum alloy Max Speed 25-50KM/H Net Weight 42.2KG Range 30-40KM Gross Weight 49.7KG... -
Page 8: Products & Accessories
Products & Accessories SERIAL NUMBER ITEM QUANTITY Charger Pump Bicycle bell Toolkit Instructions... -
Page 9: Product Installation
Product Installation Remove the four screws Remove the electric bike Place the handlebars into the from the rod from the packaging box corresponding lock mouth Use a tool to tighten the four Remove the screws under the Tighten the two screws on the screws at the lock opening to rear shock absorber riser to secure the head pipe... - Page 10 Use the tool to install the Remove the nut from the Align holes screws and tighten them bearing screw Put the front fork on the Insert the bearing screws Lift the body and align the front bearing screw and find the into the corresponding holes fork with the bearing screws on matching nut...
- Page 11 Install the nut on the other side Attach the nut to the bearing Open the headlight bracket to the bearing and tighten the and tighten the nut Tighten the screws on the Connect the wiring ports Place the screw in the side hole left and right sides of the on the headlights of the headlight...
- Page 12 Use a tool to tighten the screws Remove the screws in the Align the front fender with the to secure the front fender into center of the front fork hole on the front fork the middle of the front fork By turning the right pedal Remove the screws from Each pedal comes with an "L"...
- Page 13 Take off the air nozzle on the Install the tire nozzle cover on Install the screws on the tire, align the air nozzle hole the inflation nozzle and tighten bike bell and tighten the and install the pump to inflate the inflation nozzle cover.
- Page 14 When the instrument display Hold down power Click the "+" button to lights up, it is successfully button for 3-5 seconds adjust the start gear turned on Turn the half handle on the Assembly completed right hand side to start the e-bike...
-
Page 15: Power On & Unlock
Power On & Unlock The display is equipped with five buttons on the corresponding operating unit power on/off ,plus ,minus ,light and toggle Long press to power on/off the display. If you do not use the electric bike for more than 10 minutes, the meter will automatically shut down. -
Page 16: Safe Driving Warning
If you are uncertain about any part of his manual, please bring your Hidoes and this manual to a local bike shop for professional inspection,assembly and instructions. To keep yourself safe and to prolong the lifespan of your Hidoes, it is extremely important that you follow the safety guidelines in this manual. - Page 17 Do not lend your Hidoes to someone who is unfamiliar with operating the bike. If you do choose to lend your Hidoes to anyone, make sure that they read and understand the instructions in this manual.
-
Page 18: Battery & Charging
Battery & Charging BATTERY Do not charge indoors. - Do not turn on and operate the electric bike while charging. - Keep the battery away from children, pets or direct heat. - Do not expose the battery to high temperature and pressure. - Please use the charger included with the electric bike for charging. - Page 19 Battery & Charging First Charge It is important to fully charge the battery before your first use of the electric bike. Your electric bike’s battery comes with these built-in features: 1. Balanced charging protection: During charging, the battery automatically balances the voltage among the internal cells to protect each cell.
- Page 20 Battery Maintenance Do not store the battery in a location that exceeds the temperature range of 20℃-25℃/68F-77F. Do not pierce the battery. Refer to local laws and regulations on battery recycling and/or disposal. If maintained properly, a battery can continue to perform at optimal levels well even powering your bike for many miles.
-
Page 21: Cleaning&Storage&Disposal At End-Of-Life
Storage Here are some tips on how to store your Hidoes E-Bike. Before storing the bike, charge the battery fully to prevent over-discharge due to lack of use. Even if you have not been using your E-Bike for more than one month, you should discharge and charge the battery at east once a month. - Page 22 The chemicals inside the battery are chemical pollutants. We recommend that all Hidoes products be disposed of as a whole or through an e-waste recycling center, program, or facility.
-
Page 23: Error Code
Error Code Error Code Fault Diagnostic Step Solution E001 Controller failure Controller failure Replace controller The instrument cannot receive the signal from the controller. E002 Communication fail Check whether the green line of the controller is connected Replace Instrument properly. Check whether the motor wires are connected properly or If there is no problem with each circuit, the E003... -
Page 24: Troubleshooting
Troubleshooting Malfunction Possible Cause Possible Solution 1.Under-charged battery. 1.Charge battery. Follow battery care procedures. 2.Battery no longer serviceable. 2.Have battery checked. Replace if faulty. Pedal assistance not working 3.Battery charger faulty. 3.Have charger checked. Replace if faulty. 4.Motor electrics or switches damaged / faulty. 4.Seek diagnosis and repair from authorised service centre. - Page 25 5.Loose pedal arm bolts. 5.Tighten. Malfunction Possible Cause Possible Solution 1.Pedal bearings too tight. 1.Adjust. 2.Bottom bracket bearings too tight. 2.Adjust. Grinding noise when pedalling 3.Rear wheel not straight. 3.Align so chain is straight. 4.Chain too tight. 4.Adjust. 5.Derailleur dirty. 5.Clean and lubricate.
- Page 26 3.Front forks or frame bent. 3.Straighten. Malfunction Possible Cause Possible Solution Motor "clicks" / has reduced 1.Under-charged battery. 1.Charge battery. Follow battery care procedures. power and / or shuts off 2.Motor internal fault. 2.Replace. 1.Blown fuse. 1.Replace. No power when pedal assistance 2.Loose connectors / wiring damage.
-
Page 27: Maintenance Schedule
Maintenance Schedule Check Before *Check Clean / Adjust / Tighten / Component / Condition Every Ride Periodically Lubricate Replace as Required Tyre Pressure Tyre Wear / Damage Brake Adjustment Handlebar Tightness Controls and Display Seat Post Tightness Fasteners / Mounting Hardware Brake Pads / Shoes Brake Cable Wear Chain... - Page 28 Derailleur Wheel Spoke Tension Wheel Trueness Wheel Bearings Bottom Bracket (Crank) Bearings * Every 5 to 10 rides depending on ride length and conditions.
-
Page 29: After Sales
We hope these videos will help you better understand and use our product. If you still have questions or concerns after watching the videos, please feel free to contact our customer service team, and we will be happy to assist you. Thank you again for your purchase and support! Wishing you a pleasant user experience! https://www.Hidoes.com https://www.youtube.com/@Hidoes https://www.facebook.com/HidoesBike/... -
Page 30: Limited Warranty
11. Defects or damages from improper storage, exposure to moisture or dampness, modifications, connections, repairs (except as carried out by Hidoes or its authorised centres), misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of Hidoes, including damage caused by dropping, blown fuses, liquid entering the interior of the product. -
Page 31: Warranty Card
Battery serial number Name Distributor Contact Note Shenzhen Tianshengle Technology Co., Ltd. Address: Room 502, 5th Floor, Building 1, Liuwei Business Center, No.5, Longjing Community, Yangmei Community, Bantian Street, Longgang District, Shenzhen, China WhatsApp: +8613612953725 Customer support: support@hidoes.com Official website: www.Hidoes.com...
