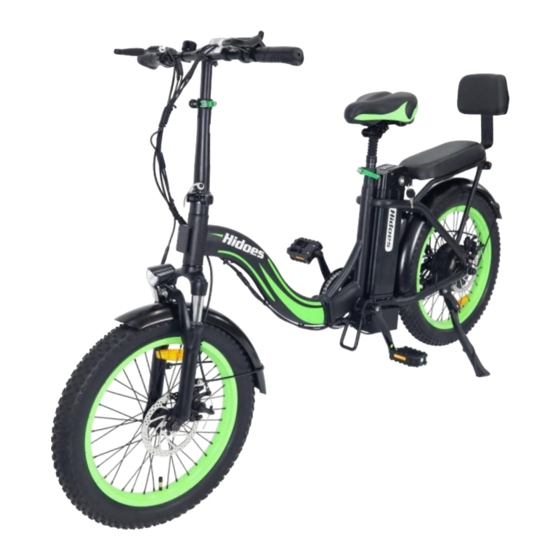

- Page 1 HD-C1 ELECTRIC BIKE USER MANUAL...
- Page 2 USER MANUAL PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE RIDING Scan QR Code Or Enter URL for Online Installation Video https://www.youtube.com/watch?v=KrnDVIBG7gw...
- Page 3 1、 This manual was written to help you understand the proper use and maintenance of the Hidoes line of Electric electric bike. 2、 It is important to understand the functions and features of the new Hidoes before operating it as it will allow you to enjoy it from every ride.
-
Page 4: Table Of Contents
CONTENT Product & Component Display ······································································· 1~2 Product Parameters ···················································································· 3 Products & Accessories ··············································································· 4 Product Installation ···················································································· 5~10 Product Folding ······················································································· 11~12 Power On & Unlock···················································································· 13 Safe Driving Warning ················································································· 14~15 Battery & Charging ··················································································· 16~18 Cleaning&Storage&Disposal at End-of-Life························································19~20 Error Code ·····························································································... -
Page 5: Product & Component Display
Product & Component Display 01:Brake 07:Front fender 19:Rear wheel fender 13:Battery box 02:Meter 08:Front fork 20:Rear wheel brake 14:Seat stool 03:Handle 09:Front wheel 21:Motor 15:Pedal 04:Fixed fastener 10:Disc brake plate 22:Disc brake plate 16:Backrest 05:Riser folding clip 11:Seat fastener 23:Rear wheel 17:Rear wheel seat 06:Headlights 12:Key hole... - Page 6 Product & Component Display 01:Brake lever 05:Speed 09:Reflector 02:Power on button 06:Gear 10:Bell 03:Acceleration control gear 07:Battery level 11:Throttle 04:Reduction control gear 08:Total mileage 12:Brake lever...
-
Page 7: Product Parameters
Product Parameters Model HD-C1 Tire Size 20 inch(20" x 3.0") Battery 48V/13Ah Tyre Type Off-road Air tires Power Charging time 5~7 hours Black and white LCD Display Screen Frame Material Iron display Max Speed 25-40KM/H Net Weight 30KG Range 25-35KM... -
Page 8: Products & Accessories
Products & Accessories SERIAL NUMBER ITEM QUANTITY Charger Pump Toolkit Instructions Lock... -
Page 9: Product Installation
Product Installation Erect the riser in the Remove the electric bike Lock the riser latch direction shown from the packaging box Cover the retaining clasp and Place the handlebar tube in Loosen the retaining buckle tighten the screw the fixed groove screws on the lifting tube... - Page 10 Lock the retaining buckle Adjust the riser to a height Lock the retaining buckle on the riser suitable for your riding Lift the body and align the Install the nut on the Attach the nut to the bearing and front fork with the bearing other side to the bearing tighten the nut screws on the front wheels...
- Page 11 Use a tool to tighten the screws Place the headlights in the Align the front fender with to secure the front fender and specified hole position the hole on the front fork headlight into the middle of the front fork Each pedal comes with an "L"...
- Page 12 By turning the right pedal Push the rear seat cushion Insert the seat tube, adjust it to clockwise and the left pedal backward to separate the rear a proper height, and lock the counterclockwise with your seat cushion from the hole to quick release handle in the hand,Use tools to tighten pedal remove the rear seat cushion...
- Page 13 Fasten the two straps under the seat cushion to secure the seat Locate the meter and use the Remove the screws from the and the straps can also hold tool to loosen the screws meter other light and small items. Align "...
- Page 14 Insert the key and turn the key Adjust the Angle of the to the "ON" position by Hold down the power instrument, and the instrument turning it to the right of the button for 3-5 seconds is assembled "OFF" position Turn the half handle on the When the instrument display right hand side to start the...
-
Page 15: Product Folding
Product Folding Press the key towards the Pull up the handle at the keyhole and turn the key to Turn the seat over bottom of the saddle "PUSH" button remove the battery Open the retaining clip on Pick up the battery handle Folding riserit the vertical rod and release and take out the battery... - Page 16 You can fold the body Open the buckle in the Moving the safety lock up is down the middle middle of the frame used to release the safety lock Folding...
-
Page 17: Power On & Unlock
Power On & Unlock Long press to power on/off the display. If you do not use the electric bike for more than 10 minutes, the meter will automatically shut down. When the display is powered on, it will show the Current Speed (km/h) and Odometer (km) by default. -
Page 18: Safe Driving Warning
If you are uncertain about any part of his manual, please bring your Hidoes and this manual to a local bike shop for professional inspection,assembly and instructions. To keep yourself safe and to prolong the lifespan of your Hidoes, it is extremely important that you follow the safety guidelines in this manual. - Page 19 Do not lend your Hidoes to someone who is unfamiliar with operating the bike. If you do choose to lend your Hidoes to anyone, make sure that they read and understand the instructions in this manual.
-
Page 20: Battery & Charging
Battery & Charging BATTERY Do not charge indoors. - Do not turn on and operate the electric bike while charging. - Keep the battery away from children, pets or direct heat. - Do not expose the battery to high temperature and pressure. - Please use the charger included with the electric bike for charging. - Page 21 Battery & Charging First Charge It is important to fully charge the battery before your first use of the electric bike. Your electric bike’s battery comes with these built-in features: 1. Balanced charging protection: During charging, the battery automatically balances the voltage among the internal cells to protect each cell.
- Page 22 Battery Maintenance Do not store the battery in a location that exceeds the temperature range of 20℃-25℃/68F-77F. Do not pierce the battery. Refer to local laws and regulations on battery recycling and/or disposal. If maintained properly, a battery can continue to perform at optimal levels well even powering your bike for many miles.
-
Page 23: Cleaning&Storage&Disposal At End-Of-Life
Storage Here are some tips on how to store your Hidoes E-Bike. Before storing the bike, charge the battery fully to prevent over-discharge due to lack of use. Even if you have not been using your E-Bike for more than one month, you should discharge and charge the battery at east once a month. - Page 24 The chemicals inside the battery are chemical pollutants. We recommend that all Hidoes products be disposed of as a whole or through an e-waste recycling center, program, or facility.
-
Page 25: Error Code
Error Code Error Code Fault Diagnostic Step Solution 1.Under-charged battery. 1.Charge battery Follow battery care procedures. Battery undervoltage 2.Motor internal fault. 2.Replace. Check whether the motor wires are connected properly or If there is no problem with each circuit, the Motor Hall failure whether the colored wires are connected incorrectly. -
Page 26: Troubleshooting
Troubleshooting Malfunction Possible Cause Possible Solution 1.Under-charged battery. 1.Charge battery. Follow battery care procedures. 2.Battery no longer serviceable. 2.Have battery checked. Replace if faulty. Pedal assistance not working 3.Battery charger faulty. 3.Have charger checked. Replace if faulty. 4.Motor electrics or switches damaged / faulty. 4.Seek diagnosis and repair from authorised service centre. - Page 27 Malfunction Possible Cause Possible Solution 1.Pedal bearings too tight. 1.Adjust. 2.Bottom bracket bearings too tight. 2.Adjust. Grinding noise when pedalling 3.Rear wheel not straight. 3.Align so chain is straight. 4.Chain too tight. 4.Adjust. 5.Derailleur dirty. 5.Clean and lubricate. 1.Pads worn. 1.Replace.
- Page 28 Malfunction Possible Cause Possible Solution Motor "clicks" / has reduced 1.Under-charged battery. 1.Charge battery. Follow battery care procedures. power and / or shuts off 2.Motor internal fault. 2.Replace. 1.Blown fuse. 1.Replace. No power when pedal assistance 2.Loose connectors / wiring damage. 2.Check connectors / wiring.
-
Page 29: Maintenance Schedule
Maintenance Schedule Check Before *Check Clean / Adjust / Tighten / Component / Condition Every Ride Periodically Lubricate Replace as Required Tyre Pressure Tyre Wear / Damage Brake Adjustment Handlebar Tightness Controls and Display Seat Post Tightness Fasteners / Mounting Hardware Brake Pads / Shoes Brake Cable Wear Chain... - Page 30 Derailleur Wheel Spoke Tension Wheel Trueness Wheel Bearings Bottom Bracket (Crank) Bearings * Every 5 to 10 rides depending on ride length and conditions.
-
Page 31: After Sales
We hope these videos will help you better understand and use our product. If you still have questions or concerns after watching the videos, please feel free to contact our customer service team, and we will be happy to assist you. Thank you again for your purchase and support! Wishing you a pleasant user experience! https://www.Hidoes.com https://www.youtube.com/@Hidoes https://www.facebook.com/HidoesBike/... -
Page 32: Limited Warranty
11. Defects or damages from improper storage, exposure to moisture or dampness, modifications, connections, repairs (except as carried out by Hidoes or its authorised centres), misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of Hidoes, including damage caused by dropping, blown fuses, liquid entering the interior of the product. -
Page 33: Warranty Card
Battery serial number Name Distributor Contact Note Shenzhen Tianshengle Technology Co., Ltd. Address: Room 502 ,5th Floor, Building 1, Liuwei Business Center, No.5, Longjing Community, Yangmei Community, Bantian Street, Longgang District, Shenzhen, China WhatsApp: +8613612953725 Customer support: support@hidoes.com Official website: www.Hidoes.com...
