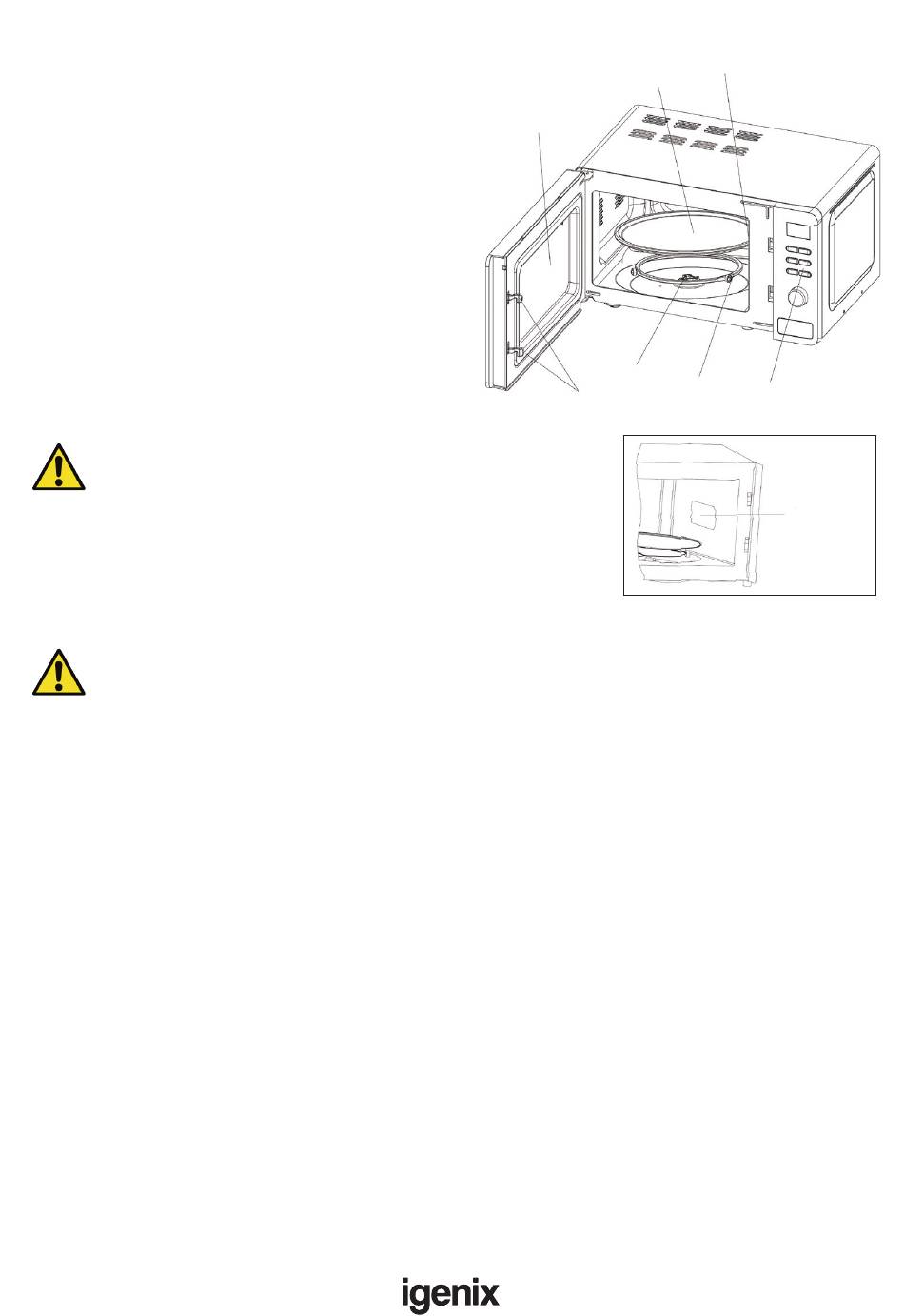

APPLIANCE OVERVIEW
1. Door lock - Microwave oven door must be
properly closed in order for it to operate.
2. Viewing window - Allows user to see
the cooking status.
3. Rotating axis - The glass turntable sits
on the axis; the motor underneath it
drives the turntable to rotate.
4. Rotating ring - The glass turntable sits
on its wheels; it supports the turntable
and helps it to balance when rotating.
5. Turntable - The food sits on the turntable,
its rotation during operation helps to
cook food evenly.
CAUTION:
- Place the rotating ring in the
microwave first.
- Fit the turntable onto the rotating axis and make
sure that it is located over the gear mechanism.
6. Control panel - See control panel section for full details*.
7. Waveguide cover - It is inside the microwave, next to the wall of control panel.
WARNING: Never remove the waveguide cover
INSTALLATION
1. Take out all the packing. If there is a safety film over the microwave, tear it
off before use. Check carefully for damage. If any damage is evident,
immediately notify dealer or send to the manufacturer's service center.
2. Microwave ovens must be placed in dry and non-corrosive environments
and kept away from heat and humidity, such as gas burners or water tanks.
3. To ensure sufficient ventilation, the distance from the back of the microwave
to the wall should be at least 10cm, the side to the wall should be at least
5cm, the free distance above the top surface at least 20cm and the distance
from the microwave to the ground should be at least 85cm.
4. The position of the microwave should be such that it is located at least 5m
from any TVs, Radios or antenna as this can cause picture disturbance.
5. The appliance must be positioned so that the plug is accessible and must
ensure a good grounding in case of leakage.
6. The microwave must be operated with the door closed.
7. The microwave must not be placed in a cabinet. The microwave is intended
to be freestanding.
6
5.
2.
3.
4.
1.
7.
6.
Waveguide
cover
