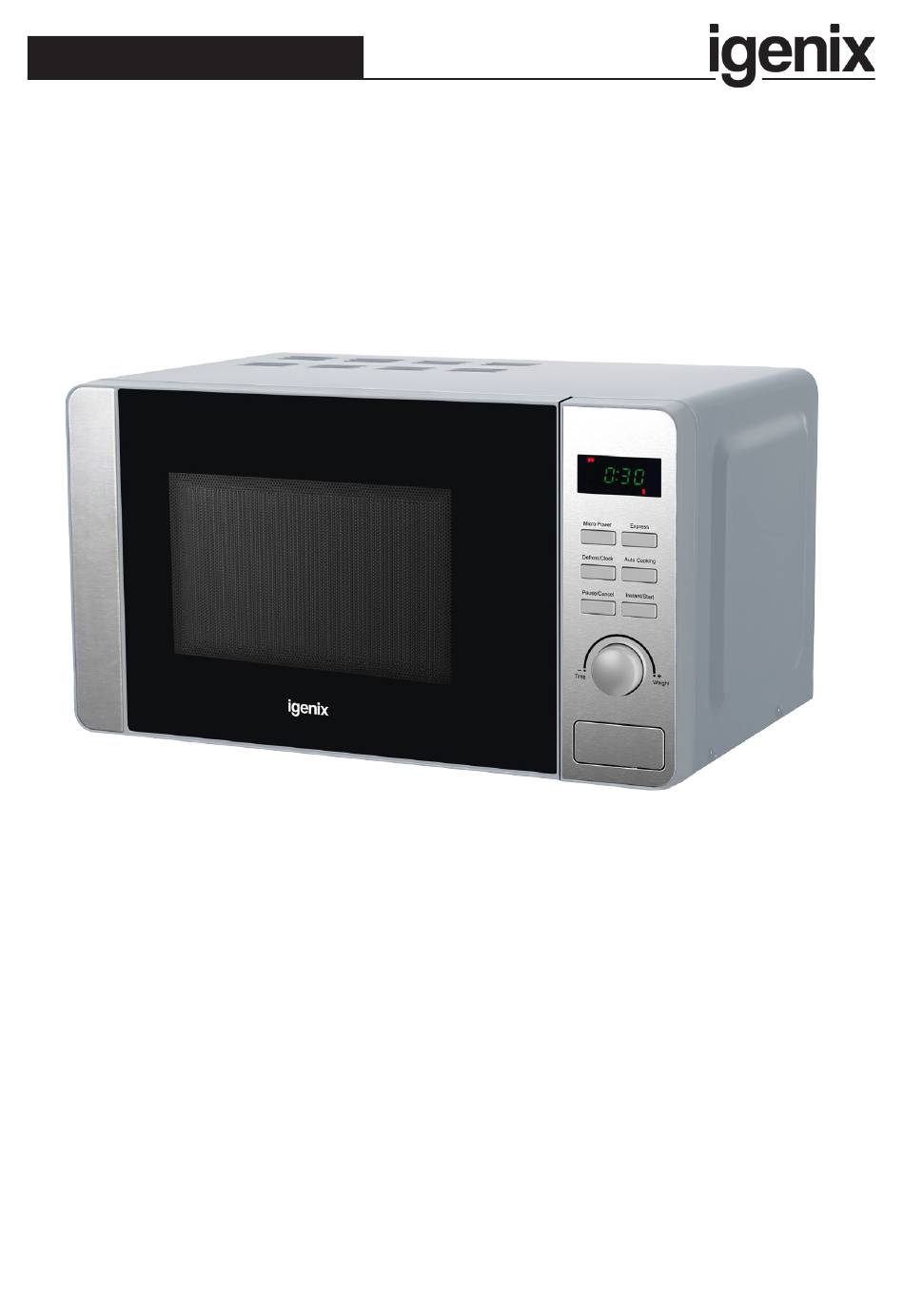

USER MANUAL

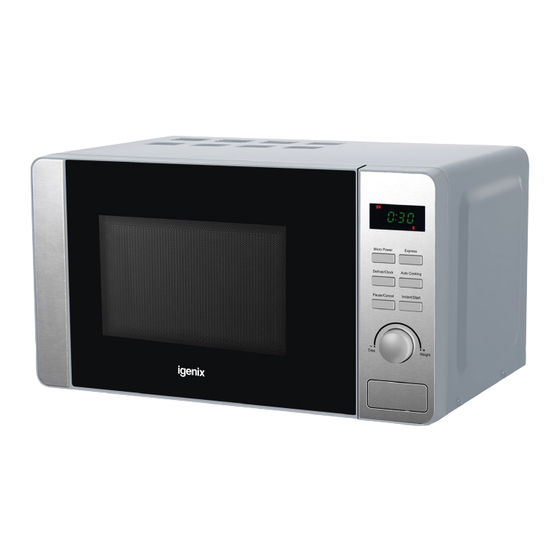

800W 20L Digital Microwave - Stainless Steel
IG2086
Batch code:
Please read these instructions carefully before use and retain for future reference
Before switching on your appliance,
always check for any damage which may have been caused in transit
Advertisement
Related Manuals for iGenix IG2086
Summary of Contents for iGenix IG2086
- Page 1 USER MANUAL 800W 20L Digital Microwave - Stainless Steel IG2086 Batch code: Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...
- Page 2 CONTENTS Important Safety Instructions ..........3-5 Appliance Overview ..............6 Installation ..................6 Operating Instructions ............7-13 Container Guidelines .............. 13 Cooking Tips ................14 Cleaning & Maintenance ............15 Trouble Shooting Guide ............16 Fuse Replacement ..............17 Disposal Information ............... 17 Terms and Conditions and Warranty Information ..14-15...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS The following basic precautions should always be followed when using this electrical appliance: • Carefully read all instructions before operating and save for future reference. • This appliance is for normal domestic use only. • Make sure the voltage in the intended location corresponds to the one shown on the rating label of the appliance.
- Page 4 - The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature should be checked before consumption, in order to avoid burns from uneven heating. • If the supply cord is damaged, it must be replaced before further use by the manufacturer, a service agent or a qualified electrician in order to avoid a hazard.
- Page 5 • Microwave heating of beverages can result in delayed boiling and the possibility of overflowing; therefore care must be taken when handling the container. • Do not use harsh abrasive cleaners or sharp metal scrapers to clean the microwave door glass since they can scratch the surface, which may result in shattering of the glass.
- Page 6 APPLIANCE OVERVIEW 1. Door lock - Microwave oven door must be properly closed in order for it to operate. 2. Viewing window - Allows user to see the cooking status. 3. Rotating axis - The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate.
- Page 7 OPERATING INSTRUCTIONS *(the control panel is subject to change without prior notice). 1. BEFORE COOKING - The LED flashes 3 times when plugged into power supply. It will then flash “ : ”, prompting you to input the cooking programme and time.
- Page 8 6. CLOCK SETTING - The clock button makes it possible for you to input the current time when “ : ” flashes onto the LED display after the microwave is plugged in. Example: to set 12:30 Steps Display After power-up, the colon flashes Press and hold Defrost/Clock button for 3 seconds 00:00 Turn Time/Weight knob to set exact hours.
- Page 9 a. The max time which can be set is 60 minutes. b. Never operate the oven empty. c. If you pause the programme to turn the food during operation, once you wish to resume you must press the Instant/Start button once and the preset cooking programme will continue.
- Page 10 9. DEFROST - This function is used for defrosting food. Pressing the Defrost Clock button once and the LED display will cycle to show d.1 or d.2 or d.3. For defrosting meat, the weight range from 0.1 to 2.0 kg. For defrosting poultry, the weight range from 0.2 to 3.0kg.
- Page 11 Display Kind Method Popcorn Suitable for popcorn weighing 0.1kg. Prior to completing, if the popping speed has decreased to 1 pop per 1-2 seconds you should press Pause/Cancel button to stop the popping process. Reheat This setting is suitable for reheating 0.2-1.0kg, which lets you reheat a dinner plate of chilled leftovers with good results.
- Page 12 11. AUTOMATIC STARTING (DELAYED FUNCTION) - If you do not want the menu to start immediately, you can preset the cooking programme and time and the preset programme will automatically start at your set time. The setting will consist of 2 steps: 1.
- Page 13 Continued Press Micro Power button to select desired power level 9:00 Turn Time/Weight knob to set cooking time. Start cooking by pressing Instant/Start CAUTION: a. When microwave 100 power cooking is finished, it will begin the next operation automatically. b. Repeat the steps above to set up to 4 sequences. 13.
- Page 14 COOKING TIPS The following factors may affect the cooking result: Food arrangement Place thicker areas towards the outside of the dish and the thinner part towards the center and spread evenly. Do not overlap if possible. Cooking time Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need.
- Page 15 CLEANING & MAINTENANCE Microwave Oven Care CAUTION: The microwave should be cleaned regularly and any food deposits removed. WARNING: Turn off the power at the wall socket and remove the power cord from the wall socket before cleaning. Do not immerse any part of the appliance in water or other fluids when cleaning- except the removable glass turntable and rotating ring.
- Page 16 TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 271272: before contacting customer services on 01473 271272: To test microwave is working before cooking food –...
- Page 17 CAUTION- HIGH VOLTAGE WARNING This appliance is equipped with an earthed plug for your protection against possible shock hazards and should be connected to a properly earthed power socket. Do not operate this oven if the door is bent, warped or otherwise damaged and does not close firmly.
- Page 18 lgenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects.
- Page 19 To qualify for the 2 year warranty you must register your product within 30 days of purchase. The full Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk...
- Page 20 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
