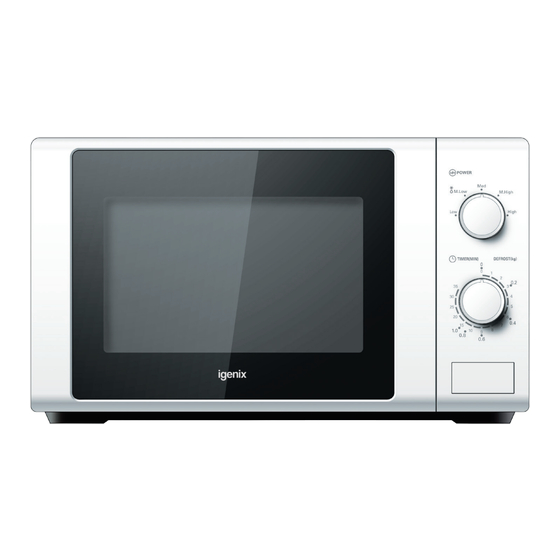

- Page 1 USER MANUAL 20 Litre 700W Manual Microwave - White IG2071 PO Number: Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...
-
Page 2: Table Of Contents
Trouble Shooting Guide ............12 Mains Plug Fuse Replacement ..........13 Disposal Information ............... 13 Igenix Warranty Information ........... 14-15 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Read and follow the specific: “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”... - Page 4 8. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 9. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
- Page 5 19. Metallic containers for food and beverages are not allowed during microwave cooking. 20. The appliance shall not be cleaned with a steam cleaner. 21. The appliance is intended to be used freestanding. 22. The rear surface of appliances shall be placed against a wall. To Reduce the Risk of Injury to Persons Grounding Installation DANGER...
- Page 6 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.
- Page 7 Materials you can use in a microwave oven Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes.
-
Page 8: Product Specification
PRODUCT SPECIFICATION Model: IG2071 Rated Voltage: 220-240V~ 50Hz Rated Input Power (Microwave): 1050 W Rated Output Power (Microwave): 700 W Oven Capacity: 20 L Turntable Diameter: Ø 255mm Product Dimensions: 440 x 340 x 259 mm Net Weight: Approx. 11kg APPLIANCE OVERVIEW Remove the oven and all materials from the carton and oven cavity. -
Page 9: Installation
INSTALLATION Counter-top Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS 1. To set cooking power turn the power knob to desired level. 2. To set the cooking time turn the timer knob to desired time per your food cooking guide. 3. The microwave oven will automatically start cooking after power level and time are set. -
Page 11: Cleaning & Maintenance
CLEANING & MAINTENANCE Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. -
Page 12: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 271272: Normal Microwave oven interfering Radio and TV reception may be interfered with when with TV reception the microwave oven is operating. It is similar to the interference of small electrical appliances, like food mixers, vacuum cleaners and electric fans. -
Page 13: Mains Plug Fuse Replacement
MAINS PLUG FUSE REPLACEMENT Fuse Cover Fuse Replacement (Class I) This appliance must be earthed. Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place. -
Page 14: Igenix Warranty Information
Igenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. - Page 15 To qualify for the 2 year warranty you must register your product within 30 days of purchase. The full Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk...
- Page 16 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
