Induction Cooktops

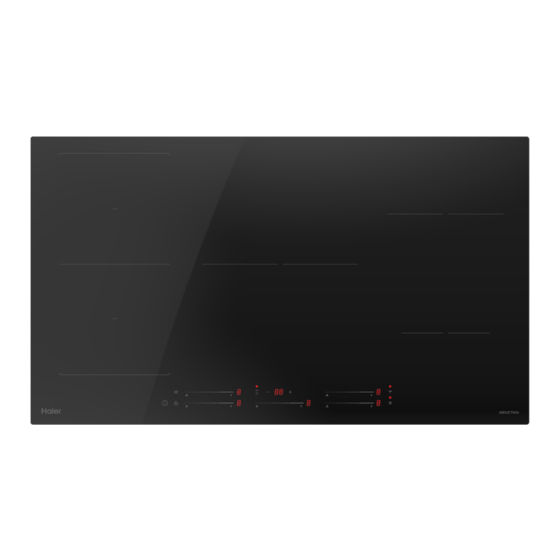

INDUCTION COOKTOPS
HCI905FTB4, HCI905FTG4, HCI905TPB4, HCI905TB4,
HCI604FTB4, HCI604FTPB4, HCI604FTG4
INSTALLATION GUIDE
NZ AU

Advertisement

loading
Need help?

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Haier 500 Series

  • Page 1 Induction Cooktops INDUCTION COOKTOPS HCI905FTB4, HCI905FTG4, HCI905TPB4, HCI905TB4, HCI604FTB4, HCI604FTPB4, HCI604FTG4 INSTALLATION GUIDE NZ AU...
  • Page 2 CONTENTS Safety and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Components required .
  • Page 3 SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance. • Connection to a good earth wiring system is essential and mandatory.
  • Page 4 SAFETY AND WARNINGS WARNING! Hot Surface Hazard Failure to follow this advice may result in burns and scalds or serious injury. • During use, accessible parts of this appliance will become hot enough to cause burns. • Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool.
  • Page 5 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE General Use Read these instructions carefully before installing this product. Never leave the appliance unattended when in use. Boil over causes smoking and greasy spillovers that may ignite. Never use your appliance as a work or storage surface. Never leave any objects or utensils on the appliance.
  • Page 6 SAFETY AND WARNINGS No combustible material or products should be placed on this appliance at any time. Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs. In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
  • Page 7 COMPONENTS REQUIRED TOOLS Not supplied Box cutter Phillips screwdriver Level PARTS Supplied and required 4 x Retaining brackets 4 x Bracket screws Foam tape (attached)
  • Page 8 PRODUCT SPECIFICATIONS HCI905FT AND HCI905T MODELS PRODUCT DIMENSIONS A Overall length of cooktop B Overall width of cooktops C Length of chassis D Width of chassis E Height of chassis (excluding glass) F Height of cooktop glass G Overall cooktop height...
  • Page 9 PRODUCT SPECIFICATIONS HCI604FT MODELS PRODUCT DIMENSIONS A Overall length of cooktop B Overall width of cooktops C Length of chassis D Width of chassis E Height of chassis (excluding glass) F Height of cooktop glass G Overall cooktop height...
  • Page 10 CAVITY SPECIFICATION HCI905 Models HCI604 Models PRODUCT DIMENSIONS HCI905 Models A Width of cavity 488mm 490mm B Length of cavity 868mm 870mm HCI604 Models C Width of cavity 480mm 492mm D Length of cavity 560mm 562mm...
  • Page 11 CLEARANCES Ensure all minimum specifications have been met and clearances have been considered . CLEARANCE DIMENSIONS A Minimum clearance from glass surface to rangehood B Minimum clearance below cooktop chassis to any appliance, companion product or obstruction below cooktop* C Minimum clearance from rear edge of cut-out to nearest combustible surface D Minimum clearance from front edge of cut-out to front edge of counter E Minimum clearance from side edges of cut-out to nearest combustible surface F Minimum bench top thickness...
  • Page 12 VENTILATION This cooktop requires adequate supply of cool air to fully function . The base of the cooktop must have direct unrestricted ventilation to the room where the cooktop is installed . There must be a 5mm air gap at the front of the cooktop .
  • Page 13 ELECTRICAL SPECIFICATIONS Connecting the cooktop to the mains power supply IMPORTANT! This cooktop must be connected to the mains power supply only by a suitably qualified person. This cooktop must be earthed. Before connecting the cooktop to the mains power supply, check that: The domestic wiring system is suitable for the power drawn by the cooktop The voltage corresponds to the value given on the rating plate The power supply cable sections can withstand the load specified on the rating plate.
  • Page 14 ELECTRICAL SPECIFICATIONS SINGLE PHASE TWO PHASE 220 - 240V 220- 240V 220 - 240V Input Input 400V Power cord Power cord IMPORTANT! Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.
  • Page 15 INSTALLATION Turn the cooktop upside down on a protective cover . Do not remove the foam seal under the edge of the glass top . Fix the four supplied retaining brackets to cooktop . Insert the tab into the side of the cooktop and screw the bracket in .
  • Page 16 INSTALLATION Connect the cooktop to the mains power . Flip the cooktop and lower it into the bench cut-out . Press the glass edges onto the bench top .
  • Page 17 INSTALLER CHECKLIST GENERAL … Read safety and warnings in the user guide before operating the cooktop. … Specified clearance maintained. … Unit is level – front to back and side to side. … All packaging materials have been removed. … There is constant flow of cool air from the cabinetry to the base of the cooktop.
  • Page 18 WWW .HAIER .COM .AU 条形码尺寸40*8mm, 由厂家生成。 WWW .HAIER .CO .NZ 432498A    10.24...
