- Page 1 CPH-5 FULL-RANGE MONITOR Owners manual...
- Page 2 The CPH-5 is a genuine all-rounder. Whether you are looking for high-end sound from a single speaker, two speakers in a stereo music setup, or multiple speakers for cinemas and multi room audio, the CPH-5 will fulfill all your audio needs. Thank you for purchasing the Artcoustic CPH-5.
- Page 3 SPARKLING HIGH FREQUENCY PERFORMANCE The CPH-5 also excels at the upper end of the frequency spectrum, with a frequency response of up to 40 kHz at 90 dB (1W +/-2dB). Overall, the performance is exemplary with good, tight bass and sparkling high-frequency performance.
- Page 4 Extra long excursion and aluminium Short Circuit Ring, 4-layer 50mm voice coil, anodized aluminium for improved heat dissipation, combined with Distortion Reduced Motor and vented pole piece for optimized linear excursion. OWNERS MANUAL – CPH-5 FULL-RANGE MONITOR ARTCOUSTIC LOUDSPEAKERS...
- Page 5 100 Watt Nominal Beamwidth Horizontal 90° Vertical 90° Input Impedance Nominal 8 ohms DESIGN Cabinet: Black, White, RAL, NCS NOMINAL BEAM Screen: Black, White, RAL, NCS, Artcoustic Art Gallery WIDTH Horizontal 90° Vertical 90° DIMENSIONS H: 310 W: 230 D: 141 mm WEIGHT 4.5 kg...

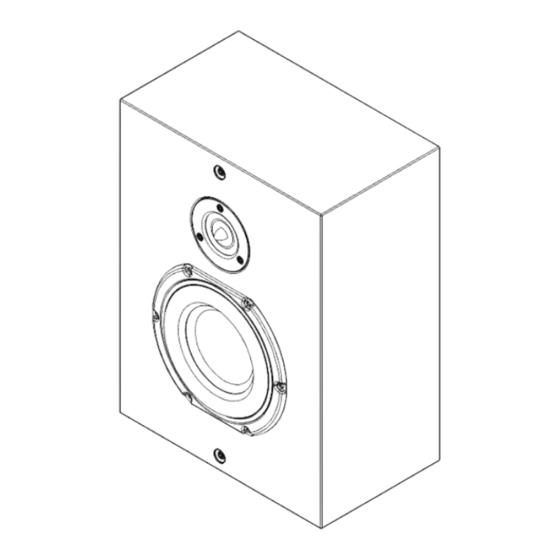

- Page 6 SCHEMATICS isometric view front view left view rear view left view with screen bottom view CPH-5 Full-Range Monitor dimension are in mm...
-
Page 7: Mounting Instruction
Artcoustic Universal Bracket Attach bracket mount to Mount Bracket to wall, speaker rear side with suitable screws inserts isometric rear view CPH-5 isometric rear view Fit speaker on bracket mounted on wall OWNERS MANUAL – CPH-5 FULL-RANGE MONITOR ARTCOUSTIC LOUDSPEAKERS... -
Page 8: Polar Response
3D polar response 1 m 16000Hz 6500Hz 2500Hz 1000Hz 90° 90° 120° 60° 120° 60° 150° 150° 30° 30° 0° 0° 180° 180° 360° 360° 330° 330° 210° 210° 240° 240° 300° 300° 270° 270° OWNERS MANUAL – CPH-5 FULL-RANGE MONITOR ARTCOUSTIC LOUDSPEAKERS... -
Page 9: Safety Instructions
Always use the power supply shipped with this product. Using a power supply with wrong voltage or polarity, can damage the electronics. OWNERS MANUAL – CPH-5 FULL-RANGE MONITOR ARTCOUSTIC LOUDSPEAKERS... -
Page 10: Warranty
∙ For damages caused by incorrect installation, connection or packing. ∙ For damages caused by accidents, lightning, water, fire heat, war, public disturbances or any other cause beyond the reasonable control of Artcoustic and its appointed distributors. ∙ For damages caused by any use other than correct use described in the user manual, negligence, modifications, or use of parts that are not made or authorized...
