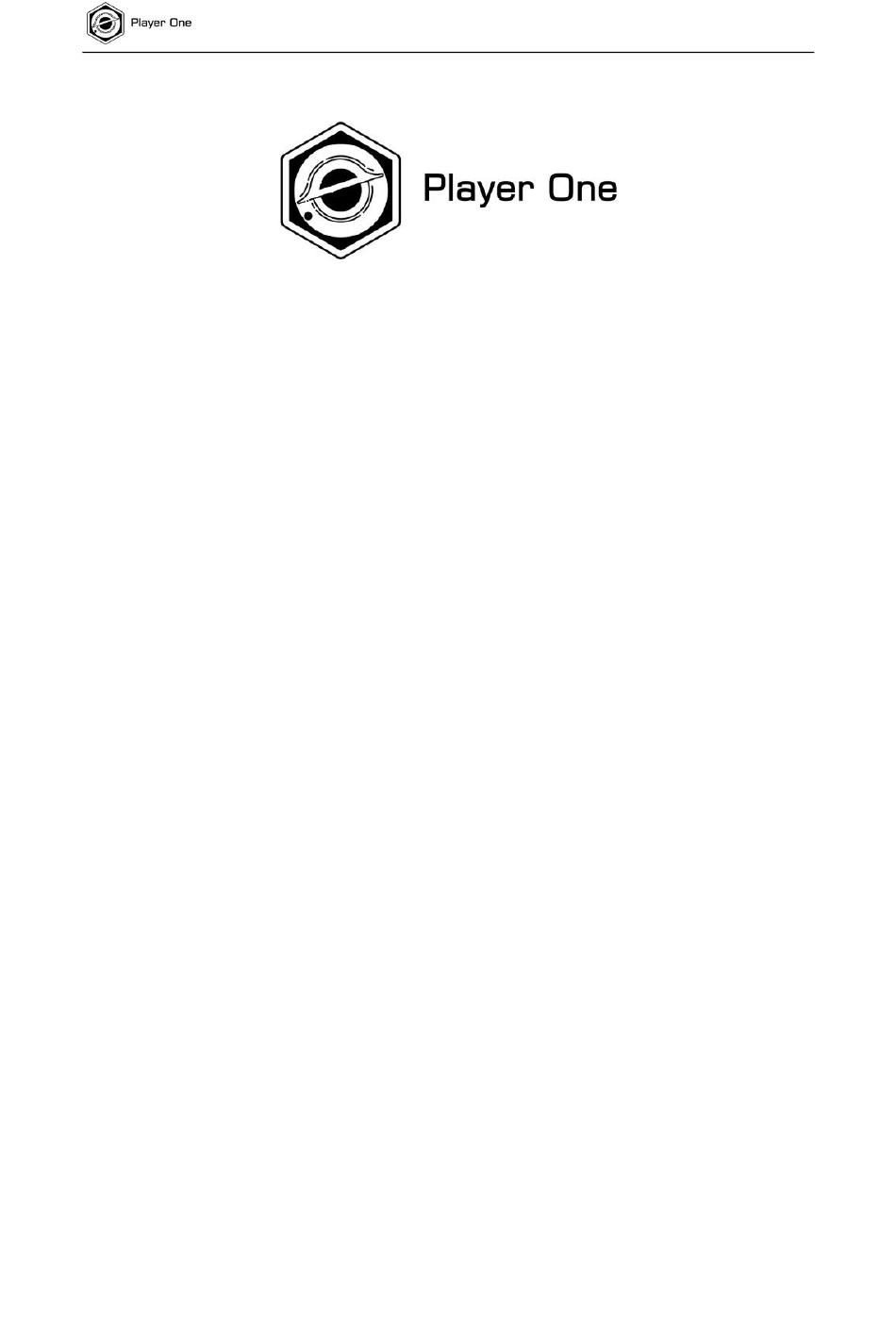

- Page 1 Saturn Camera Manual Saturn-M SQR Camera Manual V1.0 Dec, 2024...
- Page 2 Saturn Camera Manual Table of Contests Product Features ....................3 Technical parameters .................... 4 Product Description ....................5 STARVIS Technology ....................5 Format ..........................5 Extend Full Well Capacity ..................6 High Frame rate ......................7 Dual Sampling Mode ....................7 Highlights ....................... 8 Non-Amp-Glow .......................9 Recommended accessories ................
- Page 3 Saturn Camera Manual Product Features Saturn-M SQR and Saturn-C SQR is the most powerful planetary camera in our history! Based on IMX533 BSI sensor, high image quality, high resolution and square format, non-amp-glow feature, the camera will be great for lunar, solar mosaic and DSO lucky imaging.
- Page 4 Saturn Camera Manual Technical parameters Sensor New SONY IMX533 1" CMOS (mono) Diagonal 16mm Total Pixels 9 Mega Pixels Max Resolution 3008×3008 3.76μm Pixel Size Chip Size 11.31mm×11.31mm 43FPS（10bit） Frame Rate Shutter Rolling shutter 32μs-2000s Exposure Range Readout Noise 4.46-1e ≈91% QE Peak Full Well...
- Page 5 Saturn Camera Manual Product Description Saturn-M SQR (IMX533) camera is developed by Player One Astronomy, SQR means its sensor is square. Saturn-M SQR camera, which adopts Sony IMX533 1” square format monochrome sensor. The 3.76um pixel size accommodates a well depth of 73Ke with a total of 9MP (the resolution is 3008*3008), and the diagonal is 16mm.
- Page 6 Saturn Camera Manual Extend Full Well Capacity Based on our technology, we improved the full well of Saturn-M SQR camera to 73Ke, it’s almost 1.5 times than IMX533 Basic (50ke).
- Page 7 Saturn Camera Manual High Frame rate Based on our technology Saturn-M SQR camera can run 43FPS under RAW8 mode, that’s much faster than existing models on market. Dual Sampling Mode Saturn SQR series has dual sampling mode. Normal mode and LRN mode, they have different advantages in imaging.
- Page 8 Saturn Camera Manual 2. LRN (low readout noise) mode has lower readout noise and higher dynamic range. it is more suitable for DSO lucky imaging. Highlights...
- Page 9 Saturn Camera Manual Non-Amp-Glow Dark frame of Saturn SQR (IMX533) camera is totally “dark”, that’s we called it “Non- Amp-Glow” camera! 300s dark frame of Saturn SQR camera (resize to 50%): Non-Amp-Glow can give us very clean background, much easier to get high quality images.
- Page 10 Saturn Camera Manual Recommended accessories ACS (Active Cooling System) is an external air-cooled system, designed for solar and big format planetary cameras which already has PCS (Passive Cooling System). ACS can provide much better temperature control. When camera has PCS + ACS, temperature is only 7℃...
- Page 11 Saturn Camera Manual...
- Page 12 Saturn Camera Manual Features The naming of Player One Astronomy cameras is unique. Planetary camera line, naming depend on the size of planets, Mars (1/3″), Neptune (1/2″), Uranus (1/1.2″), Saturn (1″), Jupiter (4/3″). Drivers and software download: http://player-one-astronomy.com/service/software/ Manuals download: http://player-one-astronomy.com/service/manuals/...
- Page 13 Saturn Camera Manual 2nd Gen – Sensor Tilt Plate When taking deepsky objects, using sensor tilt plate can get a much smaller field curvature of the telescope. The built-in high-density sponge shading pad can block the light from the side slits without any side leakage.
- Page 14 Saturn Camera Manual Passive Cooling System Player One add a new feature called Passive Cooling System to conduct the heat from the sensor out. 256M DDR3 Cache Player One Astronomy cameras are the first one who adopts the DDR3 cache in all planetary cameras in the world! It helps stabilize and secure data transmission, it effectively avoids frame dropping and greatly reduces readout noise.
- Page 15 Overvoltage and overcurrent protection mechanism Player One cameras produced by us ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms. Data Port When the camera is connected to the USB3.0 interface and full-resolution preview is used,...
- Page 16 Saturn Camera Manual Performance HCG open at gain=125. Saturn SQR series has dual sampling mode, Normal mode has faster fps, LRN (low readout noise) mode has lower readout noise and higher dynamic range.
- Page 17 Saturn Camera Manual Readout Noise Regarding readout noise, we solemnly promise that all values are obtained from actual tests. And for users, you could use Sharpcap 4 for testing. SC4 has a function called Sensor Analysis, provide a very simple way to test readout noise. We wrote a tutorial on our website: https://player-one-astronomy.com/service/manuals/ If you are interested in readout noise testing, you may try it yourself, which is very simple.
- Page 18 Saturn Camera Manual Mechanical Drawing...
- Page 19 Saturn Camera Manual Package List...
- Page 20 For best experiences, we recommend customers to purchase our products form local dealers. After-sales Service Warranty Policy 2-year free warranty (time start from delivered) for Player One products. If the product has any issue, please send the image or video and description to support@player-one- astronomy.com for further check to confirm. ...
- Page 21 × Legal proof-of-purchase, receipts, or invoices are not provided, or are reasonably believed to have been forged or tampered with. × A product sent to Player One for replacement does not include all original accessories, attachments and packaging, or contains items damaged by user error.
