- Page 1 Sedna Camera Manual Sedna-M Camera Manual V1.0 Dec, 2024...
- Page 2 Sedna Camera Manual Table of Contests Product Features ..........................3 Technical parameters ........................4 Product Description ........................5 Features ..............................5 Cutting-edge Design ....................6 DPS technology ......................7 Overvoltage and overcurrent protection mechanism........7 Data Port ...........................7 Performance ............................8 Readout Noise ........................9 QE Curve ..........................9 HCG Mode ........................9 Mechanical Drawing ........................
- Page 3 Sedna Camera Manual Product Features Player One Astronomy guiding camera series, AKA Dwarf Planet Series, is design for guiding and imaging. This series including 3 sub-series, Ceres, Sedna and Xena.
- Page 4 Sedna Camera Manual Technical parameters Sensor SONY IMX178 1/1.8" CMOS (mono) Diagonal Total Pixels 6.4 Mega Pixels 3096×2078 Max Resolution 2.4μm Pixel Size 7.4mm×5.0mm Chip Size 60FPS（10bit） Frame Rate Rolling shutter Shutter 32μs-2000s Exposure Range 2.2e~1.3e Readout Noise ≈80% QE Peak 15k e Full Well 14 bit...

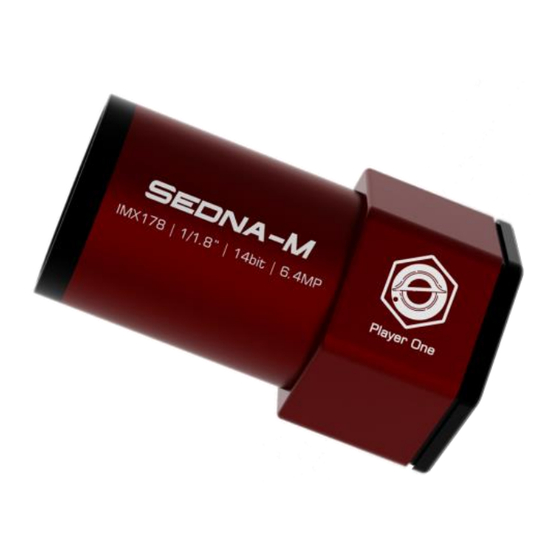

- Page 5 Sedna Camera Manual Product Description Sedna-M is a guiding camera developed by Player One Astronomy, which adopts the Sony IMX178 1/1.8” format sensor. The 2.4um pixel size accommodates a well depth of 15ke with a total of 6.4MP (the resolution is 3096*2078), and the diagonal is 9mm.
- Page 6 Sedna Camera Manual Cutting-edge Design The guiding cameras developed by Player One Astronomy uses technological regular hexagon to construct the main body line.
- Page 7 Overvoltage and overcurrent protection mechanism Player One cameras produced by the number one player ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms.
- Page 8 Sedna Camera Manual Performance...
- Page 9 We wrote a tutorial on our website: https://player-one-astronomy.com/service/manuals/ After many rigorous readout noise tests, the Sedna-M camera can reach a low readout noise of 1.34e at a gain of 350. If you are interested in readout noise testing, you may try it yourself, which is very simple.
- Page 10 Sedna Camera Manual Mechanical Drawing...
- Page 11 Sedna Camera Manual Package List...
- Page 12 For best experiences, we recommend customers to purchase our products form local dealers. After-sales Service Warranty Policy 2-year free warranty (time start from delivered) for Player One products. If the product has any issue, please send the image or video and description to support@player-one- astronomy.com for further check to confirm. ...
- Page 13 × Legal proof-of-purchase, receipts, or invoices are not provided, or are reasonably believed to have been forged or tampered with. × A product sent to Player One for replacement does not include all original accessories, attachments and packaging, or contains items damaged by user error.
