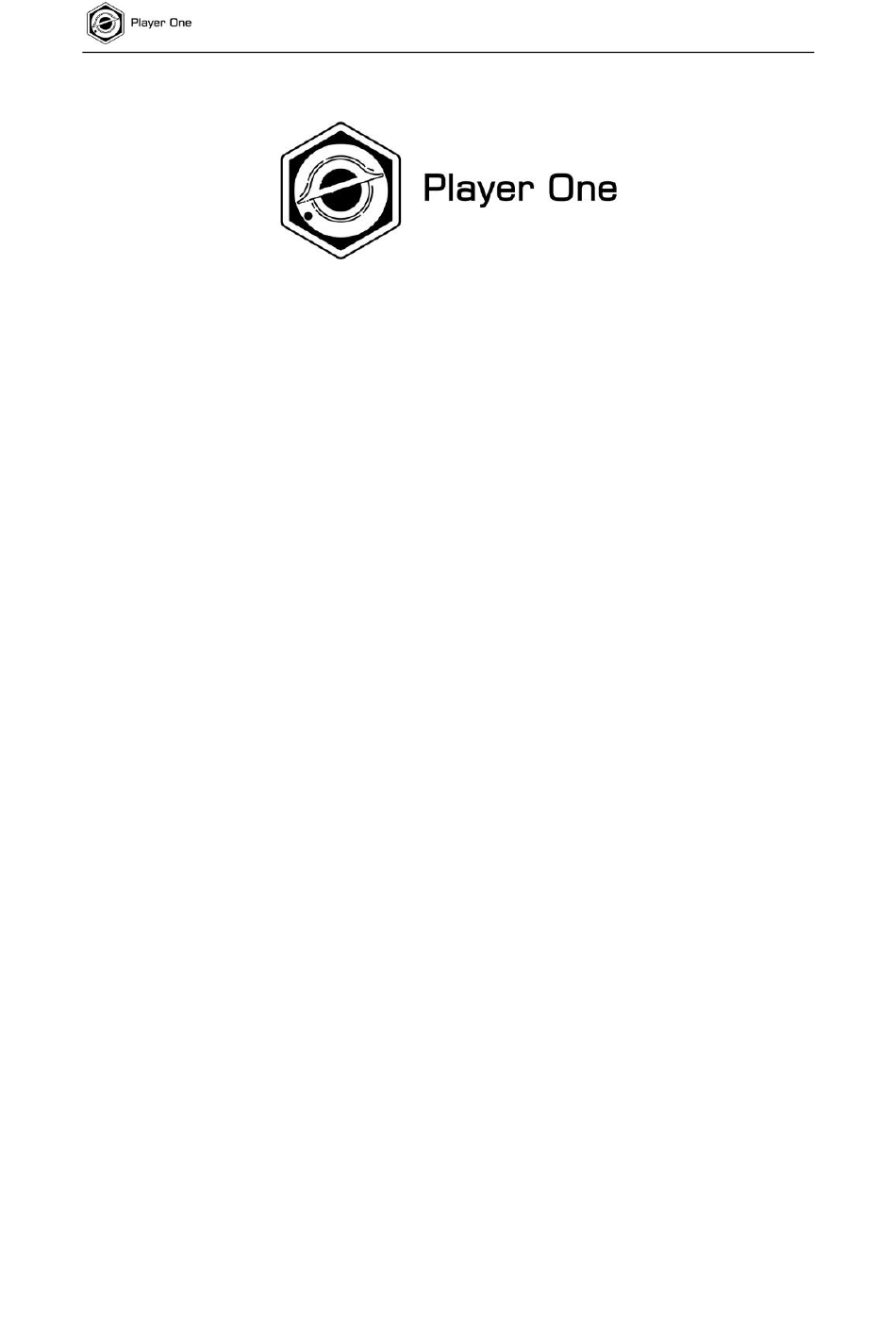

- Page 1 Neptune Camera Manual Neptune 664C Camera Manual V1.0 Dec, 2024...
- Page 2 Neptune Camera Manual Table of Contests Product Features ..........................3 Technical parameters ........................4 Product Description ........................5 Super AR Plus window ....................5 STARVIS 2 Technology ....................6 Non-Amp-Glow .......................6 Features ..............................7 Comparison of 3 generations ...................7 Cutting-edge Design ....................8 2nd Gen – Sensor Tilt Plate ..................8 256M DDR3 Cache ......................9 DPS technology ......................
- Page 3 Neptune Camera Manual Product Features...
- Page 4 Neptune Camera Manual Technical parameters Sensor SONY IMX664 1/1.8" CMOS (color) Diagonal Total Pixels 4.2 Mega Pixels Max Resolution 2704×1540 2.9μm Pixel Size Chip Size 7.8mm×4.5mm Frame Rate 136FPS（10bit） Bayer Matrix RGGB Shutter Rolling shutter 32μs-2000s Exposure Range Readout Noise 6.1e~0.67e ≈91% QE Peak...
- Page 5 2704*1540), and the diagonal is 6.46 mm. Super AR Plus window NEPTUNE 664C using this Super AR Plus window in front of it. This window glass can give super high transmittance from 310nm to 1100nm. This important improvement,...
- Page 6 CMOS image sensors. Non-Amp-Glow Biggest surprise of NEPTUNE 664C camera is, its dark frame is totally “dark”, whatever we strength the curve, there is no AMP glow at all! 60s dark frame of NEPTUNE 664C camera (resize to 50%):...
- Page 7 Features Comparison of 3 generations Player One add all our best technology into 3rd Gen NEPTUNE 664C. You will see the advantages, like Super AR plus window, Passive cooling system. Those features will make sure NEPTUNE 664C to be very competitive on the market!
- Page 8 Neptune Camera Manual Cutting-edge Design The planetary cameras developed by Player One Astronomy use a scientific and technological regular hexagon to construct the main body line, supplemented by round chamfers to achieve both rigidity and flexibility. The positive red, which is like a summer...
- Page 9 Neptune Camera Manual 256M DDR3 Cache Player One Astronomy cameras are the first ones who adopt the DDR3 cache in all planetary cameras in the world! It helps stabilize and secure data transmission, effectively avoids frame dropping, and greatly reduces read noise.
- Page 10 USB 2.0 port. DPS technology The planetary cameras from Player One Astronomy have DPS (Dead Pixel Suppression) technology. The DPS is analyses many dark frames to find out those fixed abnormal pixel and record the map in camera memory.
- Page 11 Neptune Camera Manual Passive Cooling System Player One add a new feature called Passive Cooling System to conduct the heat from the sensor out. Overvoltage and overcurrent protection mechanism Player One cameras produced by the number one player ensure the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms.
- Page 12 Neptune Camera Manual Performance...
- Page 13 QE Curve The QE curve of the NEPTUNE 664C camera tell us that this camera is NIR enhanced camera. working after Super AR Plus window, this camera will keep very high QE in infrared.
- Page 14 Neptune Camera Manual Mechanical Drawing...
- Page 15 Neptune Camera Manual Package List...
- Page 16 For best experiences, we recommend customers to purchase our products form local dealers. After-sales Service Warranty Policy 2-year free warranty (time start from delivered) for Player One products. If the product has any issue, please send the image or video and description to support@player-one- astronomy.com for further check to confirm. ...
- Page 17 × Legal proof-of-purchase, receipts, or invoices are not provided, or are reasonably believed to have been forged or tampered with. × A product sent to Player One for replacement does not include all original accessories, attachments and packaging, or contains items damaged by user error.
