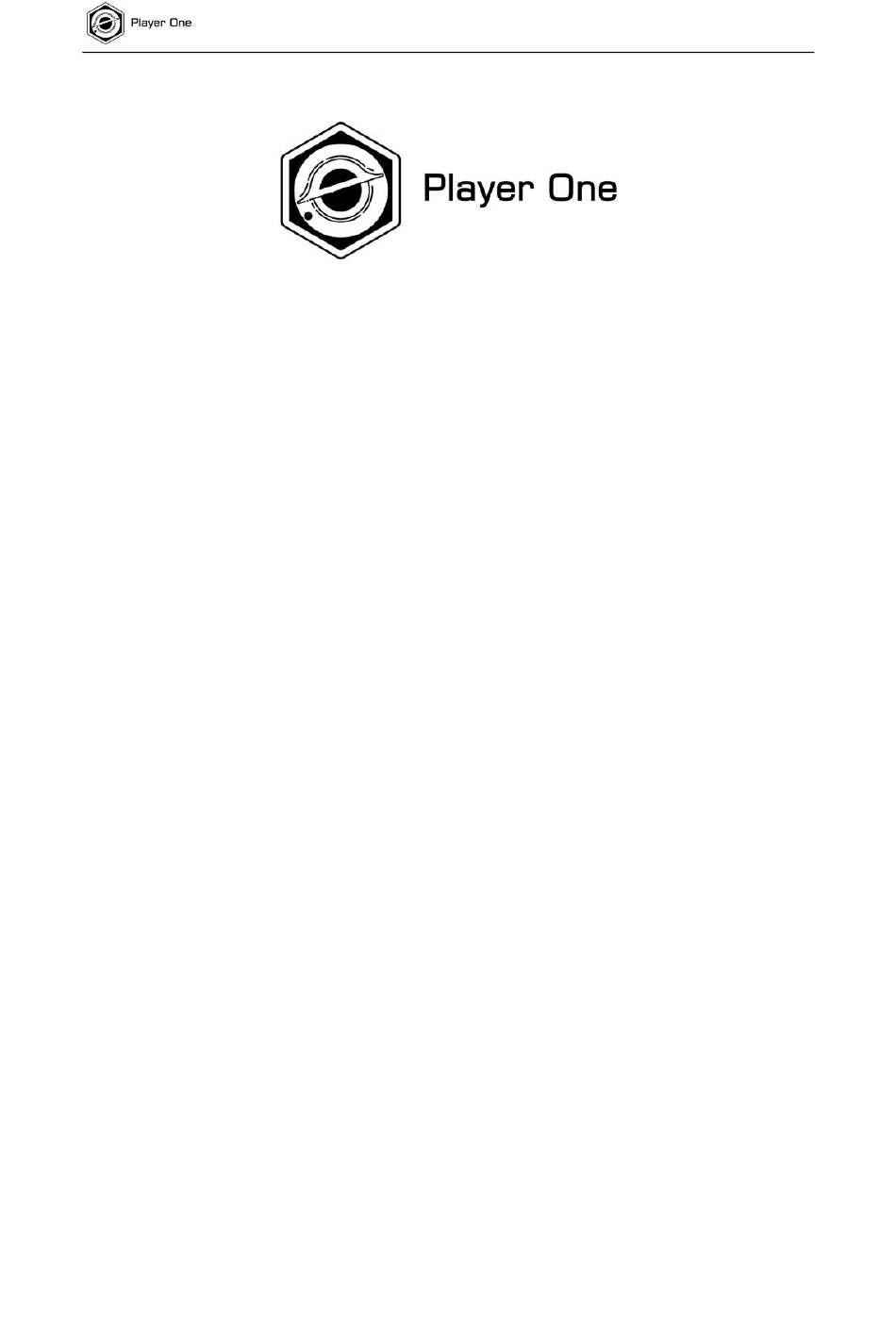

- Page 1 Mars Camera Manual Mars-M Camera Manual V1.0 Dec, 2024...
- Page 2 Mars Camera Manual Table of Contests Product Features ....................3 Technical parameters .................... 4 Product Description ....................5 Features ........................ 6 Cutting-edge Design ................6 2nd Gen – Sensor Tilt Plate..............7 256M DDR3 Cache ................8 DPS technology ..................8 Overvoltage and overcurrent protection mechanism ......
- Page 3 Mars Camera Manual Product Features...
- Page 4 Mars Camera Manual Technical parameters SONY IMX290 1/2.8" CMOS Sensor 6.5mm Diagonal Total Pixels 2.1 Mega Pixels 1944×1096 Max Resolution 2.9μm Pixel Size 5.6mm×3.2mm Chip Size Frame Rate 136FPS（10bit） Shutter Rolling shutter 32μs-2000s Exposure Range Readout Noise 3.2e~0.98e ≈80% QE Peak Full Well 14.6k e 12 bit...
- Page 5 Sony IMX290 1/2.8″ CMOS, with a 1944 x 1096 array of 2.9um pixels and the diagonal is 6.46 mm. The naming of Player One Astronomy cameras is unique. For example, we name the planetary cameras after planets (They are Mercury, Venus, Mars, Jupiter, Saturn, Uranus and Neptune, Earth is not included).
- Page 6 Features Cutting-edge Design The planetary cameras developed by Player One Astronomy uses a scientific and technological regular hexagon to construct the main body line, supplemented by round chamfers to achieve both rigidity and flexibility. The positive red, which is like a summer...
- Page 7 Mars Camera Manual 2nd Gen – Sensor Tilt Plate The built-in high-density sponge shading pad can block the light from the side slits without any side leakage. When taking solar photograph with prominence telescope, the Newton ring is annoying. Smoother solar image without Newton ring could be taken by adjusting the focal plate. Get a much smaller field curvature of the telescope.
- Page 8 256M DDR3 Cache Player One Astronomy cameras are the first one who adopts the DDR3 cache in all planetary cameras in the world! It helps stabilize and secure data transmission, it effectively avoids frame dropping and greatly reduces readnoise.
- Page 9 Mars Camera Manual Overvoltage and overcurrent protection mechanism Player One cameras produced by the number one player ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms. USB3.0 Port and ST4 Port When the camera is connected to the USB3.0 interface and full-resolution preview is used, it can reach 136 FPS in RAW8 mode (10bit ADC), and the frame rate in RAW16 mode (12bit ADC) is 64 frames per second.
- Page 10 Mars Camera Manual Performance...
- Page 11 Mars Camera Manual Readout Noise Regarding readout noise, we solemnly promise that all values are obtained from actual tests. And for users, you could use Sharpcap 3.3 for testing. SC3.3 has a function called Sensor Analysis, provide a very simple way to test readout noise. We wrote a tutorial on our website: http://player-one-astronomy.com/service/manuals/ After many rigorous readout noise tests, the Mars-M camera can reach a low readout noise...
- Page 12 Mars Camera Manual Mechanical Drawing...
- Page 13 Mars Camera Manual Package List...
- Page 14 For best experiences, we recommend customers to purchase our products form local dealers. After-sales Service Warranty Policy 2-year free warranty (time start from delivered) for Player One products. If the product has any issue, please send the image or video and description to support@player-one- astronomy.com for further check to confirm. ...
- Page 15 × Legal proof-of-purchase, receipts, or invoices are not provided, or are reasonably believed to have been forged or tampered with. × A product sent to Player One for replacement does not include all original accessories, attachments and packaging, or contains items damaged by user error.
