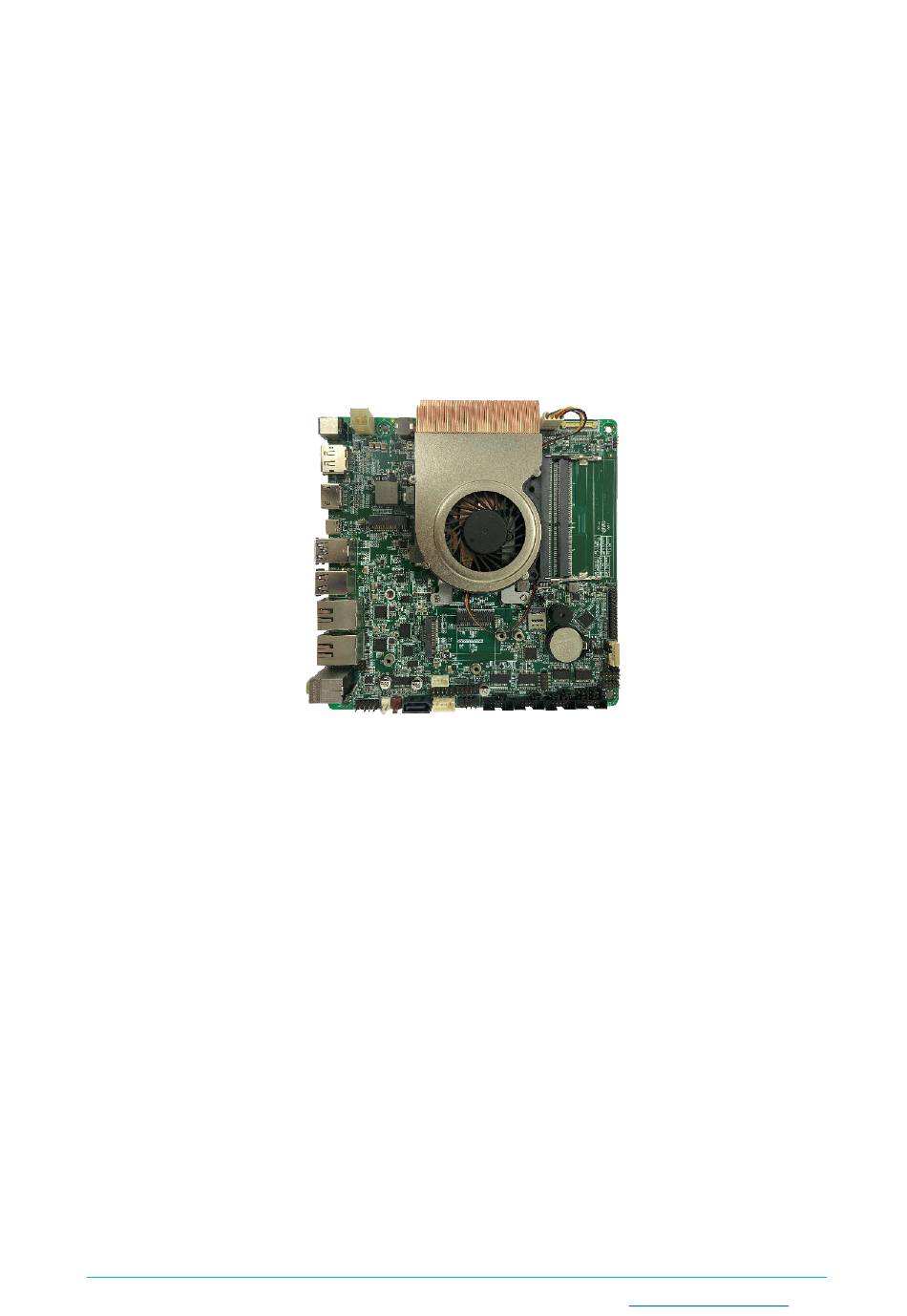

- Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions VT-MITX-TGL Single Board Computer User Manual Version: 1.4 © Vantron Technology, Inc. All rights reserved. Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com...
-
Page 2: Revision History
Added the debugging of the UART and GPIO Aug. 30, 2023 Added the pinout of LCD VDD and backlight power V1.4 Sep. 9, 2024 connectors, updated pin 1 of the backlight (2.3.5 - 2.3.7) Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 3: Table Of Contents
2.3.21 J46/J47 Speaker connectors (21) ................... 27 2.3.22 J14 M.2 M-Key (22) ......................27 2.3.23 J24 M.2 B-Key (23) ......................27 2.3.24 J21 M.2 E-Key (24) ......................27 2.3.25 J31/J34 GPIO (25) ......................28 Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... - Page 4 Installing Windows 10 System ..................39 4.3.1 Prerequisites ........................39 4.3.2 Making a Bootable USB Drive for Windows 10.............. 39 4.3.3 System Installation ......................40 CHAPTER 5 DISPOSAL AND WARRANTY ..................41 Disposal ......................... 42 Warranty ........................43 Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com...
-
Page 5: Foreword
Under no circumstances shall any part of this user manual be copied, reproduced, translated, or sold. This manual is not intended to be altered or used for other purposes unless otherwise permitted in writing by Vantron. Vantron reserves the right of all publicly released copies of this manual. - Page 6 Symbology This manual uses the following signs to prompt users to pay special attention to relevant information. Caution for latent damage to system or harm to personnel Attention to important information or regulations Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com...
-
Page 7: General Safety Instructions
The use or placement of the operation tools shall comply with the code of practice of such • tools to avoid short circuit of the Product. • Cut off the power before inspection of the Product to avoid human injury or product damage. Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... - Page 8 • Clean with a damp cloth • Do not try to clean exposed electronic components unless with a dust collector Power off and contact Vantron technical support engineer in case of the following faults: • The Product is damaged •...
-
Page 9: Chapter 1 Introduction
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 INTRODUCTION Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 10: Product Overview
World-leading provider of embedded/IoT products and solutions 1.1 Product Overview The VT-MITX-TGL single board computer adheres to the international industry size standards with a 170mm x 170mm form factor. It is powered by the latest 11th Gen Intel® Core™ U series processor that combines best-in-class technologies to offer the best user experience. -
Page 11: Block Diagram
Embedded FRONT PANEL HEADER Contrller Connector 2x4,2.54mm Microchip MEC 1428 USB2.0 PORT80 2X3 2MM Thermal GPIO Discrete VR XR21V1414 TQFP48 DC/DC 12-36VDC(MAX ~90W) 2xRS232, 2xRS232/ System Power SY8308RBC DC JACK Buzzer RS422/RS485 Converter Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 12: Specifications
Windows 10, Linux Software system OTA tool BlueSphere OTA (Optional) Operating: 0℃~+60℃ Storage: -20℃~+75℃ Environment Temperature (Optional: -40℃~+85℃) (Optional: -55℃~+85℃) Condition Certification CCC, UL, FCC (Part 15 class B), ESD (contact: ±8KV and air: ±12KV) Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 13: Operating System
• 170mm x 170mm 1.7 Power Supply and Consumption VT-MITX-TGL works with 12V~36V DC power input supplied alternatively by a DC connector or a power jack. The power consumption of the Board is about 70W with speakers functioning and 60W with speakers not working. -
Page 14: Chapter 2 Connectors And Pin Assignment
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 CONNECTORS AND PIN ASSIGNMENT Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 15: Product Layout
The board I/Os will be described in detail in 2.3 Connectors and Jumpers following the sequencing numbers provided here. 2.2 System Configurations 2.2.1 CPU VT-MITX-TGL is powered by the latest 11th Gen Intel® Core™ U series processor that boasts many best-in-class features. 2.2.2 Memory VT-MITX-TGL is equipped with two DDR4 SO-DIMM sockets that support... -
Page 16: Connectors And Jumpers
2.3.1 J8/J4 Power input (1) VT-MITX-TGL provides a 4-pin power connector (J4) and a power jack (J8) to supply power for the Board. Specification of the power connector: 2 x 2 x 4.2mm, 12.8mm (H), Male, Vertical, White, WDT, THR, RoHS Specification of the power jack: 2.5mm (D), 5.5mm (D), 10A, Male, RA, WDT, THR, RoHS... -
Page 17: J20/J23 Ethernet Ports (2)
DC-IN POWER + +VDC Ground 2.3.2 J20/J23 Ethernet ports (2) VT-MITX-TGL offers two RJ45 Ethernet jacks each with two LEDs (L-Y, R-G), green for activity indication and yellow for link indication. Specification: Standard RJ45 10M/100M/1000M Base-T Ethernet jack. Pinout description:... - Page 18 LVSDO_DATA DDIA_EDP1_LANE3_L_DP LVSDO_DATA Ground DDIA_EDP1_AUX_DN LVSAE_CLOCK DDIA_EDP1_AUX_DP LVSAE_CLOCK Ground Ground EDP1_BKLT_EN_R BKLT_EN EDP1_BRIGHTNESS_R BRIGHTNESS Ground Ground Ground +VCC_EDP1_BKLT_R LCD POWER +12V +VCC_EDP1_BKLT_R LCD POWER +12V +VCC_EDP1_BKLT_R LCD POWER +12V +VCC_EDP1_BKLT_R LCD POWER +12V Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com...
-
Page 19: J19 Lvds Connector (4)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.4 J19 LVDS connector (4) VT-MITX-TGL also offers an LVDS connector for connection of a display. Specification: 2 x 15, 2.0mm, 1.5A, 6mm (H), Male, Vertical, WDT, SMT, RoHS Pin 1... -
Page 20: J17 Lcd Vdd Connector (5)
LVDS_B_D3+/TX3+ LVSAE_DATA 2.3.5 J17 LCD VDD connector (5) VT-MITX-TGL implements an LCD VDD connector to provide appropriate power supply voltage for the LCD connected to the LVDS connector. Users can select 3.3V or 5V power supply. Specification: 1 x 3 x 2.0mm, 1A, 4.6mm (H), Male, Vertical, THR, RoHS... -
Page 21: J27 Backlight Connector (6)
World-leading provider of embedded/IoT products and solutions 2.3.6 J27 Backlight connector (6) VT-MITX-TGL offers a backlight connector that is designed to connect a backlight to increase readability for the LCD connected to the LVDS connector in low light conditions. Specification: 1 x 6 x 2.0mm, 2A, 6mm (H), Male, Vertical, WDT, THR, RoHS... -
Page 22: J10 Dp (8)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.8 J10 DP (8) VT-MITX-TGL implements a DP 1.4 interface that supports resolution of 4096 x 2160 @24Hz. Specification: Type-A, No FLN, Female, Right Angle, WDT, SMT, RoHS... -
Page 23: J11 Hdmi (9)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.9 J11 HDMI (9) VT-MITX-TGL implements an HDMI 2.0b interface that supports resolution of 4096 x 2160 @60Hz. Specification: Type-A, FLN, Female, Right Angle, WDT, SMT, RoHS... -
Page 24: J52/J53 Rs232 (10)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.10 J52/J53 RS232 (10) VT-MITX-TGL implements two RS232 connectors (COM3 & COM4). Specification: 2 x 5 x 1.50mm, 5.75mm (H), Male, Vertical, Black, WDT, THR, RoHS Pin 2... -
Page 25: J50/J51 Rs232/Rs422/Rs485 (11)
World-leading provider of embedded/IoT products and solutions 2.3.11 J50/J51 RS232/RS422/RS485 (11) VT-MITX-TGL implements another two RS232/RS422/RS485 connectors (COM1 & COM2) next to the two RS232 connectors. Specification: 2 x 5 x 1.50mm, 5.75mm (H), Male, Vertical, Black, WDT, THR, RoHS... -
Page 26: J49 Front Panel Connector (12)
Specification: 2 x 4, 2.54mm, 2A, 6mm (H), Male, Vertical, WDT, THR, RoHS Pin 2 Pin 1 Pinout description: Signal Description SATA_ACT+ SATA_ACT+ LED_POWER LED POWER SATA_ACT# SATA_ACT+ PBTN_IN# Power Button SYS_REST# SYS_REST Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 27: J32/J37/J38 Usb 2.0 Connectors (13)
World-leading provider of embedded/IoT products and solutions 2.3.13 J32/J37/J38 USB 2.0 connectors (13) VT-MITX-TGL offers three USB 2.0 connectors, one is a 4-pin connector (J32), the other two are 10-pin connectors (J37 & J38). Specification of J32: 1 x 4 x 2.0mm, 2A, 6mm(H), Male, RA, WDT, THR, RoHS Specification of J37/J38: 2 x 5 x 2.54mm, 2A, 6mm (H), Male, Vertical, WDT, THR, RoHS... -
Page 28: J16 Usb 3.0 Type-A (14)
USB 2.0 USB 2.0 2.3.16 J15 USB 3.1 Type-C (16) VT-MITX-TGL implements a USB 3.1 Type-C interface that supports OTG functionality to allow greater flexibility for device communication. Specification: 3.1, Type C, Female, 17.5mm (L), Right Angle, WDT, THR, RoHS USB 3.1... -
Page 29: J54 Sata Connector (17)
+V12_S POWER +12V 2.3.19 J56 Audio jacks (19) VT-MITX-TGL offers two 3.5mm audio jacks on the Board, one is a headphone jack and the other is a Microphone jack. Specification: 3.6mm, 4-Pole + 1 Switch, Female, Right Angle, THR, RoHS... -
Page 30: J25 F_Audio Connector (20)
Pin 2 Pin 1 Pinout description: Signal Description MIC2_LLL MIC LEFT INPUT Ground MIC2_RRR MIC RIGHT INPUT RINP_AMP2 AMP2 RIGHT INPUT MIC2_JD MIC2 JD INPUT Ground LINP_AMP2 AMP2 LEFT INPUT HP2_JD HP2 JD INPUT Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 31: J46/J47 Speaker Connectors (21)
The pinout of the socket is in line with the pin assignment of standard M.2 for Key B. 2.3.24 J21 M.2 E-Key (24) VT-MITX-TGL offers an M.2 E-Key socket (2230) that supports PCIe x 1 / USB 2.0 / CNVi bus interface to connect a Wi-Fi & Bluetooth module for wireless communication. -
Page 32: J31/J34 Gpio (25)
GPP_D3 Ground GPIO POWER GPIO POWER Pinout description of J34: Signal Description GPIO_8_3.3V GPP_S1 GPIO_9_3.3V GPP_S0 GPIO_10_3.3V GPP_S3 GPIO_11_3.3V GPP_S2 GPIO_12_3.3V GPP_R0 GPIO_13_3.3V GPP_R1 GPIO_14_3.3V GPP_R2 GPIO_15_3.3V GPP_R3 Ground GPIO POWER GPIO POWER Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 33: J29 Gpio Power (26)
The Board offers a three-pin I C connector. Specification: 1 x 3 x 1.25mm, 1A, 4.6mm (H), Male, Vertical, THR, RoHS Pin 1 Pinout description: Signal Description Ground I2C5_SDA_PWRMTR I2C5 SDA I2C5_SCL_PWRMTR I2C5 SCL Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 34: J12/J13 Ddr4 So-Dimm Sockets (28)
3200MHz. 2.3.29 J5/J6 Fan Connectors (29) VT-MITX-TGL implements two fan connectors, one (J6) is connected to a fan that offers active heat dissipation for the system, and the other (J5) is a CPU fan connector for user to customize. -
Page 35: Chapter 3 First-Use Debugging
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 FIRST-USE DEBUGGING Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 36: Driver Introduction
The device is installed with the necessary drivers before shipment. The table below lists the driver folders in the software release package of the Board (path: \3 Sw-Driver\) that might be used to run VT-MITX-TGL and their respective uses. Driver folder... -
Page 37: Serial Port Setup
World-leading provider of embedded/IoT products and solutions Serial Port Setup VT-MITX-TGL implements 4 high-speed serial connectors (COM1 ~ COM4). COM1 and COM2 are mapped as serial port 1 and serial port 2 respectively in the BIOS system. COM1 and COM2 support RS232, RS485, RS422 protocols, while COM3 and COM4 support RS232 protocol. -
Page 38: Gpio Setup
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions GPIO Setup VT-MITX-TGL implements 16 GPIOs with details shown below: Name Default mode Default level J57.1 GPIO_0 Output High J57.2 GPIO_1 Output High J57.3... - Page 39 2. Out: Set the mode of the selected GPIO pin as output (checked)/input (unchecked); 3. High: Set the level of the selected GPIO pin as high (checked)/low (unchecked). Please run this program as administrator. Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com...
-
Page 40: Chapter 4 Bios And Windows
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 BIOS AND WINDOWS Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 41: Bios Introduction
Security: System security settings where users can set the administrator and user • passwords, manage the passwords, implement secure boot, etc. Boot: System boot options, boot manager, etc. • • Exit: BIOS load or exit options with or without changes saved Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 42: Selecting A Boot Option
UEFI SanDisk xxxx is a specific boot entry associated with the SanDisk device. This option allows you to boot the Board from this bootable device. Please refer to 4.3.2 Making a Bootable USB Drive for Window 10 for the details of making a bootable USB device. Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 43: Installing Windows 10 System
World-leading provider of embedded/IoT products and solutions 4.3 Installing Windows 10 System 4.3.1 Prerequisites • A USB drive with capacity no less than 8GB Release package of VT-MITX-TGL • A program for making the bootable device: rufus-xxx .exe (path in the release package: • \5 image) •... -
Page 44: System Installation
3. Press F7 to enter the BIOS boot manager menu; 4. Select the bootable USB drive you created for Windows 10 and press ENTER; 5. Wait for the installation of Windows 10 on the Board. Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 45: Chapter 5 Disposal And Warranty
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 5 DISPOSAL AND WARRANTY Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 46: Disposal
& electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. Vantron | Public VT-MITX-TGL User Manual www.vantrontech.com... -
Page 47: Warranty
CUSTOMER’s location and no Product so inspected shall be returned to VANTRON unless the cause for the rejection or defect is determined to be the responsibility of VANTRON. VANTRON shall in turn provide the CUSTOMER turnaround shipment on defective Product within fourteen (14) working days upon its receipt at VANTRON.
