Vantron VT-SBC35-3576 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Vantron
| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions

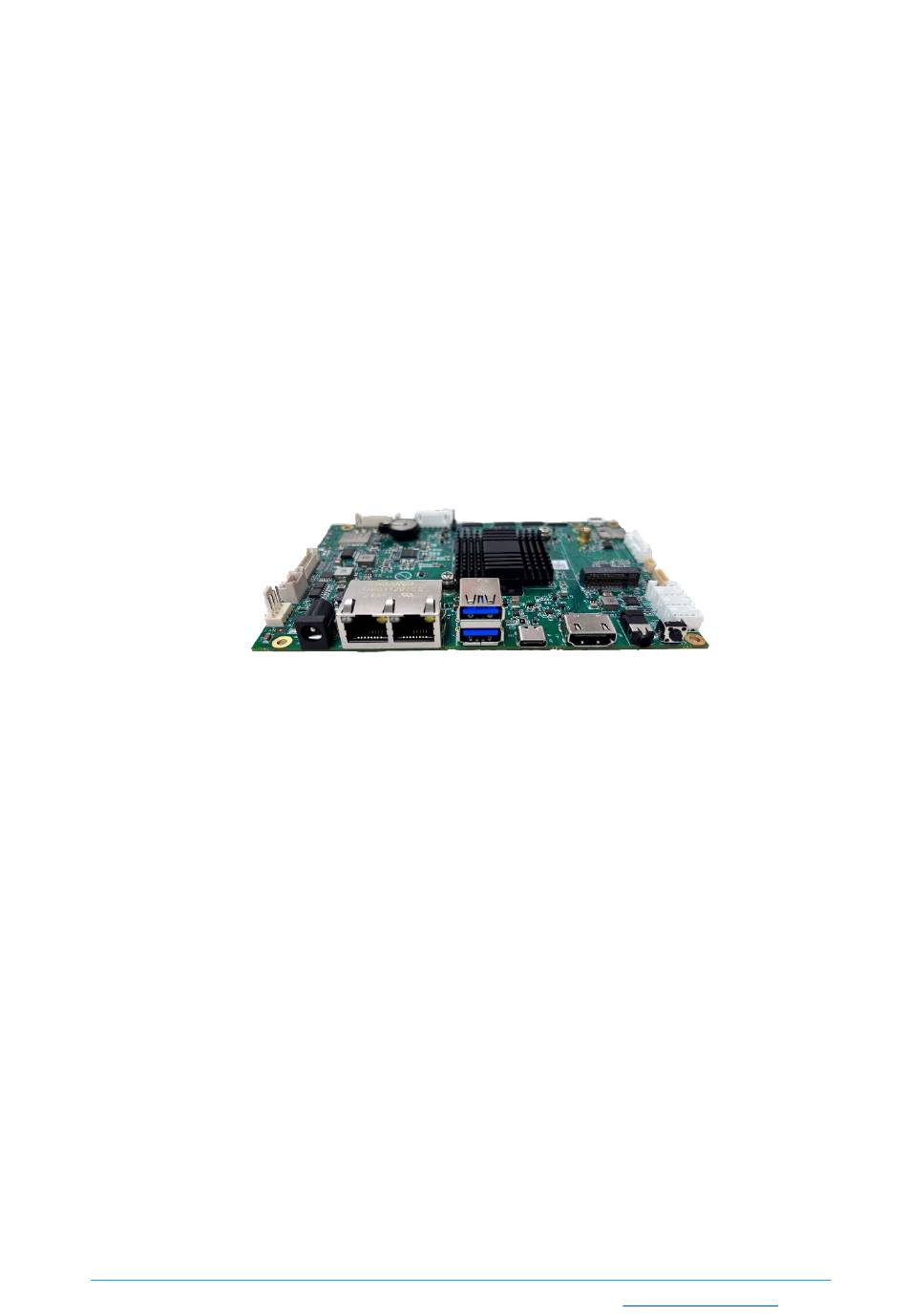

VT-SBC35-3576
Single Board Computer
User Manual
Version: 1.3
© Vantron Technology, Inc. All rights reserved.
Vantron | Public
VT-SBC35-3576 User Manual
www.vantrontech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-SBC35-3576 and is the answer not in the manual?

Questions and answers

Related Manuals for Vantron VT-SBC35-3576

Summary of Contents for Vantron VT-SBC35-3576

  • Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions VT-SBC35-3576 Single Board Computer User Manual Version: 1.3 © Vantron Technology, Inc. All rights reserved. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 2: Revision History

    Updated pinout description of GPIO Nov. 26, 2024 Added the power consumption readings when V1.2 Jan. 6, 2025 running different systems Updated the description for connecting the M.2 V1.3 Feb. 7, 2025 B-Key slot Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 3: Table Of Contents

    2.4.18 Function buttons (18) ....................24 2.4.19 LED indicator (19) ......................24 2.4.20 CN7 Audio jack (20) ......................25 2.4.21 CN1 D-Mic (21) ....................... 25 2.4.22 J16 A-Mic (22) ........................ 26 2.4.23 J14 Speaker amplifier (23) ..................... 26 Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 4 LED indicators......................... 54 4.3.5 GPIO ..........................55 4.3.6 Audio ..........................57 4.3.7 Video ..........................60 4.3.8 SSD ..........................61 4.3.9 Fan ..........................62 4.3.10 Watchdog timer ......................62 Firmware Upgrade in Windows Environment ..............63 Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 5 World-leading provider of embedded/IoT products and solutions 4.4.1 ADB setup on the Windows host ................... 63 4.4.2 Firmware upgrade ......................65 CHAPTER 5 DISPOSAL AND PRODUCT WARRANTY ............... 67 Disposal .......................... 68 Warranty ........................69 Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 6: Foreword

    Under no circumstances shall any part of this user manual be copied, reproduced, translated, or sold. This manual is not intended to be altered or used for other purposes unless otherwise permitted in writing by Vantron. Vantron reserves the right of all publicly released copies of this manual.

  • Page 7: Technical Support And Assistance

    Symbology This manual uses the following signs to prompt users to pay special attention to relevant information. Caution for latent damage to system or harm to personnel Attention to important information or regulations Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 8: General Safety Instructions

    The use or placement of the operation tools shall comply with the code of practice of such tools to avoid short circuit of the Product. Cut off the power before inspection of the Product to avoid human injury or product • damage. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 9 Clean with a damp cloth • • Do not try to clean exposed electronic components unless with a dust collector Power off and contact Vantron technical support engineer in case of the following faults: • The Product is damaged The temperature is excessively high •...

  • Page 10: Chapter 1 Introduction

    Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 INTRODUCTION Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 11: Product Overview

    World-leading provider of embedded/IoT products and solutions 1.1 Product Overview VT-SBC35-3576 single board computer comes in a 3.5-inch form factor that is ideal for integration into embedded devices. The board is powered by Rockchip RK3576 high- performance, low-power octa-core processor that integrates four Cortex-A72 cores and four Cortex-A53 cores, running at up to 2.2GHz.

  • Page 12: Terminology/Acronym

    Negative difference signal Serial clock Serial data Input Output Input/output Power/ground Receive data Transmit data PCIe Peripheral component interconnect express Media dependent interface Interrupt Reset MISO Master in slave out MOSI Master out slave in Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 13: Block Diagram

    RGMII0 M0 Ethernet PHY Ethernet PHY CC Controller YT8531C YT8531C ET7301B audio USB3.0 3.5mm Audio POWER IN Type-C Reset Key 2xUSB3.0 Type-A HDMI Type-A 2 x RJ45 With Transformer Power Jack Jack 1x4x2.0mm Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 14: Specifications

    C, 2 x GPIO 1 x PWM fan connector (12V) UART 1 x Debug UART (3.3V) 1 x Nano SIM slot 2 x Wi-Fi antenna connector (IPEX-4) Antenna 1 x Bluetooth antenna connector (IPEX-4) Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 15 Typical: 2.4W, Max.: 6W Software Operating system Android 14, Debian 11 Dimensions 146mm x 102mm Mechanical Heat dissipation Heat sink Operating: -20℃~+70℃ Storage: -30℃~+80℃ Environment Temperature (Optional: -40℃~+85℃) (Optional: -55℃~+85℃) Condition Humidity 20%-80% RH (Non-condensing) Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 16: Operating System

    6W at full load. 1.9 Environmental Conditions VT-SBC35-3576 operates within a temperature range of -20°C to +70°C, with an optional extended range of -40°C to +85°C. It is intended for storage within a temperature range of -30°C to +80°C, with an optional extended range of -55°C to +85°C.

  • Page 17: Chapter 2 Hardware Description

    Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 HARDWARE DESCRIPTION Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 18: Product Layout

    VT-SBC35-3576 is equipped with a 4GB 32-bit LPDDR4x RAM. 2.2.2 Storage VT-SBC35-3576 features 128GB of dual-lane UFS 2.1 for system boot and storage. It also includes a 64GB eMMC 5.1 flash for data storage. Additionally, the board supports up to 1TB of SSD expansion via an M.2 Key B slot.

  • Page 19: Identification Of Pin 1

    This section is going to brief the connectors/jumpers on the board with corresponsive pinout description. 2.4.1 J21 Power input (1) VT-SBC35-3576 implements a power jack (with an internal pin diameter of 2.5 mm) , through which 12V DC power can be supplied to the board. 2.4.2 J20 Ethernet port (2) VT-SBC35-3576 offers two RJ45 Ethernet jacks, each featuring two LEDs—...

  • Page 20: J9/J10/J12 Wi-Fi And Bt Antenna Connector (3)

    2.4.5 J5 MIPI DSI (5) VT-SBC35-3576 offers a MIPI DSI interface that supports MIPI C PHY and D PHY, allowing for the connection of a dual-channel display to enable extended display mode. It supports resolutions up to 2560 x 1600 at 60Hz. Additionally, the interface can be customized to an LVDS configuration, and the backlight connector is designed to interface with a backlight for the LVDS setup.
  • Page 21 MIPI DSI differential lane 1 + Ground MIPI_D2N MIPI DSI differential lane 2 - MIPI_D2P MIPI DSI differential lane 2 + Ground Ground LED- LED- LED- LED- LED- LED- LED+ LED+ LED+ LED+ LED+ LED+ Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 22: J7 Backlight Connector (6)

    LCD ID 2.4.7 J23 USB Type-C/DP (7) VT-SBC35-3576 offers a USB 3.0 Type-C interface supporting the OTG feature. Users can use this interface for debugging or programming the board. This interface can also be used as DisplayPort 1.4 for image output, supporting resolutions up to 4K @120Hz.

  • Page 23: Cn2/Cn3/Cn4/Cn5 Usb 2.0 Connector (9)

    Ground 2.4.10 J2/J3/J4 MIPI CSI (10) VT-SBC35-3576 offers three MIPI CSI-2 connectors (Cam 0, Cam 1, Cam 3), with the same pinout. The connectors support MIPI D-PHY v1.2, MIPI C PHY / D PHY, each offering four differential data lanes for connecting a camera, with up to 16MP image signal processing capabilities.
  • Page 24 1.8V Power output IO_1V8_J 1.8V Power output Core_1V5_J 1.5V Power output AF_2V8_J 2.8V Power output PWR_2V8_J 2.8V Power output Ground The pinout of Cam 1 and Cam 3 is the same as Cam 0. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 25: J15 Rs232/Rs485/Rs422 (11)

    World-leading provider of embedded/IoT products and solutions 2.4.11 J15 RS232/RS485/RS422 (11) VT-SBC35-3576 implements a 20-pin header, offering two RS232/RS485/RS422 ports (J0, J1) and two RS232 (J2, J3), with a baud rate range from 1200bps to 4Mbps. Ports J0, J1, J2, J3 are mapped as ttyWCH0, ttyWCH1, ttyWCH2, and ttyWCH3, respectively in the software file system.

  • Page 26: J8 Debug Uart (12)

    J2 RS232 TX RS232_SPI_RXD_J3 J2 RS232 RX Ground Ground 2.4.12 J8 Debug UART (12) As mentioned previously, VT-SBC35-3576 can be debugged via the USB Type-C port as well as a 4-pin debug UART. Specification: 1 x 4, 2.54mm Pinout description: Name Type Description 3.3V Power output...

  • Page 27: J18 Can (13)

    | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.4.13 J18 CAN (13) VT-SBC35-3576 offers two CAN buses, supporting CAN FD protocol, with a data transmission rate up to 5Mbps. Specification: 1 x 4, 2.5mm...

  • Page 28: J19 Fan Connector (15)

    There is a fan connector on the board for connecting a fan to cool down the board, and the speed is adjusted via pulse width modulation. Specification: 1 x 4, 2.0mm Pinout description: Name Type Description Ground FAN_12V_CON 12V power supply Ground PWM control output FAN_PWM_Control Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 29: J6 I C Tp (16)

    SW6: MASKROM button, for firmware upgrade. 2.4.19 LED indicator (19) VT-SBC35-3576 features two customizable LED indicators, allowing users to assign functions according to their needs. By default, the LEDs will light up red and green, respectively, when the system is powered on.

  • Page 30: Cn7 Audio Jack (20)

    | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.4.20 CN7 Audio jack (20) VT-SBC35-3576 offers a 3.5mm four-section combo audio jack, supporting audio cables that comply with the CITA standard (defined as follows). 2.4.21 CN1 D-Mic (21) VT-SBC35-3576 offers two D-mic channels that support pulse density modulation (PDM).

  • Page 31: J16 A-Mic (22)

    Specification: 1 x 8, 2.0mm Pinout description: Name Type Description Ground AU_LON_J Audio output - PA_MUTE_J Mute AU_LOP_J Audio output + Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 32: J17 M.2 B-Key Slot (24)

    12V power output 2.4.24 J17 M.2 B-Key slot (24) VT-SBC35-3576 offers an M.2 Key B slot that supports SATA/PCIe 2.1 (2260) for interfacing with an SSD for storage expansion, or USB 3.0 (3042) for connecting a 4G module or USB 3.0/PCIe 2.0 (3052) for connecting a 5G module for cellular communication.

  • Page 33: Chapter 3 Android System Manual

    Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 ANDROID SYSTEM MANUAL Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 34: Enable Developer Options

    | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions VT-SBC35-3576 is running Android 14 operating system. To test the functionality of the board described in this chapter, you are advised to connect the board to a mouse, keyboard, and monitor for easier operations.

  • Page 35: Adb Setup On The Windows Host

    4. Press “Win + R” and input sysdm.cpl in the dialogue box to open the settings interface; 5. Click in sequence Advanced > Environment Variables > System Variables > Path > Edit, and click New in the pop-up; Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 36 7. Press “Win + R” and input cmd in the dialogue box to open the command prompt; 8. Input adb version in the command prompt to check if the ADB tool is installed. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 37: App Installation Via Adb Commands

    Users can install apps as long as the ADB tool is installed and accessible on the host computer. 1. Connect VT-SBC35-3576 to the host computer via a USB Type-A to Type-C cable; 2. Press “Win + R” and input cmd in the dialogue box to open the command prompt;...

  • Page 38: Network Connectivity

    VT-SBC35-3576 follows a networking priority of Ethernet > Wi-Fi > 4G/5G. 3.4.1 Ethernet VT-SBC35-3576 offers two RJ45 Ethernet jacks, designated as WAN ports for connecting to a router or switch to establish Internet access. They are mapped as eth1 and eth0, respectively in the system. You can view the port configurations via the following steps.

  • Page 39: Wi-Fi & Tethering

    Before connecting to a Wi-Fi network, please install the IPEX-4 Wi-Fi antennas to J10 and J12 connectors for improved signal strength. To connect to a Wi-Fi hotspot, navigate to Settings > Network & internet > Internet, and toggle on the Wi-Fi feature. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 40 Hotspot enables the board to act as a Wi-Fi hotspot, while tethering can be achieved though USB, Bluetooth, and Ethernet. By navigating to Settings > Network & internet > Hotspot & Tethering, you can share the network via any option provided. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 41: Cellular

    World-leading provider of embedded/IoT products and solutions 3.4.3 Cellular VT-SBC35-3576 supports connecting a 4G/5G module via the M.2 B-Key slot for cellular communication. If you select the module provided by Vantron, it comes with a pre- configured script that automatically sets up the system upon bootup. When an activated SIM card is inserted into the Nano SIM slot, the system will automatically register the card and establish an internet connection.
  • Page 42 2. Click FORGET to remove the saved Bluetooth device from the history list, or click CONNECT to pair with the device; 3. When the Bluetooth device is removed, you will need to pair the device again next time before data transfer. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 43: Camera

    Camera application. Display VT-SBC35-3576 supports connecting a display via the HDMI/MIPI DSI/USB Type-C (DisplayPort) interface. Configurations of the display connected via HDMI or DisplayPort are accessible via Settings > Display > HDMIA/DisplayPort.

  • Page 44: Peripheral I/Os

    1. Wire the testing pins (RS232: TX-RX, RX-TX, GND-GND / RS485: A-A, B-B, GND-GND / RS422: A-Y, B-Z); 2. Connect VT-SBC35-3576 to a host computer through the USB Type-C port using a USB type-A to Type-C cable (or through the debug UART based on the pinout provided in 2.4.12);...

  • Page 45: Can

    1. Connect CAN0 to a CAN analyzer (H-H, L-L, GND-GND); 2. Connect VT-SBC35-3576 to a host computer through the USB Type-C port using a USB type-A to Type-C cable (or through the debug UART based on the pinout provided in 2.4.12);...

  • Page 46: Led Indicators

    | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 3.7.3 LED indicators VT-SBC35-3576 features two customizable LED indicators that will light up red and green, respectively, when the system is powered on. The LEDs can be controlled via the following commands: Open the red indicator: # echo 1 >...
  • Page 47 IO5V_EN1: gpio23(ch9434m) n=23 (this node controls all four power pins on the header) Operation: Pull up: GPIO_OUT1: # echo 8 1 1 1 1 > /sys/ch9434/gpio • • Pull down: GPIO_OUT1: # echo 8 1 0 1 0 > /sys/ch9434/gpio Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 48: Firmware Upgrade In The Windows Environment

    3. Unzip the driver folder, then Right click the mouse and run the driver program DriverInstall.exe as administrator; 4. Click Install Driver and wait for the installation to proceed; 5. A pop-up will appear in a second suggesting the driver is installed; Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 49 7. Double click the driver for the upgrade tool RKDevTool.exe to open the upgrade window; 8. Connect VT-SBC35-3576 to the Windows computer via the USB Type-C or debug UART; 9. Press “Win + R” and input cmd in the dialog box to open the command prompt;...
  • Page 50 SW3 button on the board and power it on. Wait a few seconds and release the SW3 button to enter the Loader mode. Then follow the above steps to finish the upgrade. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 51: Chapter 4 Debian System Manual

    Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 DEBIAN SYSTEM MANUAL Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 52: About The Device

    | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions VT-SBC35-3576 is running Debian 11 operating system. To properly test the functionality of the board described in this chapter, you are advised to connect the board to a mouse, keyboard, and monitor for easier operations.

  • Page 53: System Settings

    2. Set a software link for the EEPROM device for easy access: # ln -s /sys/devices/platform/fdd40000.i2c/i2c-0/0-0050/eeprom /dev/eeprom 3. Clear the EEPROM information: # vtvdm -i 4. Read the serial number of the board written in EEPROM: # vtvdm -r sn xxxx Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 54: Rtc

    // replace with your own date and time 7. Synchronize the RTC time with the system time; # hwclock -w 8. Reboot the device; # reboot 9. Check the RTC time information. # hwclock -r Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 55: Network Connectivity

    VT-SBC35-3576 follows a networking priority of Ethernet > Wi-Fi > 4G/5G. 4.2.1 Ethernet After connecting VT-SBC35-3576 to a router or switch through either of the Ethernet jacks, you can use the GUI to configure the Ethernet network upon clicking the network icon ) on the taskbar in the upper right corner of the screen.

  • Page 56: Wi-Fi

    7. Confirm the pair code on both devices; 8. In the final step, there will be a message indicating that the target device is successfully added and connected; 9. The Bluetooth icon on the taskbar will change accordingly ( Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 57: Sending A File To A Bluetooth Device

    5. Wait for the file to be transferred. 4.2.5 Cellular VT-SBC35-3576 supports connecting a 4G/5G module via the M.2 B-Key slot for cellular communication. If you select the module provided by Vantron, it comes with a pre- configured script that automatically sets up the system upon bootup. When an activated SIM card is inserted into the Nano SIM slot, the system will automatically register the card and establish an internet connection.

  • Page 58: Rs232/Rs422/Rs485

    You can follow the steps below to verify the functionality of the serial ports through a loopback test. 1. Connect a keyboard, mouse, and display to VT-SBC35-3576 for easier operation; 2. Wire the testing pins (RS232: TX-RX, RX-TX, GND-GND / RS485: A-A, B-B, GND-GND / RS422: A-Y, B-Z);...

  • Page 59: Can

    # cansend can0 123#1DEADBEEF 4.3.4 LED indicators VT-SBC35-3576 features two customizable LED indicators that will light up red and green, respectively, when the system is powered on. The LEDs can be controlled via the following commands: Open the red indicator: # echo 1 > /sys/class/leds/red_led/brightness;...

  • Page 60: Gpio

    | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 4.3.5 GPIO VT-SBC35-3576 implements a GPIO header, offering I C, UART, SPI, and GPIO signals. Please refer to 2.4.14 for the pinout. The node name of I C, UART, and SPI interfaces follows the gpioX_YN format, where Y=A=0, Y=B=1, Y=C=2, Y=D=3 when calculating the GPIO index of a pin.
  • Page 61 IO5V_EN1: gpio23(ch9434m) n=23 (this node controls all four power pins on the header) Operation: Pull up: GPIO_OUT1: # echo 8 1 1 1 1 > /sys/ch9434/gpio • • Pull down: GPIO_OUT1: # echo 8 1 1 1 0 > /sys/ch9434/gpio Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 62: Audio

    $ alsamixer 3. Use the Up/Down arrow keys to select rockchip-es8388, then press Enter to configure the Playback channel; 4. Select Out1 and Out2 in sequence, and adjust the volume of Output1 and Output2 Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 63 D-Mic. 2. Open the alsamixer program and press F6 to select the audio device; $ alsamixer 3. Use the Up/Down arrow keys to select rockchip, pdm-mic-array, then press Enter to configure the device; Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 64 | aplay -D hw:0,0 --period-size=1024 --buffer-size=4096 48000 -c 2 -f s16_le -t // hw is followed by the audio device Stop audio recording or playback: • Press the “Ctrl + C” buttons. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 65: Video

    When testing the video output function of the HDMI port on the board, please connect a video receiving device to the port using an HDMI cable. Use the following command to play back $ gst-play-1.0 1920x1080.mp4 // name of the video clip Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 66: Ssd

    | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 4.3.8 SSD VT-SBC35-3576 implements an M.2 B-key slot for connecting either a 4G/5G cellular module for wireless communication or an SSD card for storage expansion. To use it for SSD expansion;...

  • Page 67: Fan

    'fed'. If the system fails to feed the watchdog within the timeout period, it will trigger a reboot, indicating a potential system or application failure. To enable and feed the watchdog: # echo 1 > /dev/watchdog0 Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 68: Firmware Upgrade In Windows Environment

    4. Press “Win + R” and input sysdm.cpl in the dialogue box to open the settings interface; 5. Click in sequence Advanced > Environment Variables > System Variables > Path > Edit, and click New in the pop-up; Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 69 6. Paste the path of the Android folder, and click OK one by one to confirm and exit; 7. Press “Win + R” and input cmd in the dialogue box; 8. Input adb version in the command prompt to check if the ADB tool is installed. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 70: Firmware Upgrade

    5. Open the directory of the upgrade tool (\SW\downloadetools\windows\ RKDevTool_Release_vxxx); 6. Double click the driver for the upgrade tool RKDevTool.exe to open the upgrade window; 7. Connect VT-SBC35-3576 to the Windows host using a USB Type-A to Type-C cable; Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 71 14. Click the Upgrade button and the Board will start to download the image and upgrade the firmware automatically; 15. When the upgrade finishes, the Board will reboot automatically. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 72: Chapter 5 Disposal And Product Warranty

    Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 5 DISPOSAL AND PRODUCT WARRANTY Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...
  • Page 73 & electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. Vantron | Public VT-SBC35-3576 User Manual www.vantrontech.com...

  • Page 74: Product Warranty

    CUSTOMER’s location and no Product so inspected shall be returned to VANTRON unless the cause for the rejection or defect is determined to be the responsibility of VANTRON. VANTRON shall in turn provide the CUSTOMER turnaround shipment on defective Product within fourteen (14) working days upon its receipt at VANTRON.
