Summary of Contents for Vantron VT-MITX-TGL

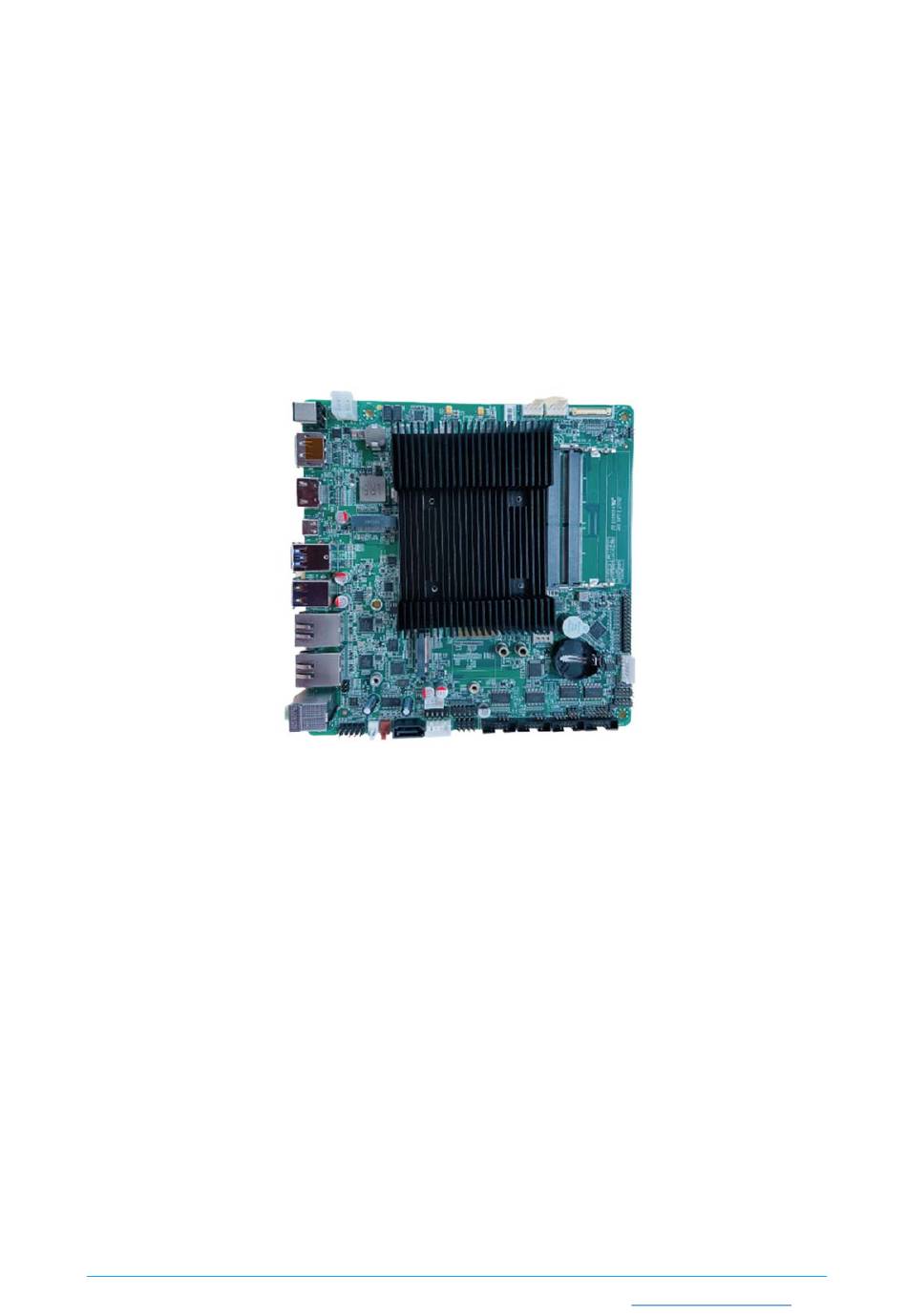

- Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions VT-MITX-TGL Industrial Motherboard User Manual Version: 1.0 © Chengdu Vantron Technology Co., Ltd. All rights reserved. VT-MITX-TGL | User Manual www.vantrontech.com...
- Page 2 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions Revision History Version Description Date First release Jul. 21, 2022 VT-MITX-TGL | User Manual www.vantrontech.com...
-
Page 3: Table Of Contents
2.3.20 J32 M.2 M-Key (20) ...................... 25 2.3.21 J38 M.2 B-Key (21) ......................25 2.3.22 J36 M.2 E-Key (22) ......................26 2.3.23 J57/J59 GPIO (23) ......................26 2.3.24 J6 SMBUS (24) ....................... 27 2.3.25 U6/U7 DDR4 SO-DIMM socket (25) ................27 VT-MITX-TGL | User Manual www.vantrontech.com... - Page 4 Install Windows 10 System ..................30 3.3.1 Prerequisites ......................... 30 3.3.2 Make a Bootable USB Drive for Windows 10 ............. 30 3.3.3 Install Windows 10 ....................... 31 CHAPTER 4 DISPOSAL AND WARRANTY ................32 Disposal ........................33 Warranty ........................34 VT-MITX-TGL | User Manual www.vantrontech.com...
-
Page 5: Foreword
Under no circumstances shall any part of this user manual be copied, reproduced, translated, or sold. This manual is not intended to be altered or used for other purposes unless otherwise permitted in writing by Vantron. Vantron reserves the right of all publicly released copies of this manual. - Page 6 US Office: Vantron Technology, Inc. Address: 48434 Milmont Drive, Fremont, CA 94538 Tel: (650) 422-3128 Email: sales@vantrontech.com China Office: Chengdu Vantron Technology Co., Ltd. Address: 6th Floor, 1st Building, No.9, 3rd WuKe East Street, WuHou District, Chengdu, P.R. China 610045 Tel: 86-28-8512-3930/3931, 86-28-8515-7572/6320 Email: sales@vantrontech.com.cn...
- Page 7 The use or placement of the operation tools shall comply with the code of practice of such tools to avoid short circuit of the Product. Cut off the power before inspection of the Product to avoid human injury or product damage. VT-MITX-TGL | User Manual www.vantrontech.com...
- Page 8 Clean with a damp cloth Do not try to clean exposed electronic components unless with a dust collector Power off and contact Vantron technical support engineer in case of the following faults: The Product is damaged ...
-
Page 9: Chapter 1 Introduction
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 INTRODUCTION VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 10: Product Overview

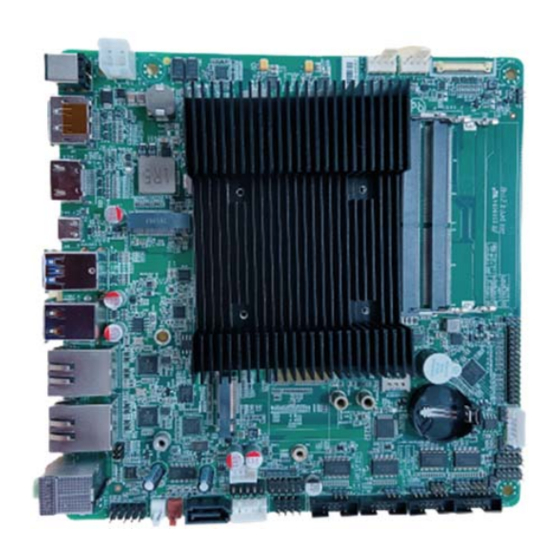

World-leading provider of embedded/IoT products and solutions 1.1 Product Overview VT-MITX-TGL industrial motherboard is in line with international industry size standards. It runs Windows 10 with the latest 11th Gen Intel® Core™ processor that combines best-in- class technologies to offer the best user experience. It supports high-definition video encoding and decoding to provide outstanding visual experience. -
Page 11: Block Diagram
Connector Embedded FRONT PANEL HEADER Contrller Connector 2x4,2.54mm Microchip MEC 1428 PORT80 USB2.0 2X3 2MM Thermal GPIO Discrete VR SPI debug XR21V1414 TQFP48 DC/DC 12-36VDC(MAX约90W) 2xRS232, 2xRS232/ System Power SY8308RBC DC JACK Buzzer RS422/RS485 Converter VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 12: Specifications
Operating system Windows 10, Linux Mechanical Dimensions 170 x 170mm Operating: 0℃~+60℃ (Optional: -40℃~+85℃) Temperature Environment Storage: -20℃~+75℃ (Optional: -55℃~+85℃) Condition Certification CCC, UL, FCC (Part 15 class B), ESD (contact: ±8KV and air: ±12KV) VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 13: Operating System
170mm x 170mm 1.7 Power Supply and Consumption VT-MITX-TGL works with +12V DC power input supplied alternatively by a DC connector or a power jack. The power consumption of the Board is about 70W with speakers functioning and 60W with speakers not working. -
Page 14: Chapter 2 Connectors And Pin Assignment
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 CONNECTORS AND PIN ASSIGNMENT VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 15: Motherboard Layout
(11) USB 2.0 2.2 System Configurations 2.2.1 CPU VT-MITX-TGL is powered by the latest 11th Gen Intel® Core™ U series processor that boast many best-in-class features. 2.2.2 Memory VT-MITX-TGL is equipped with two DDR4 SO-DIMM sockets that support up to 64GB RAM... -
Page 16: J55/J5 Power Input (1)
World-leading provider of embedded/IoT products and solutions 2.3.1 J55/J5 Power input (1) VT-MITX-TGL provides a 4-pin power connector and a power jack to supply power for the Board. Specification of the power connector: 2 x 2, 4.2mm, 12.8mm (H), Male, Vertical, White,... -
Page 17: J30/J31 Ethernet Port (2)
World-leading provider of embedded/IoT products and solutions 2.3.2 J30/J31 Ethernet port (2) VT-MITX-TGL offers two RJ45 Ethernet jacks each with two LEDs (L-Y, R-G), green for activity indication and yellow for link indication. Specification: Standard RJ45 10M/100M/1000M Base-T Ethernet jack. - Page 18 Ground DDIA_EDP1_LANE3_L_DN LVSDO_DATA DDIA_EDP1_LANE3_L_DP LVSDO_DATA Ground DDIA_EDP1_AUX_DN LVSAE_CLOCK DDIA_EDP1_AUX_DP LVSAE_CLOCK Ground Ground EDP1_BKLT_EN_R BKLT_EN EDP1_BRIGHTNESS_R BRIGHTNESS Ground Ground Ground +VCC_EDP1_BKLT_R LCD POWER +12V +VCC_EDP1_BKLT_R LCD POWER +12V +VCC_EDP1_BKLT_R LCD POWER +12V +VCC_EDP1_BKLT_R LCD POWER +12V VT-MITX-TGL | User Manual www.vantrontech.com...
-
Page 19: J19 Lvds/Edp Connector (4)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.4 J19 LVDS/eDP connector (4) VT-MITX-TGL also offers an LVDS/eDP connector for connection of a display. Specification: 2 x 15, 2.0mm, 1.5A, 6mm (H), Male, Vertical, WDT, SMT, RoHS NSXD: MXA2-15PAAD1... -
Page 20: J20 Backlight Connector (5)
LVDS_B_D3+/TX3+ LVSAE_DATA 2.3.5 J20 Backlight connector (5) VT-MITX-TGL offers a backlight connector that supplies power for the backlight of the display connected to the LVDS/eDP connector. Specification: 1 x 6, 2.0mm, 2A, 6mm (H), Male, Vertical, WDT, THR, RoHS JST: B4B-PH-K-S (LF) (SN) -
Page 21: J22 Dp (6)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.6 J22 DP (6) VT-MITX-TGL has a DP 1.4 interface that supports resolution of 4096 x 2160 @24Hz. Specification: Type-A, No FLN, Female, Right Angle, WDT, SMT, RoHS HONG SHENG RONG: DP-RT04-1015... -
Page 22: J23 Hdmi (7)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.7 J23 HDMI (7) VT-MITX-TGL has an HDMI 2.0b interface that supports resolution of 4096 x 2160 @60Hz. Specification: Type-A, FLN, Female, Right Angle, WDT, SMT, RoHS MOLEX: 500254-1931... -
Page 23: J46/J48 Rs232 (8)
CTS4 CTS4 RI4_L RI4_L 2.3.9 J50/J51 RS232/RS422/RS485 (9) VT-MITX-TGL offers two RS232/RS422/RS485 multiplex connectors that look the same as the two RS232 connectors. Specification: 2 x 5, 1.50mm, 5.75mm (H), Male, Vertical, Black, WDT, THR, RoHS Vantron: 1858-310-100-000-1-RC Pin 2... -
Page 24: J24 Front Panel Connector (10)
Specification: 2 x 4, 2.54mm, 2A, 6mm (H), Male, Vertical, WDT, THR, RoHS JST: B2B-PH-K-S (LF) (SN) Pin 2 Pin 1 Pinout description: Signal Description SATA_ACT+ SATA_ACT+ LED_POWER LED POWER SATA_ACT# SATA_ACT+ PBTN_IN# Power Button SYS_REST# SYS_REST VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 25: J8/J9/J10 Usb 2.0 Connector (11)
World-leading provider of embedded/IoT products and solutions 2.3.11 J8/J9/J10 USB 2.0 connector (11) VT-MITX-TGL offers three USB 2.0 connectors, one is a 4-pin connector, the other two are 9-pin connectors. Specification of J10: 1 x 4, 2.0mm, 2A, 6mm(H), Male, RA, WDT, THR, RoHS Specification of J8/J9: 2 x 5, 2.54mm, 2A, 6mm (H), Male, Vertical, WDT, THR, RoHS... -
Page 26: J15 Usb 2.0 Type-A (13)
Specification of the USB 3.1 Type-C interface: 3.1, Type C, Female, 17.5mm (L), Right Angle, WDT, THR, RoHS MOLEX: 1054500101 USB 3.1 The pinout description of the interface is in line with the pin assignment of standard USB 3.1 Type-C. VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 27: J32 Sata Connector (15)
+V12_S POWER +12V 2.3.17 J56 Audio jacks (17) VT-MITX-TGL offers two 3.5mm audio jacks on the board, one is a headphone jack and the other is a Microphone jack. Specification: 3.6mm, 4-Pole + 1 Switch, Female, Right Angle, THR, RoHS... -
Page 28: J25 F_Audio Connector (18)
Specification: 2 x 5, 2.54mm, 3A, 6mm (H), Male, Vertical, THR, RoHS Pin 2 Pin 1 Pinout description: Signal Description MIC2_LLL MIC LEFT INPUT Ground MIC2_RRR MIC RIGHT INPUT RINP_AMP2 AMP2 RIGHT INPUT MIC2_JD MIC2 JD INPUT Ground LINP_AMP2 AMP2 LEFT INPUT HP2_JD HP2 JD INPUT VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 29: J28/J29 Speaker Connectors (19)
8R/5W SPEAKER CATHODE 2.3.20 J32 M.2 M‐Key (20) VT-MITX-TGL offers an M.2 M-Key socket that can be expanded as a PCIe x 4 /SATA/NVMe interface as per demands from the customer. The pinout of the M.2 M-Key slot is in line with the pin assignment of standard M.2 for Key 2.3.21 J38 M.2 B‐Key (21) -
Page 30: J36 M.2 E-Key (22)
World-leading provider of embedded/IoT products and solutions 2.3.22 J36 M.2 E‐Key (22) VT-MITX-TGL offers an M.2 E-Key that can be expanded as a PCIe x 1/USB 2.0/CNVi interface to connect a Wi-Fi & Bluetooth module as per demands from the customer. -
Page 31: J6 Smbus (24)
Specification: 1 x 3, 1.25mm, 1A, 4.6mm (H), Male, Vertical, THR, RoHS Pin 1 Pinout description: Signal Description SMB_SCL_3.3V SMB_SCL SMB_SDA_3.3V SMB_SDA Ground 2.3.25 U6/U7 DDR4 SO‐DIMM socket (25) The two DDR4 SO-DIMM sockets support up to 64GB RAM in total with transfer rate at 3200MHz. VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 32: Chapter 3 Software
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 SOFTWARE VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 33: Bios Introduction
Advanced: Advanced configurations that allow users to customize the system Security: System security settings where users can set supervisor passwords, make TPM configurations, etc. Boot: System boot options Exit: BIOS load or exit options with or without changes saved VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 34: Select A Bootable Device
Partition Scheme based on the USB drive. Yet make sure the partition scheme is GPT; 4. Set the Target system as UEFI and the File system as FAT32 or NTFS; 5. Click START to make the bootable USB drive. VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 35: Install Windows 10
3. Press F7 to enter the BIOS boot manager menu; 4. Select the bootable USB drive you created for Windows 10 and press ENTER; 5. Wait for the installation of Windows 10 on the Board. VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 36: Chapter 4 Disposal And Warranty
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 DISPOSAL AND WARRANTY VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 37: Disposal
& electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. VT-MITX-TGL | User Manual www.vantrontech.com... -
Page 38: Warranty
CUSTOMER’s location and no Product so inspected shall be returned to VANTRON unless the cause for the rejection or defect is determined to be the responsibility of VANTRON. VANTRON shall in turn provide the CUSTOMER turnaround shipment on defective Product within fourteen (14) working days upon its receipt at VANTRON.
