- Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions VT-SBC-EKT Single Board Computer User Manual Version: 1.0 © Chengdu Vantron Technology Co., Ltd. All rights reserved. VT-SBC-EKT | User Manual www.vantrontech.com...
- Page 2 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions Revision History Version Description Date V1.0 First release Jul. 20, 2022 VT- SBC-EKT | User Manual www.vantrontech.com...
-
Page 3: Table Of Contents
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions Table of Contents Foreword ............................1 CHAPTER 1 INTRODUCTION ......................5 Product Overview ......................6 Terminology/Acronym ...................... 6 Block Diagram ........................7 Specifications ........................ - Page 4 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.26 J12 M.2 B-Key slot (26) ....................26 2.3.27 J17 M.2 E-Key slot (27) ....................26 2.3.28 J30 PBTN/REST/LED (28) ....................27 CHAPTER 3 SOFTWARE .........................
-
Page 5: Foreword
Under no circumstances shall any part of this user manual be copied, reproduced, translated, or sold. This manual is not intended to be altered or used for other purposes unless otherwise permitted in writing by Vantron. Vantron reserves the right of all publicly released copies of this manual. - Page 6 US Office: Vantron Technology, Inc. Address: 48434 Milmont Drive, Fremont, CA 94538 Tel: (650) 422-3128 Email: sales@vantrontech.com China Office: Chengdu Vantron Technology Co., Ltd. Address: 6th Floor, 1st Building, No.9, 3rd WuKe East Street, WuHou District, Chengdu, P.R. China 610045 Tel: 86-28-8512-3930/3931, 86-28-8515-7572/6320 Email: sales@vantrontech.com.cn...
- Page 7 The use or placement of the operation tools shall comply with the code of practice of such tools to avoid short circuit of the Product. Cut off the power before inspection of the Product to avoid human injury or product • damage. VT-SBC-EKT | User Manual www.vantrontech.com...
- Page 8 Clean with a damp cloth • Do not try to clean exposed electronic components unless with a dust collector Power off and contact Vantron technical support engineer in case of the following faults: The Product is damaged • The temperature is excessively high •...
-
Page 9: Chapter 1 Introduction
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 INTRODUCTION VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 10: Product Overview

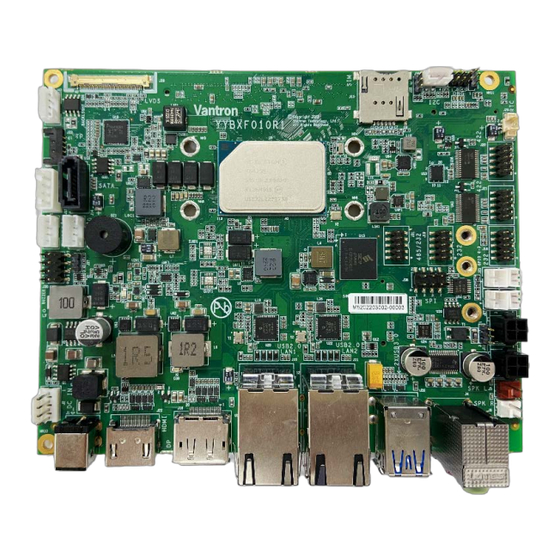

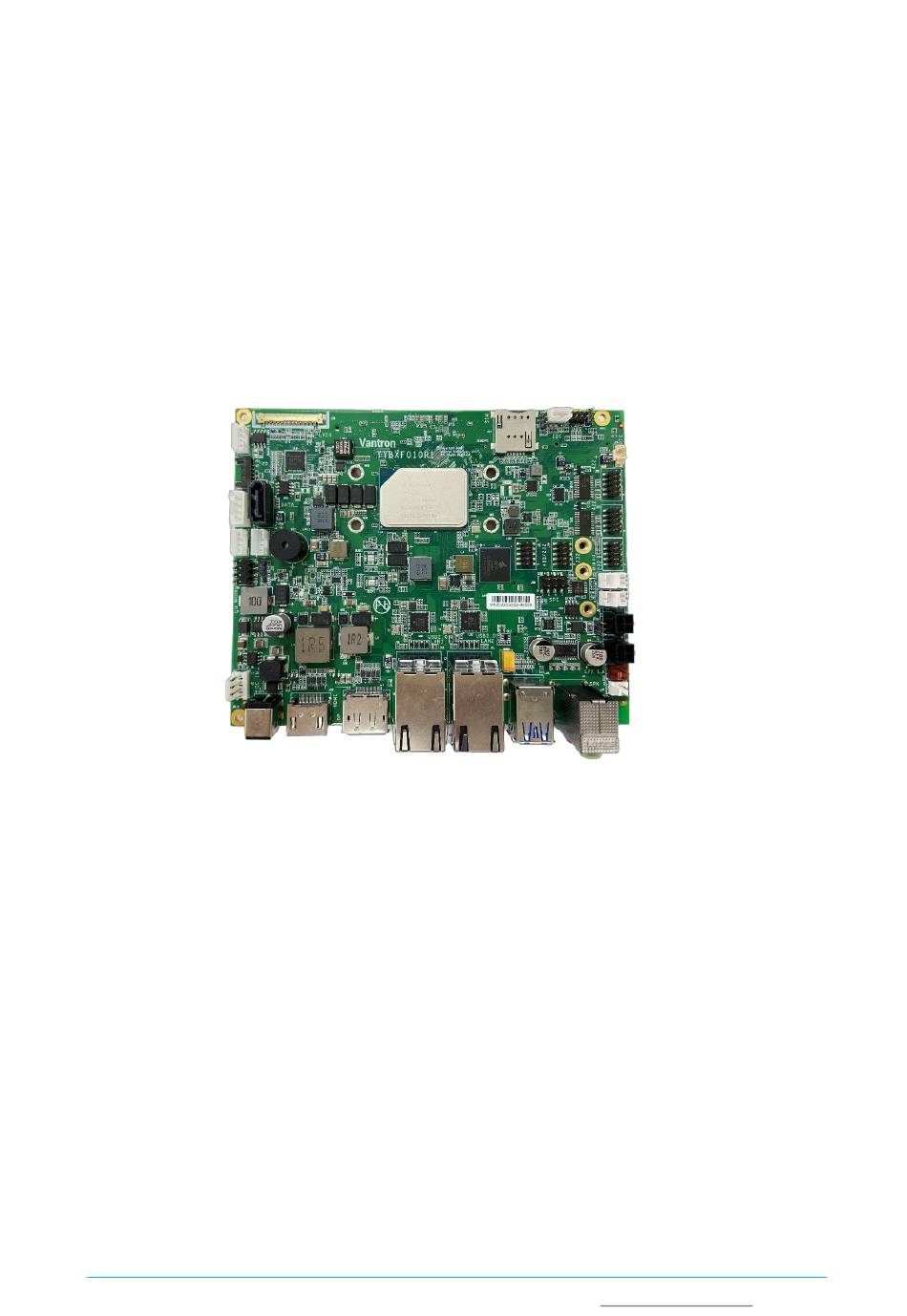

World-leading provider of embedded/IoT products and solutions 1.1 Product Overview VT-SBC-EKT single board is powered by Intel® Elkhart Lake Atom® x6425E high-performance processor that has four cores capable of delivering high computing power for various embedded applications while keeping the CPU performance at a maximum of 15W power consumption. -
Page 11: Block Diagram
USB2[5] 40pin JAE EDP（DDI0） 1*USB2.0 HDR(For TP) Connector 1x5,1.5mm eSPI LVDS PTN3460 ECE1200 USB2[6:7] 1*USB2.0 Internal Header TPM2.0 2x5,2.54x2.54mm 2xRS232/RS485/RS422 1xRS232 SCH3222 1xPort80 Connector 1xRS-232/TTL Header 2x4,2mm 12-36VDC(96W) System DC/DCs Heat sink Power Converter JACK VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 12: Specifications
SDK available Dimensions 153.5 x 123 mm Mechanical Cooling mode Aluminum alloy heat sink (fanless) Operating: -20°C ~ +60°C Temperature Storage: -40°C ~ +85°C Environment Humidity 5%-95%RH (Non-condensing) Condition Certifications UL, FCC, IC, CE, RoHS, PTCRB VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 13: Operating System
RAM, storage capacity, and other configurations of the Board. 1.8 Environmental Specifications VT-SBC-EKT works at a temperature ranging from -20℃ to +60℃, at relative humidity of 5%-95% for non-condensing purpose, and is designed to be stored at a temperature ranging from -40℃... -
Page 14: Chapter 2 Connectors And Pin Assignment
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 CONNECTORS AND PIN ASSIGNMENT VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 15: Sbc Layout
(27) M.2 for Wi-Fi &BT 2.2 System Configurations 2.2.1 CPU VT-SBC-EKT is powered by Intel® Elkhart Lake Atom® x6425E quad-core processor. 2.2.2 Memory VT-SBC-EKT provides a DDR4 SO-DIMM socket, supporting up to 16GB memory with transfer rate at 3200MT/s. 2.2.3 Storage Depending on customer requests, the Board may provide 64GB on-board eMMC. -
Page 16: Connectors And Jumpers
This section is going to brief on the connectors/jumpers with corresponsive pinout description. 2.3.1 J2/J1 Power input (1) VT-SBC-EKT provides a 4-pin power connector and a power jack to supply power for the Board. Specification of the power connector: 2.54mm, 10.0mm (H), 5A, Male, Vertical, White,... -
Page 17: J10/J11 Ethernet Port (2)
World-leading provider of embedded/IoT products and solutions 2.3.2 J10/J11 Ethernet port (2) VT-SBC-EKT offers two RJ45 Ethernet jacks each with two LEDs (L-Y, R-G), green for activity indication and yellow for link indication. The interfaces support 10/100/1000 Mbps transmission rate. - Page 18 LCD POWER +5V VDD_LCD LCD POWER +5V SEL 6/8 SELECT 6 OR 8 DEPTH LCD_BKLTEN LCD BKL ENABLE LCD_BKLT_PWM LCD BKL PWM Ground Ground Ground VCC_BLK BKL Power+ VCC_BLK BKL Power+ VCC_BLK BKL Power+ VCC_BLK BKL Power+ VT-SBC-EKT | User Manual www.vantrontech.com...
-
Page 19: J22 Hdmi (4)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.4 J22 HDMI (4) VT-SBC-EKT offers an HDMI 2.0b interface that supports resolution of 4096 x 2160 @60Hz. Specification: Type-A, FLN, Female, Right Angle, WDT, SMT, RoHS MOLEX: 47151-0001... -
Page 20: J10/J11 Usb 2.0 Port (6)
RETURN PWR_3.3V DP POWER +3.3V 2.3.6 J10/J11 USB 2.0 port (6) The two USB 2.0 Type-A interfaces on VT-SBC-EKT are designed to connect peripherals to expand the functions. Specification: 2.0, Type-A, Female, Right Angle, Retention, WDT, THR, RoHS NSD: ZLRJ-010A The pinout description of the interfaces is in line with the pin assignment of standard USB 2.0 Type-A. -
Page 21: U26 Usb 3.0 Port (7)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.7 U26 USB 3.0 port (7) There are two USB 3.0 Type-A interfaces on VT-SBC-EKT for expansion of functions. Specification: 3.0, Type-A, Female, 17.5mm (L), Right Angle, WDT, THR, RoHS NSD: ZLRJ-010A The pinout description of the interfaces is in line with the pin assignment of standard USB 3.0 Type-A. -
Page 22: J20/J21 Rs422 (9)
2.3.10 J18/J19 RS232 (10) There are two 10-pin RS232 connectors on the Board. Specification: 2 x 5, 2.0mm, 1.5A, 5.5mm (H), Male, Vertical, Black, WDT, THR, RoHS GUANG LIAN WEI: 1580-2XX-400-2112-RC Pin 1 Pin 2 VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 23: J31 Rs485/Rs232 (11)
Specification: 2 x 5, 2.0mm, 1.5A, 6mm (H), Male, Vertical, WDT, THR, RoHS GUANG LIAN WEI: 1580-210-2112-RC Pin 1 Pin 2 Pinout description: Signal Description HSUART0 _RS485_RX_DP RS485_RX_DP HSUART0 _RS485_TX_DP RS485_TX_DP HSUART0 _RS485_TX_DN RS485_TX_DN HSUART0 _RS485_RX_DN RS485_RX_DN Ground VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 24: J4 Audio Jacks (12)
World-leading provider of embedded/IoT products and solutions 2.3.12 J4 Audio jacks (12) VT-SBC-EKT offers two 3.5mm audio jacks on the board, one is a headphone jack and the other is a Microphone jack. Specification: 3.5mm, 4-Pole, Female, Right Angle, THR, RoHS... -
Page 25: J24/J25/J26/J27 Gpio (14)
3.3V TTL GPIO Ground Pinout description of J25: Signal Description GPIO_1 3.3V TTL GPIO Ground Pinout description of J26: Signal Description GPIO_2 3.3V TTL GPIO Ground Pinout description of J27: Signal Description GPIO_3 3.3V TTL GPIO Ground VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 26: J38 Spi (15)
There are two 4-pin CAN connectors on the Board. Specification: 2 x 4, 3.0mm, 9.2mm (H), Male, Vertical, WDT, THR, RoHS TE: 794631(1) Pin 1 Pin 1 Pinout description of J33: Signal Description CAN1_Hi+ CAN1_H +V5A +5V POWER CAN1_Hi- CAN1_L Ground VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 27: J36 I C (17)
There is an RTC battery connector on the Board to provide the battery signal. Specification: 1 x 2, 1.25mm, 1A, 4.6mm (H), Male, Vertical, White, WDT, THR, RoHS Molex: 53398-0271 Pin 1 Pinout description: Signal Description BAT_PWR RTC + RTC - VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 28: J23 Tp Connector (19)
USB_2.0_TP +5V POWER 2.3.20 J40 Backlight connector (20) VT-SBC-EKT offers a backlight connector that supplies power for the backlight of the touch panel. Specification: 1 x 4, 2.0mm, 2A, 6mm (H), Male, Vertical, WDT, THR, RoHS JST: B4B-PH-K-S (LF) (SN) -
Page 29: J16 Sata Connector (21)
The pinout description of the connector is in line with the pin assignment of standard SATA connector. 2.3.22 J17 SATA power connector (22) VT-SBC-EKT offers a 4-pin power connector to supply power to the storage device. Specification: 1 x 4, 2.54mm, 2A, 6mm (H), Male, Vertical, WDT, THR, RoHS GLW: 6402-1XX-199-000-RC... -
Page 30: J13 Sim Card Slot (24)
16GB memory with transfer rate at 3200MT/s. 2.3.26 J12 M.2 B-Key slot (26) VT-SBC-EKT offers an M.2 B-Key that can be expanded as a SATA or 4G/5G interface as per demands from the customer. The pinout of the M.2 B-Key slot is in line with the pin assignment of standard M.2 slot for Key B. -
Page 31: J30 Pbtn/Rest/Led (28)
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 2.3.28 J30 PBTN/REST/LED (28) VT-SBC-EKT offers a pin header that provides signals for SATA/LED/PBTN/REST. Specification: 2 x 4, 2.54mm, 2A, 6.2mm (H), Male, Vertical, WDT, THR, RoHS IUPIIN: HS1104H-RN... -
Page 32: Chapter 3 Software
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 SOFTWARE VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 33: Bios Setup
Configure secure boot function, which can Administer Secure Boot prevent or allow the specified system to boot Overview of all BIOS setup options. You must Setup Utility be very careful when modifying the default settings. VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 34: Main
3.1.3 Main VT-SBC-EKT Language: You can select from English, French, Chinese, and Japanese for system • language. System Time: The time format is <Hour>: <Minute>: <Second>. • • System Date: The date format is <Month>/ <Day>/<Year>. VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 35: Advanced
SEG Chipset Feature: This option allows you to enable/disable wakeup on USB from S5 state. • OEM Configuration: LVDS configurations are available to change. • SIO SCH 3222: Serial ports are configured here. • H2OUVE Configuration: You can enable/disable the configuration interface of H2OUVE tool. VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 36: Security
| Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions 3.1.5 Security Information of current TPM device is available here and you can set the supervisor • passwords as well. 3.1.6 Power VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 37: Boot
Options for wakeup on PME/RTC from S5 are available. 3.1.7 Boot Users can set the boot mode, the sequence, timeout, and automatic failover of boot • devices when BIOS attempts to load the operating system. VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 38: Exit
World-leading provider of embedded/IoT products and solutions 3.1.8 Exit Options for users to load or exit BIOS Setup include loading system optimal defaults • or loading custom settings, exiting with custom changes save or not saved. VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 39: Install Windows 10 System
Partition Scheme based on the USB drive. Yet make sure the partition scheme is GPT; 4. Set the Target system as UEFI and the File system as FAT32 or NTFS; 5. Click START to make the bootable USB drive. VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 40: Install Windows 10
GPIO Header number CPU GPIO Default mode GPIO0 GP_H12 Output Output GPIO1 GP_H13 Output GPIO2 GP_H15 Output GPIO3 GP_H21 You can change the serial protocol in BIOS system from Advanced > Vantron Configuration >COM Configuration. VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 41: Chapter 4 Disposal And Warranty
Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 DISPOSAL AND PRODUCT WARRANTY VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 42: Disposal
& electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. VT-SBC-EKT | User Manual www.vantrontech.com... -
Page 43: Warranty
CUSTOMER’s location and no Product so inspected shall be returned to VANTRON unless the cause for the rejection or defect is determined to be the responsibility of VANTRON. VANTRON shall in turn provide the CUSTOMER turnaround shipment on defective Product within fourteen (14) working days upon its receipt at VANTRON.
