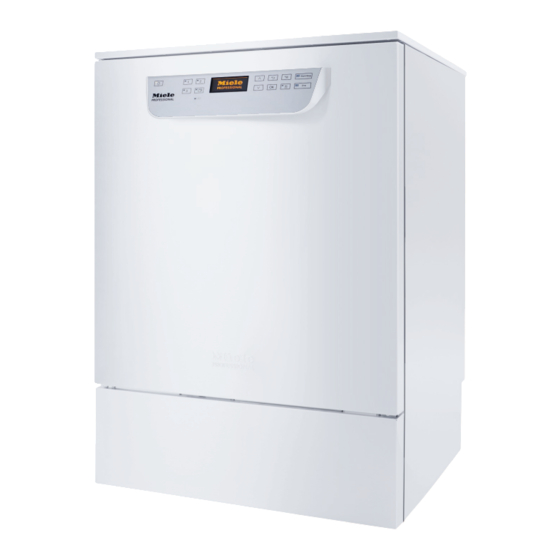

- Page 1 Ingenuity in infection control since 1830 PG 8581 Washer Disinfector Site Preparation Important: Please complete the Site Preparation Statement inside Plan this manual to begin your washer disinfector installation.
- Page 2 The product(s) described in this manual must only be operated and used by medically qualified personnel trained in the use of this equipment. Contact Eschmann with your training requirements. Pay particular attention to the safety notes, cautions and warnings provided in the text, and also to those displayed on the product labels.
- Page 3 Contractor Notes 2.1 Electrical Notes ....................8 2.2 Plumbing Notes ....................8 PG 8581:16A 230V Single Phase Installation PG 8581: 32A 230V Single Phase Installation PG 8581: 400V 3 Phase Installation Optional Equipment 6.1 Autolog (87-010-27) ..................12 6.2 RS232 Printer (87-213-67) ................12 6.3 Eschmann RO Water System ...............12...
- Page 4 Section 1, 3, 4, 5 When you are sure that the site is ready, you and your contractor(s) MUST sign the Site Preparation Statement and email or post it to Eschmann. (The address is at the bottom of the Site Preparation Site Preparation Statement).
- Page 5 I am aware that should the site preparation not be to the required standard, or is in any way not suitable for installing the Washer Disinfector upon the arrival of the Eschmann Service Engineer, I will be liable for the standard cost of an Engineer’s call out charge.
- Page 6 22mm pipe run, but will prevent spillage in the case of a blocked drain. * If the height under the worktop is less than 840mm, Eschmann can, at installation, remove the top cover, thereby • The unit requires two cold water supplies. A third RO/DI allowing the unit to fit into a minimum recess height of water supply is optional.
- Page 7 1.3. PG 8581 This gap accommodates the pipes and cables exiting the Washer Disinfector Fig. 2 Dimensions (mm) MUW216742-2...
- Page 8 At the Washer Mains drainage Disinfector end, point the pipe down and provide 30mm of pipe for Eschmann to connect to. Optional equipment (section 6): Connection to a sink trap is possible but this MUST be...
- Page 9 Plastic Speedfit (15mm) tap 3/4” BSP (15mm) Pipe (for RO/DI option) 16A cable, 1.7m long with plug fitted. Eschmann part No. MS09459361 16A 230-400V Socket, single phase +N+E industrial, blue 16A 230-400V Plug, single phase +N+E industrial, blue. Eschmann part No. MUW216746 32A 230-400V Isolator Switch 3P+N+E MUW216742-2...
- Page 10 Straight machine tap, quarter turn (Washing machine type) 15mm pipe to 3/4BSP male Plastic Speedfit (15mm) tap 3/4” BSP (15mm) Pipe (For RO/DI option) 32A 230-400V Socket, single phase+N+E industrial, blue 32A 230-400V Plug, single phase+N+EE industrial, blue. Eschmann part No. 111917. 32A 230-400V Isolator Switch 3P+N+E MUW216742-2...
- Page 11 Plastic Speedfit (15mm) tap 3/4” BSP (15mm) Pipe (for RO/DI option) 32A per phase 380-415V Socket, 3P+N+E industrial, red 32A per phase 380-415V Plug, 3P+N+E industrial, red. Eschmann part No. 111918. 32A 400V Isolator Switch 3P+N+E 3-phase case 1.7m long cable with plug fitted. Eschmann part No. MS4904311...
- Page 12 6.2. RS232 Printer (8721367) 1. Delivery rate: 10 litres per minute (5 litres per minute minimum) Eschmann can supply and fit this optional RS232 printer 2. Volume of water required: 12 litres per hour minimum during installation. 3. A constant delivery pressure of 1.5 barg minimum at all...
- Page 13 Containers 7.1. Rinsing Aid CONTRACTOR TO ALLOW SPACE PLEASE. THIS TO BE INSTALLED BY ESCHMANN. The rinsing aid container is a standard feature of the Washer Disinfector and is used to dose rinse aid automatically into the unit. It is supplied with the Washer Disinfector and will be installed by the Eschmann Service Engineer.
- Page 14 Trade Marks The Eschmann name and Logo are trade marks of Eschmann Technologies Limited. Eschmann Equipment is a trading name of Eschmann Technologies Limited. Copyright © 2022 Eschmann Technologies Limited.
