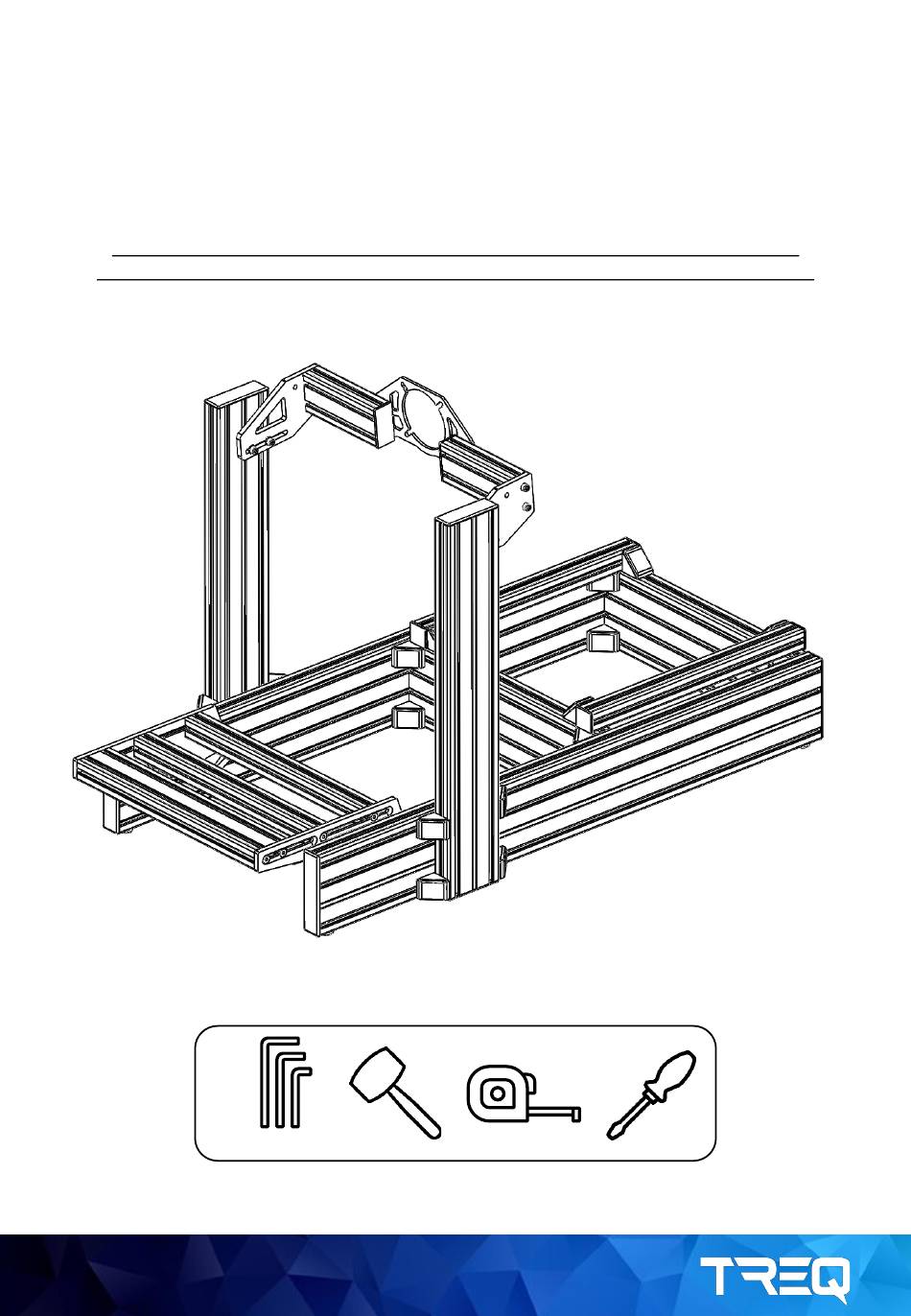

- Page 1 TREQ ACE INSTRUCTION MANUAL The setup of your rig is very dependent on body type, personal seating preferences and the equipment you own, but to give you a head start, we included a setup scheme on the last page. REQUIRED TOOLS: 4-6 mm WWW.TREQ-SIM.COM...
- Page 2 But on some places of the rig these corner brackets are placed on a 90° angle of the T-slot. In these situations it is recommended to break off 2 of the hooks, which is easily done with a screwdriver or a plier. Break! REQUIRED TOOL: WWW.TREQ-SIM.COM...
- Page 3 Profile 4040 L=478 Profile 4040 L=500 Profile 16040 L=500 Profile 16040 L=1170 Clamp M8x20 Profile 4080 L=190 Profile 4080 L=478 Profile 12040 L=740 Corner Bracket Pedal Bracket Left Pedal Bracket Right Side Bracket Cover 4040 Cover 12080 Cover 4080 Cover 16080 WWW.TREQ-SIM.COM...
- Page 4 You can use these on any Cable Binder M8x16 (Sunken Head) place you like. Either inside the profile slot (just M8 T-Nut Click-in-Nut turn the bolt through Wheel mount option the tape), or by pasting them. specific set of bolts. WWW.TREQ-SIM.COM...
- Page 5 Profile 16040 L=1170 (2x) (4x) (4x) (16x) (4x) M5x12 (4x) WWW.TREQ-SIM.COM...
- Page 6 (12x) M8x16 (16x) WWW.TREQ-SIM.COM...
- Page 7 Profile 4040 L=500 (2x) (4x) (8x) M8x16 WWW.TREQ-SIM.COM...
- Page 8 Profile 12040 L=740 (2x) (8x) (16x) WWW.TREQ-SIM.COM...
- Page 9 Assembly of Pedal Bracket Profile 8040 L=478 (1x) Profile 4040 L=478 (2x) M8x20 (Black) (8x) Do not tighten the profiles yet. Do this after you’ve mounted your pedals! Assemble the Pedal Bracket on Frame (4x) WWW.TREQ-SIM.COM...
- Page 10 To mount these type of pedals, please use the spare corner brackets. Mount 1 side to a pedaldeck-profile and the other to the pedals. For Fanatec or Heusinkveld pedals you can use click-in-nuts and mount them ‘from the top’. WWW.TREQ-SIM.COM...
- Page 11 Mount both ‘Side Brackets’ to the upright profiles of your rig. M8x20 (4x) Mount the 190 profiles like this for Mount the 190 profiles like this for the Wheel Deck. the Front and Side Mount. M8x20 WWW.TREQ-SIM.COM...
- Page 12 Wheel Deck M8x16 (4x) (Asetek) Front Mount M8x16 (4x) Side Mount M8x16 (4x) WWW.TREQ-SIM.COM...
- Page 13 Place all covers on both the profiles as well as the corner brackets WWW.TREQ-SIM.COM...
- Page 14 When first building your rig, we recommend putting S on 31 cm. Don’t tighten the bolts of the steering rack too much, because there is a big chance you’re going to adjust it after you mount a steering wheel. WWW.TREQ-SIM.COM...
