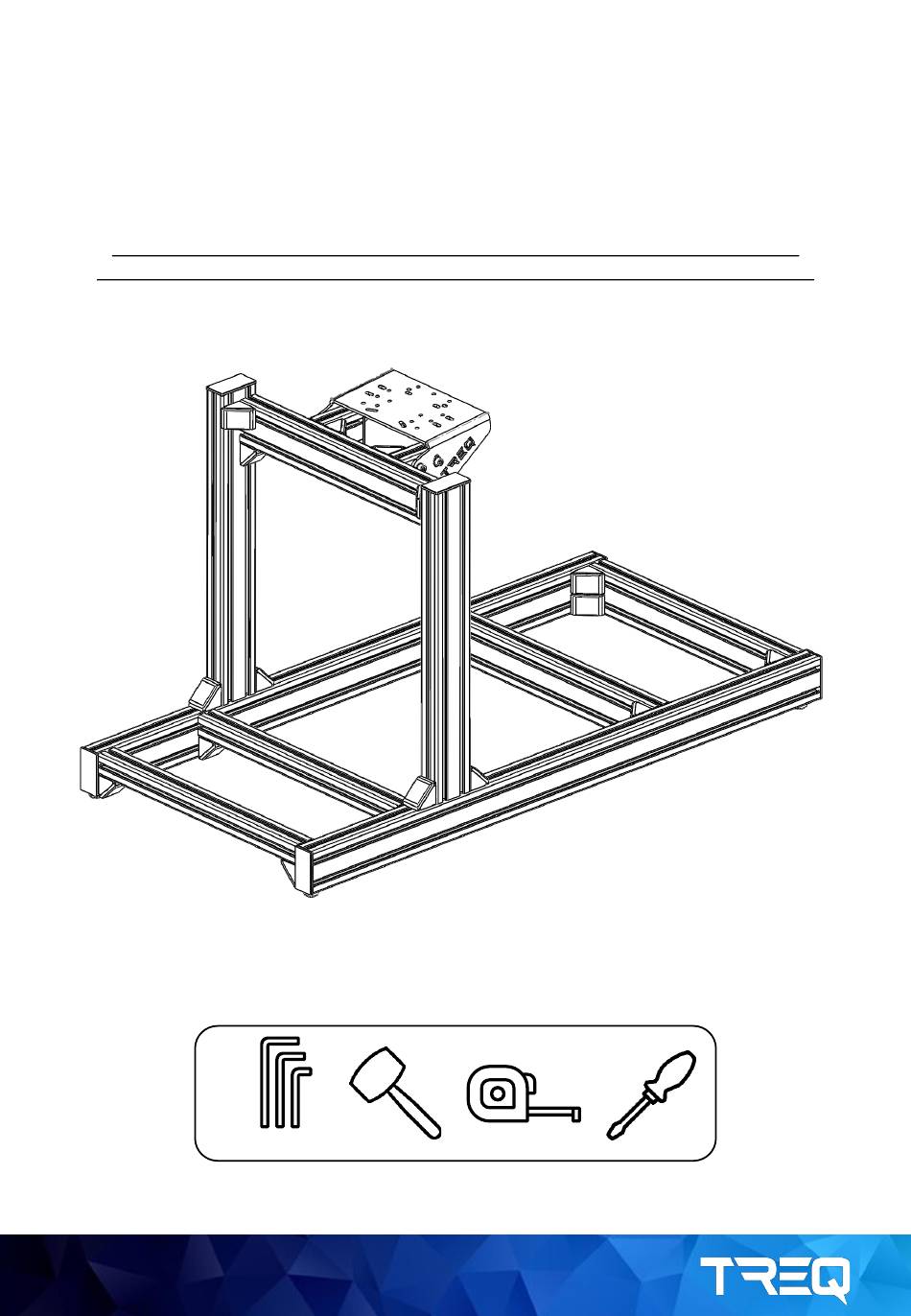

- Page 1 TREQ ROOKIE INSTRUCTION MANUAL The setup of your rig is very dependent on body type, personal seating preferences and the equipment you own, but to give you a head start, we included a setup scheme on the last page. REQUIRED TOOLS: 4-6 mm WWW.TREQ-SIM.COM...
-
Page 2: General Instructions
But on some places of the rig these corner brackets are placed on a 90° angle of the T-slot. In these situations it is recommended to break off 2 of the hooks, which is easily done with a screwdriver or a pincer. Break! REQUIRED TOOL: WWW.TREQ-SIM.COM... - Page 3 WHEEL BASE / PEDAL MOUNTING M8 BOLTS AND WASHERS M8x16 (Socket Head) Black M6x12 Screw M8 Washer M6x16 (Socket Head) M6x20 (Socket Head) M6x25 (Socket Head) RUBBER FEET M6 Washer M5x12 (Socket Head) M6 T-Nut Click-in-Nut M5 T-Nut Click-in-Nut Rubber Foot WWW.TREQ-SIM.COM...
- Page 4 Profile 8040 L=1170 (2x) (16x) (4x) (4x) These come from the ‘Rubber Feet’ bag (4x) (4x) M5x12 WWW.TREQ-SIM.COM...
- Page 5 Profile 8040 L=500 (2x) (8x) Use this size if you are going to make use of our Seat Brackets. M8x16 (16x) WWW.TREQ-SIM.COM...
- Page 6 Profile 8040 L=580 (2x) (8x) M8x16 (8x) WWW.TREQ-SIM.COM...
- Page 7 Assembly of Wheel Mount Assembly Profile 8040 L=500 (1x) (8x) Profile 8040 L=90 (2x) (10x) WWW.TREQ-SIM.COM...
- Page 8 130mm 130mm M8x16 (8x) (4x) (2x) WWW.TREQ-SIM.COM...
- Page 9 Assemble the Wheel Mount Assembly on the rig. Break the pins! M8x16 (8x) M8x16 (Black) (6x) (6x) WWW.TREQ-SIM.COM...
- Page 10 (as in the example below). You can also place one profile in line with the top slot, and the other in line with the bottom slot to create a slight angle of your pedals. Break the pins! M8x16 (8x) WWW.TREQ-SIM.COM...
- Page 11 To mount these type of pedals, please use the spare corner brackets. Mount 1 side to a pedaldeck-profile and the other to the pedals. For Fanatec or Heusinkveld pedals you can use click-in-nuts and mount them ‘from the top’. (20x) (6x) WWW.TREQ-SIM.COM...
