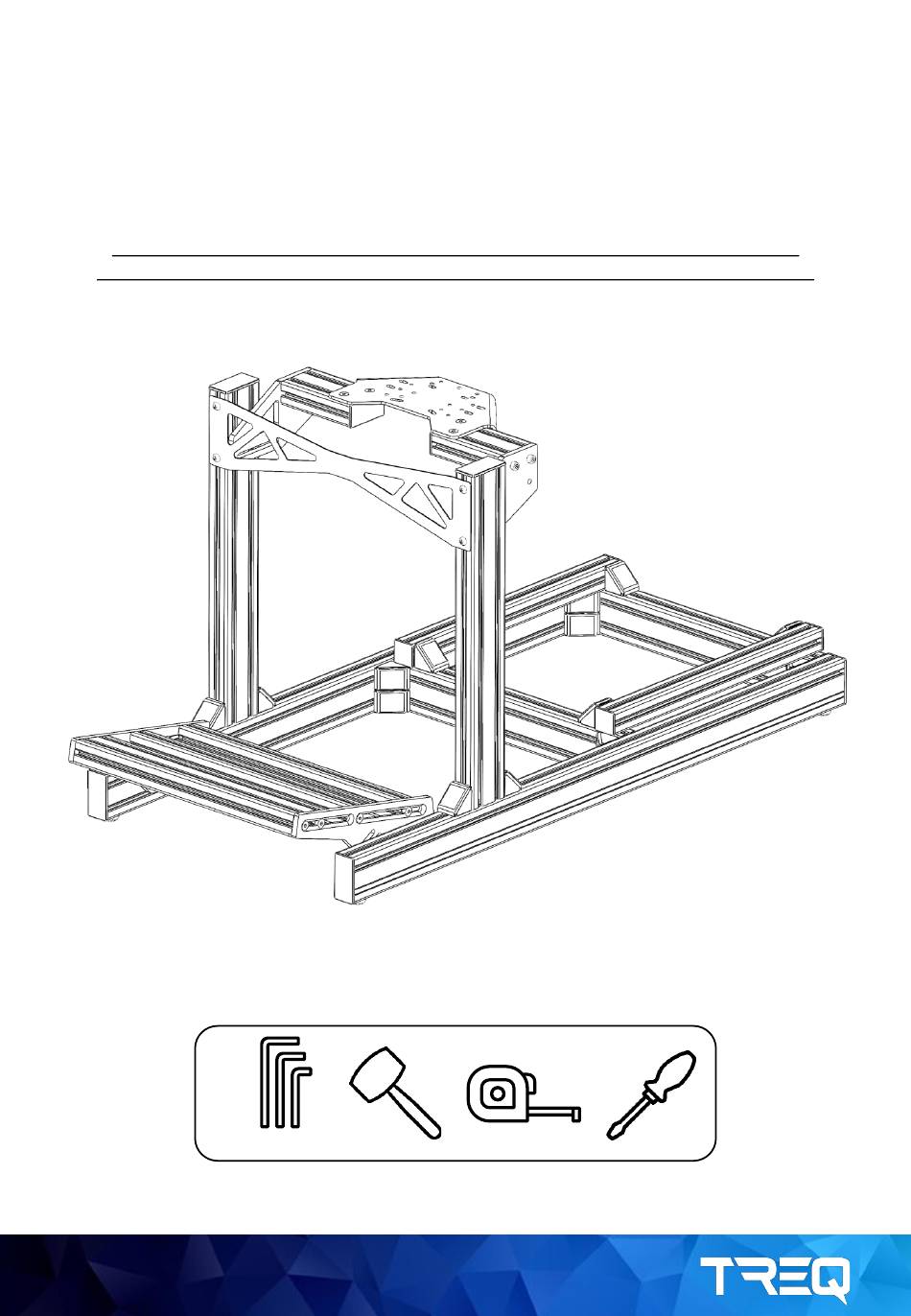

- Page 1 TREQ ONE INSTRUCTION MANUAL The setup of your rig is very dependent on body type, personal seating preferences and the equipment you own, but to give you a head start, we included a setup scheme on the last page. REQUIRED TOOLS: 4-6 mm WWW.TREQ-SIM.COM...
-
Page 2: General Instructions
GENERAL INSTRUCTIONS The easiest way to mount the click-in-nuts, is to slide them in from one side of the profile. But don't worry if you need to put in a click-in-nut in a profile which has both ends already closed: it... - Page 3 Profile 4080 L=478 Profile 4080 L=580 Profile 4080 L=150 Corner Bracket Pedal Bracket Left Pedal Bracket Right Side Bracket Bow Tie Plate M8 Click-in-Nut M8x16 Cover 4040 Cover 4080 DEPENDING ON YOUR VERSION: Asetek Mount Side Mount Wheel Deck Front Mount WWW.TREQ-SIM.COM...
-
Page 4: Cable Management
You can use these on any place specific set of bolts. you like. Either inside the Cable Binder profile slot (just turn the bolt through the tape), or by pasting them. Profile 8040 L=1170 (2x) (16x) (4x) These come from the ‘Rubber Feet’ bag (4x) WWW.TREQ-SIM.COM... - Page 5 (4x) M5x12 (4x) Profile 8040 L=500 (2x) (12x) WWW.TREQ-SIM.COM...
- Page 6 M8x16 (16x) Profile 4040 L=500 (2x) (4x) WWW.TREQ-SIM.COM...
- Page 7 Break the pins! M8x16 (8x) The width of the two 4040 profiles is depended on your seat, so you might want to wait before tightening them! Profile 8040 L=580 (2x) (12x) WWW.TREQ-SIM.COM...
- Page 8 M8x16 (8x) Assembly of Pedal Bracket Profile 8040 L=478 (1x) Profile 4040 L=478 (2x) M8x20 (Black) (8x) Do not tighten the profiles yet. Do this after you’ve mounted your pedals! WWW.TREQ-SIM.COM...
- Page 9 Assemble the Pedal Brackets on the frame. Choose which holes you want to use as a result of your desired Pedal Deck angle. Washer (2x) M8x20 (4x) Assembly of the Bow Tie Do NOT tighten the screws yet. M8x12 (4x) WWW.TREQ-SIM.COM...
- Page 10 Mount the Side Plates. Same for left and right. M8x20 (4x) Mount the 150 profiles like this for Mount the 150 profiles like this for the Wheel Deck. the Front and Side Mount. M8x20 WWW.TREQ-SIM.COM...
- Page 11 Wheel Deck M8x16 (4x) (Asetek) Front Mount M8x16 (4x) Side Mount M8x16 (4x) WWW.TREQ-SIM.COM...
- Page 12 Place all cover caps. (16x) (4x) (8x) Adjust Pedal Bracket and Wheel Mount Assembly to desired position (see step 18 for a setup drawing). WWW.TREQ-SIM.COM...
- Page 13 To mount these type of pedals, please use the spare corner brackets. Mount 1 side to a pedaldeck-profile and the other to the pedals. For Fanatec or Heusinkveld pedals you can use click-in-nuts and mount them ‘from the top’. WWW.TREQ-SIM.COM...
- Page 14 When first building your rig, we recommend putting S on 35 cm. Don’t tighten the bolts of the steering rack too much, ‘cause there is a big chance you’re going to adjust it after you mount a steering wheel. WWW.TREQ-SIM.COM...
