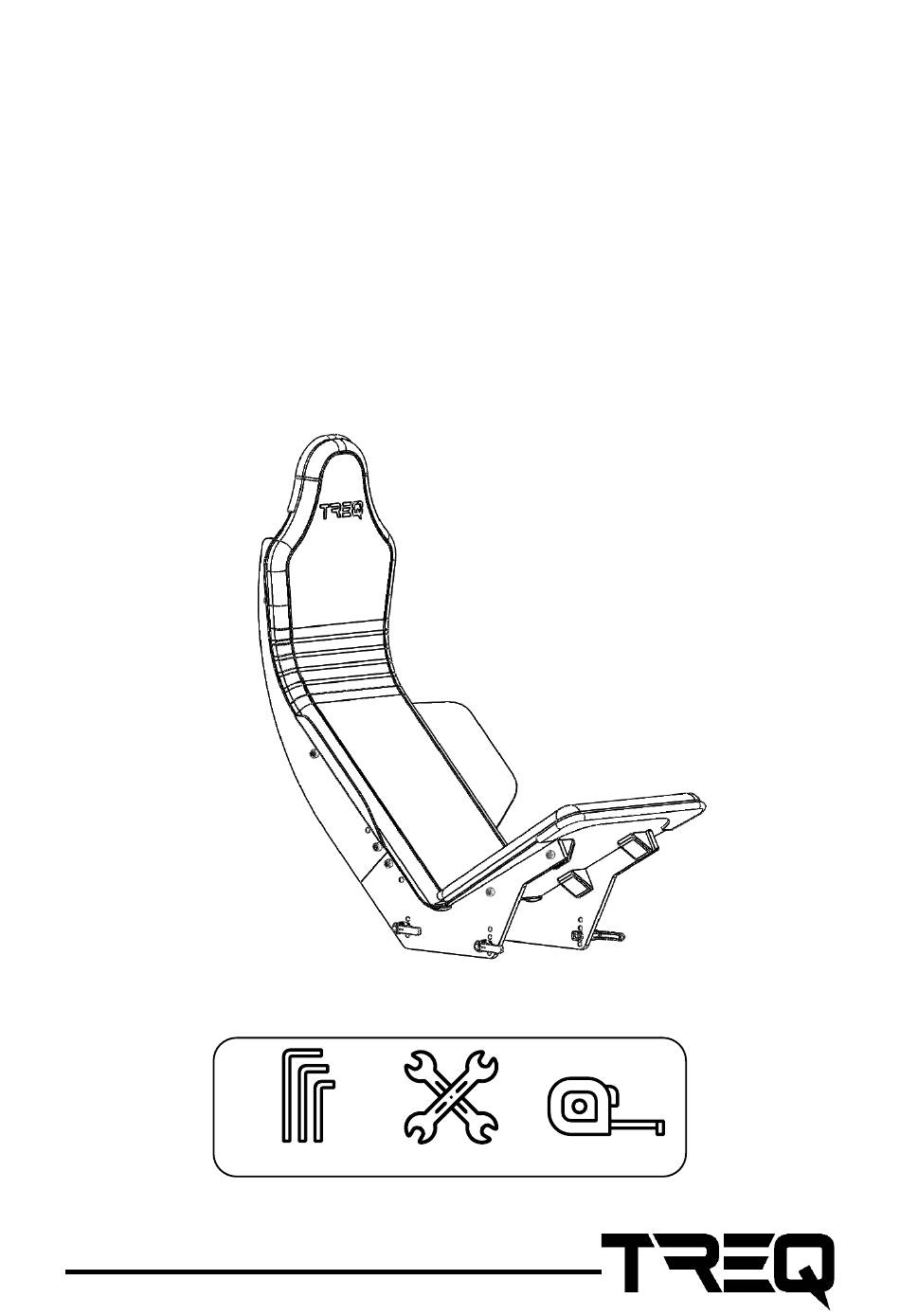

TREQ FORMULA SEAT Instruction Manual

Download this manual

FORMULA

SEAT

INSTRUCTION MANUAL

REQUIRED TOOLS:

4-6 mm

7 mm

Need help?

Do you have a question about the FORMULA SEAT and is the answer not in the manual?

Page 1 FORMULA SEAT INSTRUCTION MANUAL REQUIRED TOOLS: 4-6 mm 7 mm...
Page 2: General Instructions
GENERAL INSTRUCTIONS The easiest way to mount the click-in-nuts, is to slide them in from one side of the profile. But don't worry if you need to put in a click-in-nut in a profile which has both ends already closed: it is also possible to push them in the T-slot anywhere you like! Click! The corner brackets feature 4 little hooks to stop the bracket from rotating once it is mounted...
Page 3 Top Plate Bottom Plate Profile 8040 L=250 Profile 4040 L=250 Cushioning Top Frame Plate Bottom Frame Plate Adjustable Handle Click-in Nut M6 Corner Cover 4040 Corner 4040 www.treq-sim.com...
Page 4 M8x25 M8x20 M6x16 Nut M6 Plain Washer M6 Plain Washer M8 Nut M8 Click-in Nut M8 (6x) www.treq-sim.com...
Page 5 (6x) M8x20 (8x) (8x) (8x) M8x25 www.treq-sim.com...
Page 6 (6x) M6x16 (4x) (4x) (8x) (4x) M6x16 (4x) www.treq-sim.com...
Page 7 www.treq-sim.com...
Page 8 Slide the cushioning on chair. This might feel tight (especially the bottom part), but this is done to ensure they keep in place when you’re racing. Try to do it with two persons if alone it feels impossible to get the cushion over the metal plates. www.treq-sim.com...
