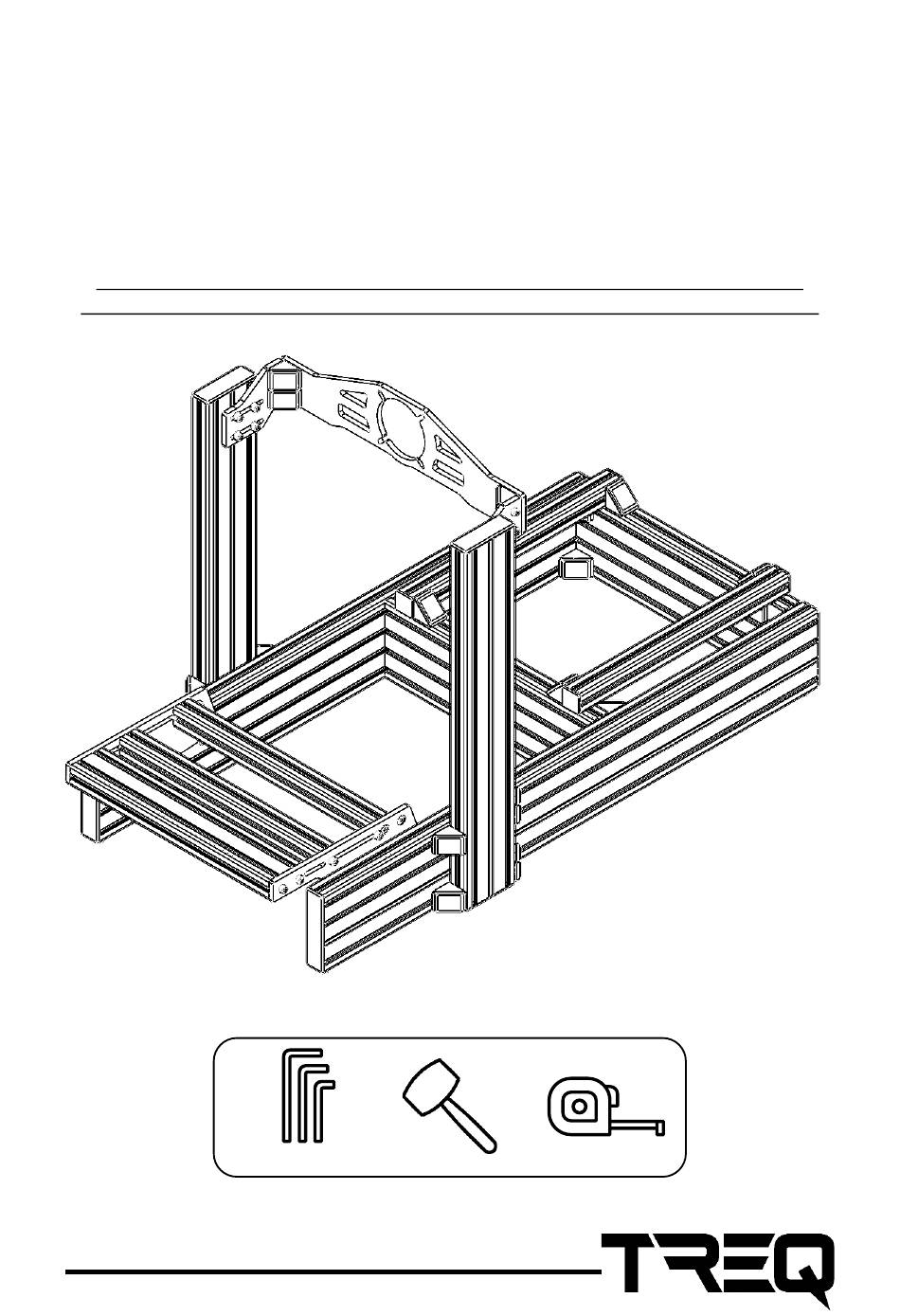

TREQ ACE
WITH SIMUCUBE FRONT MOUNT
INSTRUCTION MANUAL
The setup of your rig is very dependent on body type, personal seating preferences and the
equipment you own, but to give you a head start, we included a setup scheme on the last page.
REQUIRED TOOLS:
5-6 mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TREQ ACE
Summary of Contents for TREQ ACE
- Page 1 TREQ ACE WITH SIMUCUBE FRONT MOUNT INSTRUCTION MANUAL The setup of your rig is very dependent on body type, personal seating preferences and the equipment you own, but to give you a head start, we included a setup scheme on the last page.
-
Page 2: General Instructions
But on some places of the rig these corner brackets are placed on a 90° angle of the T-slot. In these situations it is recommended to break off 2 of the hooks, which is easily done with a screwdriver or a plier. Break! REQUIRED TOOL: www.treq-sim.com... - Page 3 Profile 4040 L=500 Profile 16040 L=500 Profile 4040 L=478 Profile 16040 L=1185 Clamp M8x20 Mounting Plate Profile 4080 L=478 Profile 12040 L=740 Front Mounting Plate 580mm Pedal Bracket Right Pedal Bracket Left Corner 4040 Cover 4040 Cover 12080 Cover 16080 www.treq-sim.com...
-
Page 4: Cable Management
M6 Washer M6 T-Nut Click-in-Nut CABLE MANAGEMENT M4x12 Screw M4 T-Nut Click-in-Nut You can use these on any place you like. Either Cable Binder inside the profile slot (just turn the bolt through the tape), or by pasting them. www.treq-sim.com... - Page 5 Profile 16040 L=1185 (2x) (4x) (4x) (16x) (4x) M5x12 (4x) www.treq-sim.com...
- Page 6 (12x) M8x16 (16x) www.treq-sim.com...
- Page 7 Profile 4040 L=500 (2x) (4x) (8x) M8x16 www.treq-sim.com...
- Page 8 Profile 12040 L=740 (2x) (8x) (16x) www.treq-sim.com...
- Page 9 Assembly of Pedal Bracket Profile 8040 L=478 (1x) Profile 4040 L=478 (2x) M8x20 (Black) (2x) (2x) M8x20 (Black) (6x) Assemble the Pedal Bracket on Frame Hand greep (4x) www.treq-sim.com...
- Page 10 To mount these type of pedals, please use the spare corner brackets. Mount 1 side to a pedaldeck-profile and the other to the pedals. For Fanatec or Heusinkveld pedals you can use click-in-nuts and mount them ‘from the top’. www.treq-sim.com...
- Page 11 Mount both ‘Mounting Plates’ to the upright profiles of your rig. M8x20 (8x) Break! M8x25 (8x) www.treq-sim.com...
- Page 12 With the spare M8x25 bolts and washers, you can mount your wheelbase. Place all covers on both the profiles as well as the corner brackets www.treq-sim.com...
- Page 13 When first building your rig, we recommend putting S on 31 cm. Don’t tighten the bolts of the steering rack too much, because there is a big chance you’re going to adjust it after you mount a steering wheel. www.treq-sim.com...
