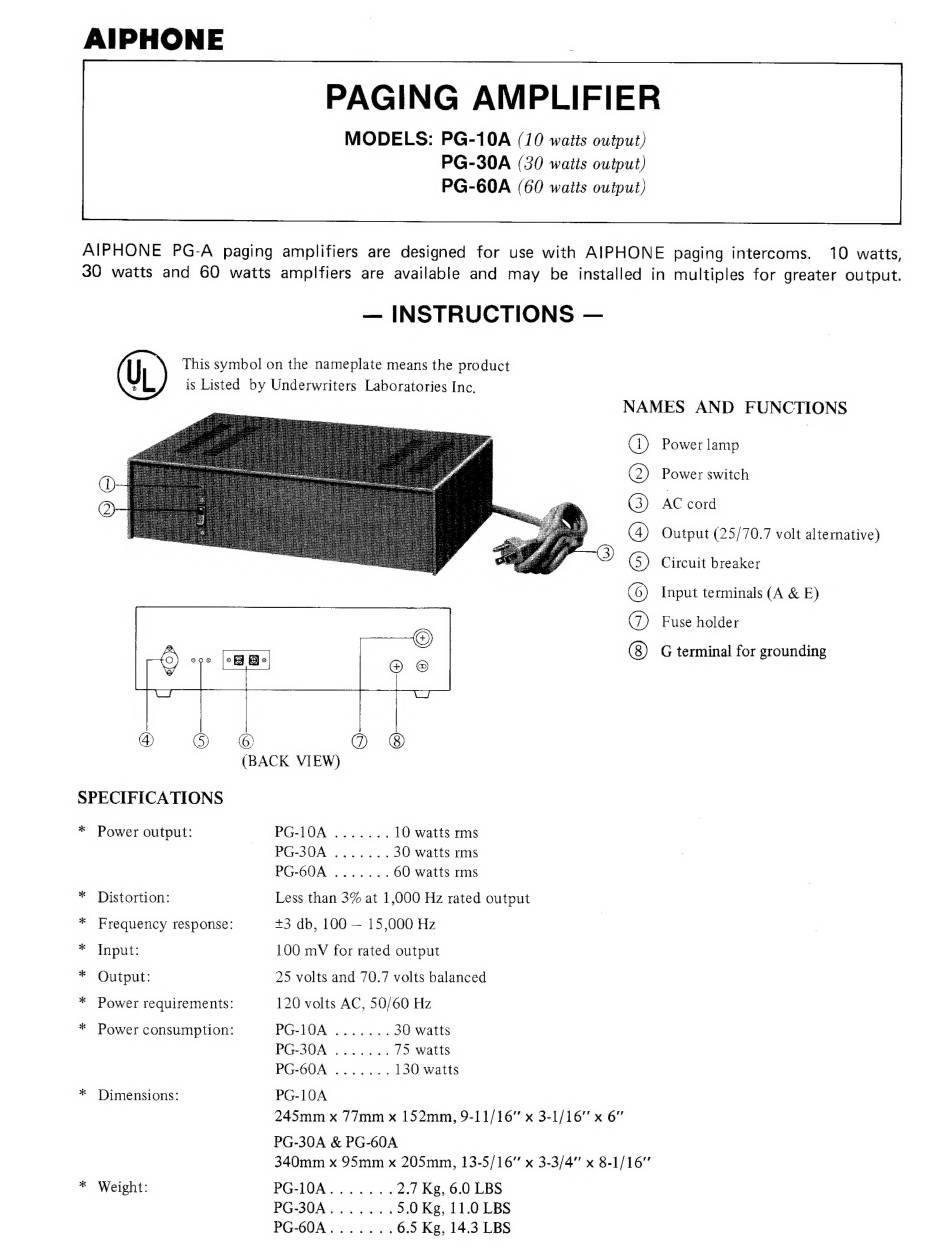

Aiphone PG-10A Instructions

AIPHONE
PAGING AMPLIFIER
MODELS: PG-10A (10 waits output)
PG-30A (30 watts output)
PG-60A (60 watis output)
— INSTRUCTIONS —
This symbol on the nameplate means the product
is Listed by Underwriters
Laboratories Inc.
T
NAMES AND
FUNCTIONS
Power lamp
Power switch
AC cord
Output (25/70.7 volt alternative)
Circuit breaker
Input terminals (A & E)
Fuse holder
G terminal for grounding
OOOHOO
® © © D
(BACK VIEW)
SPECIFICATIONS
* Power output: GTO angie a4 10 watts rms
PG-30A ....... 30 watts rms
PG-00A carica: 60 watts rms
* Distortion: Less than 3% at 1,000 Hz rated output
* Frequency response: +3 db, 100 — 15,000 Hz
* Input: 100 mV for rated output
* Output: 25 volts and 70.7 volts balanced
* Power requirements: 120 volts AC, 50/60 Hz
* Power consumption: PG-10A ....... 30 watts
PG-30A ....... 75 watts
PG-60A ....... 130 watts
* Dimensions: PG-10A
245mm x 77mm x 152mm, 9-11/16" x 3-1/16" x 6"
PG-30A & PG-60A
340mm x 95mm x 205mm, 13-5/16' x 3-3/4" x 8-1/16"
* Weight: PG-1I0A....... 2.7 Kg, 6.0 LBS
PG-30A....... 5.0 Kg, 11.0 LBS
PG-60A....... 6.5 Kg, 14.3 LBS
