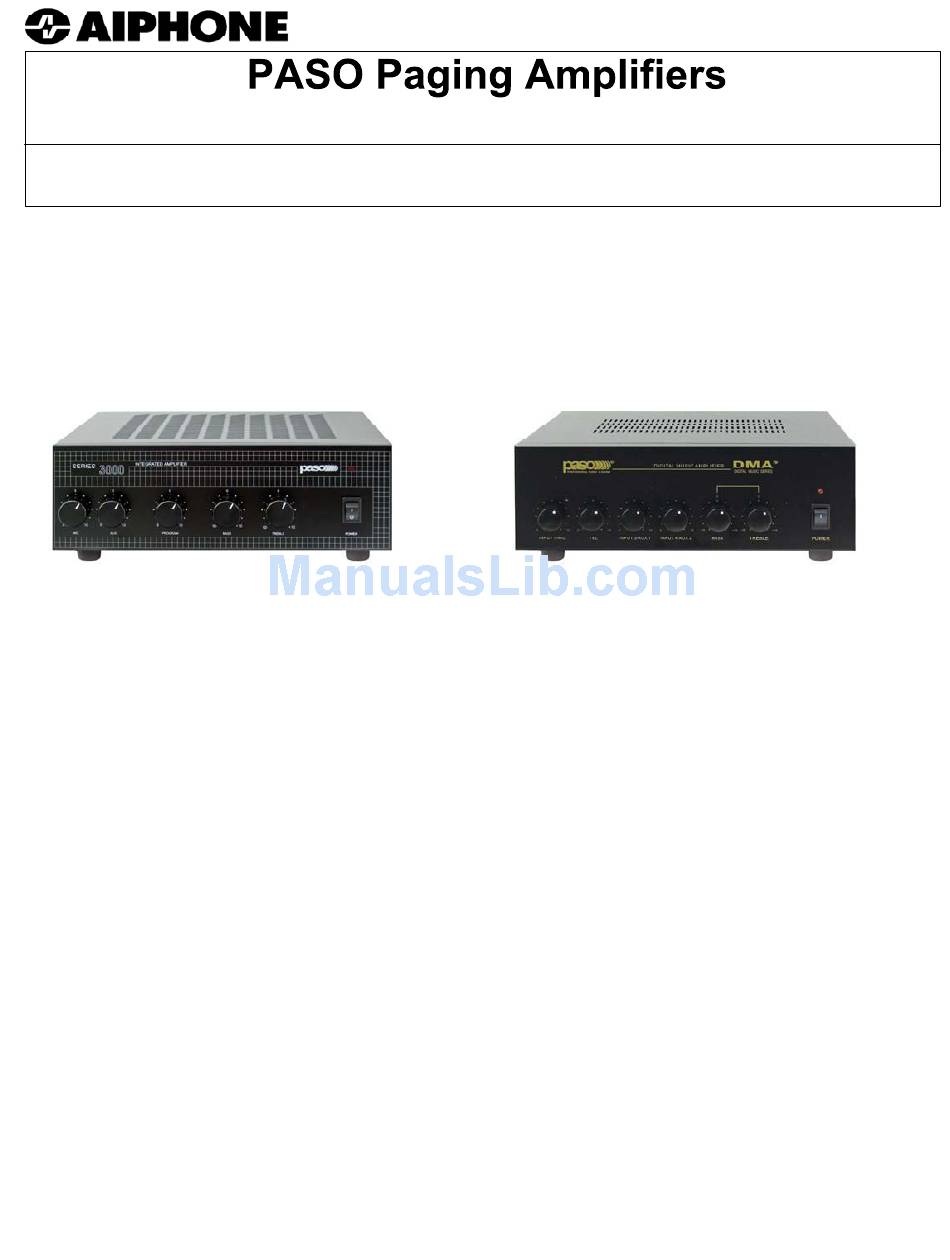

Aiphone T3115BGM Supplemental Wiring Instructions

T3115BGM (15W); T3130BGM (30W); DMA2060 (60W); DMA2120 (120W)
- Supplemental Wiring Instructions for connecting with Aiphone Systems -
Aiphone offers a series of Paging Amplifiers to provide paging and other features for many of our systems.
These amplifiers are manufactured by PASO, and are available in 15, 30, 60, and 120 Watt sizes. When
adding background music to the NEM system, Group Call or All Call to the AI-900 system, or paging to a
large variety of other Aiphone systems, these amplifiers are tested and approved. This supplemental
instruction manual includes wiring diagrams for applications with Aiphone systems. See PASO Installation
& Operation Manual included with the product for complete information on these products.

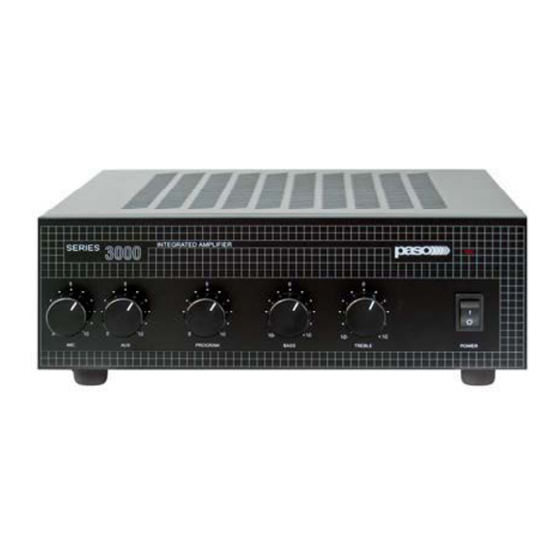

15 and 30 Watt Amplifiers
AVAILABLE MODELS
T3115BGM
T3130BGM
DMA2060
DMA2120
When using the above Amplifiers for Paging via an Aiphone system, match the appropriate
paging adaptor with the system being used. Choose the amplifier based on input and output
requirements for your application.
PAGING ADAPTOR
AXW-PA1
BA-1
BA-1P
MC-A/A
PD-1
PD-2 (w/Talkback)
YAW-R/B
0407
Provided by Aiphone
WATTAGE
15 Watts
30 Watts
60 Watts
120 Watts
SYSTEM
AX
LEM, LEF, LAF-C/CA, LDF-C/CA, NEM, NDR, NDRM
AP-M, MP-S
MC-60/4A
TD-H
TD-H
YAZ
60 and 120 Watt Amplifiers
APPLICATIONS
- Background Music for NEM System
- Paging & Background Music
- All Call & Group Call for AI-900 System
- Paging & Background Music
- Paging & Background Music
- Paging & Background Music
