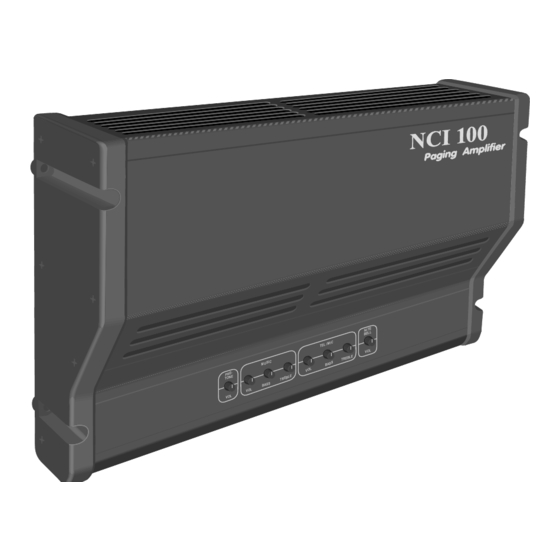

PG-C Series Amplifiers, with built-in paging adaptors, are designed for use with Aiphone
paging/intercom systems. 20, 50 and 100 watt models are available.
1
1
PRODUCT FEATURES
• Built-in Aiphone paging adaptors (MC-A, PD-1, PD-2).
• For use with Aiphone intercom systems MC-60/4, TD-H/Z,
RCX, YKX, or as a stand-alone.
• Telephone system interface for paging.
• Full range volume and tone controls.
• Short circuit and overload protected.
• Separate bass and treble controls for paging and music.
• Adjustable background music volume control.
• Adjustable paging pre-tone volume control.
• Dry contact or VOX music mute (Mic or Tel).
• Black anodized brushed aluminum finish
with ABS end panels.
• NRTL/C certified (complies with both UL & CSA standards).
PAGING AMPLIFIER
PG-20C
PG-50C
PG-100C
- INSTRUCTIONS -
Advertisement
Table of Contents
Related Manuals for Aiphone PG-100C
Summary of Contents for Aiphone PG-100C
-
Page 1: Product Features
PAGING AMPLIFIER PG-C Series Amplifiers, with built-in paging adaptors, are designed for use with Aiphone paging/intercom systems. 20, 50 and 100 watt models are available. PRODUCT FEATURES • Built-in Aiphone paging adaptors (MC-A, PD-1, PD-2). • For use with Aiphone intercom systems MC-60/4, TD-H/Z, RCX, YKX, or as a stand-alone. -
Page 2: Names And Functions
Adjusts the level of the telephone/microphone input separately from the music controls. D) Adaptor Volume - P8 Adjusts the volume level of the paging via the Aiphone intercom/paging system. 4. DIP SWITCHES A) Dip switches 1 & 2 - Telephone/Microphone If a telephone system is used, set both switches to the ON position. -
Page 3: Preset Controls
It is important that shielded cable be used to avoid any induced hum. If you are using the matching PGT-8 tuner, follow the separate instructions included with the tuner. In applications where this amplifier is used with an external Aiphone paging adaptor, this input may be used as an AUX input with 10K ohms impedance. -
Page 4: Installation
INSTALLATION 1. Mount the amplifier on a wall or base plate capable of supporting its weight securely. Be sure no heat producing elements are nearby. Also be sure that the area behind the amplifier allows a clear path of air to flow and that the air slots at the top and bottom are not obstructed. IMPORTANT: To comply with NRTL/C safety regulations, a minimum clearance of 6 inches must be maintained above the unit. - Page 5 WIRING DIAGRAMS - CONT. TD-H/Z TELEPHONE TYPE SYSTEM TD-H/Z Terminal # – For each paging zone required, use the appropriate sized PG-C amplifier. MICROPROCESSOR SYSTEMS Central Exchange Unit For each paging zone (up to a total of four), use the appropriate sized PG-C amplifier. PG-nC Paging Amplifier Page C/2...
- Page 6 WIRING DIAGRAMS - CONT. BA-1 LEF-10 Music/Aux* +12VDC For each paging zone required, use the appropriate sized PG-C amplifier. For further information on these products, please refer to the instructions provided with each unit. NEM-20 BA-1 Music/Aux* +24VDC – For each paging zone required, use the appropriate sized PG-C amplifier. For further information on these products, please refer to the instructions provided with each unit.
-
Page 7: Specifications
120V AC, 60 Hz 80 watts W 12-3/4", H 7-1/2", D 3" (W 323, H 190, D 76 mm) 7.6 lb (3.4 kg) PG-100C 100 Watts RMS Less than 1% at 1,000 Hz rated output 3 dB, 100 to 20,000 Hz... -
Page 8: Limited Warranty
Aiphone warrants its products to be free from defects in material and workmanship under normal use and service for a period of one year after delivery to the ultimate user. At our discretion, Aiphone will repair free-of-charge or replace at no charge a product should it, upon examination, be proven defective and under warranty. Aiphone reserves unto itself the sole right to make the final decision whether there is a defect in materials and/or workmanship, and whether or not the product is within the warranty.
