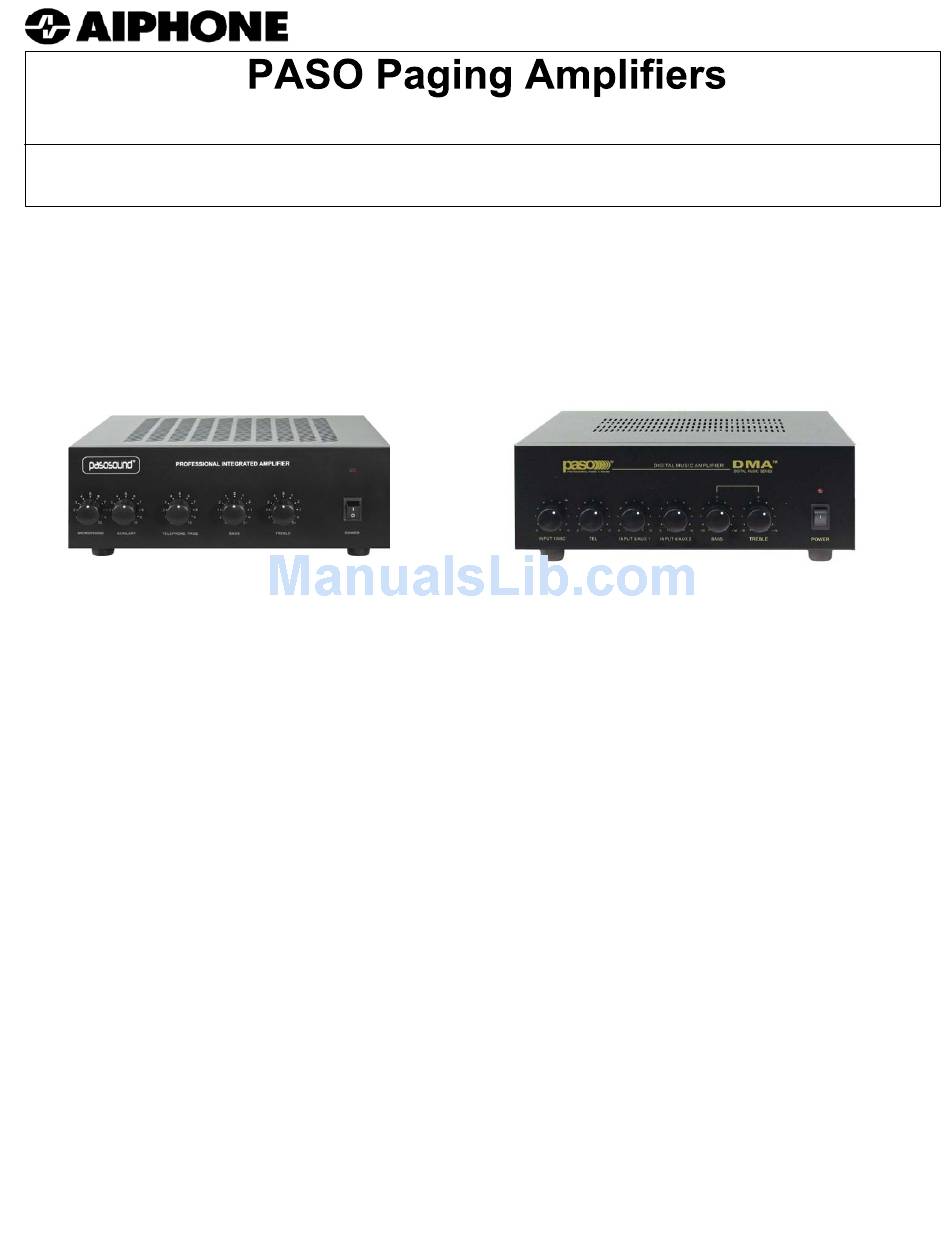

P30BGM (30W); DMA2060 (60W); DMA2120 (120W)
- Supplemental Wiring Instructions for connecting with Aiphone Systems -
Aiphone offers a series of Paging Amplifiers to provide paging and other features for many of our systems.
These amplifiers are manufactured by PASO, and are available in 30, 60, and 120 Watt sizes. When
adding background music to the NEM system or paging to a large variety of other Aiphone systems, these
amplifiers are tested and approved. This supplemental instruction manual includes wiring diagrams for
applications with Aiphone systems. See PASO Installation & Operation Manual included with the product
for complete information on these products.
30 Watt Amplifier
AVAILABLE MODELS
P30BGM
DMA2060
DMA2120
When using the above Amplifiers for Paging via an Aiphone system, match the appropriate
paging adaptor with the system being used. Choose the amplifier based on input and output
requirements for your application.
PAGING ADAPTOR
AXW-PA1
BA-1
MC-A/A
PD-1
PD-2 (w/Talkback)
0315
Provided by Aiphone
WATTAGE
30 Watts
60 Watts
120 Watts
SYSTEM
AX
LEM, LEF, NEM, NDR, NDRM
MC-60/4A
TD-H
TD-H

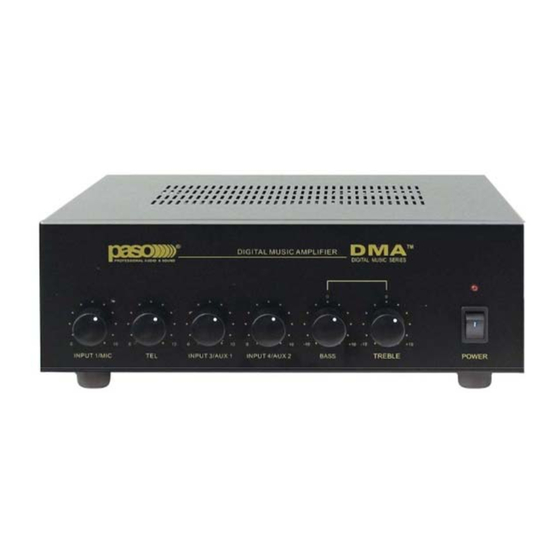

60 and 120 Watt Amplifiers
APPLICATIONS
- Paging & Background Music
- Paging & Background Music
- Paging & Background Music
Advertisement
Related Manuals for Aiphone P30BGM
Summary of Contents for Aiphone P30BGM
- Page 1 - Supplemental Wiring Instructions for connecting with Aiphone Systems - Aiphone offers a series of Paging Amplifiers to provide paging and other features for many of our systems. These amplifiers are manufactured by PASO, and are available in 30, 60, and 120 Watt sizes. When adding background music to the NEM system or paging to a large variety of other Aiphone systems, these amplifiers are tested and approved.
-
Page 2: Wiring Diagram
WIRING DIAGRAM P30BGM with the IS System: Page through an overhead speaker system from an IS system using the IS-CCU, IS-SCU, or IS-RCU (P1-P4 outputs). pasosound 600Ω 47KΩ 200mv LINE OUT IN PARALLEL 250Ω 600Ω 10KΩ/600Ω 100mV To Tel (COM & HOT) - Page 3 To B on NEM/NDR/NDRM Master WIRING DIAGRAM P30BGM with the BA-1: Page through an overhead speaker system from a channel selector on an Aiphone Master Station. See page 1 for systems compatible with the BA-1. Yellow to # terminal on Master...
- Page 4 When not using “EQ LINK” ports, Speaker System adjust switch to “INTERNAL” Green to E on Master WIRING DIAGRAM P30BGM with the MC-A/A on the MarketCom System: To 24VDC + and 1 on MC-60/4 To 2 on MC-60/4 pasosound To 3 on MC-60/4 To 4 on MC-60/4 To 24VDC –...
- Page 5 WIRING DIAGRAM P30BGM with the PD-1 or PD-2 and TD-H System: To 12VDC + on TD-nH/B To 12VDC – on TD-nH/B pasosound To # on TD-nH/B 600Ω 47KΩ 200mv LINE OUT IN PARALLEL 250Ω 600Ω 10KΩ/600Ω 100mV LINE FUSE MUTE ATTENUATOR 1.6A 250V...
- Page 6 WIRING DIAGRAM P30BGM with the AXW-PA1 on the AX System: pasosound 600Ω 47KΩ 200mv LINE OUT IN PARALLEL 250Ω 600Ω 10KΩ/600Ω 100mV LINE FUSE MUTE ATTENUATOR 1.6A 250V LEVEL 50KΩ 100mV TEL PAGE 10KΩ/600Ω UNBALANCED INTERNAL SPEAKER OUTPUT JUMPER 120V 60Hz...
- Page 7 Input 3: Mic 3 - Aux 1 balanced Input 4: Mic 3 - Aux 2 balanced Zone 1 (8 ohm, 2W) MOH (1V) Line out (600 ohm See PASO Amplifier Installation Manual & Operating Instructions for complete information. P30BGM (30W) DMA2060 (60W); DMA2120 (120W) Page 7...
-
Page 8: Specifications And Warranty
1. Call Paso at 1-800-231-3034 and ask for an SA Number (Service Authorization number). 2. Advice Paso that the unit was purchased from Aiphone and that you are an Aiphone customer requesting to send the unit in for repair evaluation.
