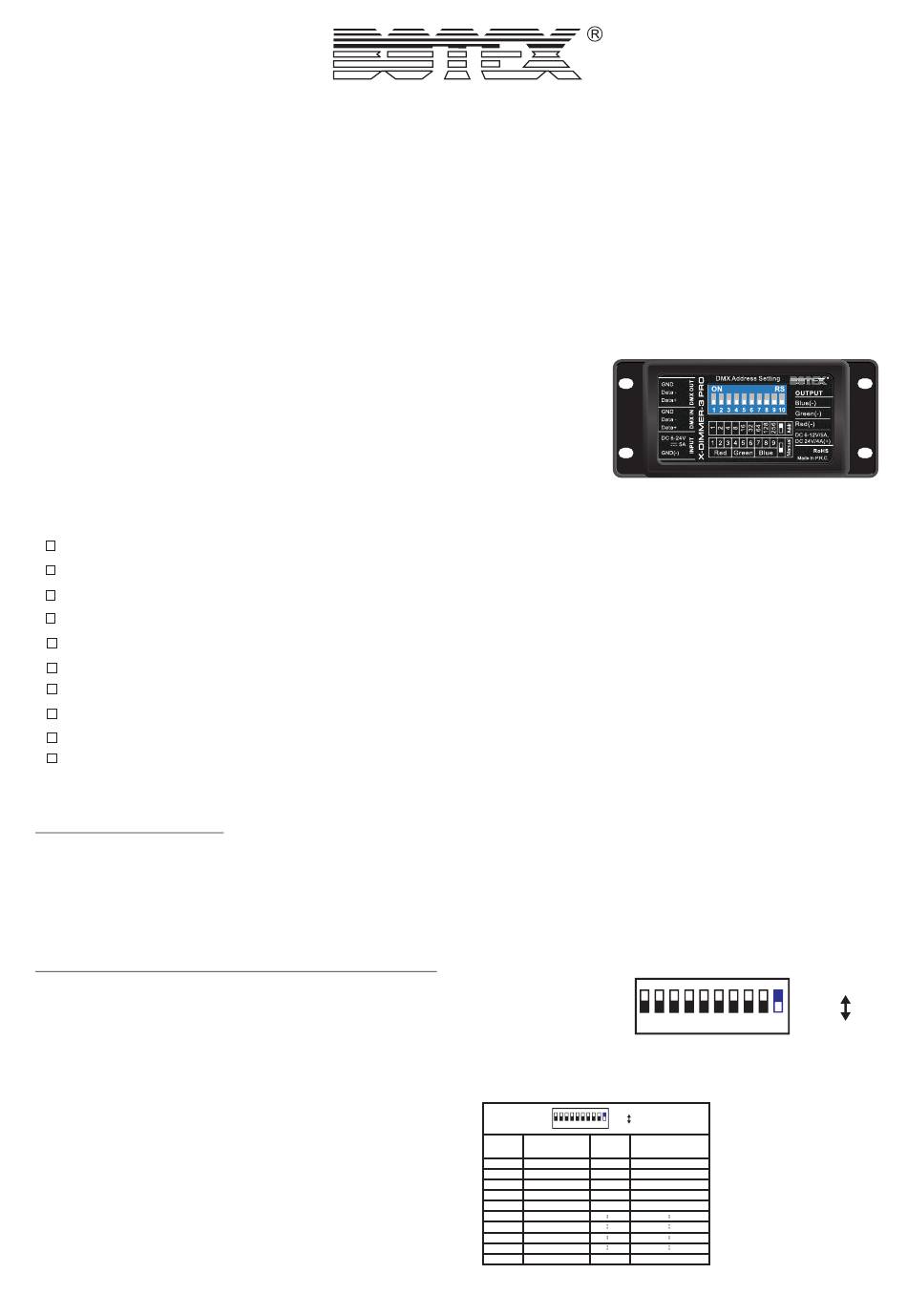

Botex X-DIMMER-3 PRO User Instructions

DESCRIPTIONS
Congratulations with your purchase of this product.
Read this manual carefully before using our BOTEX X-DIMMER-3 PRO. The X-DIMMER-3 PRO, three channel
(R.G.B.) LED dimmer, is designed to set the intensity for R.G.B. LEDs, three channels can be controlled separately.
Available in online operation, DMX control mode for slave control, Manual Dim mode for master control.
DELIVERY PACKET
Check for transport damage.
You should be in possession of the following items:
1 X-DIMMER-3 PRO
1 Manual, 1 Screwdriver & 1 connecting part
Should you discover transport damage after unpacking the equipment,
inform the hauler immediately. Never connect a damaged device. You
may also contact your supplier.
TECHNICAL SPECIFICATIONS
Power Requirement
Output
Housing
Control Protocol
Listing
Connection
Operation temperature
Ingress Protection Rating
Dimensions
Weights
OPERATION GUIDE
1.Power Requirements
When the power output is
the maximum of loads connected modules distributed over all 3 channels must not exceed 5A.
When the power output is
the maximum of loads connected modules distributed over all 3 channels must not exceed 4A.
2.DMX Control Mode(DMX Addressing)-Slave Mode
In this mode, the dip-switch 10 is flipped to the "ON" position, DMX address
can be set and the intensity of LED is controlled. Red effect is controlled by
Ch1, Green effect is controlled by Ch2 and Blue effect is controlled by Ch3.
DMX is short for Digital Multiplex. This is a universal binary language used as a form of communication between
intelligent fixtures. Each Dip Switch represents a binary value.
Dip Switch 1 address equals 1
Dip Switch 2 address equals 2
Dip Switch 3 address equals 4
Dip Switch 4 address equals 8
Dip Switch 5 address equals 16
Dip Switch 6 address equals 32
Dip Switch 7 address equals 64
Dip Switch 8 address equals 128
Dip Switch 9 address equals 256
X-DIMMER-3 PRO X-DIMMER-3 PRO
User Instructions
6~24VDC/5A
6~12VDC/5A, 24VDC/4A
Black plastic
DMX-512 (1990)
CETL Certified
Terminal
0 degC to +40 degC
IP 20
90(L) x 40(W) x 20(H)mm
50g
6~12VDC, a
maximum of up to 5A loads are allowed on a single channel and
24VDC, a
maximum of up to 4A loads are allowed on a single channel and
1 2 3 4 5 6 7 8 9 10
START START
SWITCHES ON
CH# CH#
1 1 11
2 2 12
3 1,2 13
4 3 14
5 1,3 15
2,3
6
7 1,2,3
8 4
1,4
9
2,4 511
10
-1-
X-DIMMER-3 PRO
1 2 3 4 5 6 7 8 9 10
1 = ON
0= OFF
SWITCHES ON
1,2,4
3,4
1,3,4
2,3,4
1,2,3,4
1,2,3,4,5,6,7,8,9
P/N:24-004-2494-00
1 = ON
0= OFF
Rev 2.1
