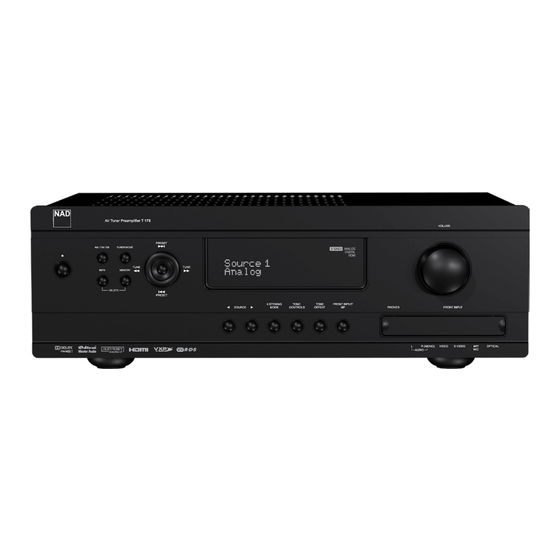

- Page 1 T 175 ® AV Tuner Preamplifier Owner’s Manual...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read instructions - All the safety and operating instructions should be NOTE TO CATV SYSTEM INSTALLER read before the product is operated. This reminder is provided to call the CATV system installer’ s attention to Section 820-40 of 2. Retain instructions - The safety and operating instructions should be the NEC which provides guidelines for proper grounding and, in particular, specifies that retained for future reference. - Page 3 NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited Copyright 2009, NAD Electronics International, a division of Lenbrook Industries Limited...
-
Page 4: Table Of Contents
NAD IPD 2 ........ -
Page 5: Introduction
A single, high-precision master clock synchronizes all digital circuits to eliminate the timing errors (“jitter”) that otherwise compromise Packed with your T 175 is the NAD HTRC 1 remote control, a full-system sonics. The result is legitimately state-of-the-art surround decoding from remote especially designed for easy use and understanding. -
Page 6: Getting Started
INTRODUCTION GETTING STARTED WHAT’S IN THE BOX Packed with your T 175 you will find • An AM loop antenna • A FM ribbon-wire antenna with balun • A removable AC cable (if you wish, any IEC-standard AC cable of suitable wattage may be substituted) • The HTRC 1 remote control with 4 (four) AA batteries • The ZR 4 zone remote control with 3V CR2025 battery • This owner’s manual... -
Page 7: Quick Start
INTRODUCTION GETTING STARTED QUICK START Packed with your T 175 is a Quick Start Guide that will guide you through typical setup configurations in combination with your ancillary devices. The Quick Start Guide also features the contents of your T 175 package as well as start up procedures. The T 175 is defaulted to the following settings: Source Audio Input... -
Page 8: Identification Of Controls
IDENTIFICATION OF CONTROLS FRONT PANEL 1 STANDBY BUTTON : Press this button or the HTRC 1 remote’s [ON] 4 AM/FM/DB : Toggle this button to select either AM, FM, DAB (230V button to switch ON the T 175. The Standby LED indicator will turn from version only) or XM (120V version only) tuner functions. - Page 9 IDENTIFICATION OF CONTROLS FRONT PANEL 10 VOLUME : Use this control to adjust the overall loudness of the signal 16 PHONES : Accepts stereo headphone using a standard 1/4-inch stereo output at AUDIO PRE-OUT. The default volume level is -20dB. The phone plug (use a suitable adapter for headphones equipped with a VOLUME knob is also used to increment / decrement other adjustable smaller plug).
-
Page 10: Rear Panel
3 MP DOCK: The T 175 is equipped with a data port in the rear panel of a multichannel source component such as a DVD-Audio or where an optional NAD IPD (NAD IPD Dock for iPod), NAD IPD 2 and multichannel-SACD player or external multichannel decoder (disc copy later variants can be plugged in. - Page 11 Mini-Din connector from the NAD DAB Adaptor DB 1 module output port into this socket. The T 175 is compatible only with NAD IR IN and IR OUT 3: Connect the T 175’s IR IN to the IR OUT of an DAB Adaptor DB 1 so check with your NAD dealer for this module’s...
- Page 12 IDENTIFICATION OF CONTROLS REAR PANEL 11 AUDIO 3-4 OUT/VIDEO 3-4 OUT/S-VIDEO 3-4 OUT: Connect the 14 DIGITAL AUDIO IN (OPTICAL 1-3, COAXIAL 1-3): Connect to the T 175’s AUDIO 3 OUT/VIDEO 3 OUT/S-VIDEO 3 OUT or AUDIO 4 OUT/ optical or coaxial S/PDIF-format digital output of sources such as CD VIDEO 4 OUT/S-VIDEO 4 OUT ports to the analog audio/video input or DVD/BD players, HDTV or satellite tuners and other components.
-
Page 13: Operation
OPERATION USING THE T 175 – MAIN MENU ABOUT THE ON-SCREEN DISPLAY (OSD) LISTENING MODE The T 175 employs a simple, self-explanatory system of on-screen display “menus” that will appear on the connected video monitor/TV. These are required during the setup process (and are useful in day-to-day operation), so be sure to connect the monitor/TV before proceeding with setup. -
Page 14: Adjusting Listening Modes
Two-channel recordings, whether stereo or surround-encoded, are independently from the relative channel levels. reproduced with proprietary NAD surround processing with signals output Panorama (On/Off ): Adds a “wraparound” effect by extending some to the front left/right, center and discrete left/right surround channels, stereo content into the surround channels. -
Page 15: Dsp Options
NAD: Ideal “in room” response developed by NAD engineers along with Audyssey Dynamic Volume can be set to the following levels Light: Provide the least adjustment to the loudest or softest sound Audyssey Engineers. -
Page 16: Tone Controls
OPERATION USING THE T 175 – MAIN MENU TONE CONTROLS PICTURE CONTROLS The T 175 has three Tone Control levels – Treble, Bass and Center Dialog. Picture Controls allow video adjustments of the source material or source Bass and Treble controls only affect the low bass and high treble leaving the components to suit one’s preference. -
Page 17: Zone Controls
OPERATION USING THE T 175 – MAIN MENU ZONE CONTROLS Depending on the settings made at the separate ‘Zone Setup’ menu under the ‘Setup Menu’ section discussion, the applicable Zone can be configured and managed via this ‘Zone Controls’ window. Select ‘On’ to activate the applicable Zone. When activated, the Source input for the particular Zone can be allocated by selecting through the following inputs –... -
Page 18: Using The T 175 - Setup Menu
OPERATION USING THE T 175 – SETUP MENU SETUP MENU Aspect Ratio: Select a picture size matching the aspect ratio of your TV/Monitor. 4:3: Select “4:3” when a standard 4:3 TV is connected. “4:3” is not selectable when the resolution is set to higher that 480i, 480p, 576i or 576p. 16:9: Select “16:9”... -
Page 19: Source Setup
OPERATION USING THE T 175 – SETUP MENU SOURCE SETUP NAME A new Name maybe assigned to a Source label. For example, if your DVD player is attached to ‘Source 1’ , it is possible to rename ‘Source 1’ to ‘DVD Player. ’ From Setup Menu, pressing will direct you to the Source Setup menu wherein you could adjust allocate or change the settings of the following –... - Page 20 OPERATION USING THE T 175 – SETUP MENU GAIN VIDEO Gain adjustment allows all sources to play back at the same volume so you There are four types of video input a particular Source could be assigned. don’t need to adjust the volume every time a new source is selected. It is These are HDMI, Component, S-Video and Video inputs.
-
Page 21: Source Setup (Table View)
Enabled : Select ‘Yes’ to enable iPod as a Source or ‘No’ to disable it. Auto Connect : Select ‘Yes’ to automatically enable and connect the iPod player docked in the linked NAD iPod docking station when Source 5 (the default iPod source allocation in the T 175) is selected. Select ‘No’... -
Page 22: Audyssey Auto Calibration
OPERATION USING THE T 175 – SETUP MENU AUDYSSEY AUTO CALIBRATION AUDYSSEY MultEQ XT ROOM ACOUSTICS CORRECTION Sound reflecting from room boundaries can disturb the spatial illusion of surround sound, and can also distort the tonal balance of the system. Professional Acoustical Engineers often add wall treatments and even move walls and relocate speakers to improve system performance, but for the average Home Theatre, this is either too expensive or just not a practical solution. - Page 23 NAD engineers have done extensive research in this area of room acoustics, and along with Audyssey engineers developed what we believe is the ideal ‘in room’ response curve. We include this NAD EQ, along with an Audyssey developed EQ as the two best choices. The response curves shown below typify NAD EQ room correction process.
-
Page 24: Speaker Configuration
OPERATION USING THE T 175 – SETUP MENU SPEAKER CONFIGURATION Speaker Configuration can be managed and adjusted by pressing a combination of and then keys. Set ‘Front, ’ ‘Center, ’ and ‘Surround’ to “Large, ” “Small” or “Off” as your subsystem’s speakers require. The ‘Back’ speakers can either be one or two speakers. Set ‘Back’ to either 1 or 2 speakers as per availability. -
Page 25: Speaker Distance
OPERATION USING THE T 175 – SETUP MENU SPEAKER DISTANCE The SPL meter should be placed at the primary listening position, at approximately the height of the seated listener’s head. A tripod is helpful but with a little duct tape almost anything — a pole lamp, music-stand, or ladder-backed chair, for example —... -
Page 26: Adjusting Channel Levels 'On The Fly
‘Record Out’ setting is ideal for making recordings with a VCR or other NOTE similar devices. This setting is also used for multi-zone installations using Level settings adjusted ‘On the Fly’ are added or subtracted to the setup passive ‘impedance matching’ volume controls. See your NAD dealer for levels established at the T 175 level-calibration routine as invoked by the specific information about integrating your T 175 into a multi-room audio HTRC 1 ‘Test’ key. However, selecting any Preset will revert the channel distribution system. -
Page 27: Trigger Setup
OPERATION USING THE T 175 – SETUP MENU TRIGGER SETUP LISTENING MODE SETUP The T 175 features three configurable +12V DC Trigger Output that can be The T 175 has various listening mode options and is mostly configurable. used to activate a component or system it is fed into. A Trigger Input is also These are provided to reproduce a variety of sound effects depending available to turn on the applicable link it is associated to. - Page 28 OPERATION USING THE T 175 – SETUP MENU DOLBY DIGITAL PLUS Dolby Digital Plus is the next-generation audio technology for all high- The Digital Theater System Digital Surround (simply called DTS) is a multi- definition programming and media. It combines the efficiency to meet channel digital signal format that can process higher data rates than with Dolby future broadcast demands with the power and flexibility to realize the full Digital.
-
Page 29: Dolby Setup
OPERATION USING THE T 175 – SETUP MENU DOLBY SETUP DTS SURROUND MODES The following are further descriptions about the DTS surround modes. DTS-HD MASTER AUDIO DTS-HD Master Audio is a technology that delivers master audio sources recorded in a professional studio to listeners without any loss of data, preserving audio quality. -
Page 30: Enhanced Stereo
Video Mode: Show the video resolution of the active input source. Details shown include the video resolution with frame rate. For a better understanding of these video details, consult with your NAD Audio Specialist or your distributor’s technical department. Zone 2-Zone 3-Zone 4 Source : The assigned Source for the applicable Zone is shown. -
Page 31: A/V Presets
OPERATION USING THE T 175 – SETUP MENU A/V PRESETS SAMPLE PROCEDURE FOR SETTING UP A/V PRESETS 1 Setup first your preferred settings for the following options (access them through their respective menu page). Listening Mode: Stereo The T 175’s simple but powerfully flexible system of ‘Presets’ allows you to customize virtually every aspect of your audio-video playback, and recall them with a single key-press. - Page 32 OPERATION USING THE T 175 – SETUP MENU 3 At “A/V Presets” page, set “Preset: 1” to the following conditions - use [ Picture Controls: Aspect Mode – Letterbox to select “Yes” or “No” and press [ENTER] to confirm selection and move on to the next setting Speaker Setup: from the Speaker Setup menu, go to “Speaker Configuration”...
- Page 33 OPERATION USING THE T 175 – SETUP MENU 6 At “A/V Presets” page, set “Preset: 2” to the following conditions - use [ Tone Controls: Tone Defeat: Off to select “Yes” or “No” and press [ENTER] to confirm selection and move to the next setting Display Setup: Set “Line 2” to “Volume” While at “Save Current Setup to Preset”...
-
Page 34: Using The T 175 - Am/Fm/Db/Ipod
OPERATION USING THE T 175 – AM/FM/DB/iPod LISTENING TO AM/FM RADIO TUNING STATIONS The T 175’s internal AM/FM tuner offers very high quality sound from radio 1 Press TUNE on the front panel momentarily to step up or down broadcasts. The reception and sound quality will always be dependent to a between AM or FM frequencies. -
Page 35: About User Names
DEVICE SELECTOR is set to “TUNER”. • In XM mode and with DEVICE SELECTOR set to “TUNER”, HTRC 1’s [FM the sacrifice of the stereo effect. MUTE] button has the same function as that of the front panel’s [TUNER NOTE MODE] button. One can store the same channel in two preset locations - one with • Check with your NAD audio specialist for other versions of XM Mini- TUNER MODE On and another with TUNER MODE Off. Tuner compatible with T 175. ABOUT USER NAMES IMPORTANT NOTICE Unless otherwise specifically stated, navigating or accessing XM functions You can assign an eight character “User Name” to each radio preset, which will show in the front-panel readout whenever that preset is recalled. -
Page 36: Listening To Dab Radio
NAD-specified outboard DAB 3 Upon selecting either “Full Scan” or “Local Scan”, automatic scanning module – the NAD DAB Adaptor DB 1. All the control software for this format is included; just plug-in the module and start enjoying the CD-like will be performed. -
Page 37: Service List
OPERATION USING THE T 175 – AM/FM/DB/iPod 4 The strength of the incoming signal can be shown on the VFD by pressing the [ENTER] button. The more segments visible in the lower The level of compression of stations can be set to eliminate the differences display line, the stronger the signal. -
Page 38: Reset
USING THE T 175 – AM/FM/DB/iPod RESET INFORMATION SETTINGS The “Reset” option allows the connected (and separately sold) NAD DAB While listening to a DAB broadcast, the type of information displayed in the Adaptor DB1 to be reset to its factory default settings. lower line of the VFD can be varied. Toggle front panel’s [INFO] button to 1 While listening to a DAB broadcast, press front panel’s [TUNER MODE]... -
Page 39: Listening To Your Ipod Player
After linking together your iPod player, NAD IPD and the T 175, you can now changes. plug them IN to their applicable power sources. 1 With your T 175, iPod player and NAD IPD all at power ON state, select SCAN [ ] / PAUSE [ ] / PLAY [ ] SOURCE 5 of your T 175. -
Page 40: Nad Ipd 2
NAD IPD 2 TO VIEW VIDEOS OR PHOTOS LOADED IN YOUR iPod The NAD IPD 2 has its own remote control - the DR 1. For you to control the Videos or photos uploaded in your iPod can be viewed directly via the NAD IPD 2 using the DR 1, you have to go to “iPod Setup” menu (please refer T 175. -
Page 41: Using The Htrc 1 Remote Control
• Mini USB PC Interface allows programming from a Personal Computer. The HTRC 1 is already preprogrammed with a full complement of NAD commands on its AMP DEVICE SELECTOR page, and with library commands to operate most NAD DVD, CD and TUNER components on the corresponding DEVICE SELECTOR keys. -
Page 42: Navigation Of The Htrc 1 Controls
If within five seconds you then press a digit (0 – 9), the function for the corresponding A/V Preset will be transmitted. NOTE TIMEOUT: The backlight timeout can be set from 0 - 20 seconds. This is the The HTRC 1 is a universal-type remote control; some NAD models may not have more than 5 AV presets. length of time the backlight stays ON after releasing the last key. SOFTWARE VERSION NUMBER Press simultaneously the ON + TEST buttons for five seconds to display version numbers. -
Page 43: Library
LIBRARY 5170, 5240, 5340 L70, L73 DVD The HTRC 1 can store a different library of default NAD codes for each of 5325 its DEVICE SELECTOR “pages. ” If the original default library does not control T513, T514, T515, T517, T524,... -
Page 44: Punch-Through (Pun Thr)
OPERATION USING THE HTRC 1 REMOTE CONTROL 3 Press [ENTER]. At “2 Pass” mode, step 5 and onwards of the above example would be as follows (the same Steps 1 – 4 of the above example applies) 5 Press and hold the corresponding [MENU] button of the TV remote control. -
Page 45: Copy
] to not be saved) and “Yes” (desired punch-through key will be saved and scroll to “Copy”. process is completed). NOTE The HTRC 1’s [VOL] keys are pre-programmed as “punched-through” for all Device Select pages: [VOL] will operate the NAD’s master-volume 3 Press [ENTER]. regardless of the currently selected device. The [SURR], [CENT] and [SUB] CHANNEL VOLUME controls similarly are pre-programmed as punched- through. PUNCH-THROUGH MACRO A stored macro command can also be “punched-through. ” This provides a way to execute a macro with a single keys press. -
Page 46: Delete
5 Use [ ] to select between “No” (desired function key will not be Example: Record a Macro to the [0] key to turn ON the NAD T 175, Select deleted) and “Yes” (desired function key is deleted and process is completed). -
Page 47: Reset
To execute the above macro example, press [MACRO] and then [0]. The HTRC 1 allows one to upload and download the configuration through a Windows® PC and NAD’s Proprietary HTRC 1 programming software. Use a USB A male to mini USB B male 5-pin cable (not supplied) between your Windows®... -
Page 48: Using The Zr 4 Remote Control
OPERATION USING THE HTRC 1 REMOTE CONTROL BATTERY INSTALLATION SLEEP MODE The Sleep Mode timer will switch the T 175 to Standby mode automatically after a preset number of minutes. Pressing the HTRC 1’s SLEEP button once will display the setting of the sleep time increment. Pressing the HTRC 1’s SLEEP button a second time within a 3-second period will change the sleep time increment in 15-minute intervals, after which time the T 175 will automatically switch into Standby mode. -
Page 49: Reference
REFERENCE TROUBLESHOOTING CONDITION POSSIBLE CAUSES POSSIBLE SOLUTIONS No sound from all channels. • AC power unplugged. • Check AC cable connection and outlet. • Power not switched on. • Outlet has no power. No sound from some channels. • Faulty/missing cables. • Check cables. • ’Speaker Configuration’ channel (s) set to •... -
Page 50: Specifications
REFERENCE SPECIFICATIONS PREAMPLIFIER SECTION Input sensitivity and impedance 350mV/50KΩ Frequency response ± 0.5 dB (ref. 20Hz – 20kHz) Total harmonic distortion <0.08% Input sensitivity 330mV (ref. 2V) Signal/noise ratio >93dB (ref.500mV, A-WTD) Signal/noise ratio >83dB (ref. 2V, A-WTD) Output impedance <150 ohms Maximum output level >3.5V... - Page 52 All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
